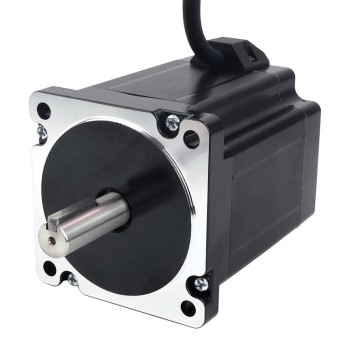

Model: 34HS38-4204D
Stock: In Stock
This is a dual-shaft motor with a 15mm long rear shaft and holding torque of 6.8Nm(962.96oz.in), and the shaft diameter is 12mm. Threaded holes are available on the rear end cap which can be used to brakes, encoder for hand wheels.Electrical Specific..
from
$44.71

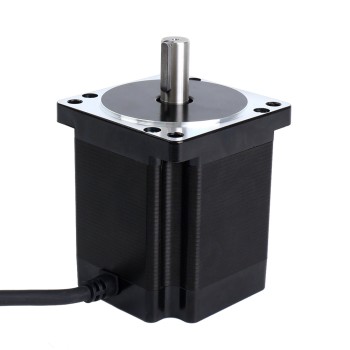

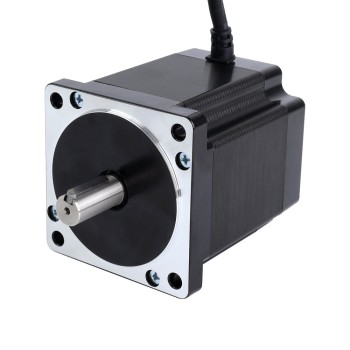

Model: 34HS39-6004S
Stock: In Stock
This is a Nema 34 stepper CNC motors with a step angle of 1.8deg and size of 86x86x98mm. It has 4 wires, draws 6.0A per phase and has a holding torque of 8.0Nm(1132.89oz.in).Electrical SpecificationManufacturer Part Number: 34HS39-6004SNumber of phas..
from
$43.19

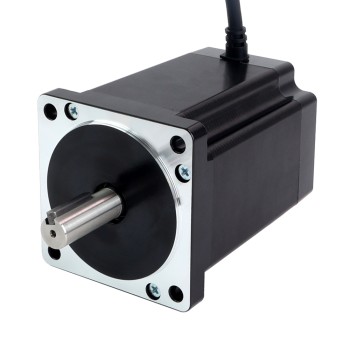

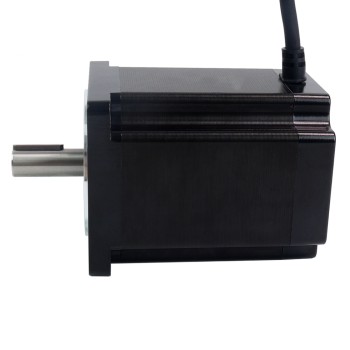

Model: 34HS45-6004S
Stock: In Stock
This NEMA 34 stepper motor features a 1.8-degree step angle, a holding torque of 8.2Nm(849.84oz.in), and draws 6.0A per phase. It comes equipped with a 37mm keyway shaft and 500mm cables.This motor offers a combination of high torque and low inertia...
from
$58.09

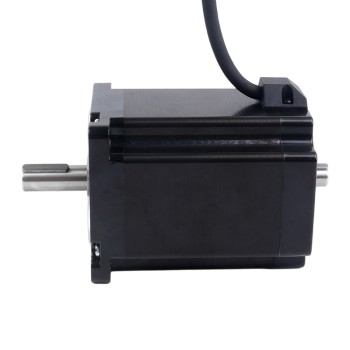

Model: 34HS46-5004D1
Stock: In Stock
This is a dual-shaft motor with a 15mm long rear shaft and holding torque of 8.5Nm(1204oz.in), and the shaft diameter is 12mm. Threaded holes are available on the rear end cap which can be used to brakes, encoder for hand wheels.Electrical Specificat..
from
$42.40
Model: 34HS46-6004S1
Stock: In Stock
Electrical SpecificationManufacturer Part Number: 34HS46-6004S1Number Of Phase: 2Step Angle: 1.8deg Holding Torque: 8.5Nm(1204oz.in)Rated Current/phase: 6.0APhase Resistance: 0.58ohms± 10%Inductance: 5mH±20%(1KHz)Insulation Class: B 130°C[266°F]Physi..
from
$69.96
Model: 34HS59-6004S
Stock: In Stock
Electrical SpecificationManufacturer Part Number: 34HS59-6004SNumber of phase: 2Step Angle: 1.8deg Holding Torque: 12.0Nm(1699.34oz.in)Rated Current/phase: 6.0APhase Resistance: 0.7ohms± 10%Inductance: 7.6mH±20%(1KHz)Insulation Class: B 130°C[266°F]P..
from
$77.17

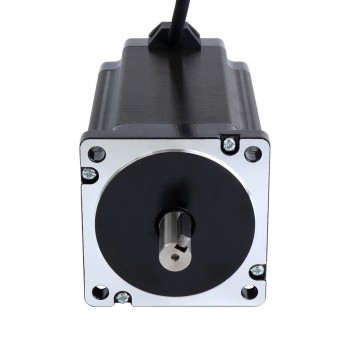

Model: 34HS61-6004S1
Stock: In Stock
Electrical SpecificationManufacturer Part Number: 34HS61-6004S1Number Of Phase: 2Step Angle: 1.8deg Holding Torque: 13Nm(1841oz.in)Rated Current/phase: 6.0APhase Resistance: 0.9ohms± 10%Inductance: 7.5mH±20%(1KHz)Insulation Class: B 130°C[266°F]Physi..
from
$95.40
