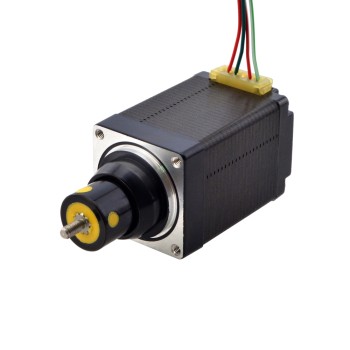

Model: 11C18S1004GD5-013RS
Stock: In Stock
This model is a Nema 11 Captive ACME screw linear stepper motor with a 46mm body length, 1.8 degree step angle and 1.0A rated current. It is integrated with a 4.76mm(0.1874") diameter, 12.7mm(0.5") Stroke Length, the linear travel is 2.54mm(0.1") per..
from
$79.86

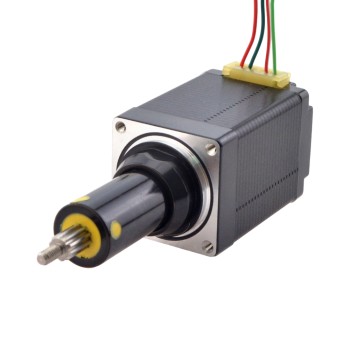

Model: 11C18S1004GD5-025RS
Stock: In Stock
This model is a Nema 11 Captive ACME screw linear stepper motor with a 46mm body length, 1.8 degree step angle and 1.0A rated current. It is integrated with a 4.76mm(0.1874") diameter, 25.4mm(1") Stroke Length, the linear travel is 2.54mm(0.1") per r..
from
$79.86

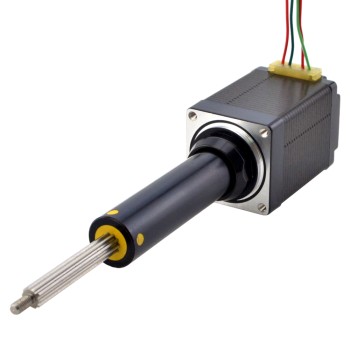

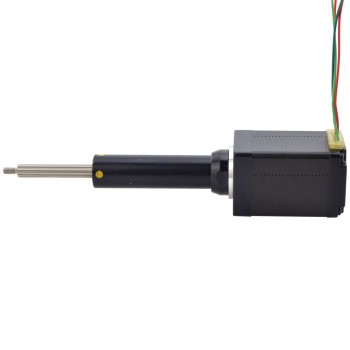

Model: 11C18S1004HD5-051RS
Stock: In Stock
This model is a Nema 11 Captive ACME screw linear stepper motor with a 46mm body length, 1.8 degree step angle and 1.0A rated current. It is integrated with a 4.76mm(0.1874") diameter, 50.8mm(2") Stroke Length, the linear travel is 5.08mm(0.2") per r..
from
$79.86
Model: 11E13S0424ED5-150RS
Stock: In Stock
This model is almost exactly same as Haydon Kerk 28000 series size 11 external stepper motor linear actuator. The motor part is 32.2mm body 1.8 degree 0.42A Nema 11 stepper motor, and it has integrated with a 4.76mm(0.1874") diameter 150mm(5.9055") l..
from
$48.68
Model: 11E13S0754AA2-100RS
Stock: In Stock
This model is economy linear stepper motor which named Nema 11 external linear actuator, the motor part is 34mm 1.8 degree 0.75A Nema 11 stepper motor. It was integrated with 100mm Tr5x2 threaded rod and a POM screw nut move along the threaded rod.
..
from
$38.16
Model: 11E13S0754ED2-100RS
Stock: In Stock
This model is economy linear stepper motor which named Nema 11 external linear actuator, the motor part is 34mm 1.8 degree 0.75A Nema 11 stepper motor. It was integrated with 100mm Tr4.76x0.635 threaded rod and a POM screw nut move along the threaded..
from
$38.16
Model: 11E13S0754ED4-100RS
Stock: In Stock
This model is economy linear stepper motor which named Nema 11 external linear actuator, the motor part is 34mm 1.8 degree 0.75A Nema 11 stepper motor. It was integrated with a 4.76mm(0.1874") diameter 100mm length lead screw and a POM screw nut, the..
from
$36.57
Model: 11E13S1004FD4-150RS-OE1K
Stock: In Stock
This Nema 11 linear stepper motor integrates a high-resolution 1000PPR optical incremental encoder. It features a 150mm(5.9055") long ACME lead screw with a diameter of Φ4.76mm(0.315") and a POM nut, delivering a linear travel of 1.27mm(0.05") per re..
from
$101.55
Model: 11E13S1004FD5-150RS
Stock: In Stock
This is integrated with a Φ4.76mm(0.1874") diameter, 150mm(5.9055") ACME screw length and a POM screw nut, the linear travel is 1.27mm(0.05") per revolution. This model is a Nema 11 ACME screw linear stepper motor with a 32.2mm body length, 1.8 ..
from
$45.97
Model: 11E13S1004GD4-150RS-OE1K
Stock: In Stock
This is a Nema 11 linear stepper motor, integrated with a 1000PPR optical incremental encoder. It is equipped with a Φ4.76mm(0.1874") diameter, 150mm(5.9055") ACME lead screw and a POM lead screw nut, providing a linear travel of 2.54mm(0.1") per rev..
from
$101.55
Model: 11E13S1004GD5-150RS
Stock: In Stock
This is integrated with a Φ4.76mm(0.1874") diameter, 150mm(5.9055") ACME screw length and a POM screw nut, the linear travel is 2.54mm(0.1") per revolution. This model is a Nema 11 ACME screw linear stepper motor with a 32.2mm body length, 1.8 d..
from
$45.97
Model: 11E13S1004HD5-180RS-E22-300
Stock: In Stock
This is a Nema 11 linear stepper motor integrated with a 300ppr optical rotary encoder and equipped with a ACME lead screw with a length of 180mm(7.0866"), a diameter of 4.76mm (0.1874"), a lead of 5.08mm (0.2") and a POM nut. After installing the en..
from
$94.90
