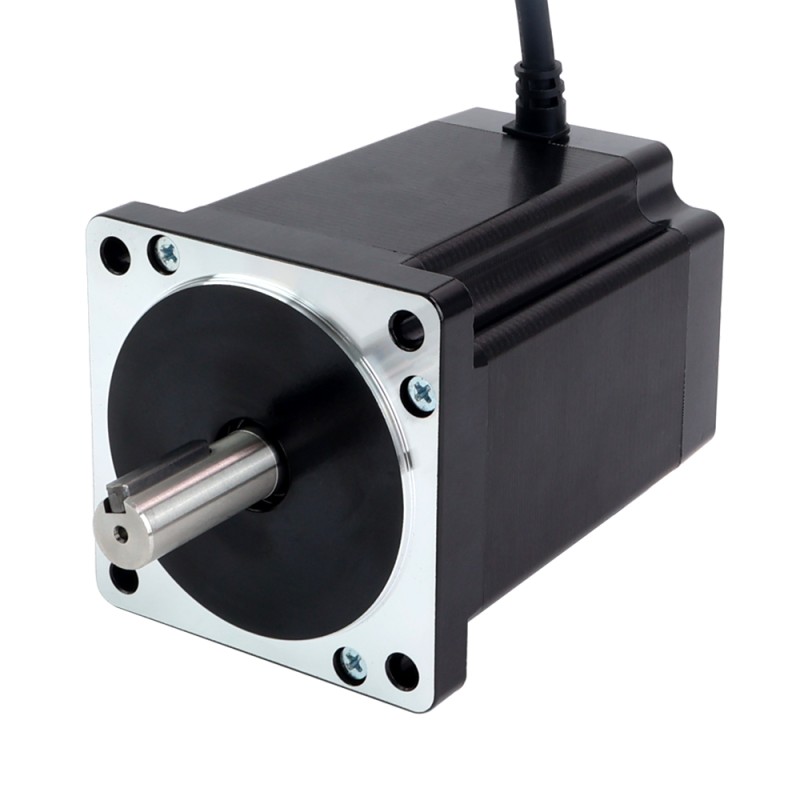

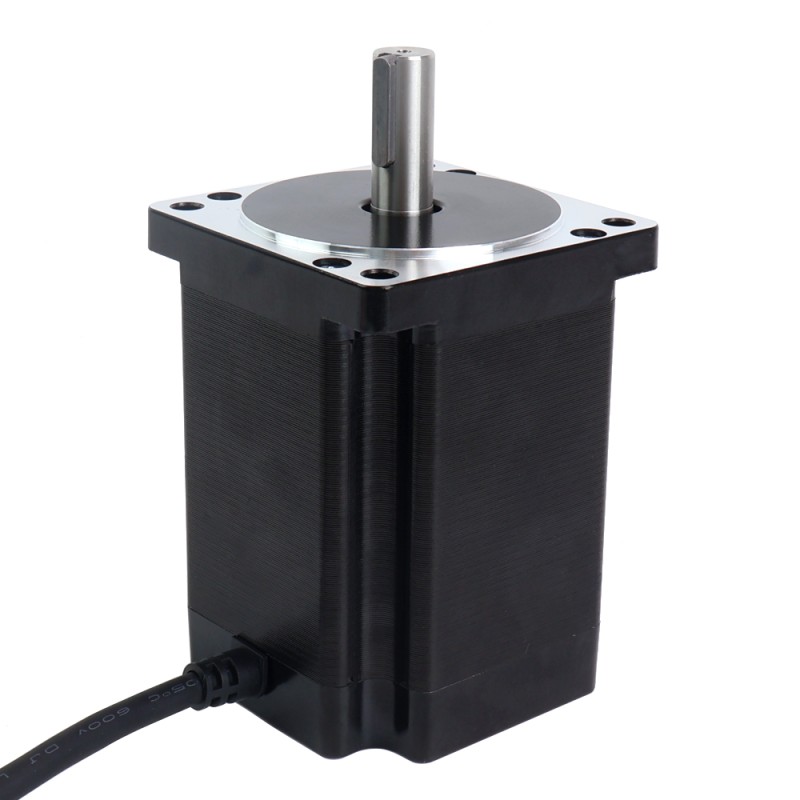

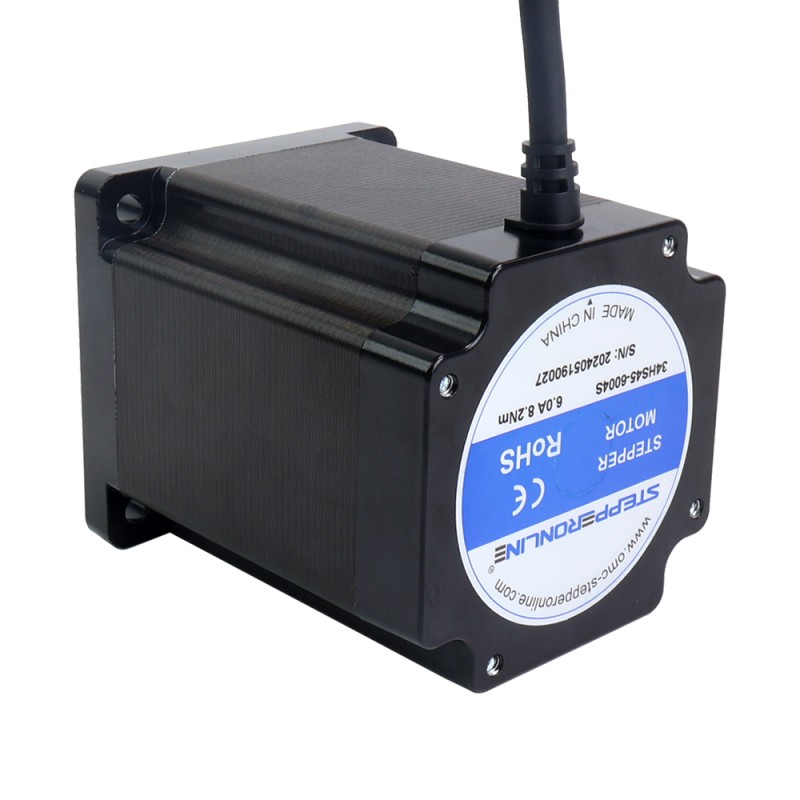

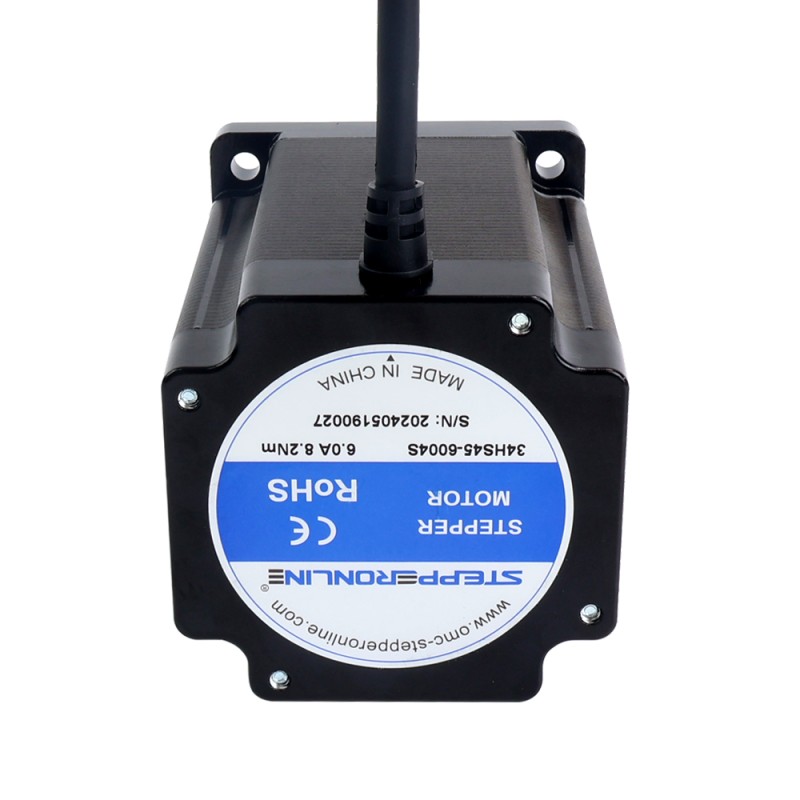

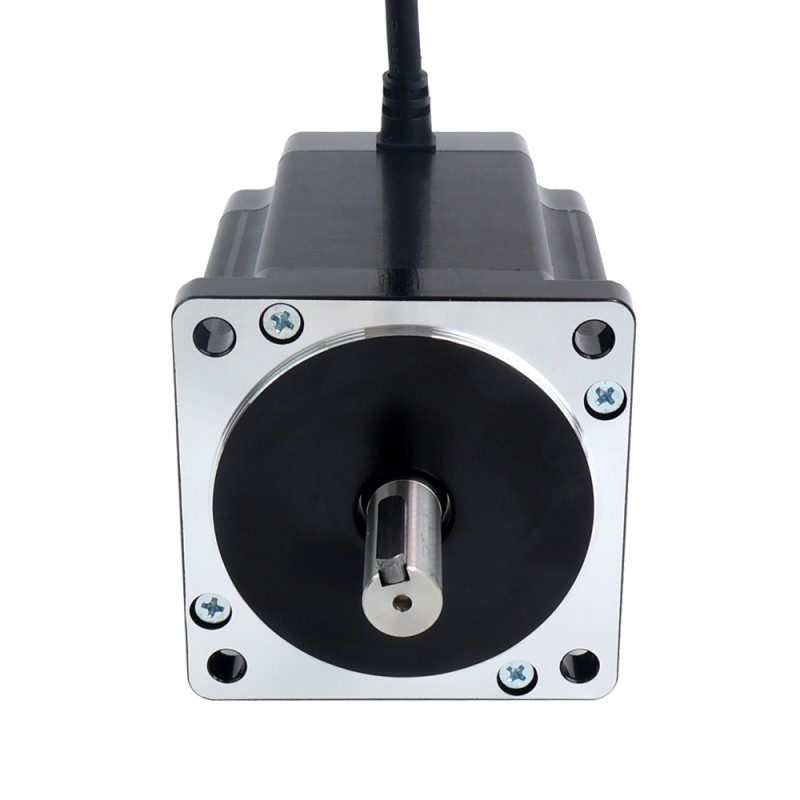

S Series Nema 34 Stepper Motor Bipolar 1.8deg 8.2Nm(1161.45oz.in) 6.0A 86x86x113mm 4 Wires

S Series Nema 34 Stepper Motor Bipolar 1.8deg 8.2Nm(1161.45oz.in) 6.0A 86x86x113mm 4 Wires
S Series Nema 34 Stepper Motor Bipolar 1.8deg 8.2Nm(1161.45oz.in) 6.0A 86x86x113mm 4 Wires
S Series Nema 34 Stepper Motor Bipolar 1.8deg 8.2Nm(1161.45oz.in) 6.0A 86x86x113mm 4 Wires
S Series Nema 34 Stepper Motor Bipolar 1.8deg 8.2Nm(1161.45oz.in) 6.0A 86x86x113mm 4 Wires
S Series Nema 34 Stepper Motor Bipolar 1.8deg 8.2Nm(1161.45oz.in) 6.0A 86x86x113mm 4 Wires
S Series Nema 34 Stepper Motor Bipolar 1.8deg 8.2Nm(1161.45oz.in) 6.0A 86x86x113mm 4 Wires
S Series Nema 34 Stepper Motor Bipolar 1.8deg 8.2Nm(1161.45oz.in) 6.0A 86x86x113mm 4 Wires
S Series Nema 34 Stepper Motor Bipolar 1.8deg 8.2Nm(1161.45oz.in) 6.0A 86x86x113mm 4 Wires
S Series Nema 34 Stepper Motor Bipolar 1.8deg 8.2Nm(1161.45oz.in) 6.0A 86x86x113mm 4 Wires
S Series Nema 34 Stepper Motor Bipolar 1.8deg 8.2Nm(1161.45oz.in) 6.0A 86x86x113mm 4 Wires
S Series Nema 34 Stepper Motor Bipolar 1.8deg 8.2Nm(1161.45oz.in) 6.0A 86x86x113mm 4 Wires
S Series Nema 34 Stepper Motor Bipolar 1.8deg 8.2Nm(1161.45oz.in) 6.0A 86x86x113mm 4 Wires
S Series Nema 34 Stepper Motor Bipolar 1.8deg 8.2Nm(1161.45oz.in) 6.0A 86x86x113mm 4 Wires
0 reviews • Write a review
from
$58.09
10 or more $52.86
100 or more $48.51
  • Model: 34HS45-6004S
  • Weight: 3.95kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Motor Shaft
Length, Keyway, Flattened, Diameter...
Cable & Connector
Length, Connector, Terminal...
Body
Body Dimensions, Mounting Holes...
Performance
Current/Torque, Step Angle...
Optional Accessories
Encoder, Brake
Labeling
No Label / Custom Label, Laser Marking...

This NEMA 34 stepper motor features a 1.8-degree step angle, a holding torque of 8.2Nm(849.84oz.in), and draws 6.0A per phase. It comes equipped with a 37mm keyway shaft and 500mm cables.
This motor offers a combination of high torque and low inertia. Built for durability and reliable performance. It's a great choice for high-powered applications. Additionally, it is available in a wide range of customization options to ensure you get the perfect stepper motor for your specific needs.

Electrical Specification

  • Manufacturer Part Number: 34HS45-6004S
  • Number of phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 8.2Nm(849.84oz.in)
  • Rated Current/phase: 6.0A
  • Phase Resistance: 0.51ohms± 10%
  • Inductance: 5.1mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 86 x 86mm
  • Body Length: 113mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 37mm
  • Keyway Shaft Length: 25mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 3.7kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Physical Specification
Output Shaft Type Keyway
Shaft Diameter(mm) 14
Shaft Length(mm) 37
No. of Lead 4
Lead Length(mm) 500
Weight(g) 3700
Single Shaft/Dual Shaft Single Shaft
Frame Size(mm) Nema 34 (86 x 86)
Body Length(mm) 113
Product Series S
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Holding Torque(Ncm) 820
Rated Current(A) 6.0
Bipolar/Unipolar Bipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 0.51
Inductance(mH) 5.1
Has Torque/Thrust Curve? Yes
Product Type
Product Type Hybrid Stepper Motor
