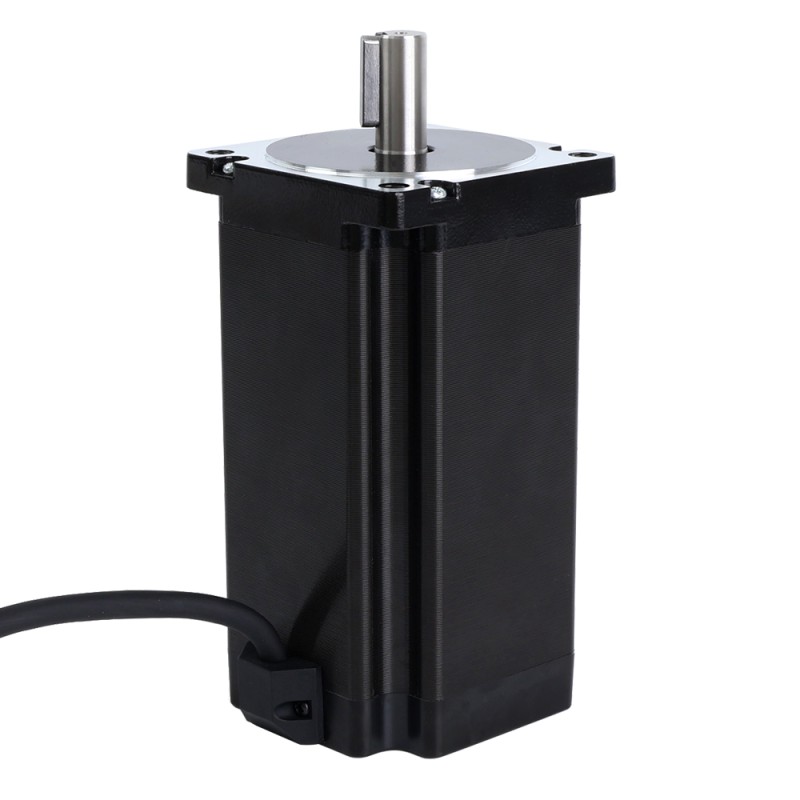

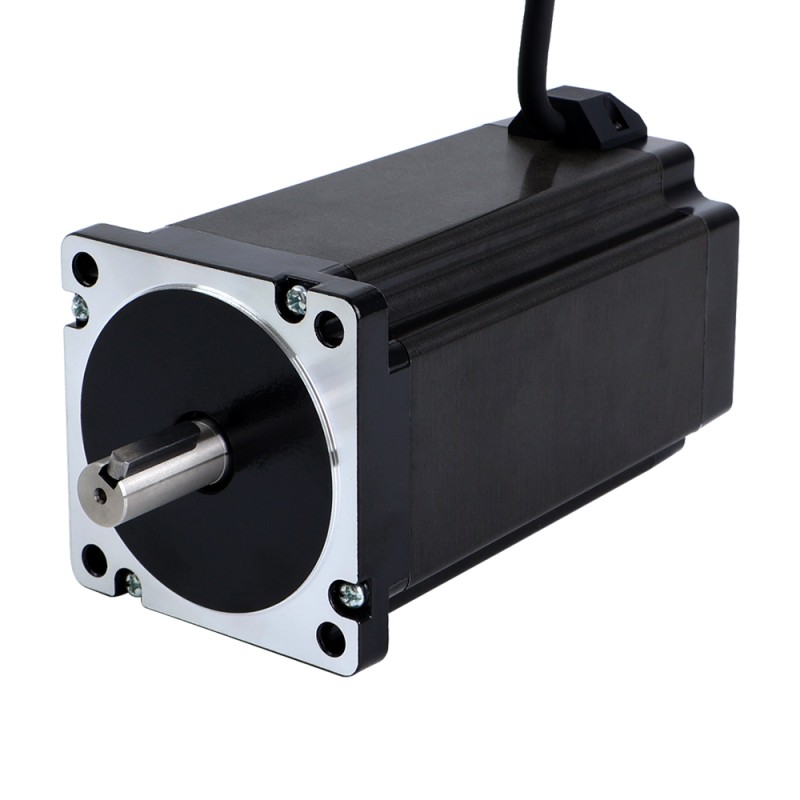

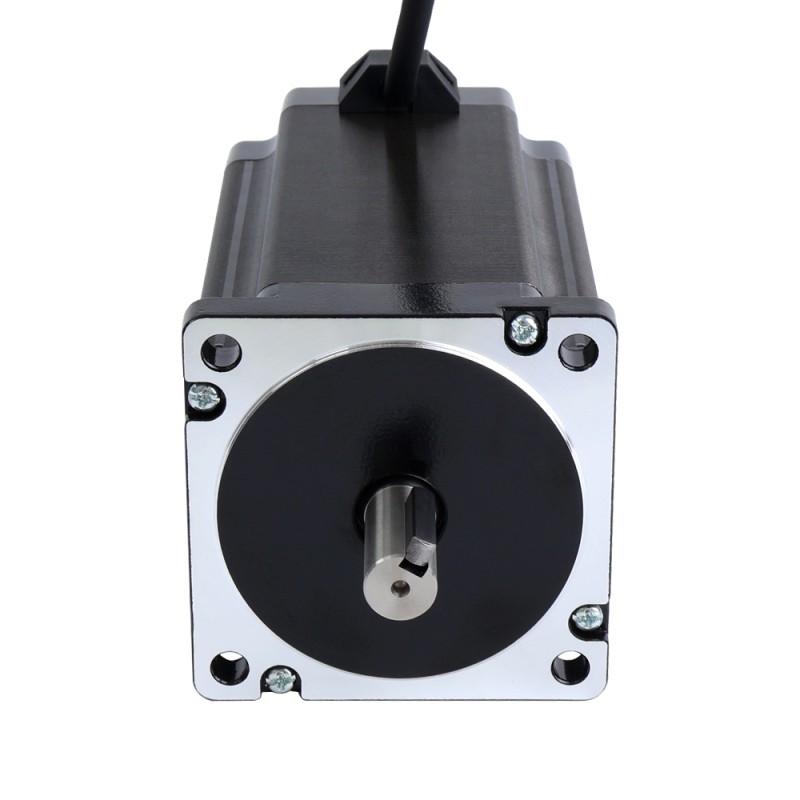

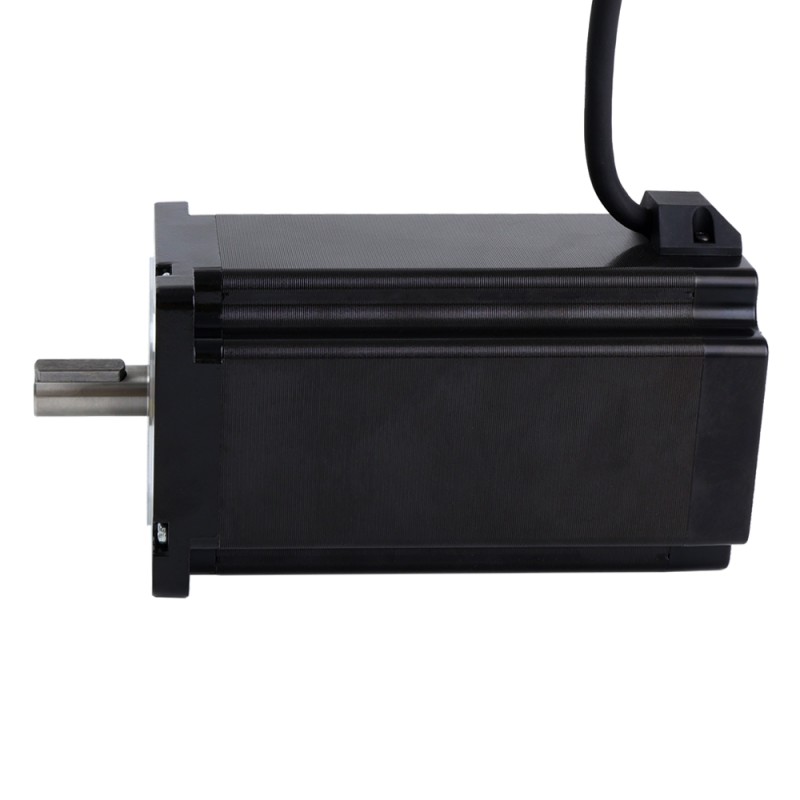

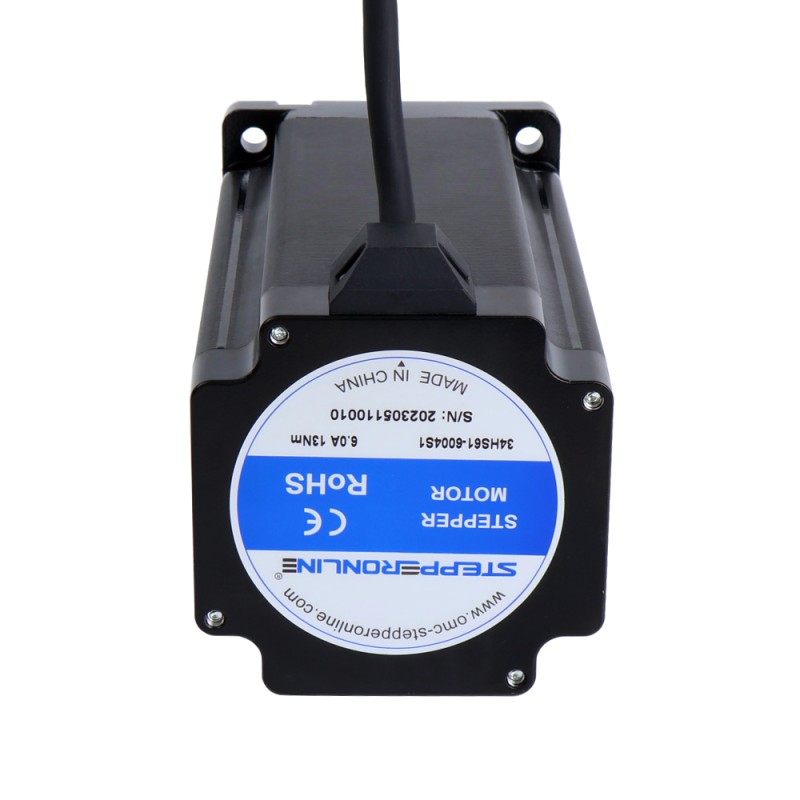

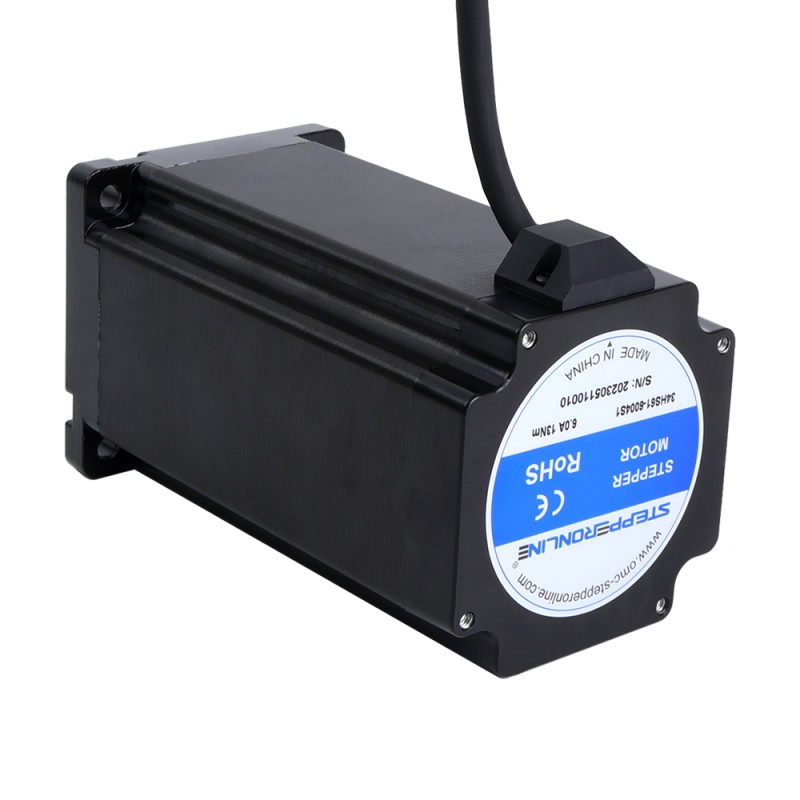

S Series Nema 34 Stepper Motor 13.0Nm(1841oz.in) 14mm Key-way Shaft 1m Cable

0 reviews • Write a review

from

$95.40

10 or more $86.82

100 or more $79.67

Model: 34HS61-6004S1
Weight: 6.60kg

Available Options

Ships From

China

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Looking to custom design this motor?

Request a Quote or Ask a Question

Your Name

Your Email

Quantity to Quote

Your questions or requirements

Captcha

Enter the code in the box below

Custom Design Options

You can select from the customization options listed below.

Motor Shaft

Length, Keyway, Flattened, Diameter...

Cable & Connector

Length, Connector, Terminal...

Body

Body Dimensions, Mounting Holes...

Performance

Current/Torque, Step Angle...

Optional Accessories

Encoder, Brake

Labeling

No Label / Custom Label, Laser Marking...

Electrical Specification

Manufacturer Part Number: 34HS61-6004S1
Number Of Phase: 2
Step Angle: 1.8deg
Holding Torque: 13Nm(1841oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.9ohms± 10%
Inductance: 7.5mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86 x 86mm
Body Length: 156mm
Shaft Diameter: Φ14mm
Shaft Length: 32mm
Keyway Shaft Length: 25mm
Number of Leads: 4
Lead Length: 1000mm
Weight: 5.7kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Physical Specification
Output Shaft Type	Keyway
Shaft Diameter(mm)	14
Shaft Length(mm)	32
No. of Lead	4
Lead Length(mm)	1000
Weight(g)	5700
Single Shaft/Dual Shaft	Single Shaft
Frame Size(mm)	Nema 34 (86 x 86)
Body Length(mm)	156
Product Series	S
Inventory Method	Dedicated Inventory
IP Rating	40
Electrical Specification
Holding Torque(Ncm)	1300
Rated Current(A)	6.0
Holding Torque(oz.in)	1841
Bipolar/Unipolar	Bipolar
Step Angle(deg.)	1.8
Phase Resistance(ohms)	0.9
Inductance(mH)	7.5
Has Torque/Thrust Curve?	Yes
Product Type
Product Type	Hybrid Stepper Motor
