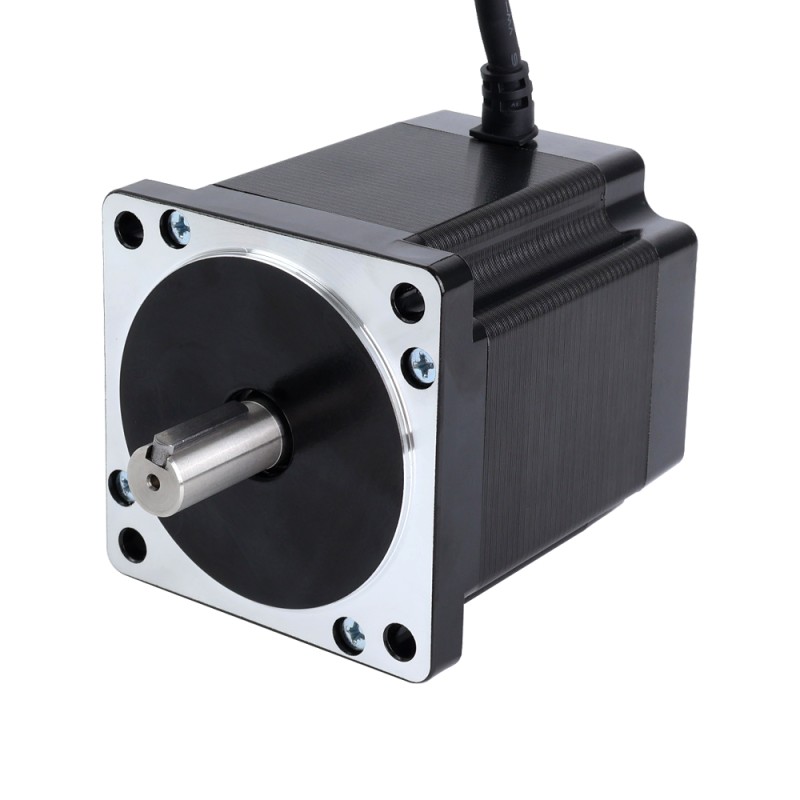

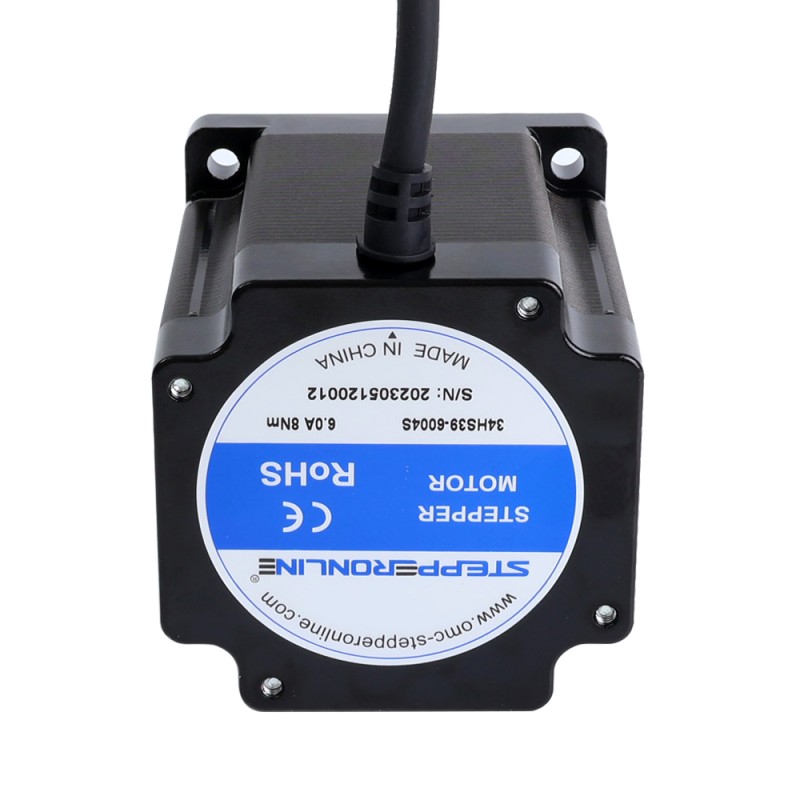

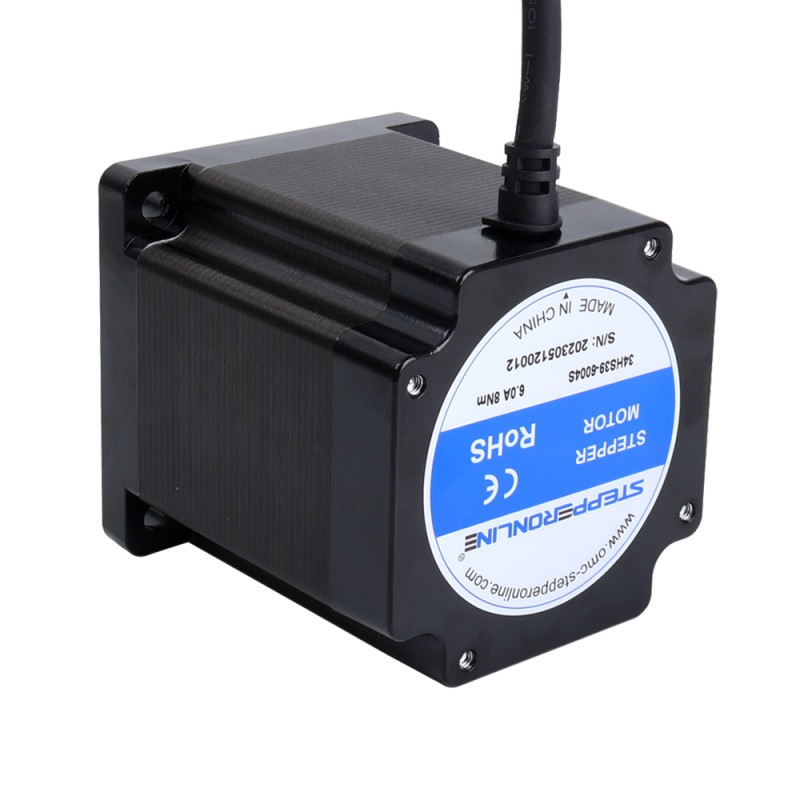

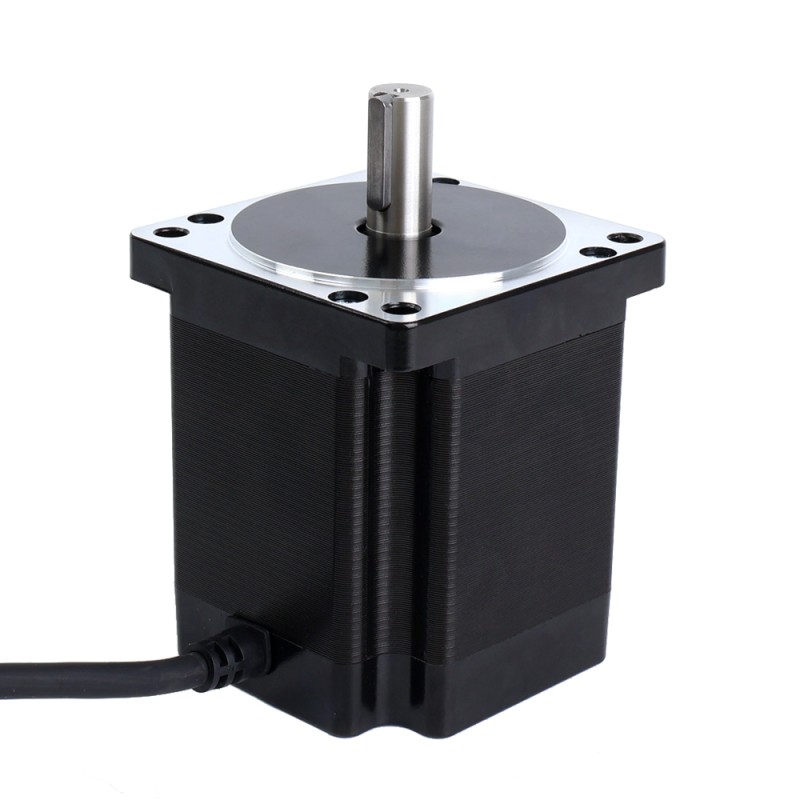

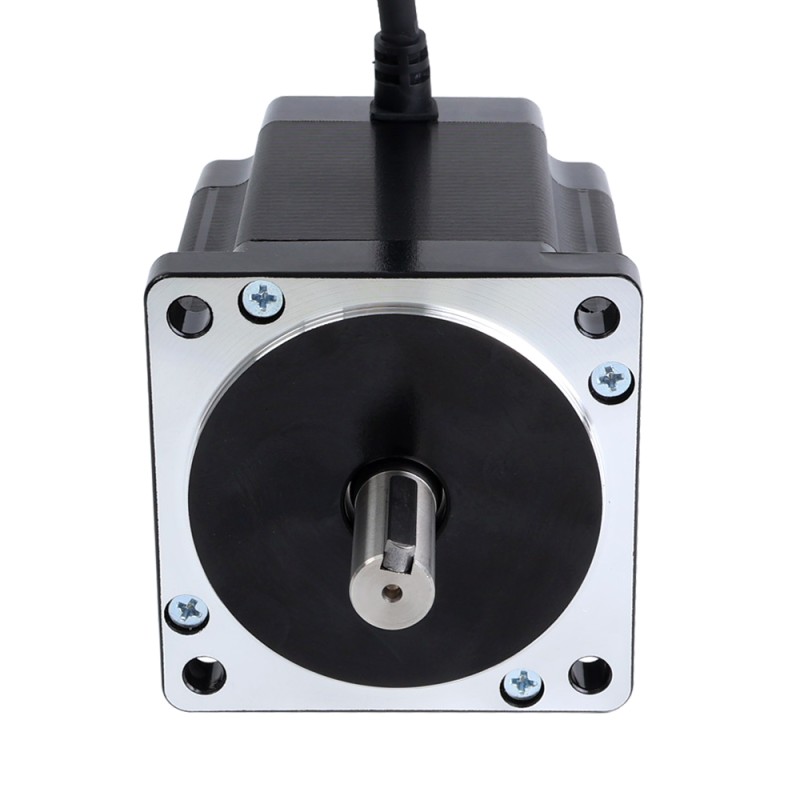

This is a Nema 34 stepper CNC motors with a step angle of 1.8deg and size of 86x86x98mm. It has 4 wires, draws 6.0A per phase and has a holding torque of 8.0Nm(1132.89oz.in).

Electrical Specification

  • Manufacturer Part Number: 34HS39-6004S
  • Number of phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 8.0Nm(1132.89oz.in)
  • Rated Current/Phase: 6.0A
  • Phase Resistance: 0.55ohms± 10%
  • Inductance: 4.6mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 86 x 86mm
  • Body Length: 98mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 32mm
  • Keyway Shaft Length: 25mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 3.0kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Physical Specification
Output Shaft Type Keyway
Shaft Diameter(mm) 14
Shaft Length(mm) 32
No. of Lead 4
Lead Length(mm) 500
Weight(g) 3090
Single Shaft/Dual Shaft Single Shaft
Frame Size(mm) Nema 34 (86 x 86)
Body Length(mm) 98
Product Series S
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Holding Torque(Ncm) 800
Rated Current(A) 6.0
Holding Torque(oz.in) 1132.89
Bipolar/Unipolar Bipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 0.55
Inductance(mH) 4.6
Has Torque/Thrust Curve? Yes
Product Type
Product Type Hybrid Stepper Motor
