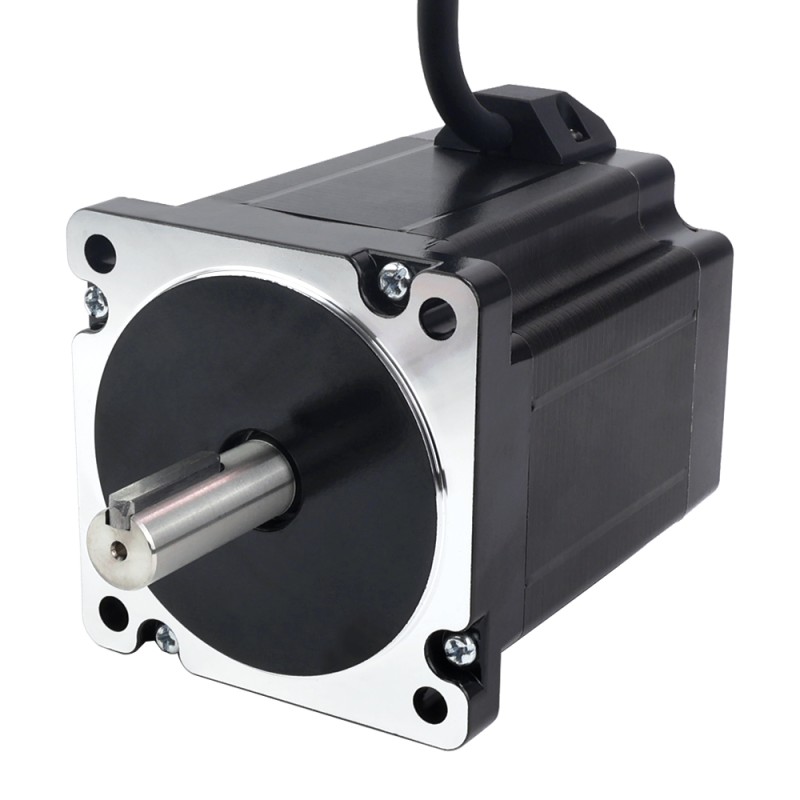

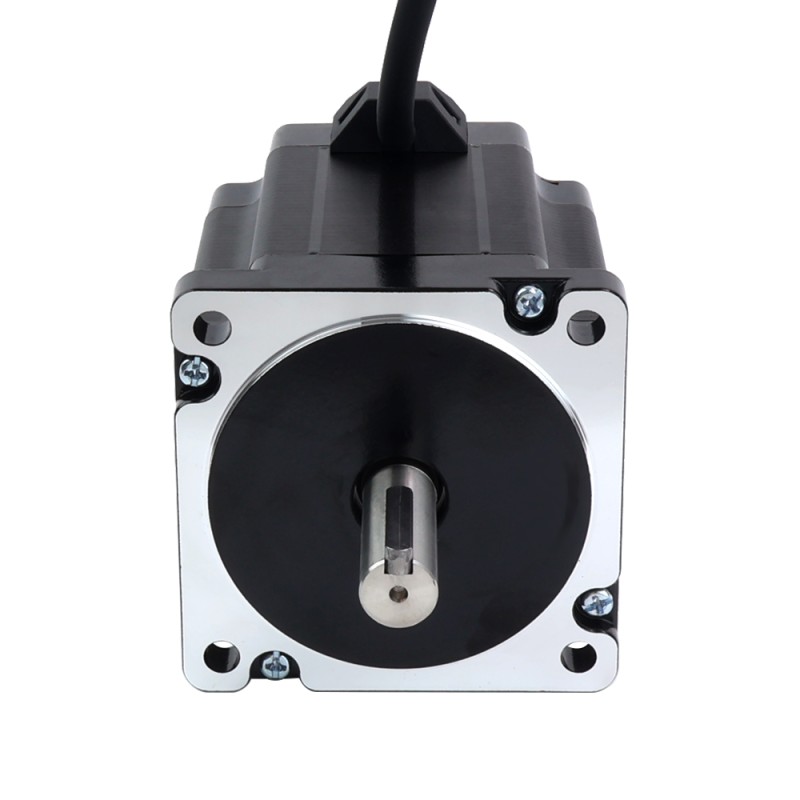

Keyway Dual Shaft Nema 34 Stepper Motor 6.8Nm(962.96oz.in) 86x86x98mm 4 Wires

Keyway Dual Shaft Nema 34 Stepper Motor 6.8Nm(962.96oz.in) 86x86x98mm 4 Wires
Keyway Dual Shaft Nema 34 Stepper Motor 6.8Nm(962.96oz.in) 86x86x98mm 4 Wires
Keyway Dual Shaft Nema 34 Stepper Motor 6.8Nm(962.96oz.in) 86x86x98mm 4 Wires
Keyway Dual Shaft Nema 34 Stepper Motor 6.8Nm(962.96oz.in) 86x86x98mm 4 Wires
Keyway Dual Shaft Nema 34 Stepper Motor 6.8Nm(962.96oz.in) 86x86x98mm 4 Wires
Keyway Dual Shaft Nema 34 Stepper Motor 6.8Nm(962.96oz.in) 86x86x98mm 4 Wires
Keyway Dual Shaft Nema 34 Stepper Motor 6.8Nm(962.96oz.in) 86x86x98mm 4 Wires
Keyway Dual Shaft Nema 34 Stepper Motor 6.8Nm(962.96oz.in) 86x86x98mm 4 Wires
Keyway Dual Shaft Nema 34 Stepper Motor 6.8Nm(962.96oz.in) 86x86x98mm 4 Wires
Keyway Dual Shaft Nema 34 Stepper Motor 6.8Nm(962.96oz.in) 86x86x98mm 4 Wires
Keyway Dual Shaft Nema 34 Stepper Motor 6.8Nm(962.96oz.in) 86x86x98mm 4 Wires
0 reviews • Write a review
from
$44.71
10 or more $41.44
100 or more $38.60
  • Model: 34HS38-4204D
  • Weight: 3.40kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Motor Shaft
Length, Keyway, Flattened, Diameter...
Cable & Connector
Length, Connector, Terminal...
Body
Body Dimensions, Mounting Holes...
Performance
Current/Torque, Step Angle...
Optional Accessories
Encoder, Brake
Labeling
No Label / Custom Label, Laser Marking...

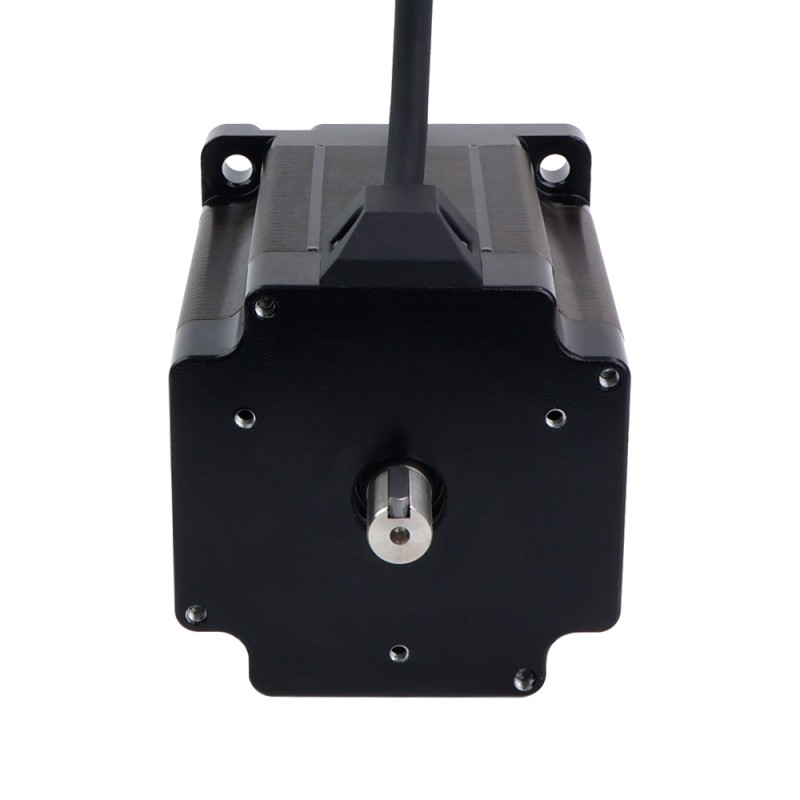

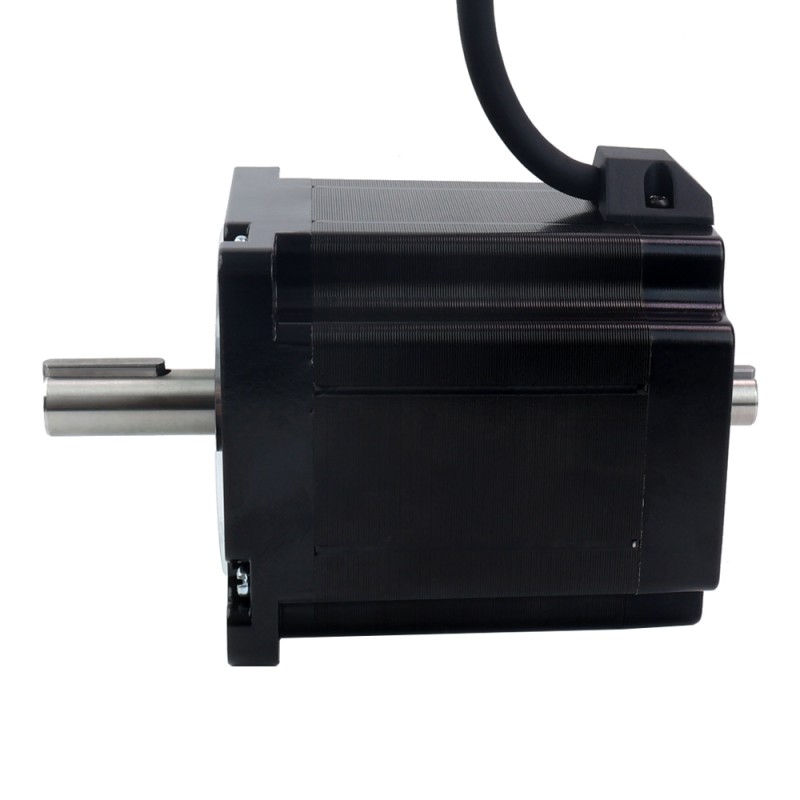

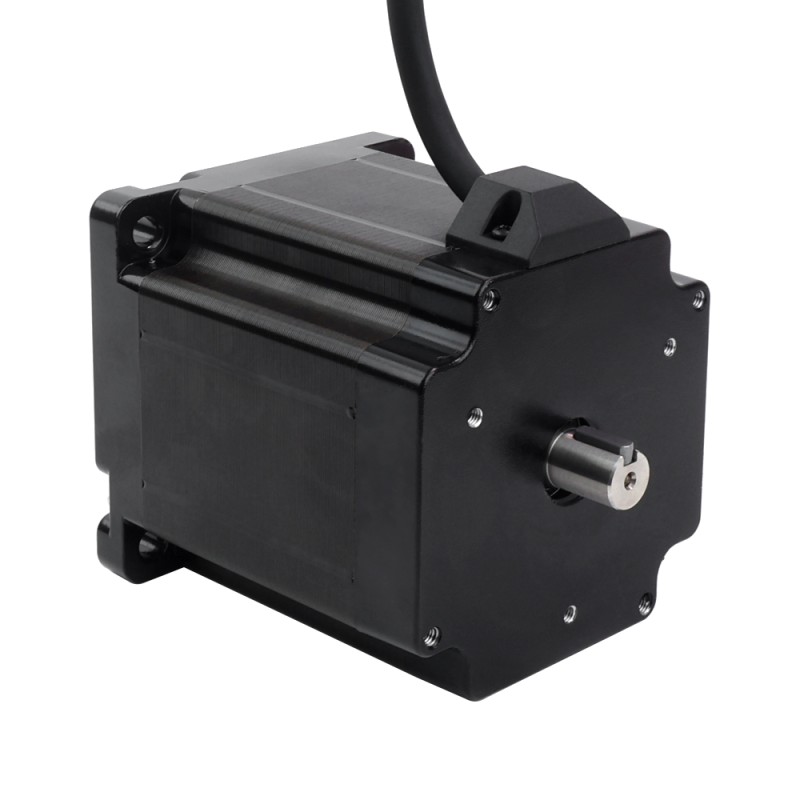

This is a dual-shaft motor with a 15mm long rear shaft and holding torque of 6.8Nm(962.96oz.in), and the shaft diameter is 12mm. Threaded holes are available on the rear end cap which can be used to brakes, encoder for hand wheels.

Electrical Specification

  • Manufacturer Part Number: 34HS38-4204D
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 6.8Nm(962.96oz.in)
  • Rated Current/phase: 4.20A
  • Phase Resistance: 0.95ohms
  • Inductance: 8.5mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 86 x 86mm
  • Body Length: 98mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 37mm
  • Key-Way Length: 25mm
  • Rear Shaft Length: 15mm
  • Rear Shaft Diameter: 12mm
  • Number of Leads: 4
  • Lead Length: 500±50mm

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
The motor comes with a highly flexible cable that can be bent 8 million times without failure.
Physical Specification
Output Shaft Type Keyway
Shaft Diameter(mm) 14
Shaft Length(mm) 37
No. of Lead 4
Lead Length(mm) 550±50
Single Shaft/Dual Shaft Dual Shaft
Frame Size(mm) Nema 34 (86 x 86)
Body Length(mm) 98
Product Series S
Inventory Method Dedicated Inventory
Electrical Specification
Holding Torque(Ncm) 680
Rated Current(A) 4.20
Holding Torque(oz.in) 962.96
Bipolar/Unipolar Bipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 0.95
Inductance(mH) 8.5
Has Torque/Thrust Curve? Yes
Product Type
Product Type Hybrid Stepper Motor
