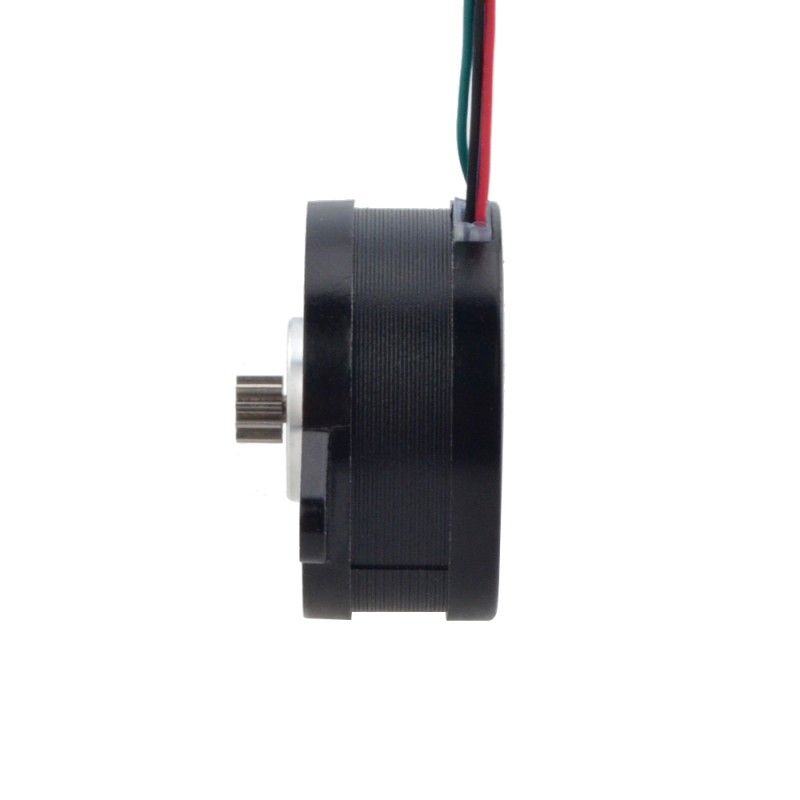

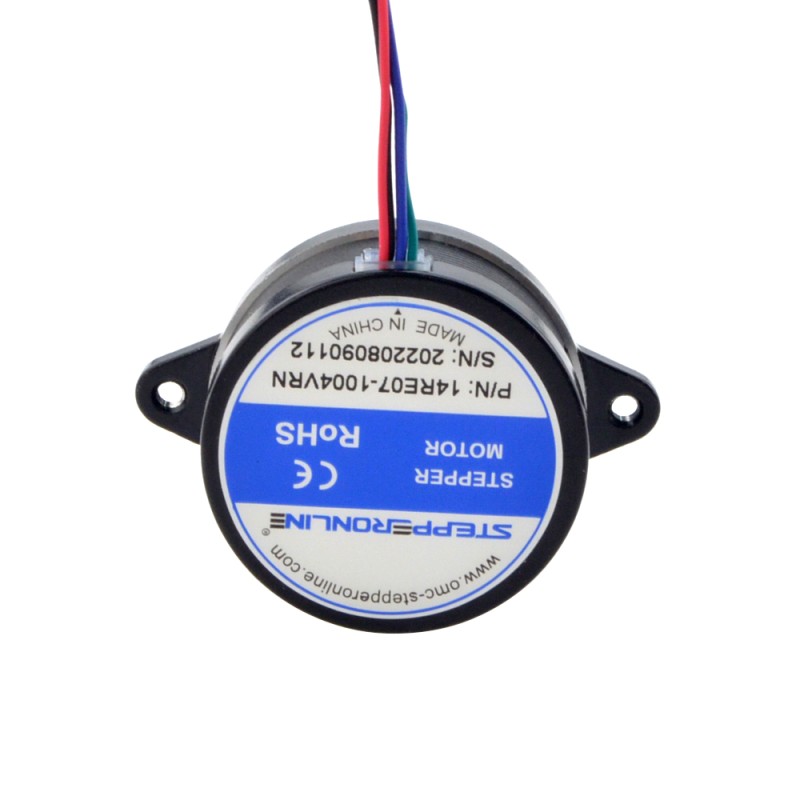

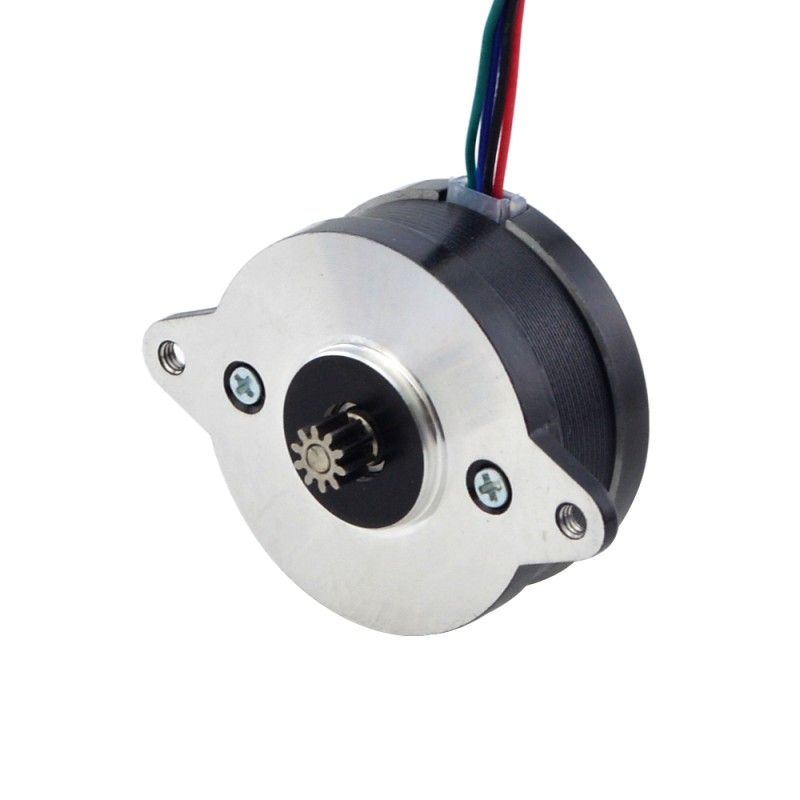

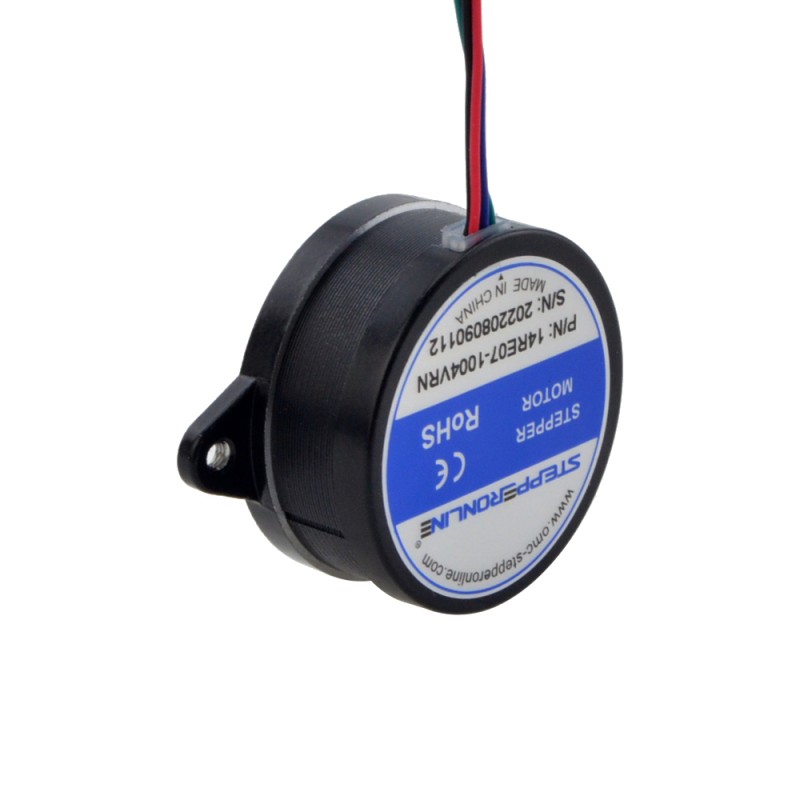

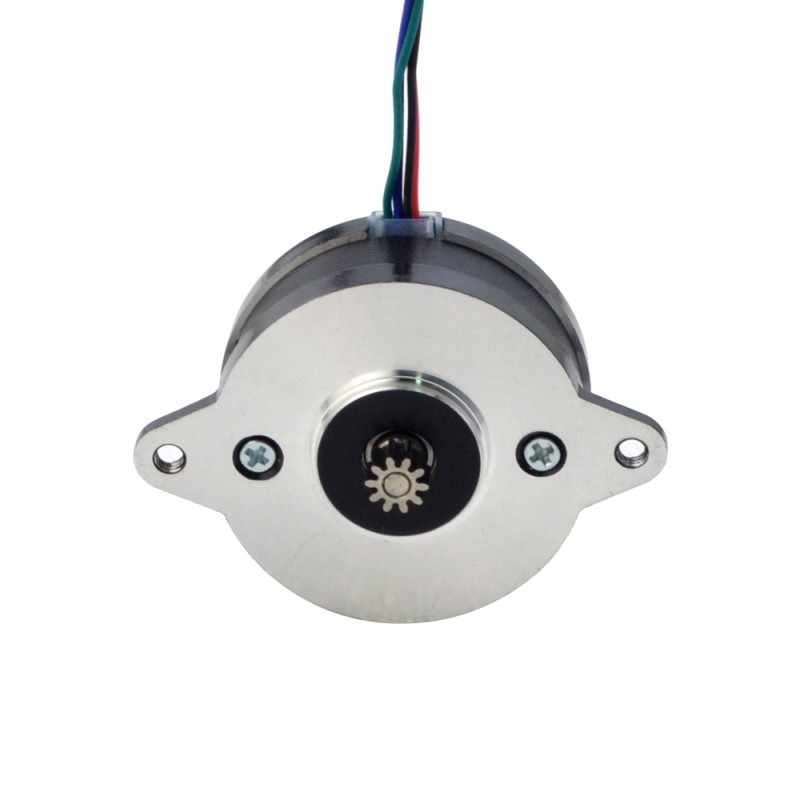

E Series Round Nema 14 Bipolar 0.9deg 8Ncm(11.33oz.in) 1.0A Φ36 x17mm 4 Wires

E Series Round Nema 14 Bipolar 0.9deg 8Ncm(11.33oz.in) 1.0A Φ36 x17mm 4 Wires
E Series Round Nema 14 Bipolar 0.9deg 8Ncm(11.33oz.in) 1.0A Φ36 x17mm 4 Wires
E Series Round Nema 14 Bipolar 0.9deg 8Ncm(11.33oz.in) 1.0A Φ36 x17mm 4 Wires
E Series Round Nema 14 Bipolar 0.9deg 8Ncm(11.33oz.in) 1.0A Φ36 x17mm 4 Wires
E Series Round Nema 14 Bipolar 0.9deg 8Ncm(11.33oz.in) 1.0A Φ36 x17mm 4 Wires
E Series Round Nema 14 Bipolar 0.9deg 8Ncm(11.33oz.in) 1.0A Φ36 x17mm 4 Wires
Online Only
E Series Round Nema 14 Bipolar 0.9deg 8Ncm(11.33oz.in) 1.0A Φ36 x17mm 4 Wires
E Series Round Nema 14 Bipolar 0.9deg 8Ncm(11.33oz.in) 1.0A Φ36 x17mm 4 Wires
E Series Round Nema 14 Bipolar 0.9deg 8Ncm(11.33oz.in) 1.0A Φ36 x17mm 4 Wires
E Series Round Nema 14 Bipolar 0.9deg 8Ncm(11.33oz.in) 1.0A Φ36 x17mm 4 Wires
E Series Round Nema 14 Bipolar 0.9deg 8Ncm(11.33oz.in) 1.0A Φ36 x17mm 4 Wires
E Series Round Nema 14 Bipolar 0.9deg 8Ncm(11.33oz.in) 1.0A Φ36 x17mm 4 Wires
E Series Round Nema 14 Bipolar 0.9deg 8Ncm(11.33oz.in) 1.0A Φ36 x17mm 4 Wires
0 reviews • Write a review
from
$10.78
10 or more $9.94
100 or more $9.21
  • Model: 14RE07-1004VRN
  • Weight: 0.15kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Motor Shaft
Length, Keyway, Flattened, Diameter...
Cable & Connector
Length, Connector, Terminal...
Body
Body Dimensions, Mounting Holes...
Performance
Current/Torque, Step Angle...
Optional Accessories
Encoder, Brake
Labeling
No Label / Custom Label, Laser Marking...

Electrical Specification

  • Manufacturer Part Number: 14RE07-1004VRN
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.9deg
  • Holding Torque: 8Ncm(11.33oz.in)
  • Rated Current/phase: 1.0A
  • Phase Resistance: 3.9ohms
  • Inductance: 2.5mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: Φ36.5mm
  • Body Length: 17mm
  • Shaft Diameter: Φ2.5mm
  • Shaft Length: 6mm
  • Number of Leads: 4
  • Lead Length: 500mm

Connection

A+
A-
B+
B-
Red
Green
Black
Blue
Physical Specification
Output Shaft Type O
Shaft Diameter(mm) 2.5
Shaft Length(mm) 6
No. of Lead 4
Lead Length(mm) 500
Single Shaft/Dual Shaft Single Shaft
Frame Size(mm) Nema 14 (Φ36)
Body Length(mm) 17
Product Series S
Inventory Method Dedicated Inventory
Electrical Specification
Holding Torque(Ncm) 8
Rated Current(A) 1.0
Holding Torque(oz.in) 11.33
Bipolar/Unipolar Bipolar
Step Angle(deg.) 0.9
Phase Resistance(ohms) 3.9
Inductance(mH) 2.5
Has Torque/Thrust Curve? No
Product Type
Product Type Hybrid Stepper Motor
