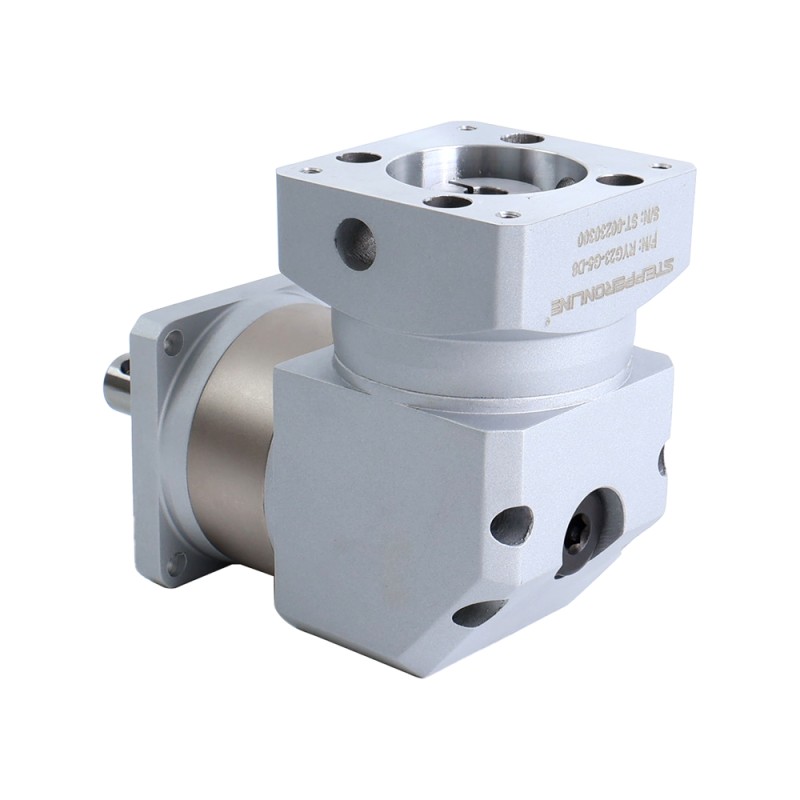

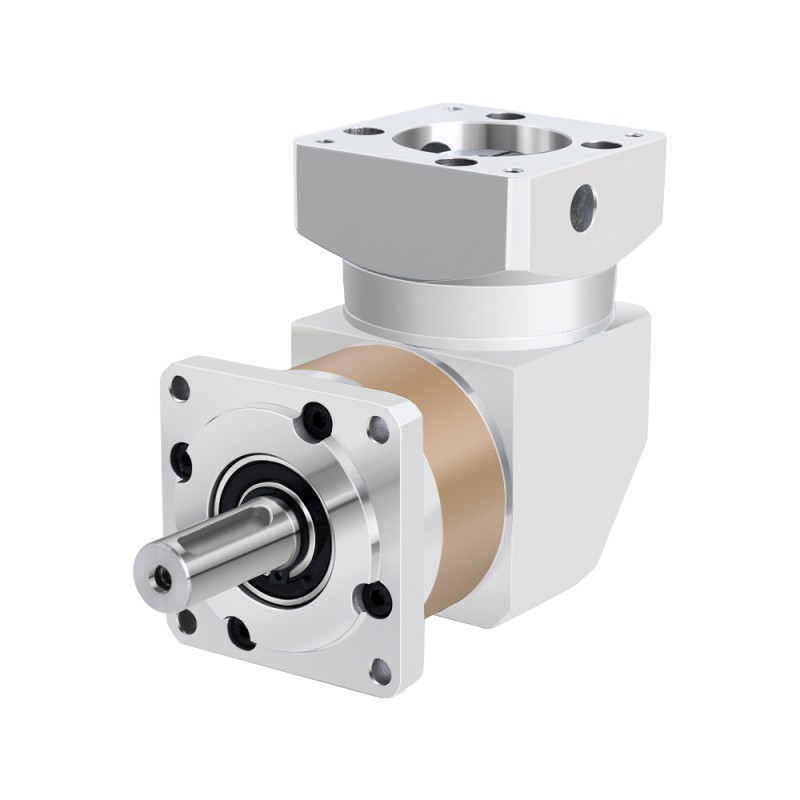

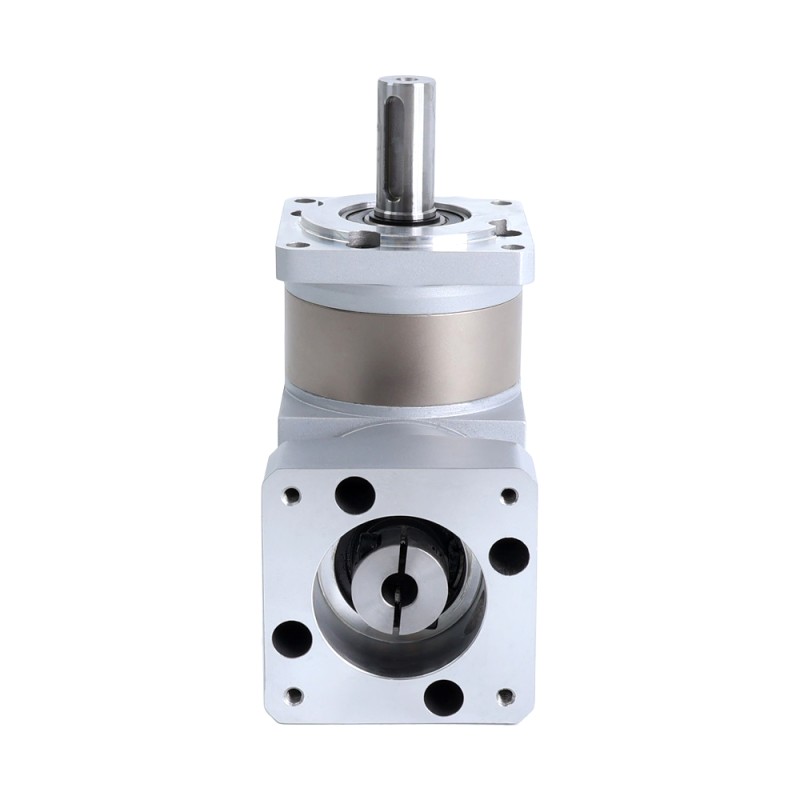

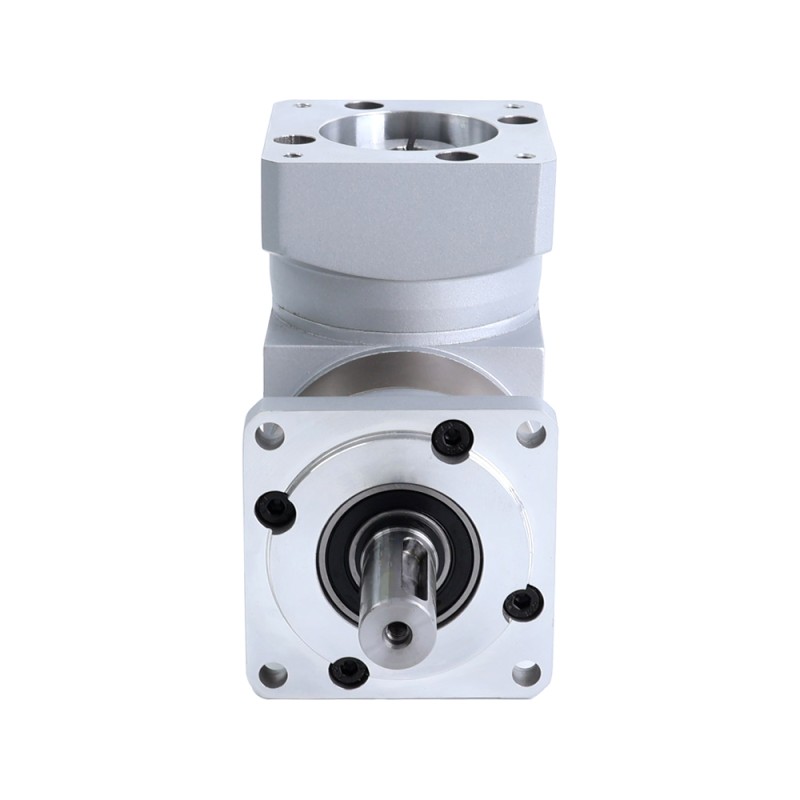

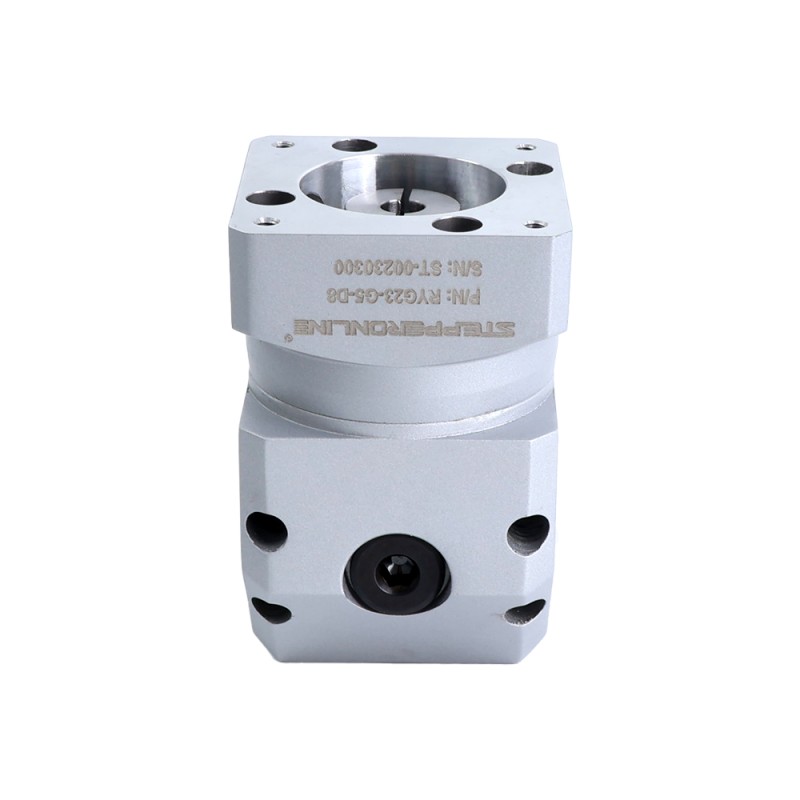

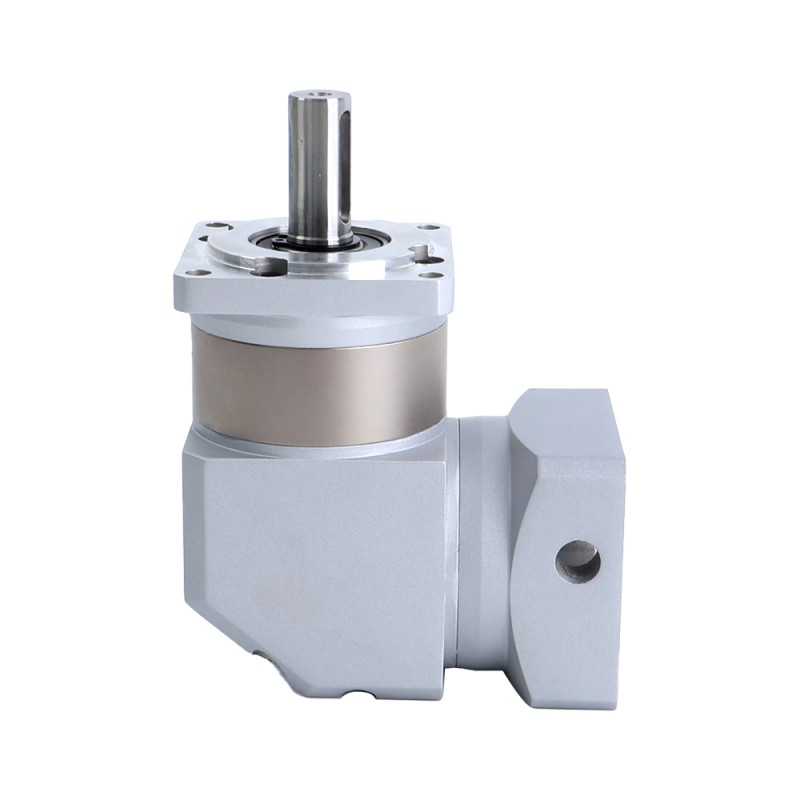

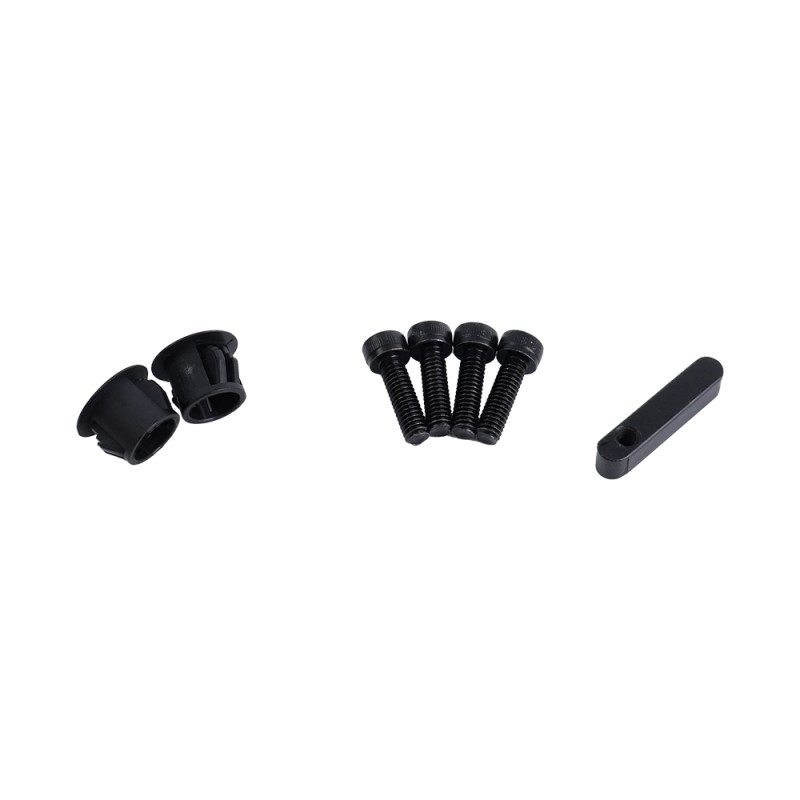

RYG Series Right Angle Planetary Gearbox Gear Ratio 5:1 Backlash 10arc-min for Nema 23 Stepper Motor

The size of this gearbox is 60 x 60mm and the input shaft diameter is 8mm. This right angle gearbox is designed for Nema 23 Stepper Motor and the high speed and low speed shaft have a 90-degree or right angle relationship.
One of the main advantages of a right angle gearbox is its compact size and ability to fit into tight spaces, making it a popular choice for applications where the driving equipment needs to be close to the driven equipment, such as on conveyors or other machinery.

Gearbox Specifications

• Part Number: RYG23-G5-D8
• Gearbox Type: Right Angle Planetary
• Gear Material: Alloy Steel
• Gear Ratio: 5:1
• Efficiency: 96%
• Rotor Inertia: 0.13kg·cm²
• Backlash at No-load: <=10arcmin
• Max.Permissible Torque: 28Nm(247.82lb-in)
• Moment Permissible Torque: 56Nm(495.64lb-in)
• Shaft Maximum Axial Load: 230N
• Shaft Maximum Radial Load: 450N
• Rated Input Speed: 3000rpm
• Max. Input Speed: 6000rpm
• Noise: <=55dB
• Waterproof Rating: IP54
• Life: 20000h
• Working Temperature: -20~150℃

Physical Specifications

• Frame Size: 60 x 60mm
• Gearbox Length: 99.5mm
• Output Shaft Type: Key way
• Output Shaft Diameter: Φ14mm
• Output Shaft Length: Φ35mm
• Input Shaft Diameter: Φ8mm
• Input Shaft Length: 12-31mm
• Weight: 1460g
