NEMA 14 Non-Captive Acme Linear Stepper Motor 1.5A 34mm Stack Screw Lead 2.54mm(0.1") Lead Length 200mm

NEMA 14 Non-Captive Acme Linear Stepper Motor 1.5A 34mm Stack Screw Lead 2.54mm(0.1") Lead Length 200mm
NEMA 14 Non-Captive Acme Linear Stepper Motor 1.5A 34mm Stack Screw Lead 2.54mm(0.1") Lead Length 200mm
NEMA 14 Non-Captive Acme Linear Stepper Motor 1.5A 34mm Stack Screw Lead 2.54mm(0.1") Lead Length 200mm
NEMA 14 Non-Captive Acme Linear Stepper Motor 1.5A 34mm Stack Screw Lead 2.54mm(0.1") Lead Length 200mm
NEMA 14 Non-Captive Acme Linear Stepper Motor 1.5A 34mm Stack Screw Lead 2.54mm(0.1") Lead Length 200mm
NEMA 14 Non-Captive Acme Linear Stepper Motor 1.5A 34mm Stack Screw Lead 2.54mm(0.1") Lead Length 200mm
NEMA 14 Non-Captive Acme Linear Stepper Motor 1.5A 34mm Stack Screw Lead 2.54mm(0.1") Lead Length 200mm
NEMA 14 Non-Captive Acme Linear Stepper Motor 1.5A 34mm Stack Screw Lead 2.54mm(0.1") Lead Length 200mm
NEMA 14 Non-Captive Acme Linear Stepper Motor 1.5A 34mm Stack Screw Lead 2.54mm(0.1") Lead Length 200mm
NEMA 14 Non-Captive Acme Linear Stepper Motor 1.5A 34mm Stack Screw Lead 2.54mm(0.1") Lead Length 200mm
NEMA 14 Non-Captive Acme Linear Stepper Motor 1.5A 34mm Stack Screw Lead 2.54mm(0.1") Lead Length 200mm
NEMA 14 Non-Captive Acme Linear Stepper Motor 1.5A 34mm Stack Screw Lead 2.54mm(0.1") Lead Length 200mm
NEMA 14 Non-Captive Acme Linear Stepper Motor 1.5A 34mm Stack Screw Lead 2.54mm(0.1") Lead Length 200mm
0 reviews • Write a review
from
$42.59
10 or more $40.11
100 or more $37.90
  • Model: 14N13S1504GF5-200RS
  • Weight: 0.35kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Lead Screw
Lead, Length, Screw End Machining, Thread Type...
Nut
Material, Profile/Shape, Dimensions...
Body
Body Dimensions, Mounting Holes...
Cable
Length, Connector, Terminal...
Optional Accessories
Encoder, Brake

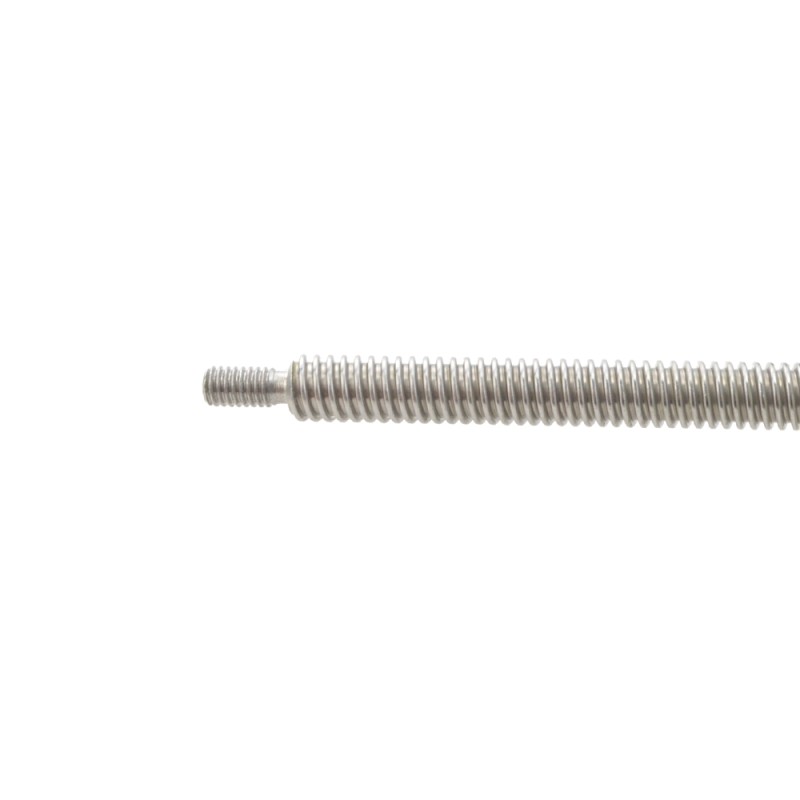

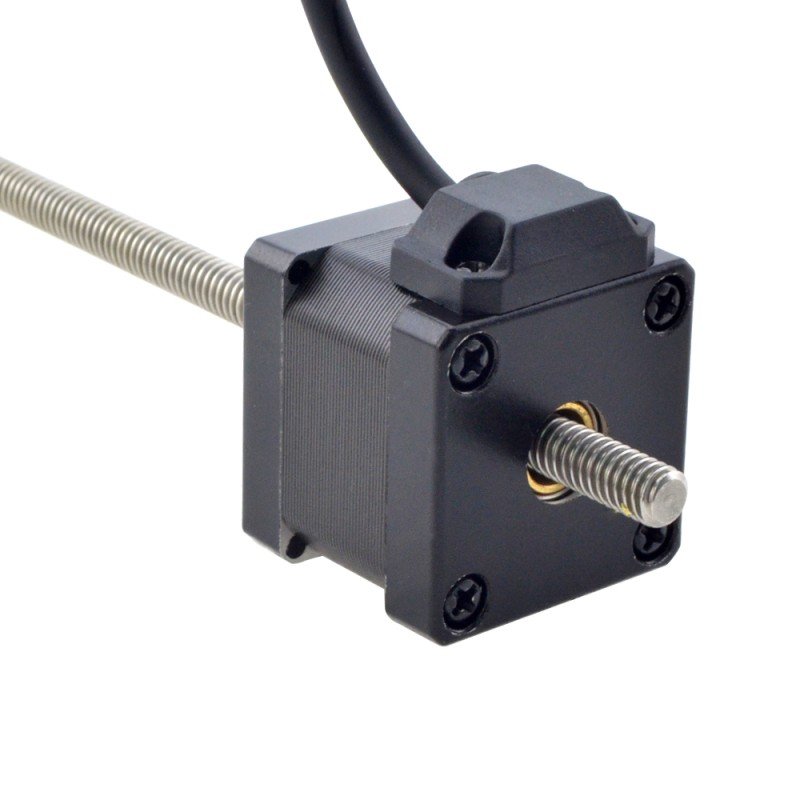

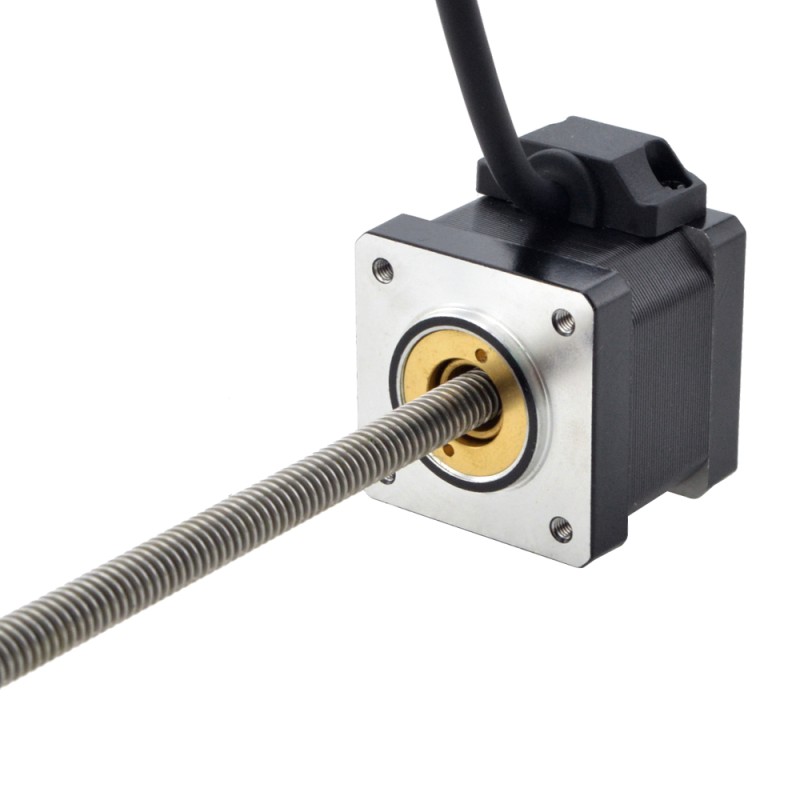

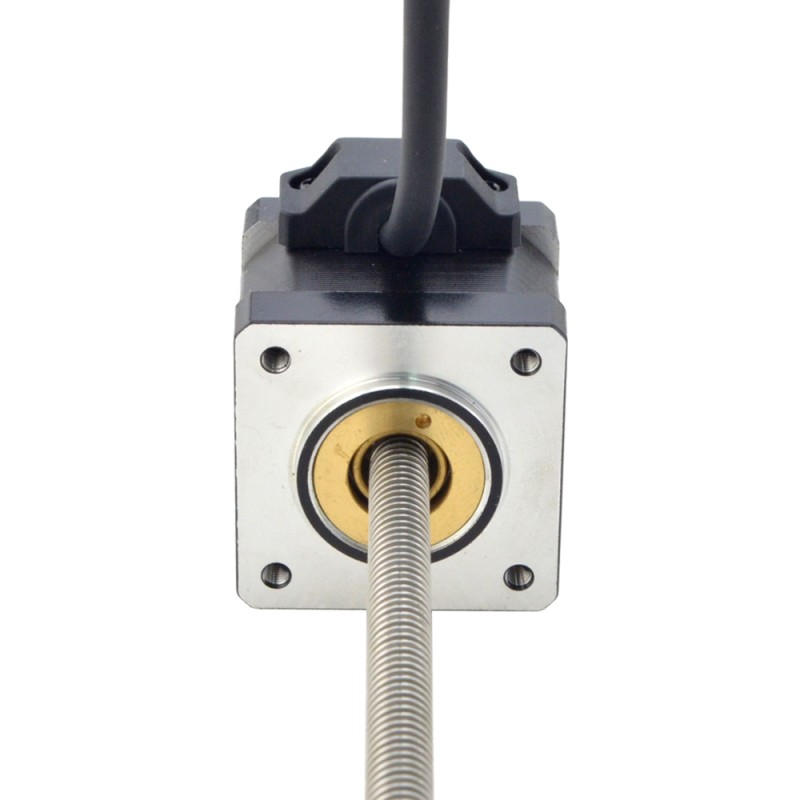

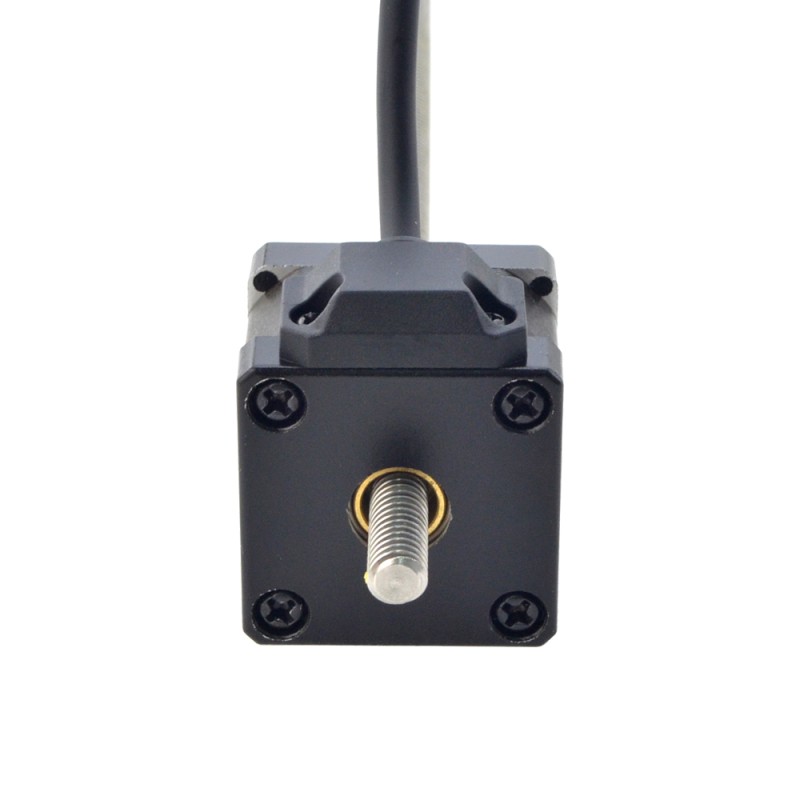

This model is a Nema 14 Non-Captive screw linear stepper motor with a 34mm body length, 1.8 degree step angle and 1.5A rated current. It is integrated with a Φ6.35mm(0.25") diameter, 200mm(7.874") lead screw length and the linear travel is 2.54mm(0.1") per revolution. It has the characteristics of high performance, long life, low noise and high efficiency.

Electrical Specification

  • Manufacturer Part Number: 14N13S1504GF5-200RS
  • Motor Type: Non-Captive
  • Step Angle: 1.8°
  • Holding Torque: 0.14Nm(19.82oz.in)
  • Rated Current/phase: 1.5A
  • Phase Resistance: 0.95ohms
  • Inductance: 1mH±20%(1KHz)

Physical Specification

  • Frame Size: 35 x 35mm
  • Body Length: 34mm
  • Lead Screw Length: 200mm(7.874")
  • Lead Screw Diameter: Φ6.35mm(0.25")
  • Lead/Step: 0.0127mm(0.0005")
  • Lead Travel/Revolution: 2.54mm(0.1")
  • Number of Leads: 4
  • Number of Thread Starts: 2
  • Cable Length: 500mm

Connection

A+
A-
B+
B-
Red
Red/White
Green
Green/White

● How to order a custom linear motor?  Custom Linear Stepper Motor

● If you only have the old part number, get the new one here  Show Details

● How we named linear motor?  Part Number Construction

Physical Specification
No. of Lead 4
Lead Length(mm) 500
Linear Motor Type Non-Captive
Lead Travel/Revolution(mm) 2.54
Lead Travel/Step(mm) 0.0127
Lead Screw Length(mm) 200
Lead Screw Diameter(mm) 6.35
Frame Size(mm) Nema 14 (35 x 35)
Body Length(mm) 34
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Rated Current(A) 1.5
Bipolar/Unipolar Bipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 0.95
Inductance(mH) 1
Has Torque/Thrust Curve? Yes
