Nema 23 External 56mm Stack 2.0A Lead 2mm(0.07874") Length 200mm

Nema 23 External 56mm Stack 2.0A Lead 2mm(0.07874") Length 200mm
Nema 23 External 56mm Stack 2.0A Lead 2mm(0.07874") Length 200mm
Nema 23 External 56mm Stack 2.0A Lead 2mm(0.07874") Length 200mm
Nema 23 External 56mm Stack 2.0A Lead 2mm(0.07874") Length 200mm
Nema 23 External 56mm Stack 2.0A Lead 2mm(0.07874") Length 200mm
Nema 23 External 56mm Stack 2.0A Lead 2mm(0.07874") Length 200mm
Nema 23 External 56mm Stack 2.0A Lead 2mm(0.07874") Length 200mm
Nema 23 External 56mm Stack 2.0A Lead 2mm(0.07874") Length 200mm
Nema 23 External 56mm Stack 2.0A Lead 2mm(0.07874") Length 200mm
Nema 23 External 56mm Stack 2.0A Lead 2mm(0.07874") Length 200mm
Nema 23 External 56mm Stack 2.0A Lead 2mm(0.07874") Length 200mm
0 reviews • Write a review
from
$55.64
10 or more $51.81
100 or more $48.47
  • Model: 23E22S2004AJ2-200RS
  • Weight: 1.80kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Lead Screw
Lead, Length, Screw End Machining, Thread Type...
Nut
Material, Profile/Shape, Dimensions...
Body
Body Dimensions, Mounting Holes...
Cable
Length, Connector, Terminal...
Optional Accessories
Encoder, Brake

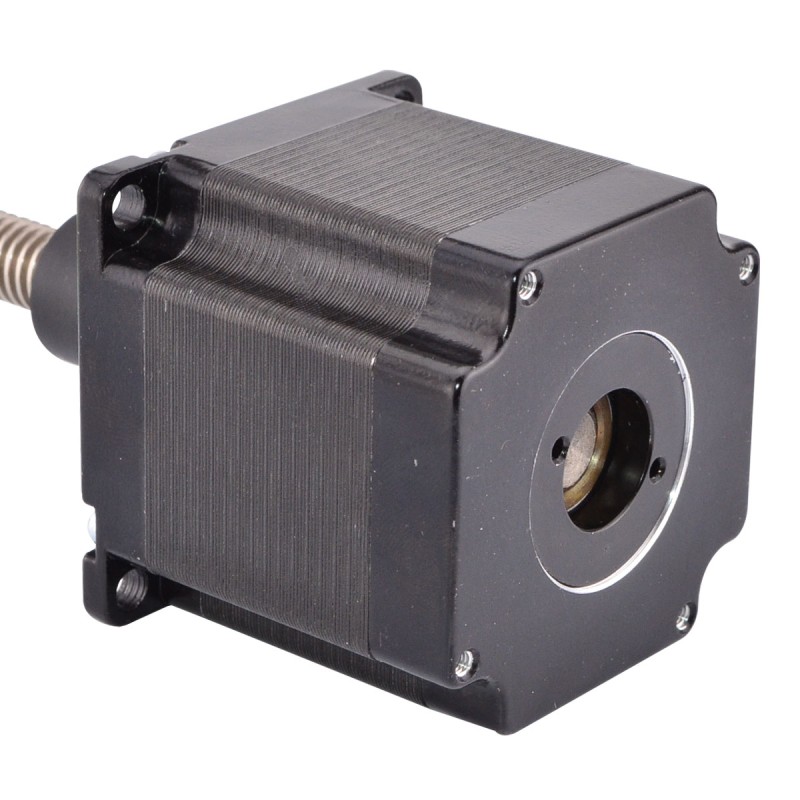

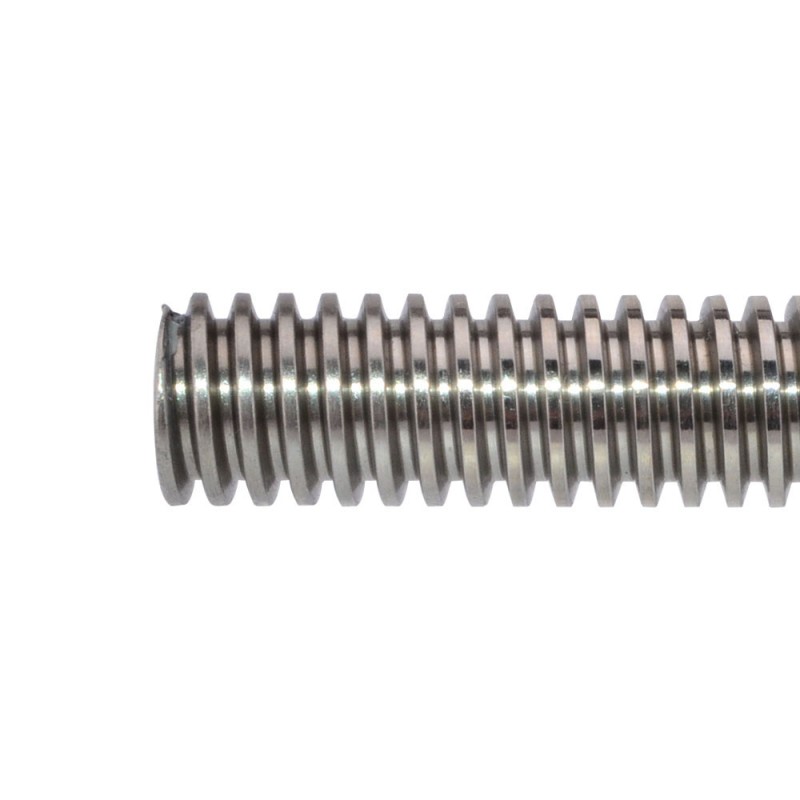

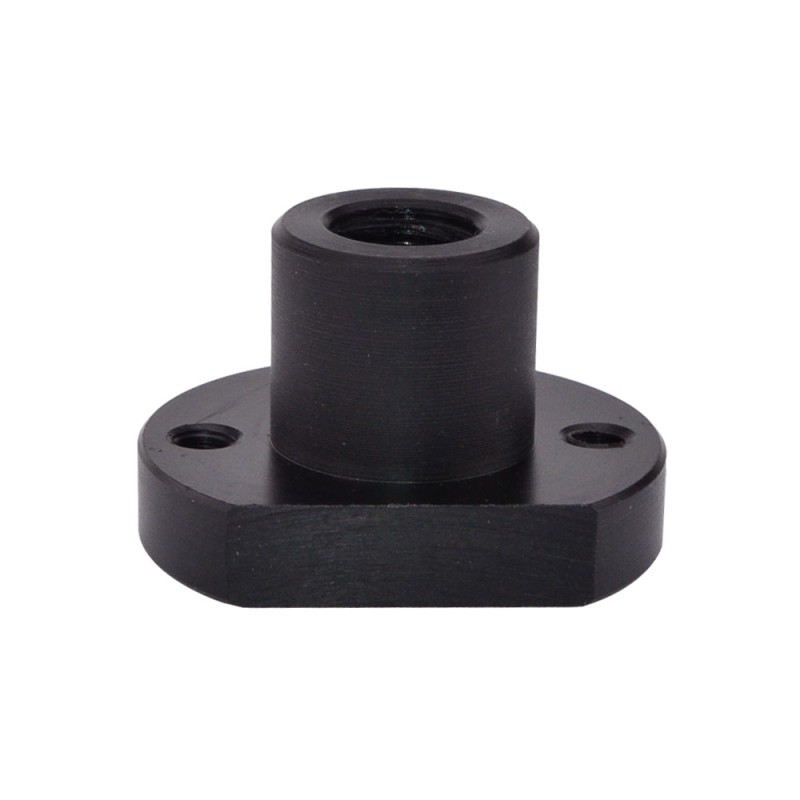

This model is economy linear stepper motor which named Nema 23 external linear actuator, the motor part is 56mm 1.8 degree 2A Nema 23 stepper motor. It was integrated with 200mm Tr11x2 threaded rod, and a POM screw nut move along the threaded rod.

Electrical Specification

  • Manufacturer Part Number: 23E22S2004AJ2-200RS(23E22S2004AJ-200RS)
  • Motor Type: External Linear Stepper
  • Holding Torque: 1.2Nm(169.93oz.in)
  • Rated Current/phase: 2.0A
  • Phase Resistance: 3.6ohms
  • Voltage: 7.2V
  • Inductance: 12mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57mm
  • Motor Length: 56mm
  • Lead Screw Length: 200mm(7.874")
  • Lead Screw Diameter: Φ11mm(0.433")
  • Lead/Step: 0.01mm(0.0003937")
  • Lead/Revolution: 2mm(0.0787")
  • Number of Leads: 4
  • Cable Length: 500mm
  • Weight: 650g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

● How to order a custom linear motor?  Custom Linear Stepper Motor

● If you only have the old part number, get the new one here  Show Details

● How we named linear motor?  Part Number Construction

Physical Specification
No. of Lead 4
Lead Length(mm) 500
Linear Motor Type External(Acme)
Lead Travel/Revolution(mm) 2
Lead Travel/Step(mm) 0.01
Lead Screw Length(mm) 200
Lead Screw Diameter(mm) 11
Frame Size(mm) Nema 23 (57 x 57)
Body Length(mm) 56
With Encoder No
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Holding Torque(Ncm) 120
Rated Current(A) 2.0
Holding Torque(oz.in) 169.93
Bipolar/Unipolar Bipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 3.6
Inductance(mH) 12
Has Torque/Thrust Curve? No
