Nema 14 External 34mm Stack 0.57A Lead 2.4384mm(0.096") Length 150mm

Nema 14 External 34mm Stack 0.57A Lead 2.4384mm(0.096") Length 150mm

0 reviews • Write a review

from

$58.80

10 or more $50.51

100 or more $44.26

Model: 14E13S0574JE4-150RS
Weight: 0.38kg

Available Options

Ships From

China

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Looking to custom design this motor?

Request a Quote or Ask a Question

Your Name

Your Email

Quantity to Quote

Your questions or requirements

Captcha

Enter the code in the box below

Custom Design Options

You can select from the customization options listed below.

Lead Screw

Lead, Length, Screw End Machining, Thread Type...

Nut

Material, Profile/Shape, Dimensions...

Body

Body Dimensions, Mounting Holes...

Cable

Length, Connector, Terminal...

Optional Accessories

Encoder, Brake

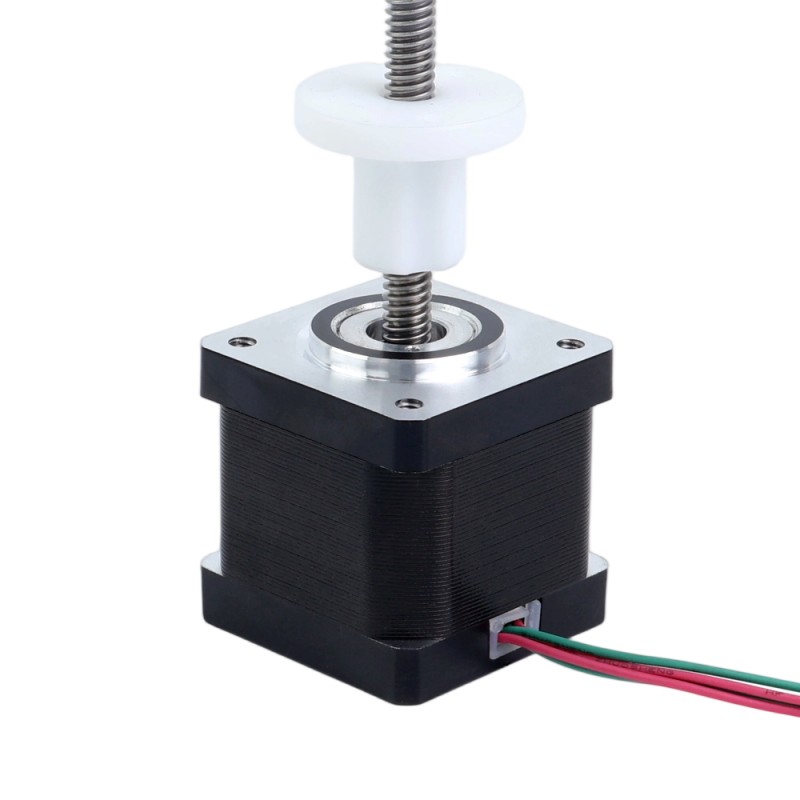

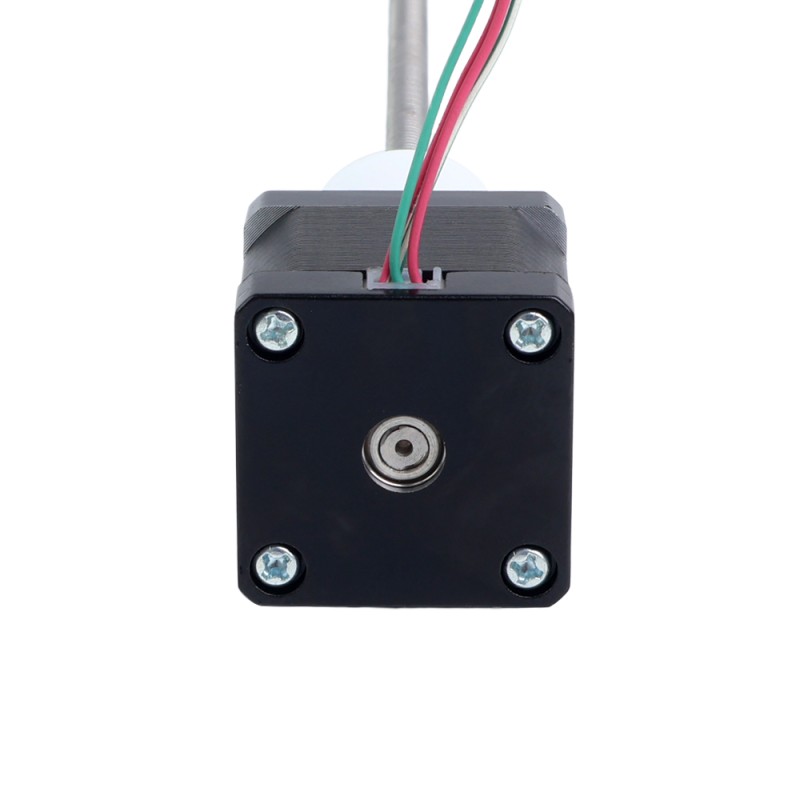

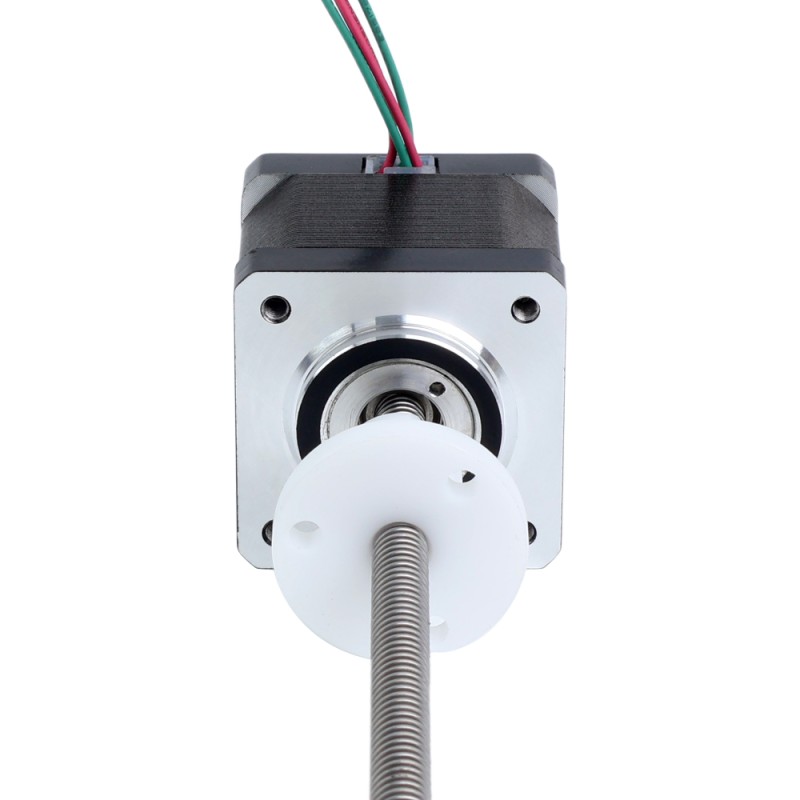

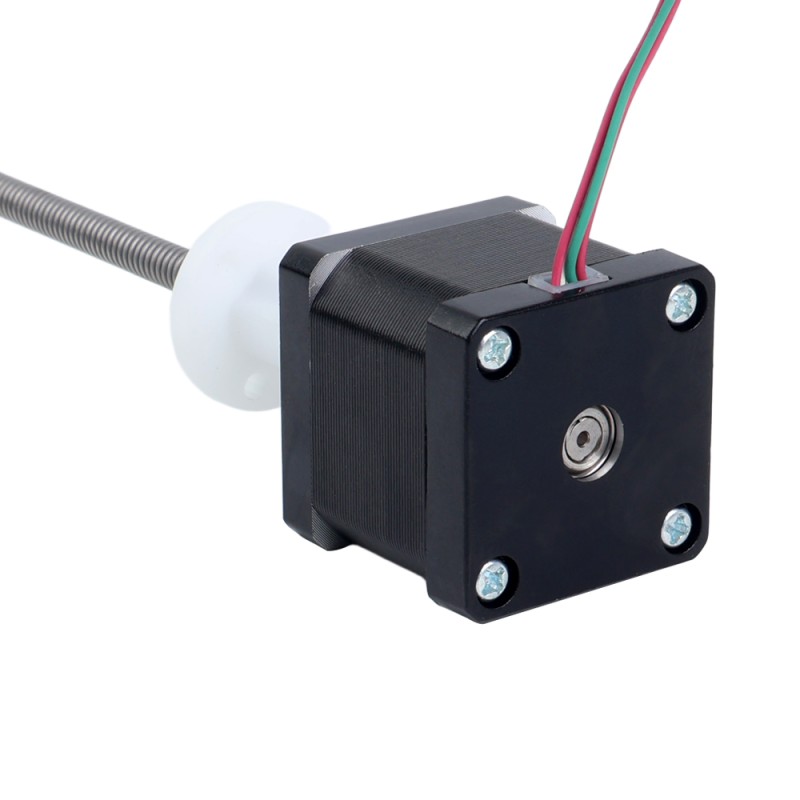

The motor part is 35mm body 1.8 degree 0.57A Nema 14 stepper motor, and it has integrated with a 5.54mm(0.2181") diameter 150mm(5.9055") length lead screw and a POM screw nut, the linear travel is 2.438mm(0.096") per revolution. This model is almost exactly same as Haydon Kerk 35000 series size 14 external stepper motor linear actuator.

Electrical Specification

Manufacturer Part Number: 14E13S0574JE4-150RS
Motor Type: External Linear Stepper
Step Angle: 1.8°
Holding Torque: 0.18Nm(25.49oz.in)
Rated Current/phase: 0.57A
Phase Resistance: 8.8ohms
Inductance: 13mH±20%(1KHz)

Physical Specification

Frame Size: 35 x 35mm
Body Length: 34mm
Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ5.54mm(0.2181")
Lead/Step: 0.012192mm(0.00048")
Lead Travel/Revolution: 2.4384mm(0.096")
Number of Leads: 4
Cable Length: 300mm

Connection

A+	A-	B+	B-
Red	Red/White	Green/White	Green

● How to order a custom linear motor? Custom Linear Stepper Motor

● If you only have the old part number, get the new one here Show Details

● How we named linear motor? Part Number Construction

Physical Specification
No. of Lead	4
Linear Motor Type	External(Acme)
Lead Travel/Revolution(mm)	2.4384
Lead Travel/Step(mm)	0.012192
Lead Screw Length(mm)	150
Lead Screw Diameter(mm)	5.54
Frame Size(mm)	Nema 14 (35 x 35)
Body Length(mm)	34
Cable Length(mm)	300
With Encoder	No
Inventory Method	Dedicated Inventory
Electrical Specification
Minimal Thrust(N) @300pps	140
Rated Current(A)	0.57
Bipolar/Unipolar	Bipolar
Step Angle(deg.)	1.8
Phase Resistance(ohms)	8.8
Inductance(mH)	13
Has Torque/Thrust Curve?	No
Product Type
Product Type	Linear Stepper Motor
