Nema 11 External 46mm Stack 0.75A Lead 0.635mm(0.025") Length 250mm

Nema 11 External 46mm Stack 0.75A Lead 0.635mm(0.025") Length 250mm
Nema 11 External 46mm Stack 0.75A Lead 0.635mm(0.025") Length 250mm
Nema 11 External 46mm Stack 0.75A Lead 0.635mm(0.025") Length 250mm
Nema 11 External 46mm Stack 0.75A Lead 0.635mm(0.025") Length 250mm
Nema 11 External 46mm Stack 0.75A Lead 0.635mm(0.025") Length 250mm
Nema 11 External 46mm Stack 0.75A Lead 0.635mm(0.025") Length 250mm
Nema 11 External 46mm Stack 0.75A Lead 0.635mm(0.025") Length 250mm
Nema 11 External 46mm Stack 0.75A Lead 0.635mm(0.025") Length 250mm
Nema 11 External 46mm Stack 0.75A Lead 0.635mm(0.025") Length 250mm
Nema 11 External 46mm Stack 0.75A Lead 0.635mm(0.025") Length 250mm
Nema 11 External 46mm Stack 0.75A Lead 0.635mm(0.025") Length 250mm
0 reviews • Write a review
from
$109.71
10 or more $102.15
100 or more $95.55
  • Model: 11E18S0754ED3-250RS
  • Weight: 0.53kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Lead Screw
Lead, Length, Screw End Machining, Thread Type...
Nut
Material, Profile/Shape, Dimensions...
Body
Body Dimensions, Mounting Holes...
Cable
Length, Connector, Terminal...
Optional Accessories
Encoder, Brake

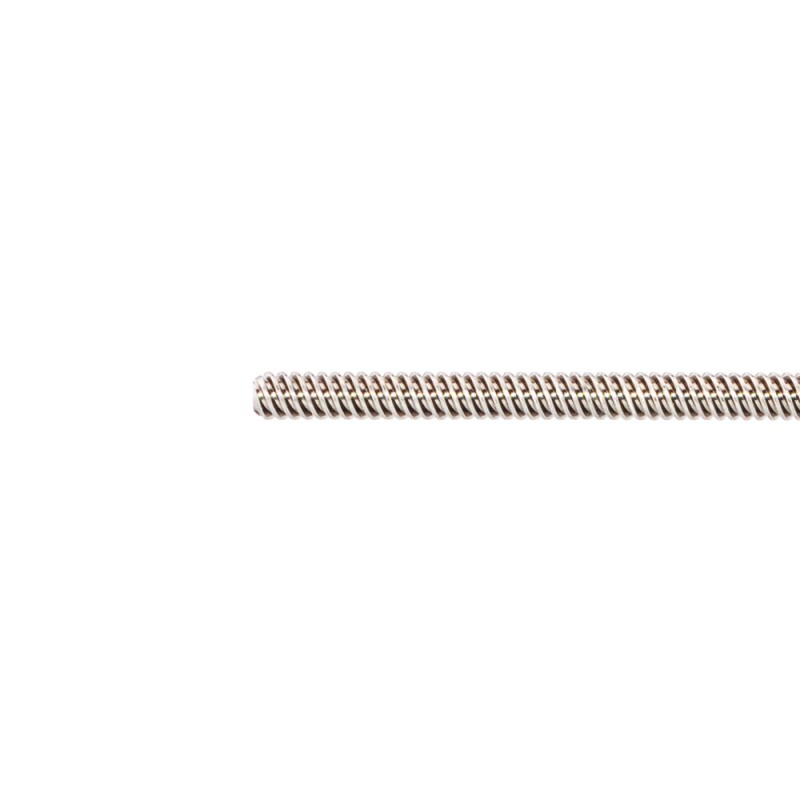

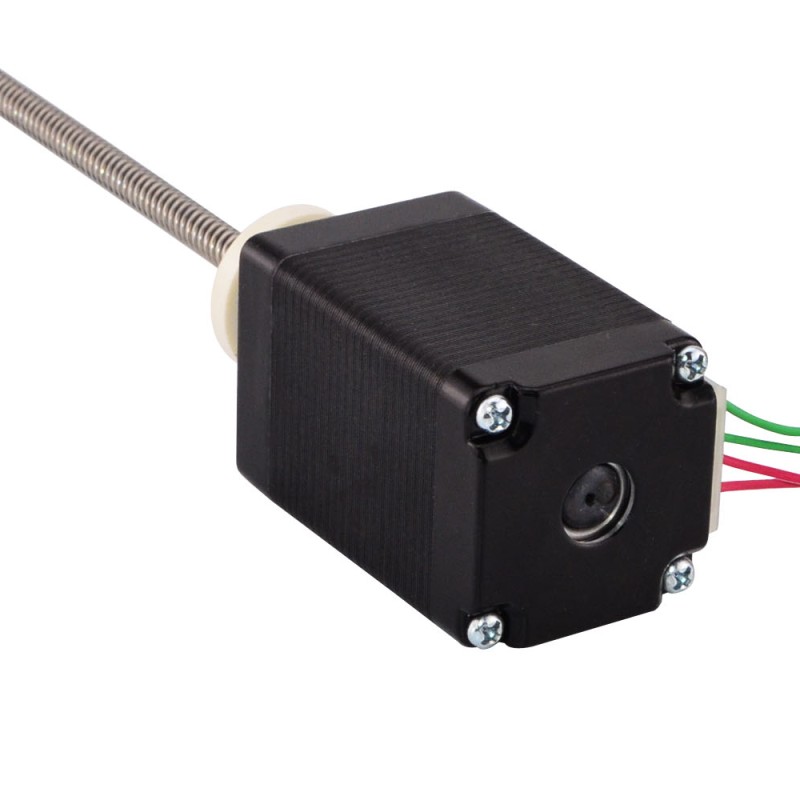

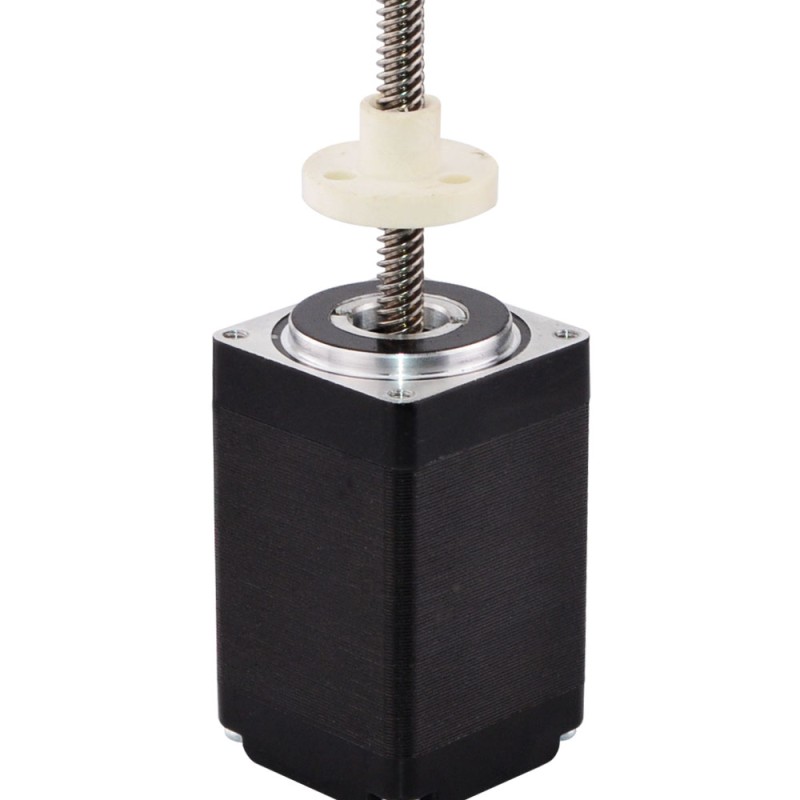

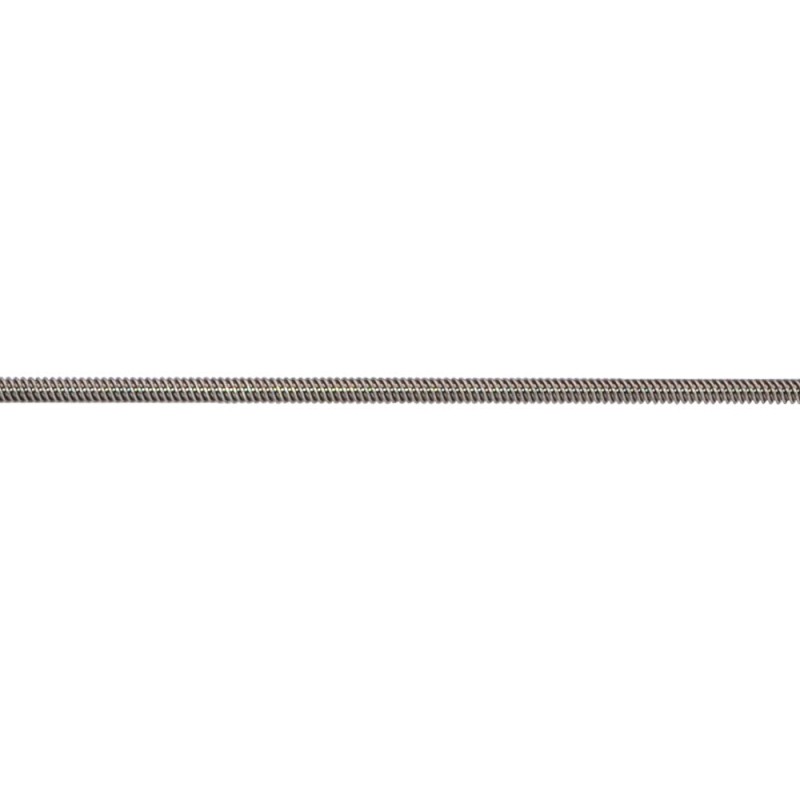

The motor part is 46mm body 1.8 degree 0.75A Nema 11 stepper motor, and it has integrated with a 4.76mm(0.1874") diameter 250mm(9.8425") length lead screw and a POM screw nut, the linear travel is 0.635mm(0.025") per revolution. This model is almost exactly same as Haydon Kerk 28000 series size 11 double stack external stepper motor linear actuator.

Electrical Specification

  • Manufacturer Part Number: 11E18S0754ED3-250RS(11E18S0754ED-250RS)
  • Motor Type: External Linear Stepper
  • Step Angle: 1.8°
  • Minimal Thrust: 77N(300pps)
  • Rated Current/phase: 0.75A
  • Phase Resistance: 6.7ohms
  • Voltage: 5V
  • Inductance: 5.8mH±20%(1KHz)

Physical Specification

  • Frame Size: 28 x 28mm
  • Body Length: 46mm
  • Lead Screw Length: 250mm(9.8425")
  • Lead Screw Diameter: Φ4.76mm(0.1874")
  • Lead/Step: 0.003175mm(0.000125")
  • Lead Travel/Revolution: 0.635mm(0.025")
  • Number of Leads: 4
  • Cable Length: 300mm
  • Weight : 180g

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green

●How to order a custom linear motor?  Custom Linear Stepper Motor

● If you only have the old part number, get the new one here  Show Details

● How we named linear motor?  Part Number Construction

Physical Specification
No. of Lead 4
Lead Length(mm) 300
Linear Motor Type External(Acme)
Lead Travel/Revolution(mm) 0.635
Lead Travel/Step(mm) 0.003175
Lead Screw Length(mm) 250
Lead Screw Diameter(mm) 4.76
Frame Size(mm) Nema 11 (28 x 28)
Body Length(mm) 46
With Encoder No
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Minimal Thrust(N) @300pps 77
Rated Current(A) 0.75
Bipolar/Unipolar Bipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 6.7
Inductance(mH) 5.8
Has Torque/Thrust Curve? No
Product Type
Product Type Linear Stepper Motor
