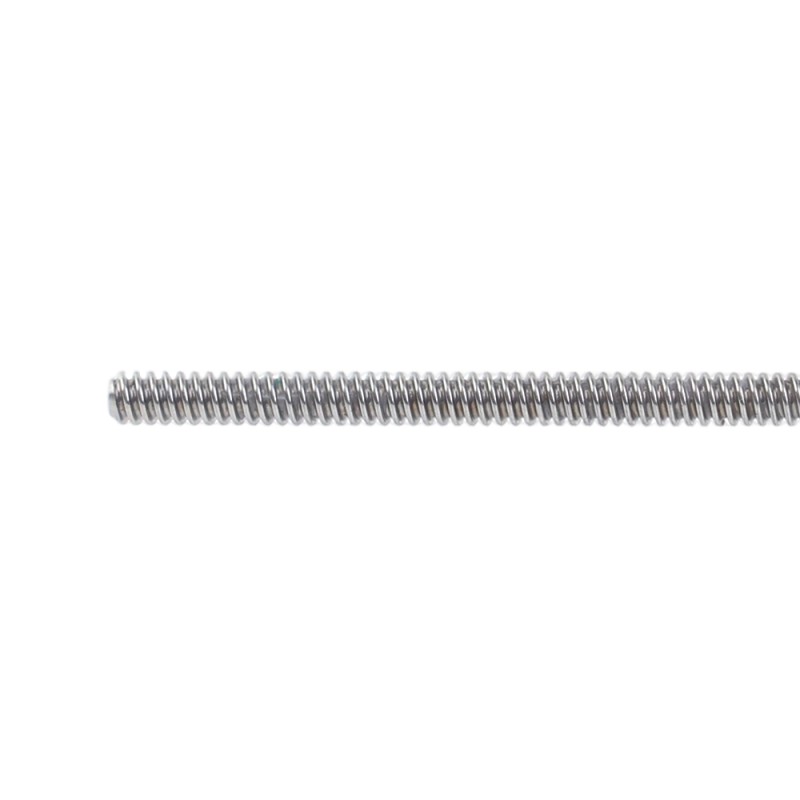

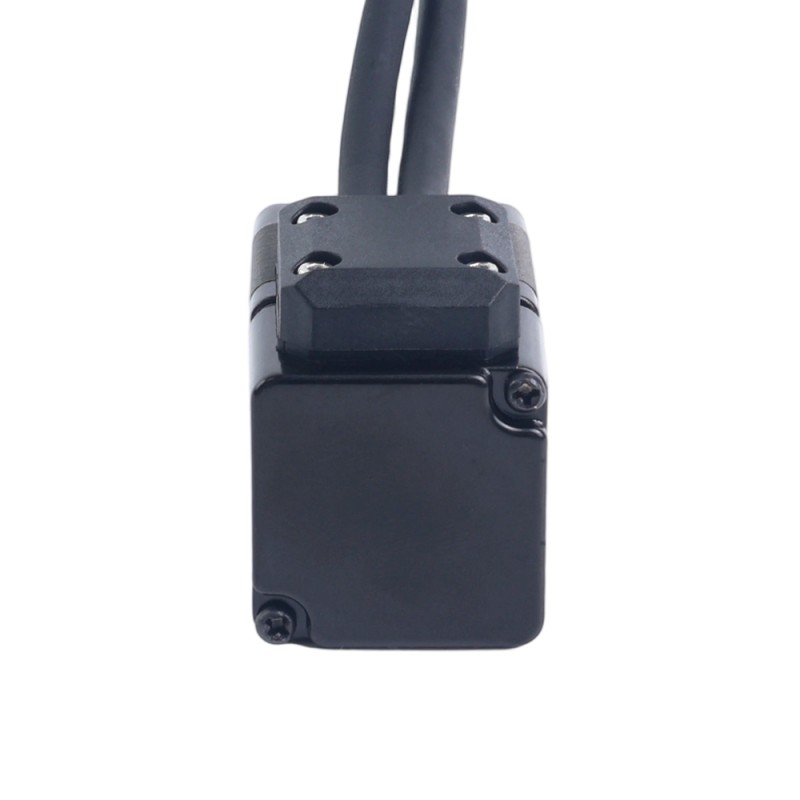

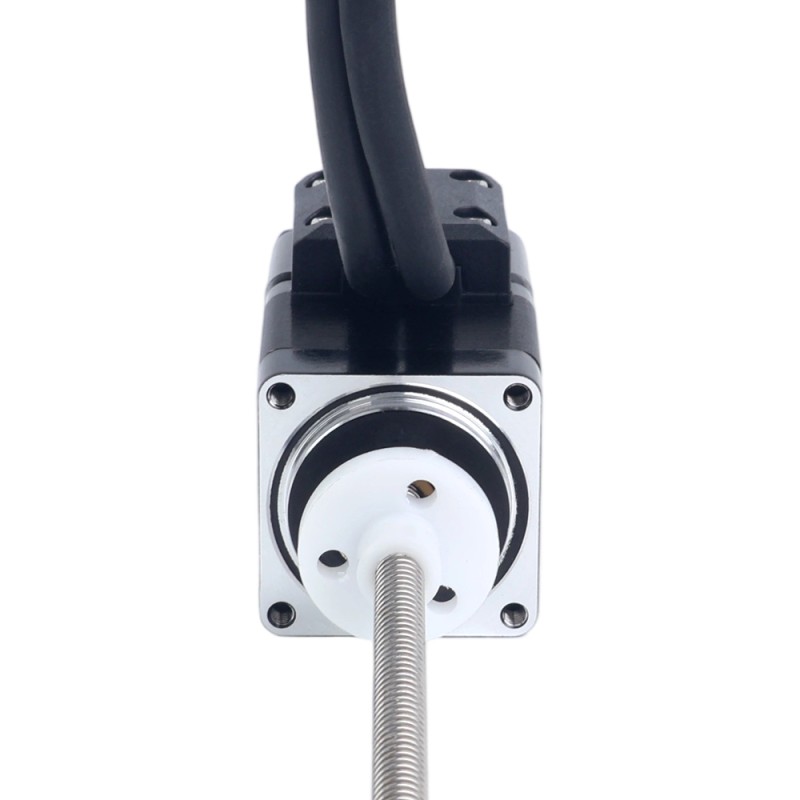

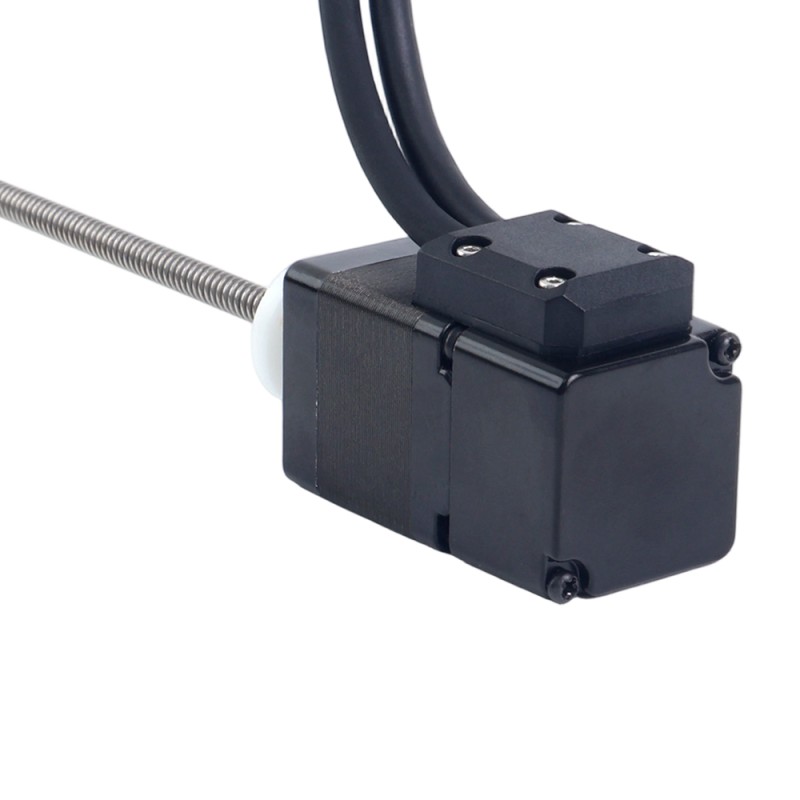

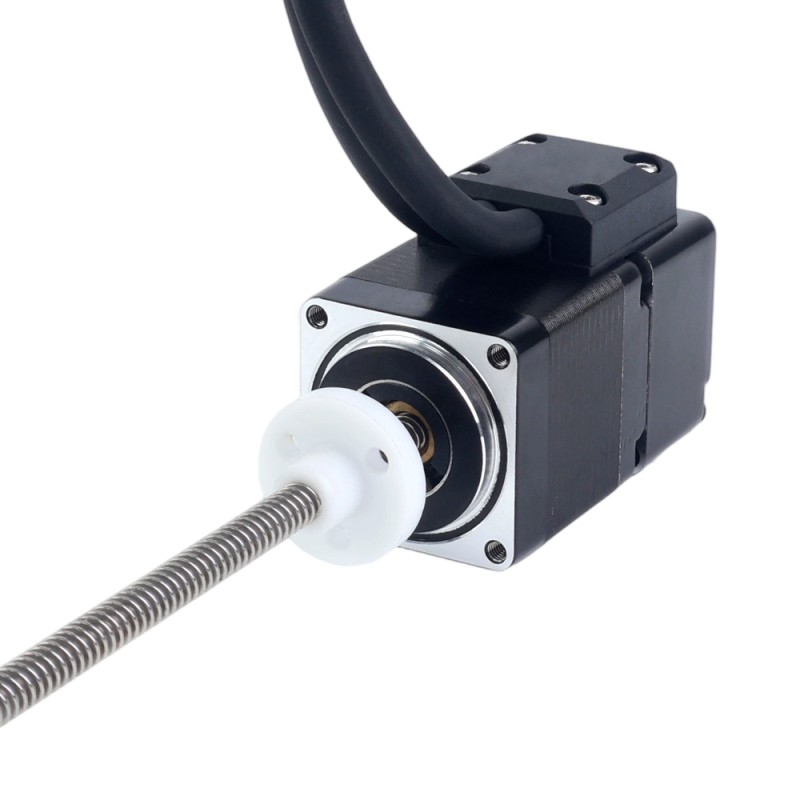

This is a Nema 11 linear stepper motor, integrated with a 1000PPR optical incremental encoder. It is equipped with a Φ4.76mm(0.1874") diameter, 150mm(5.9055") ACME lead screw and a POM lead screw nut, providing a linear travel of 2.54mm(0.1") per revolution. With the encoder installed, the control accuracy and stability of the linear motor are enhanced. It is widely used in fields such as automated production, transportation systems, medical devices, stage equipment, and robotics.

Motor Specification

  • Manufacturer Part Number: 11E13S1004GD4-150RS-OE1K
  • Motor Type: External(ACME)
  • Step Angle: 1.8°
  • Holding Torque: 0.05Nm(7.08oz.in)
  • Rated Current/phase: 1A
  • Phase Resistance: 2.1ohms
  • Inductance: 1.5mH±20%(1KHz)
  • Frame Size: 28 x 28mm
  • Body Length: 32.2mm
  • Lead Screw Length: 150mm(5.9055")
  • Lead Screw Diameter: Φ4.76mm(0.1874")
  • Lead/Step: 0.0127mm(0.0005")
  • Lead Travel/Revolution: 2.54mm(0.1")
  • Number of Leads: 4
  • Number of Thread Starts: 2
  • Cable Length: 300mm

Encoder Specification

  • Output Circuit Type: Differential Type
  • Encoder Type: Optical Incremental
  • Encoder Resolution: 1000PPR(4000CPR)
  • Output Signal Channels: 3 Channels
  • Supply Voltage Min: 4.5V
  • Supply Voltage Max: 5.5V
  • High Level Output Voltage: 2.4V - Vcc
  • Low Level Output Voltage: ≤ 0.4V

Connection

Pin
1
2
3
4
Motor
A+
A-
B+
B-
Color
Black
Green
Red
Blue

Encoder
VCC
GND
EA+
EA-
EB+
EB-
EZ+
EZ-
Color
Red
Black
White
Yellow
Orange
Gray
Green
Blue

● How to order a custom linear motor?  Custom Linear Stepper Motor

● If you only have the old part number, get the new one here  Show Details

● How we named linear motor?  Part Number Construction

Physical Specification
No. of Lead 4
Lead Length(mm) 300
Linear Motor Type External(Acme)
Lead Travel/Revolution(mm) 2.54
Lead Travel/Step(mm) 0.0127
Lead Screw Length(mm) 150
Lead Screw Diameter(mm) 4.76
Frame Size(mm) Nema 11 (28 x 28)
Body Length(mm) 32.2
With Encoder Yes
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Rated Current(A) 1.0
Bipolar/Unipolar Bipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 2.1
Inductance(mH) 1.5
Has Torque/Thrust Curve? No
