  • Model: 11E13S1004GD5-150RS
  • Weight: 0.21kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Lead Screw
Lead, Length, Screw End Machining, Thread Type...
Nut
Material, Profile/Shape, Dimensions...
Body
Body Dimensions, Mounting Holes...
Cable
Length, Connector, Terminal...
Optional Accessories
Encoder, Brake

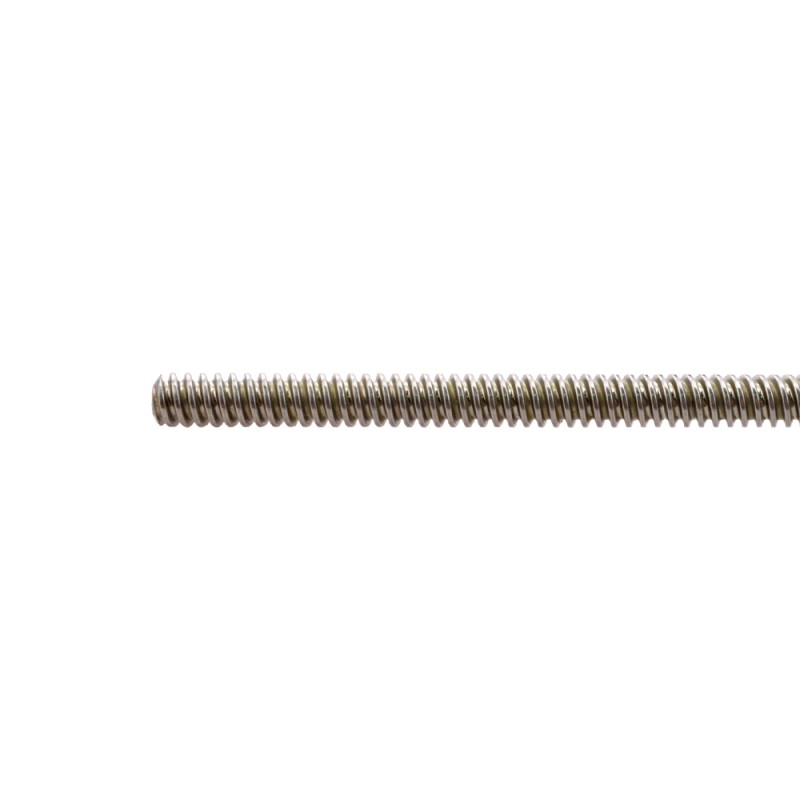

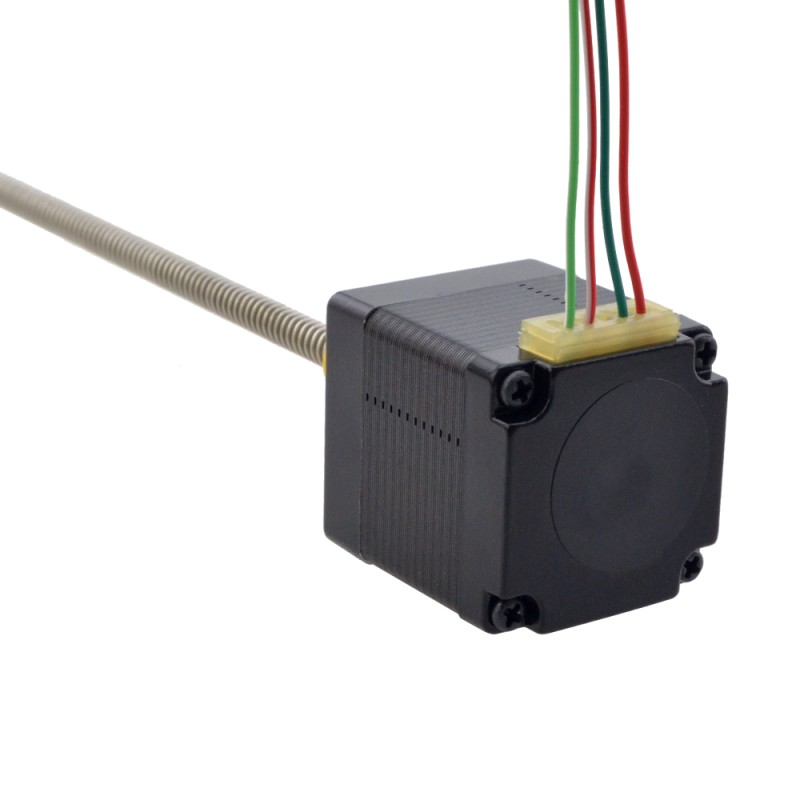

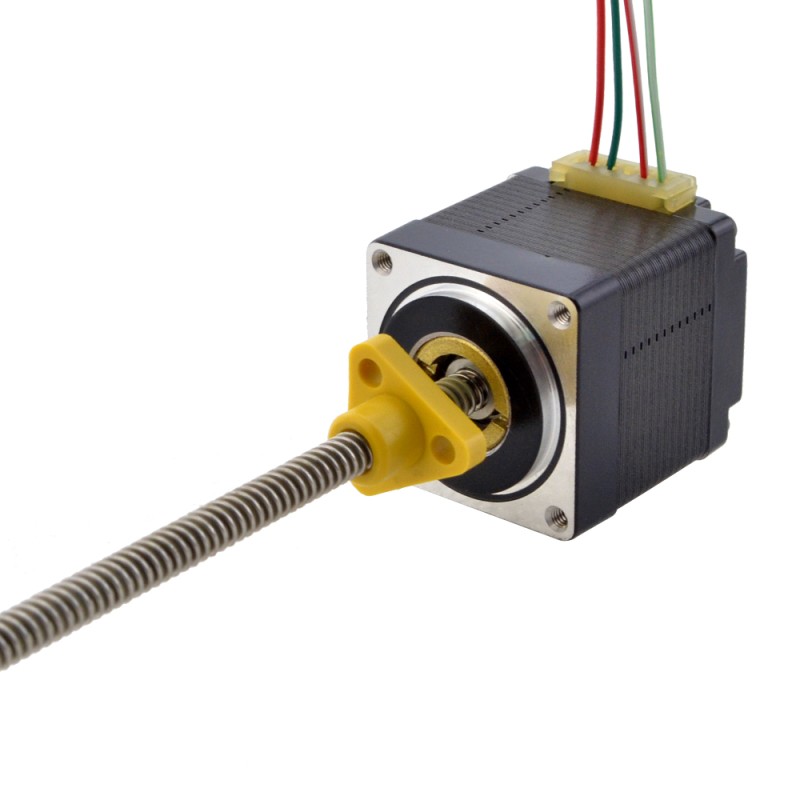

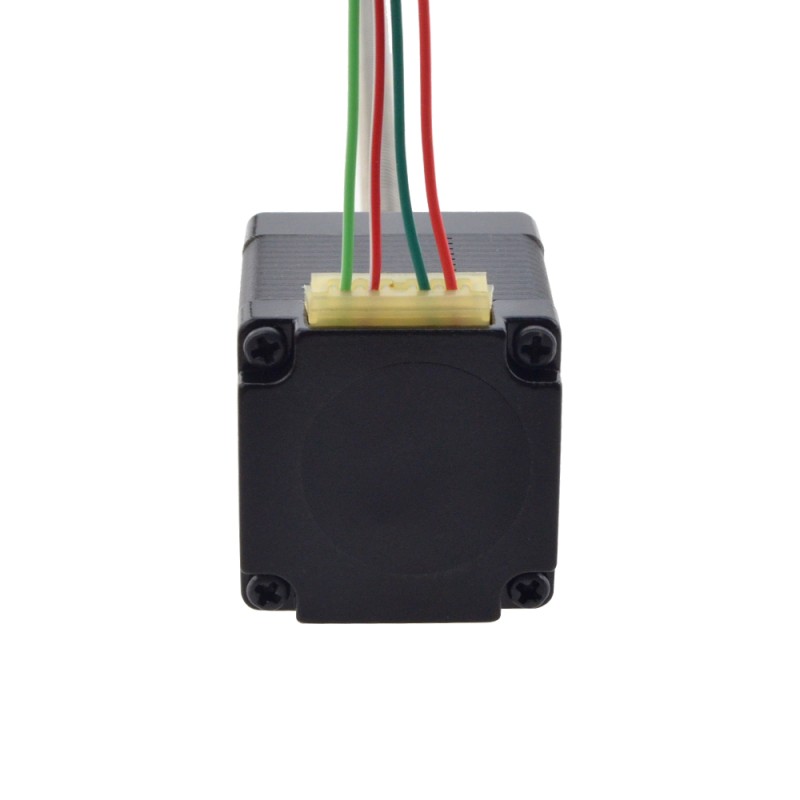

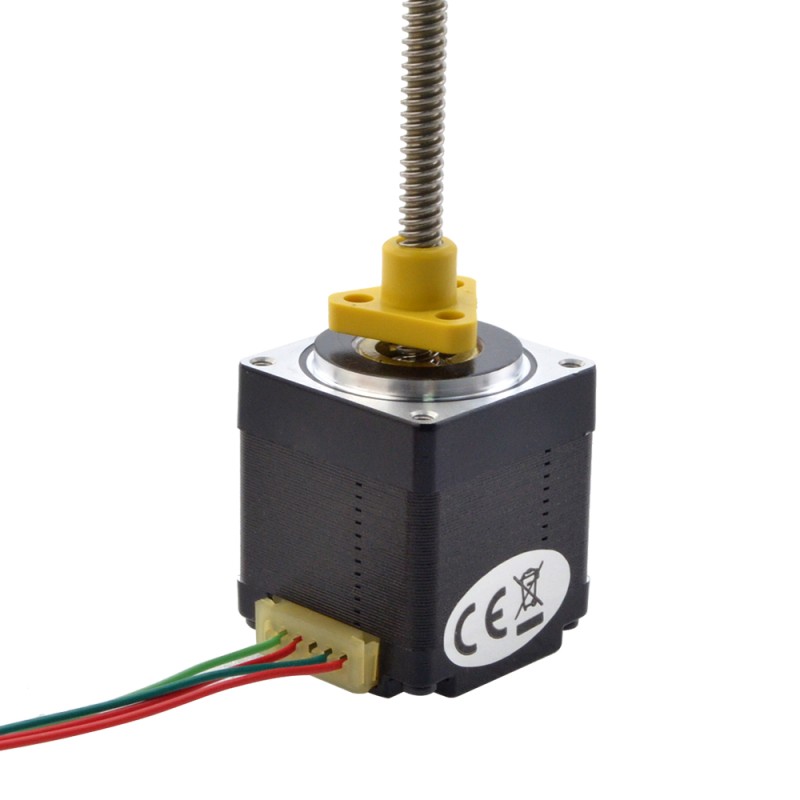

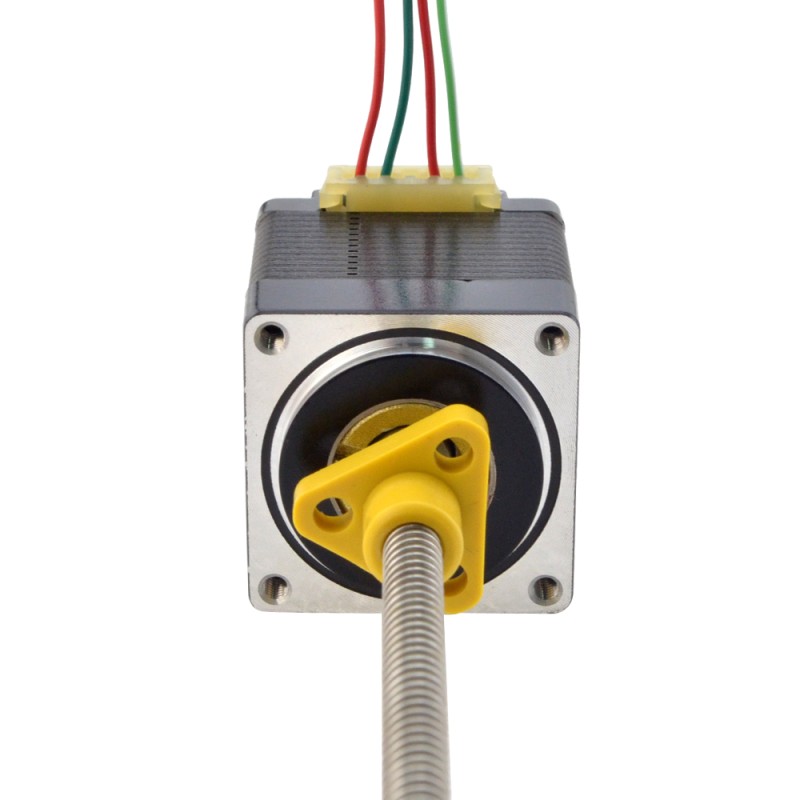

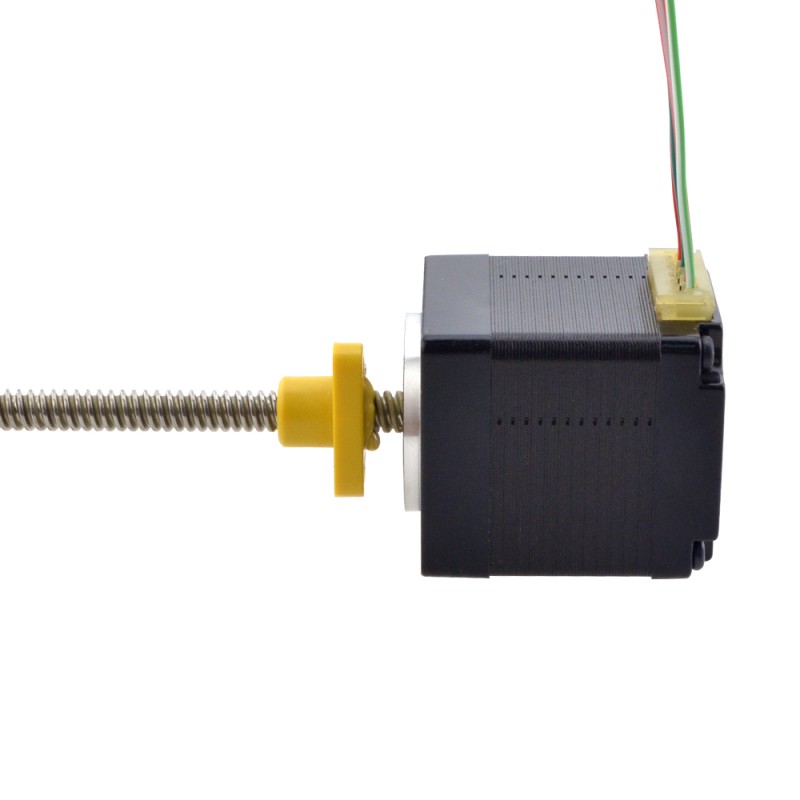

This is integrated with a Φ4.76mm(0.1874") diameter, 150mm(5.9055") ACME screw length and a POM screw nut, the linear travel is 2.54mm(0.1") per revolution. This model is a Nema 11 ACME screw linear stepper motor with a 32.2mm body length, 1.8 degree step angle and 1A rated current. It has the characteristics of high performance, long life, low noise and high efficiency.

Electrical Specification

  • Manufacturer Part Number: 11E13S1004GD5-150RS
  • Motor Type: External(ACME)
  • Step Angle: 1.8°
  • Holding Torque: 0.05Nm(7.08oz.in)
  • Rated Current/phase: 1A
  • Phase Resistance: 2.1ohms
  • Inductance: 1.5mH±20%(1KHz)

Physical Specification

  • Frame Size: 28 x 28mm
  • Body Length: 32.2mm
  • Lead Screw Length: 150mm(5.9055")
  • Lead Screw Diameter: Φ4.76mm(0.1874")
  • Lead/Step: 0.0127mm(0.0005")
  • Lead Travel/Revolution: 2.54mm(0.1")
  • Number of Leads: 4
  • Number of Thread Starts: 2
  • Cable Length: 300mm

Connection

A+
A-
B+
B-
Red
Red/White
Green
Green/White

● How to order a custom linear motor?  Custom Linear Stepper Motor

● If you only have the old part number, get the new one here  Show Details

● How we named linear motor?  Part Number Construction

Physical Specification
No. of Lead 4
Lead Length(mm) 300
Linear Motor Type External(Acme)
Lead Travel/Revolution(mm) 2.54
Lead Travel/Step(mm) 0.0127
Lead Screw Length(mm) 150
Lead Screw Diameter(mm) 4.76
Frame Size(mm) Nema 11 (28 x 28)
Body Length(mm) 32.2
With Encoder No
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Rated Current(A) 1.0
Bipolar/Unipolar Bipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 2.1
Inductance(mH) 1.5
Has Torque/Thrust Curve? Yes
