Nema 34 External 79mm Stack 3.12A Lead 6.35mm(0.25") Length 150mm

Nema 34 External 79mm Stack 3.12A Lead 6.35mm(0.25") Length 150mm
Nema 34 External 79mm Stack 3.12A Lead 6.35mm(0.25") Length 150mm
Nema 34 External 79mm Stack 3.12A Lead 6.35mm(0.25") Length 150mm
Nema 34 External 79mm Stack 3.12A Lead 6.35mm(0.25") Length 150mm
Nema 34 External 79mm Stack 3.12A Lead 6.35mm(0.25") Length 150mm
Nema 34 External 79mm Stack 3.12A Lead 6.35mm(0.25") Length 150mm
Nema 34 External 79mm Stack 3.12A Lead 6.35mm(0.25") Length 150mm
Nema 34 External 79mm Stack 3.12A Lead 6.35mm(0.25") Length 150mm
Nema 34 External 79mm Stack 3.12A Lead 6.35mm(0.25") Length 150mm
Nema 34 External 79mm Stack 3.12A Lead 6.35mm(0.25") Length 150mm
Nema 34 External 79mm Stack 3.12A Lead 6.35mm(0.25") Length 150mm
0 reviews • Write a review
from
$200.33
10 or more $189.79
100 or more $180.30
  • Model: 34E31S3124RK3-150RS
  • Weight: 2.90kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Lead Screw
Lead, Length, Screw End Machining, Thread Type...
Nut
Material, Profile/Shape, Dimensions...
Body
Body Dimensions, Mounting Holes...
Cable
Length, Connector, Terminal...
Optional Accessories
Encoder, Brake

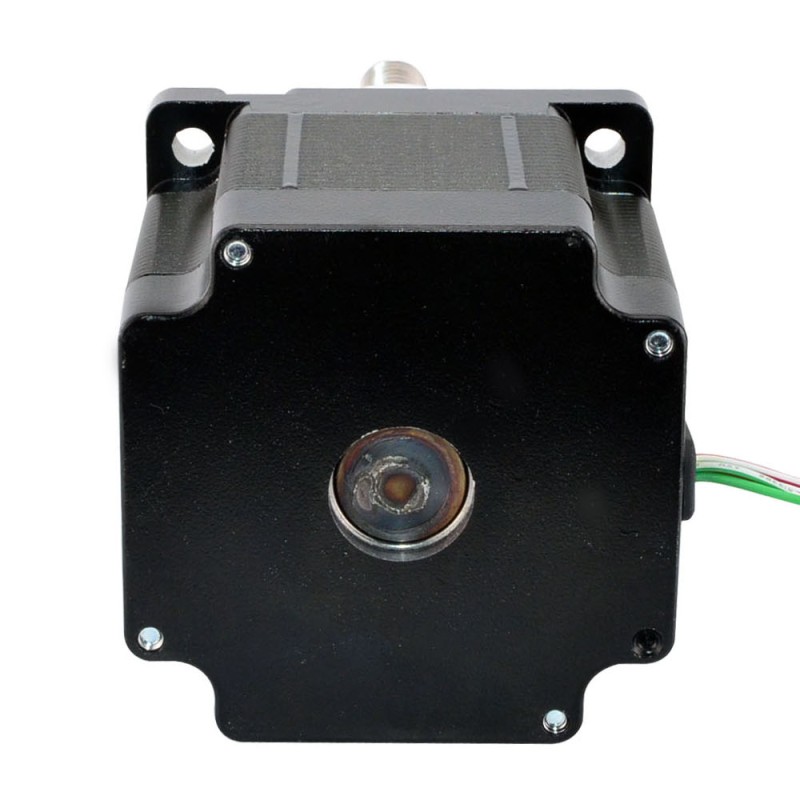

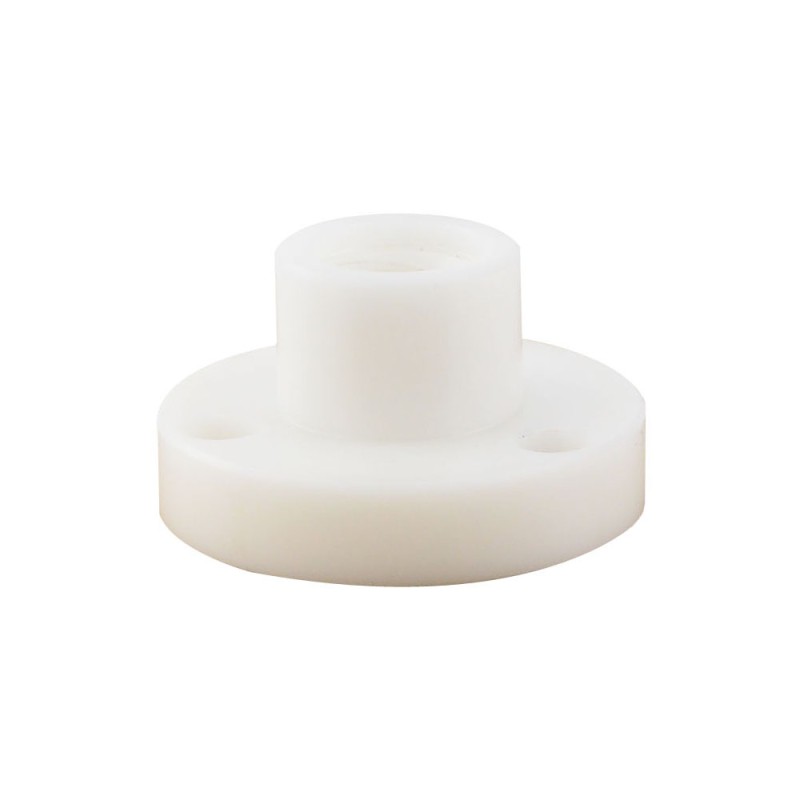

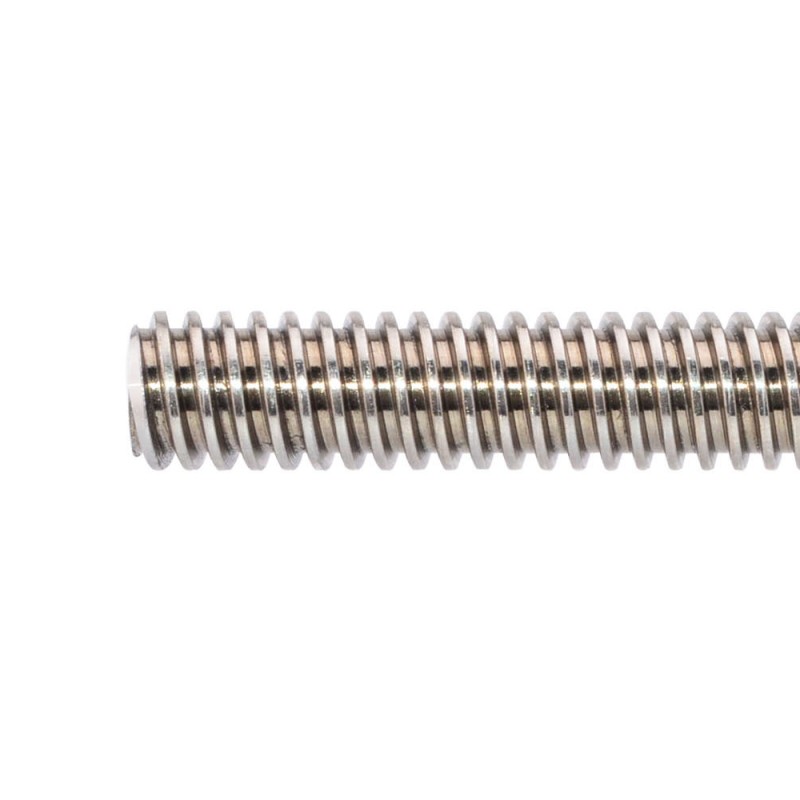

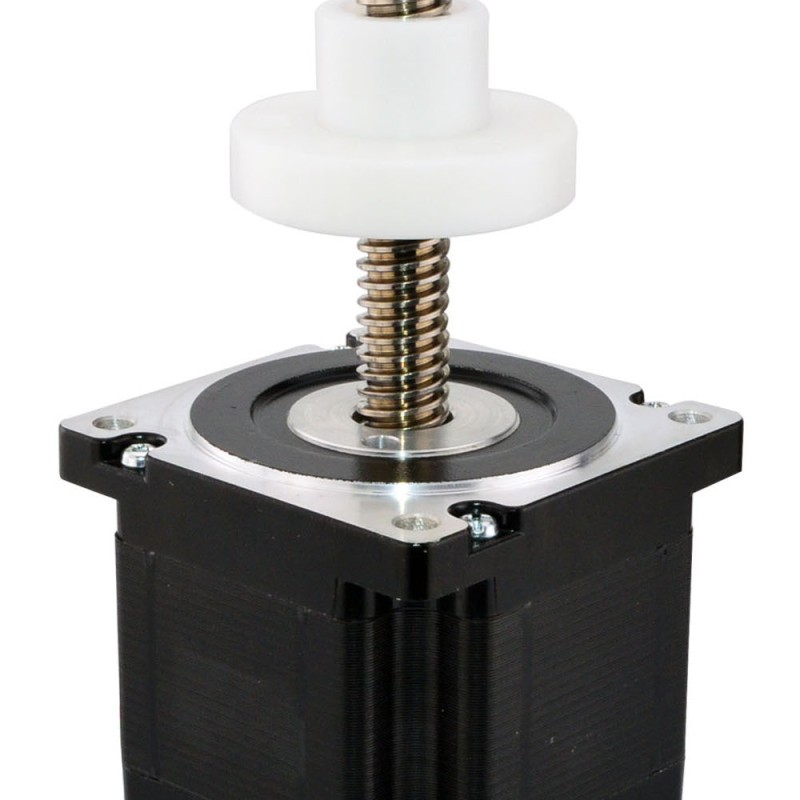

The motor part is 79mm body 1.8 degree 3.12A Nema 34 stepper motor, and it has integrated with a 15.88mm(0.625") diameter 150mm(5.9055") length lead screw and a POM screw nut, the linear travel is 6.35mm(0.25") per revolution. This model is almost exactly same as Haydon Kerk 86000 series size 34 external stepper motor linear actuator.

Electrical Specification

  • Manufacturer Part Number: 34E31S3124RK3-150RS(34E31S3124RK-150RS)
  • Motor Type: External Linear Stepper
  • Step Angle: 1.8°
  • Minimal Thrust: 800N(300pps)
  • Rated Current/phase: 3.12A
  • Phase Resistance: 1.6ohms
  • Voltage: 5V
  • Inductance: 8.8mH±20%(1KHz)

Physical Specification

  • Frame Size: 86 x 86mm
  • Body Length: 79mm
  • Lead Screw Length: 150mm(5.9055")
  • Lead Screw Diameter: Φ15.88mm(0.625")
  • Lead/Step: 0.03175mm(0.00125")
  • Lead Travel/Revolution: 6.35mm(0.25")
  • Number of Leads: 4
  • Cable Length: 300mm
  • Weight : 2300g

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green

● How to order a custom linear motor?  Custom Linear Stepper Motor

● If you only have the old part number, get the new one here  Show Details

● How we named linear motor?  Part Number Construction

Physical Specification
No. of Lead 4
Lead Length(mm) 300
Linear Motor Type External(Acme)
Lead Travel/Revolution(mm) 6.35
Lead Travel/Step(mm) 0.03175
Lead Screw Length(mm) 150
Lead Screw Diameter(mm) 15.88
Frame Size(mm) Nema 34 (86 x 86)
Body Length(mm) 79
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Minimal Thrust(N) @300pps 800
Rated Current(A) 3.12
Bipolar/Unipolar Bipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 1.6
Inductance(mH) 8.8
Has Torque/Thrust Curve? No
