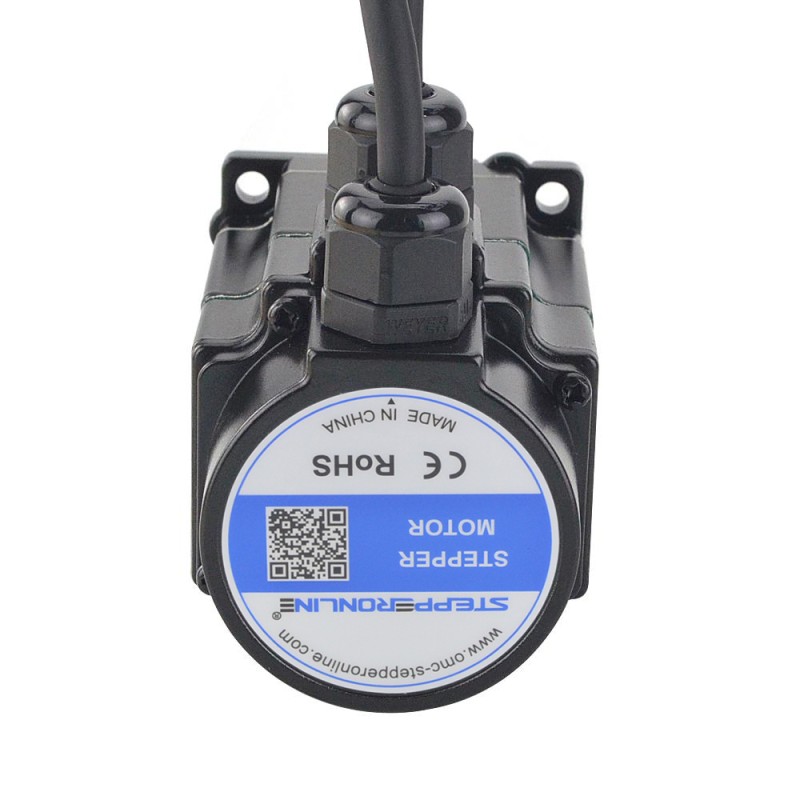

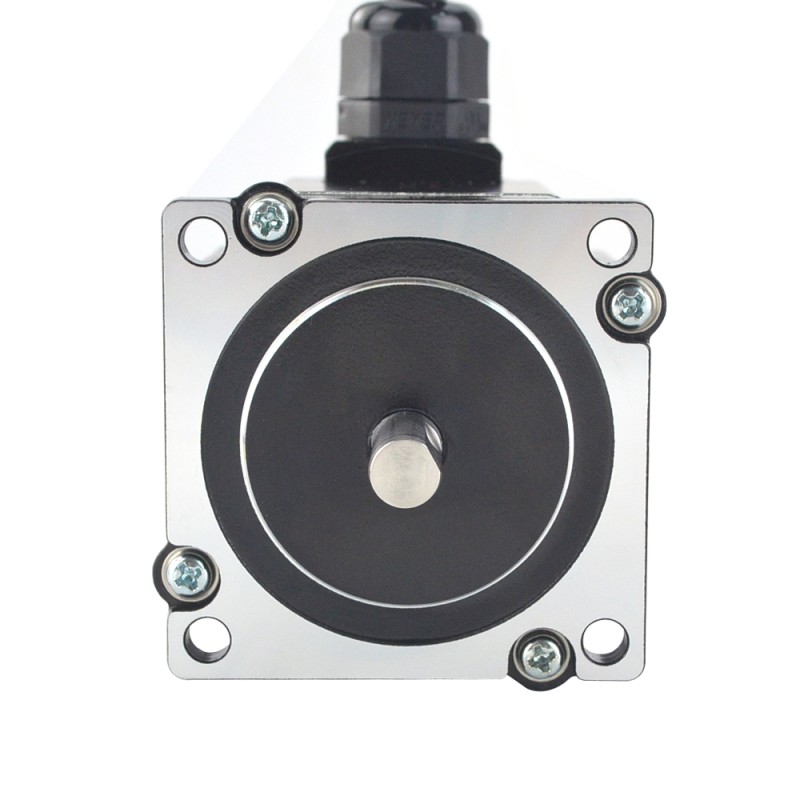

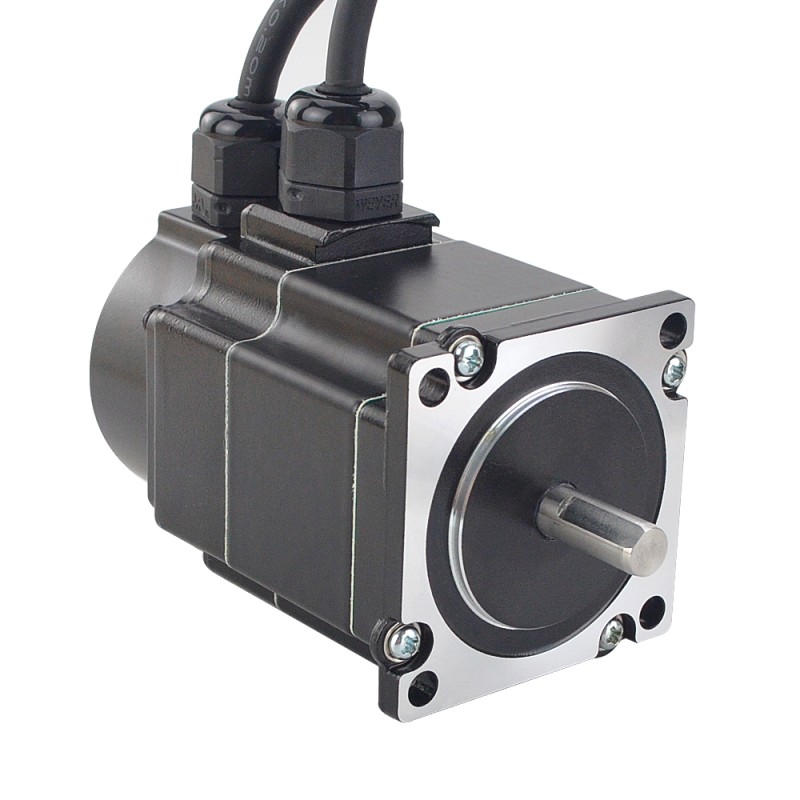

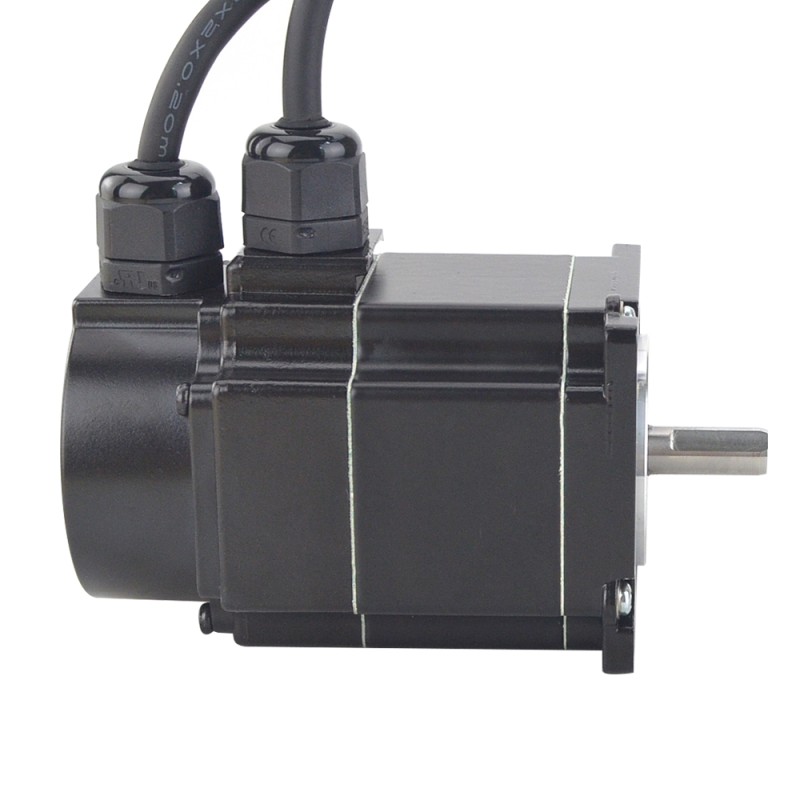

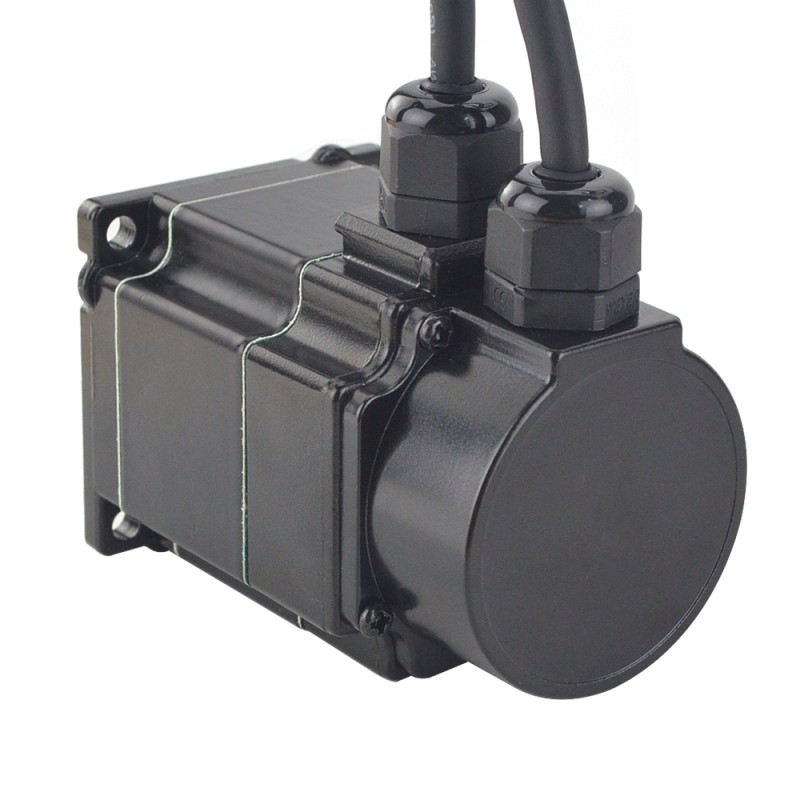

P Series IP65 Waterproof Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Encoder 1000PPR(4000CPR)

P Series IP65 Waterproof Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Encoder 1000PPR(4000CPR)
P Series IP65 Waterproof Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Encoder 1000PPR(4000CPR)
P Series IP65 Waterproof Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Encoder 1000PPR(4000CPR)
P Series IP65 Waterproof Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Encoder 1000PPR(4000CPR)
P Series IP65 Waterproof Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Encoder 1000PPR(4000CPR)
P Series IP65 Waterproof Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Encoder 1000PPR(4000CPR)
P Series IP65 Waterproof Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Encoder 1000PPR(4000CPR)
P Series IP65 Waterproof Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Encoder 1000PPR(4000CPR)
P Series IP65 Waterproof Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Encoder 1000PPR(4000CPR)
P Series IP65 Waterproof Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Encoder 1000PPR(4000CPR)
P Series IP65 Waterproof Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Encoder 1000PPR(4000CPR)
P Series IP65 Waterproof Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Encoder 1000PPR(4000CPR)
P Series IP65 Waterproof Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Encoder 1000PPR(4000CPR)
0 reviews • Write a review
from
$83.63
10 or more $75.76
100 or more $69.24
  • Model: 23E1KIP65-12
  • Weight: 1.10kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

IP Rating
Insulation Class
Vacuum
Hollow Shaft
Motor Phase Number

This P series closed loop nema 23 stepper motor with IP65 waterproof ratings and 1.2Nm(169.97oz.in), that meaning this IP65 stepper motor can be totally protected against dust, and can be protected against low pressure jets if water from all directions - limited ingress permitted.


Electrical Specification

  • Manufacturer Part Number: 23E1KIP65-12
  • Number of phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 1.2Nm(169.97oz.in)
  • Rated Current/phase: 4.0A
  • Phase Resistance: 0.45ohms
  • Inductance: 1.4mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 65mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21mm
  • D-Cut Shaft Length: 15mm
  • Lead Length: 1000mm
  • IP Rating: IP65
  • Weight: 0.8kg

Encoder Specification

  • Output Circuit Type: Differential type
  • Encoder Type: Incremental
  • Encoder Resolution: 1000PPR(4000CPR)
  • Output Signal Channels: 2channels
  • Supply Voltage Min: 5V
  • Supply Voltage Max: 5V
  • Output High Voltage: ＜4V
  • Output Low Voltage: ＜1V

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

EGED
+5VCC
EA-
EA+
EB-
EB+
Black
Red
Blue/White
Blue
Orange/White
Orange
Physical Specification
Output Shaft Type D
Shaft Diameter(mm) 8
Shaft Length(mm) 21
Lead Length(mm) 1000
Single Shaft/Dual Shaft Single Shaft
Frame Size(mm) Nema 23 (57 x 57)
Body Length(mm) 65
Weight(Kg) 0.8
Inventory Method Dedicated Inventory
IP Rating 65
Electrical Specification
Encoder Resolution 1000PPR(4000CPR)
Holding Torque(Ncm) 120
Rated Current(A) 4.0
Holding Torque(oz.in) 169.97
Bipolar/Unipolar Bipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 0.45
Inductance(mH) 1.4
Encoder Type Incremental
Open-loop/Closed-loop Closed-loop
Insulation Class B 130C(266F)
Product Type
Product Type Waterproof Stepper Motor
