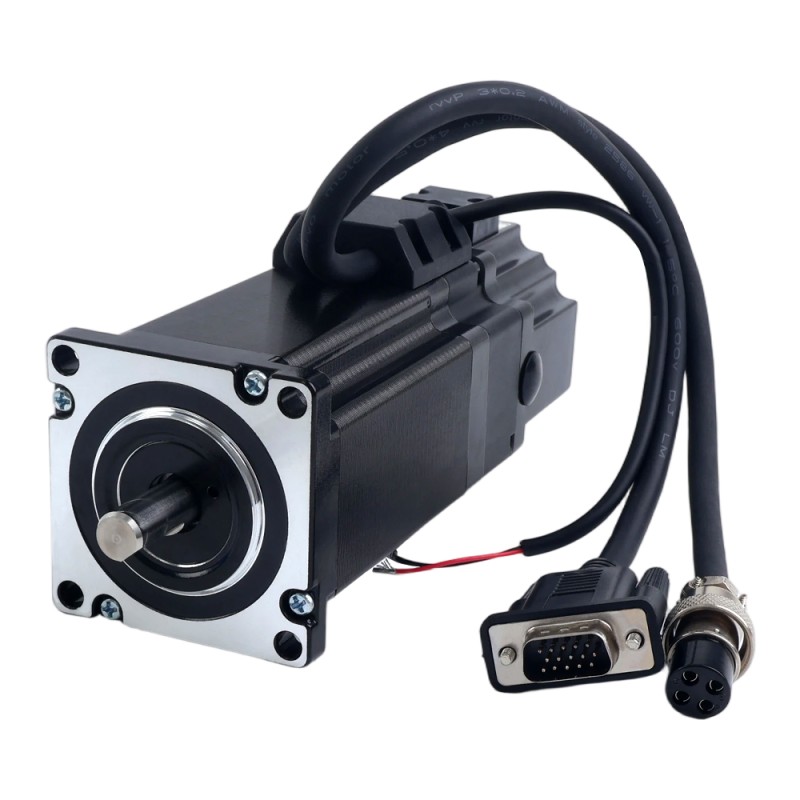

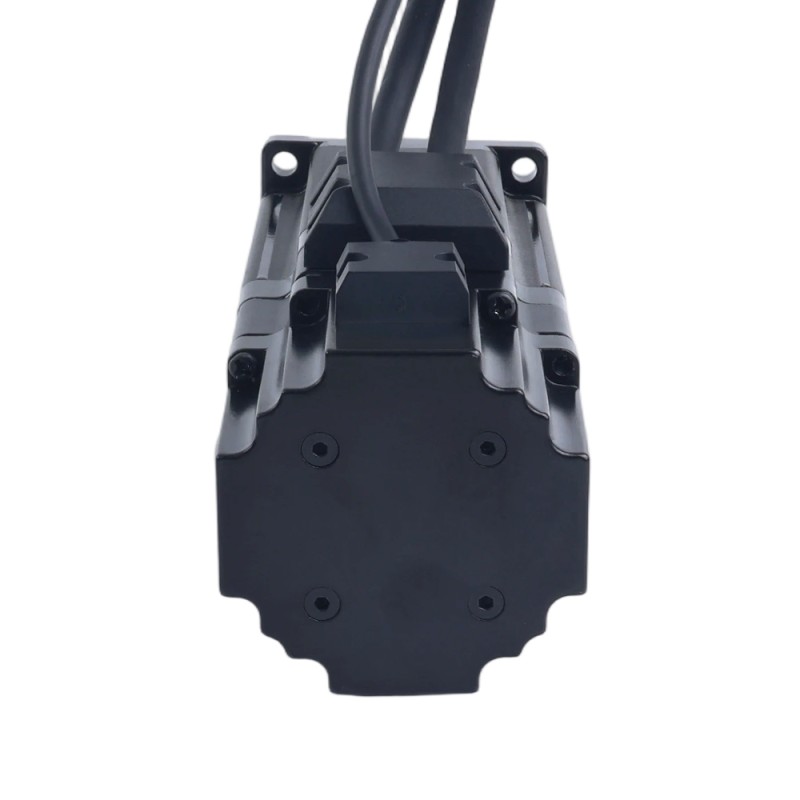

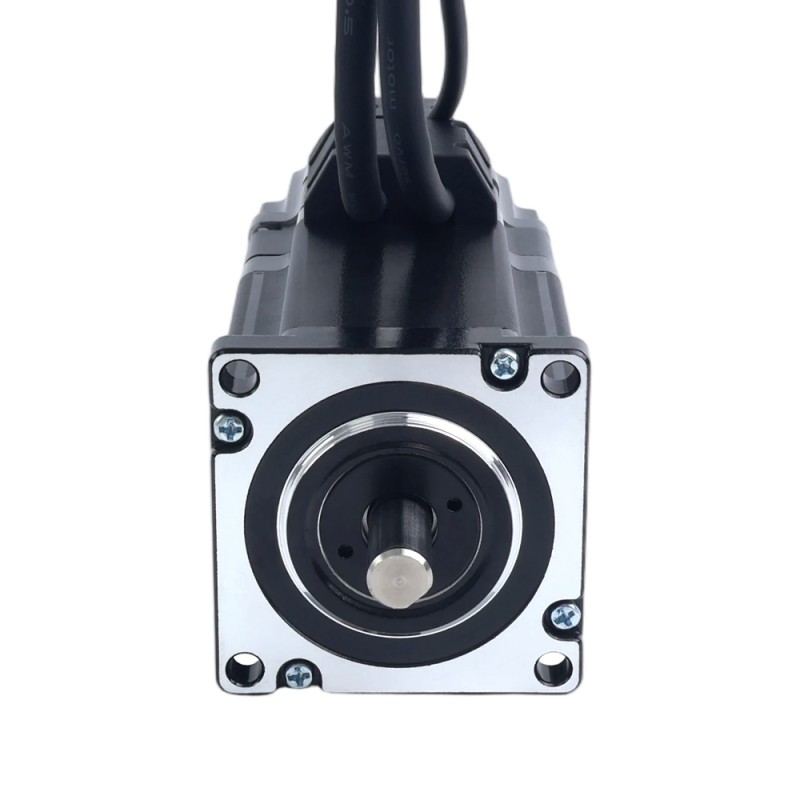

S Series Nema 24 Closed Loop Stepper Motor 3.0Nm(424.92oz.in) with 2.8Nm(396.51oz.in) Electromagnetic Brake

This is a S series Nema 24 closed loop stepper motor with a holding torque of 3.0Nm(424.92oz.in) and rated current of 5.0A. Enquipped with a 1000ppr optical incremental encoder and a 24V 2.8Nm(396.51oz.in) electromagnetic brake, it combines the precision and reliability of closed-loop control with the safety and energy efficiency of a power-off brake. It is primarily used in automated equipment such as vertical axes and robots that require power-off locking and precise positioning.

Electrical Specification

• Manufacturer Part Number: 24HS34-5004D-E1000-B280
• Number of phase: 2
• Step Angle: 1.8deg
• Holding Torque: 3.0Nm(424.92oz.in)
• Rated Current/phase: 5.0A
• Phase Resistance: 0.52ohms
• Inductance: 2.1mH±20%(1KHz)
• Insulation Class: B 130°C[266°F]

Physical Specification

• Frame Size: 60 x 60mm
• Body Length: 146mm
• Shaft Diameter: Φ10mm
• Shaft Length: 21mm
• D-Cut Shaft Length: 15mm
• Brake Cable Length: 180mm
• Motor Cable Length: 300mm
• Encoder Cable Length: 300mm
• Weight: 1.95kg

Encoder Specification

• Output Circuit Type: Differential type
• Encoder Type: Optical Incremental
• Encoder Resolution: 1000PPR(4000CPR)
• Output Signal Channels: 2 channels
• Supply Voltage Min: 4V
• Supply Voltage Max: 5V
• Output Current: 100mA
• Output High Voltage: 5V
• Output Low Voltage: 4.5V
• Output Frequency Max: 60kHZ

Brake Connections

• Red--24V+
• Black--24V-
• 2.8Nm(396.51oz.in)
