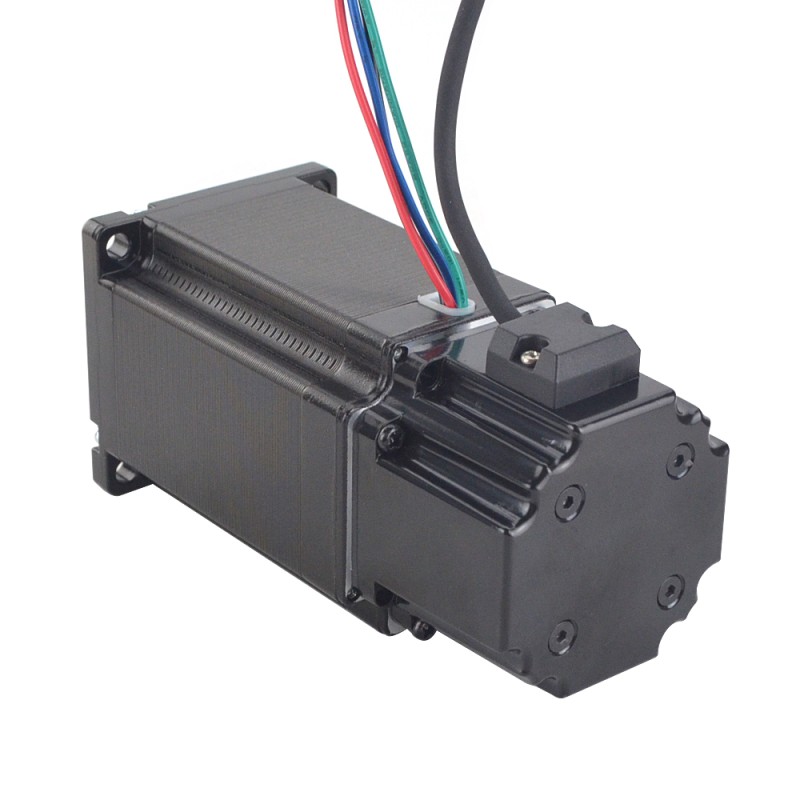

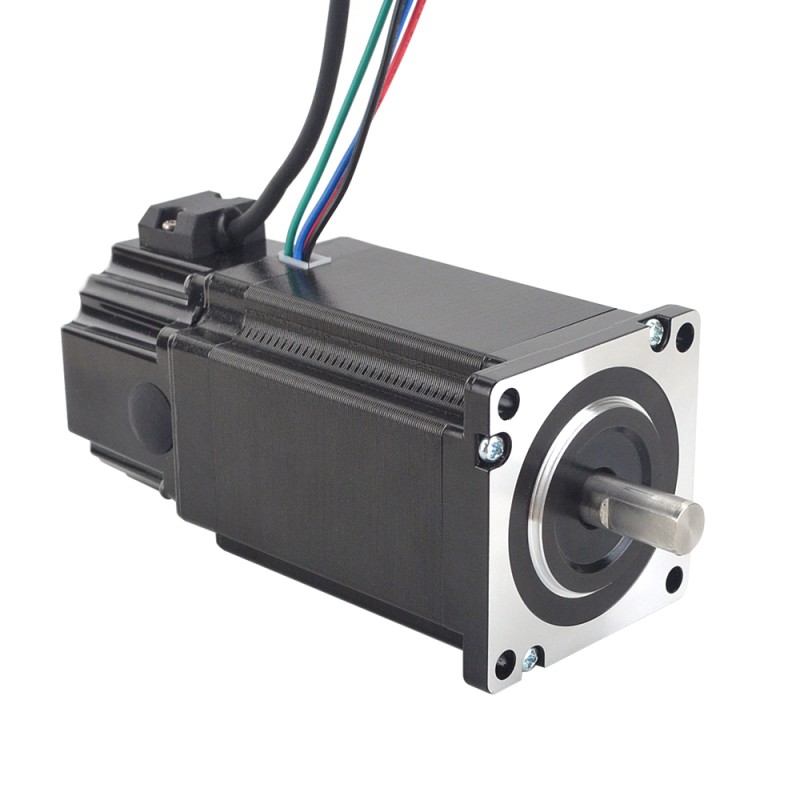

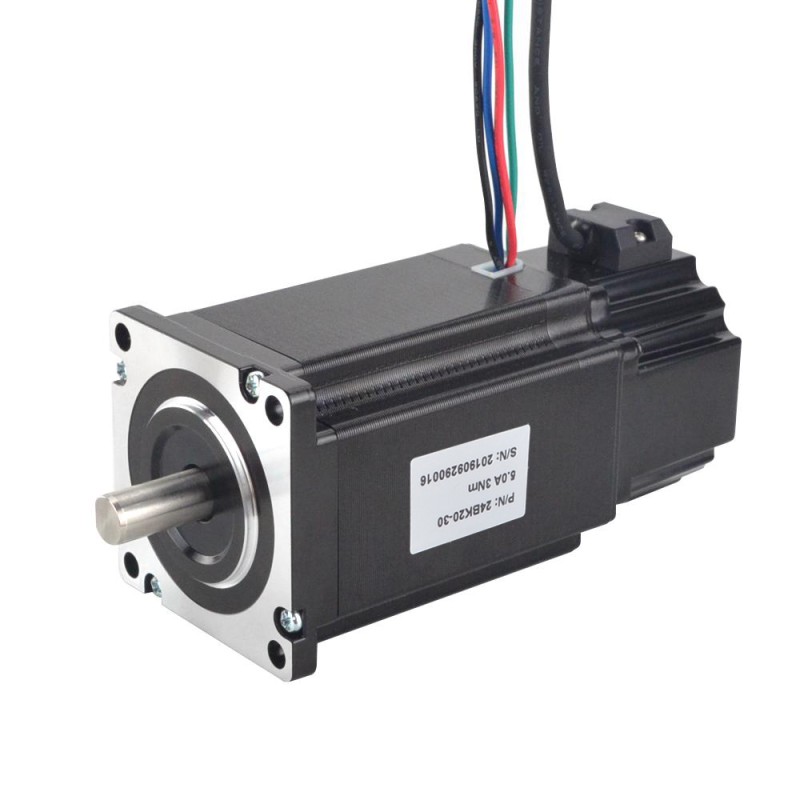

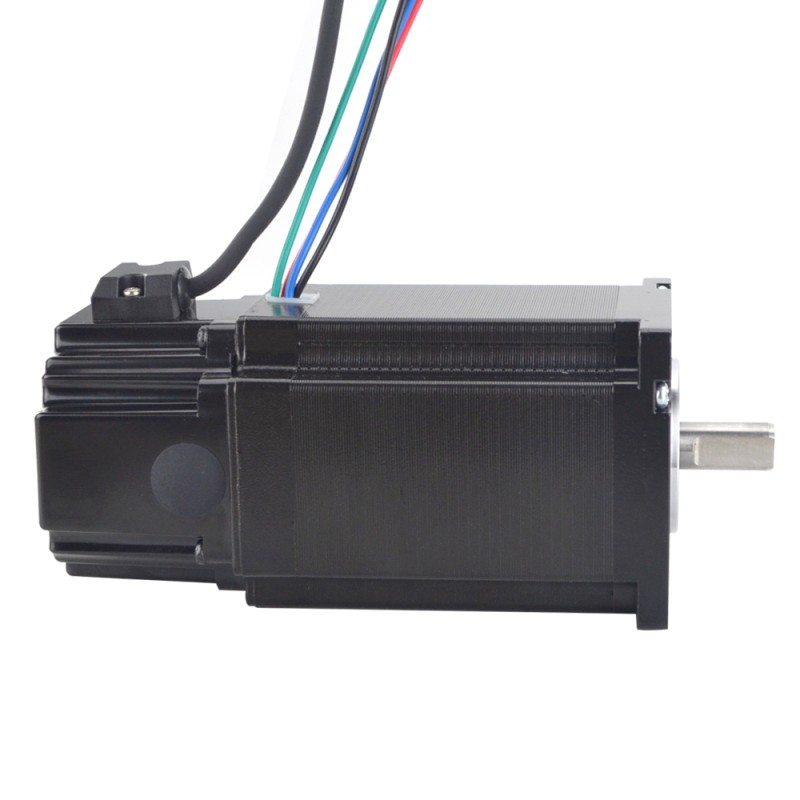

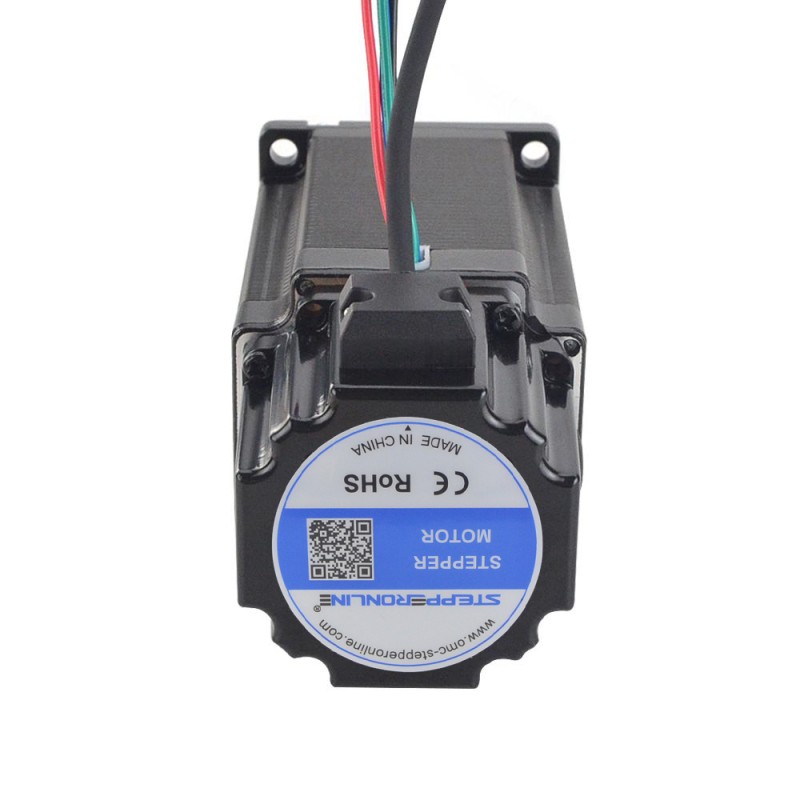

P Series Nema 24 Stepper Motor 3Nm(424.92oz.in) with Electromagnetic Brake

0 reviews • Write a review

from

$101.76

10 or more $92.62

100 or more $84.97

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Your Name

Your Email

Quantity to Quote

Your questions or requirements

Captcha

Enter the code in the box below

You can select from the customization options listed below.

Labeling

No Label / Custom Label, Laser Marking...

A+	A-	B+	B-
Black	Green	Red	Blue

Brake Specification
Brake Rated Voltage(V)	24
Brake Torque(Ncm)	200
Brake Type	Power Off Brake
Brake Torque(oz.in)	283.22
Physical Specification
Shaft Diameter(mm)	10
Shaft Length(mm)	21
Frame Size(mm)	Nema 24 (60 x 60)
Inventory Method	Dedicated Inventory
IP Rating	40
Electrical Specification
Holding Torque(Ncm)	300
Rated Current(A)	5.0
Holding Torque(oz.in)	424.92
Phase Resistance(ohms)	0.43
Stepper Motor with	Brake
Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox

P Series Nema 24 Stepper Motor 3Nm(424.92oz.in) with Electromagnetic Brake
