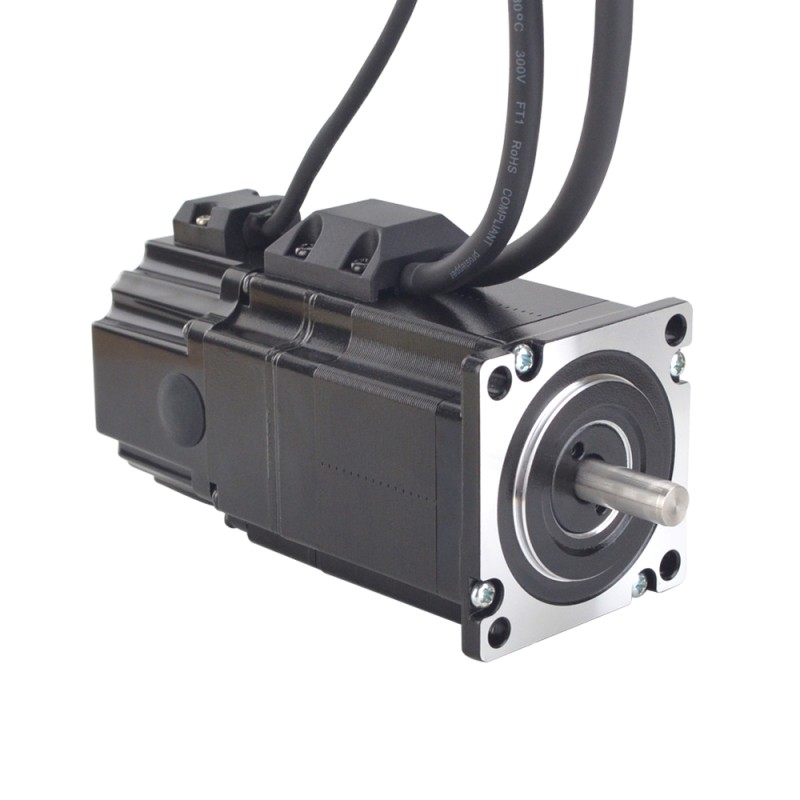

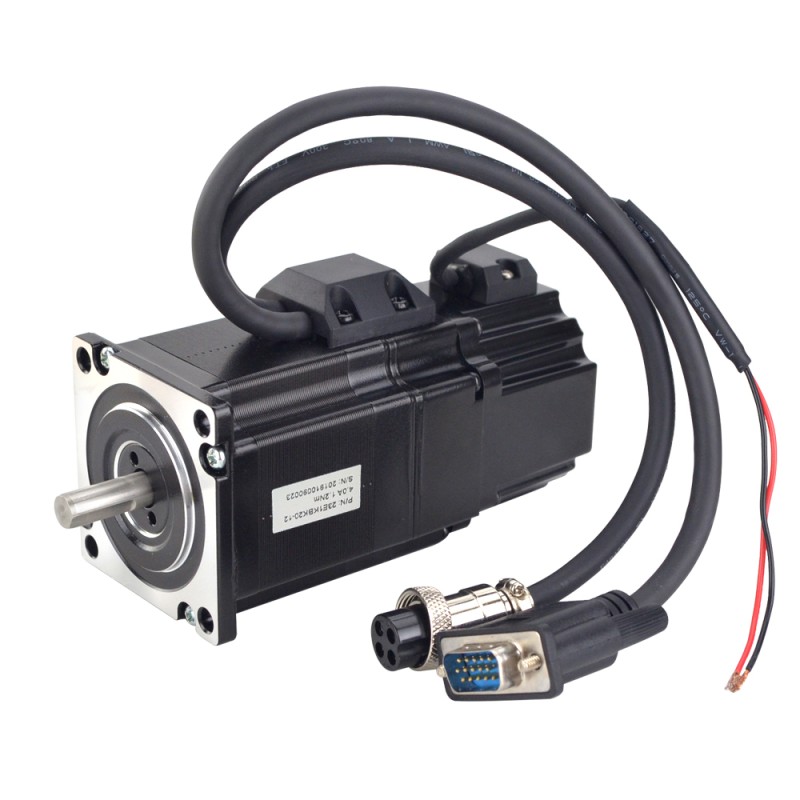

P Series Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake

P Series Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake
P Series Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake
P Series Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake
P Series Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake
P Series Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake
P Series Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake
P Series Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake
P Series Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake
P Series Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake
P Series Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake
P Series Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake
P Series Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake
P Series Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake
P Series Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake
P Series Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake
0 reviews • Write a review
from
$114.69
10 or more $104.38
100 or more $95.78
  • Model: 23E1KBK20-12
  • Weight: 1.59kg
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Motor Shaft
Length, Keyway, Flattened, Diameter...
Cable
Length, Connector, Terminal...
Body
Body Dimensions, Mounting Holes...
Performance
Current/Torque, Step Angle...
Labeling
No Label / Custom Label, Laser Marking...

Electrical Specification

  • Manufacturer Part Number: 23E1KBK20-12
  • Number of phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 1.2Nm(169.97oz.in)
  • Rated Current/phase: 4.0A
  • Phase Resistance: 0.45ohms
  • Inductance: 1.4mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 55.5mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21mm
  • D-Cut Shaft Length: 15mm
  • Lead Length: 270mm
  • Weight: 0.72kg

Encoder Specification

  • Output Circuit Type: Differential type
  • Encoder Type: Incremental
  • Output Signal Channels: 2channels
  • Supply Voltage Min: 5V
  • Supply Voltage Max: 5V
  • Output High Voltage: ＜4V
  • Output Low Voltage: ＜1V

Brake Connections

  • Red--24V+
  • Black--24V-
  • 2.0Nm

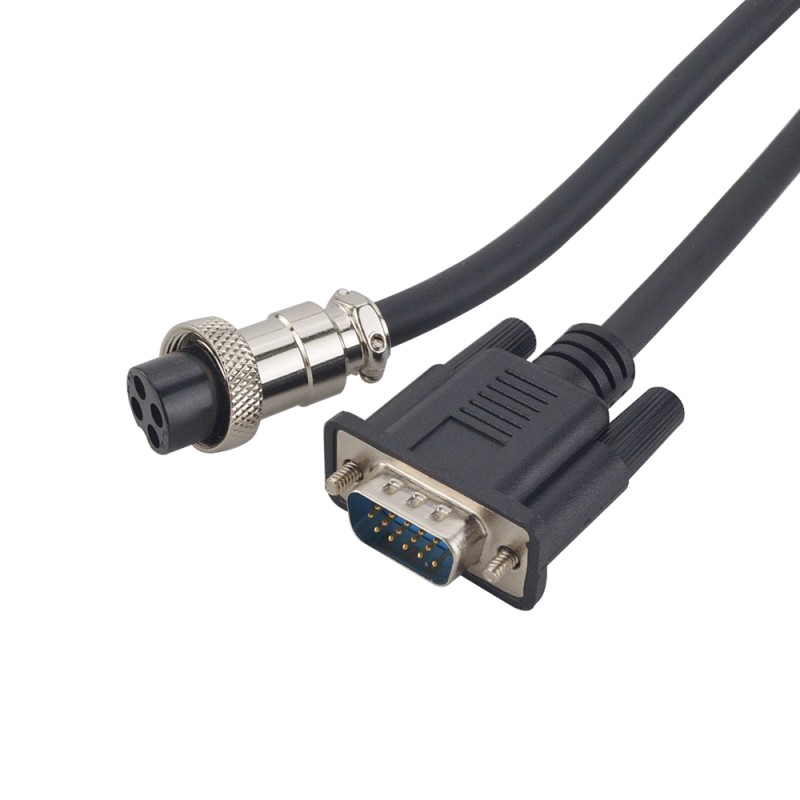

Connection

PIN
1
2
3
4
Motor
A+
A-
B+
B-

PIN
2
3
1
13
11
12
Encoder
VCC
EGND
EA+
EA-
EB+
EB-
The motor comes with a highly flexible cable that can be bent 8 million times without failure.
Brake Specification
Brake Rated Voltage(V) 24
Brake Torque(Ncm) 200
Brake Type Power Off Brake
Brake Power(W) 4
Brake Current(A) 0.16
Response Time(ms) 50
Physical Specification
Output Shaft Type D
Shaft Diameter(mm) 8
Shaft Length(mm) 21
Frame Size(mm) Nema 23 (57 x 57)
Body Length(mm) 55.5
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Encoder Resolution 1000PPR
Output Signal Channels 2
Holding Torque(Ncm) 120
Rated Current(A) 4
Phase Resistance(ohms) 0.45
Inductance(mH) 1.4
Output Circuit Type Differential
Encoder Type Optical Incremental
Stepper Motor with Encoder/Brake
Product Type
Product Type Motor w/ Encoder & Brake & Gearbox
