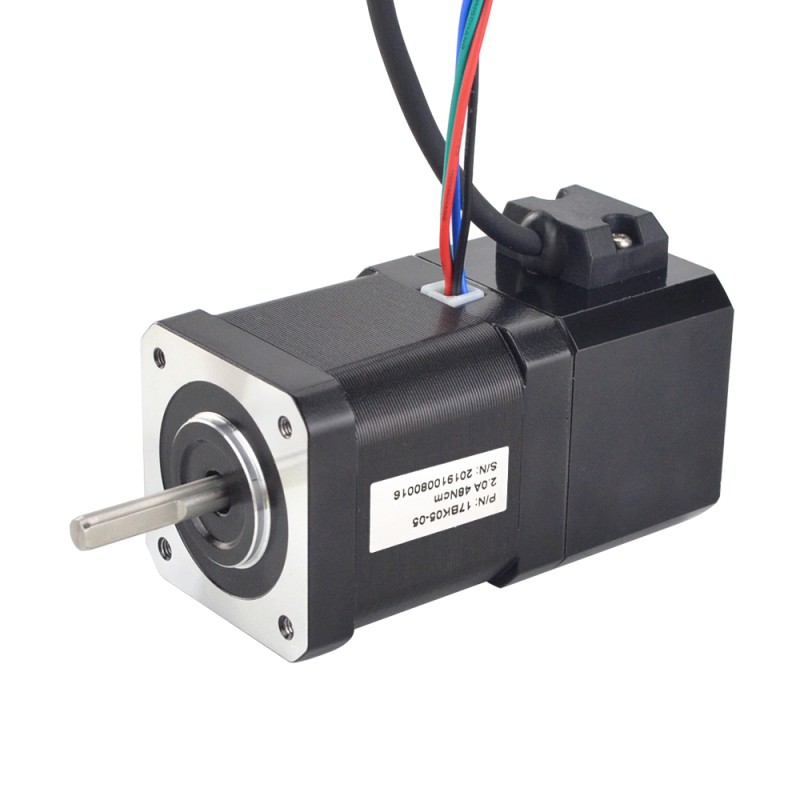

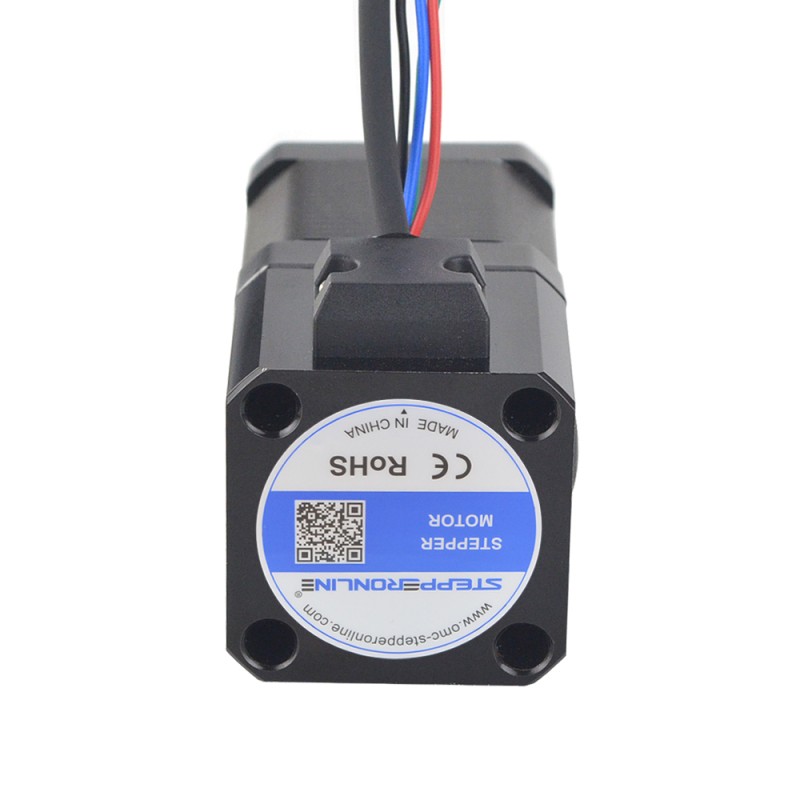

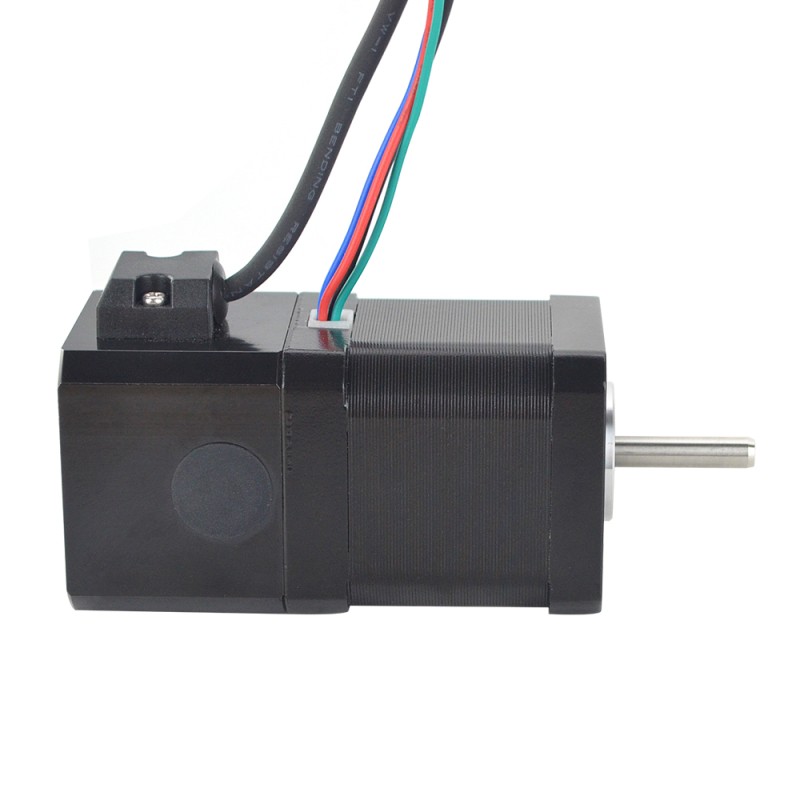

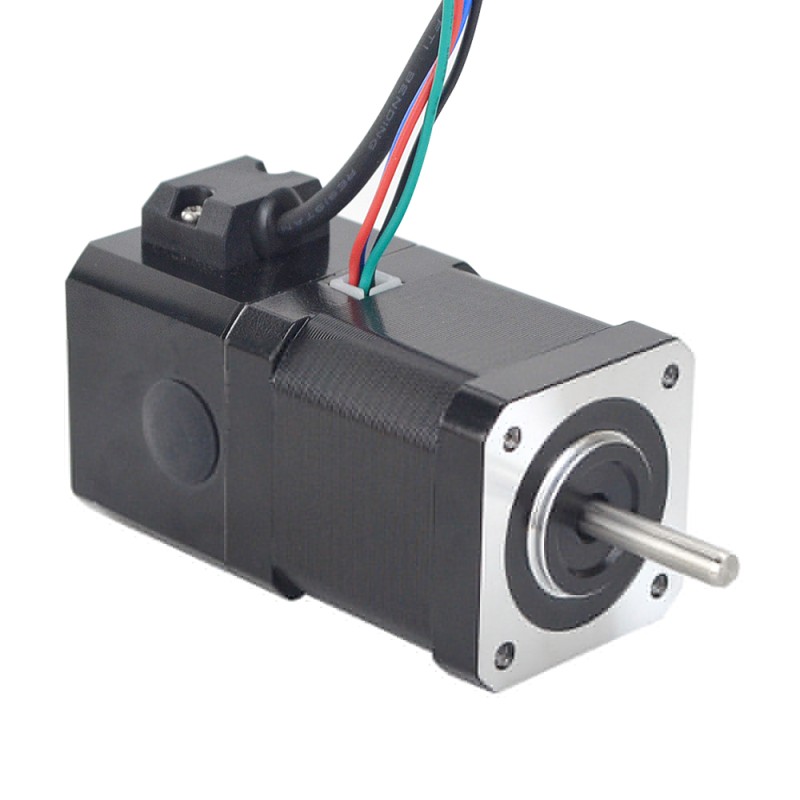

P Series Nema 17 Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake

P Series Nema 17 Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
P Series Nema 17 Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
P Series Nema 17 Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
P Series Nema 17 Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
P Series Nema 17 Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
P Series Nema 17 Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
P Series Nema 17 Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
P Series Nema 17 Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
P Series Nema 17 Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
P Series Nema 17 Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
P Series Nema 17 Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
P Series Nema 17 Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
P Series Nema 17 Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
0 reviews • Write a review
from
$77.59
10 or more $70.62
100 or more $64.80
  • Model: 17BK05-05
  • Weight: 0.65kg
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Motor Shaft
Length, Keyway, Flattened, Diameter...
Cable
Length, Connector, Terminal...
Body
Body Dimensions, Mounting Holes...
Performance
Current/Torque, Step Angle...
Labeling
No Label / Custom Label, Laser Marking...

Electrical Specification

  • Manufacturer Part Number: 17BK05-05
  • Number of phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 48Ncm(67.99oz.in)
  • Rated Current/phase: 2.0A
  • Phase Resistance: 1.35ohms
  • Inductance: 2.8mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]
  • Brake Rated Voltage: 24V
  • Brake Torque: 0.5Nm(70.8oz.in)
  • Brake Power: 5W

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 80.1mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-Cut Shaft Length: 15mm
  • Lead Length: 450mm

Connection

A+
A-
B+
B-
Brake DC+
Brake DC-
Black
Green
Red
Blue
Red
Black
Brake Specification
Brake Rated Voltage(V) 24
Brake Torque(Ncm) 50
Brake Type Power Off Brake
Brake Torque(oz.in) 70.8
Brake Power(W) 5
Physical Specification
Shaft Diameter(mm) 5
Shaft Length(mm) 24
Frame Size(mm) Nema 17 (42 x 42)
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Holding Torque(Ncm) 48
Rated Current(A) 2.0
Phase Resistance(ohms) 1.35
Stepper Motor with Brake
Product Type
Product Type Motor w/ Encoder & Brake & Gearbox
