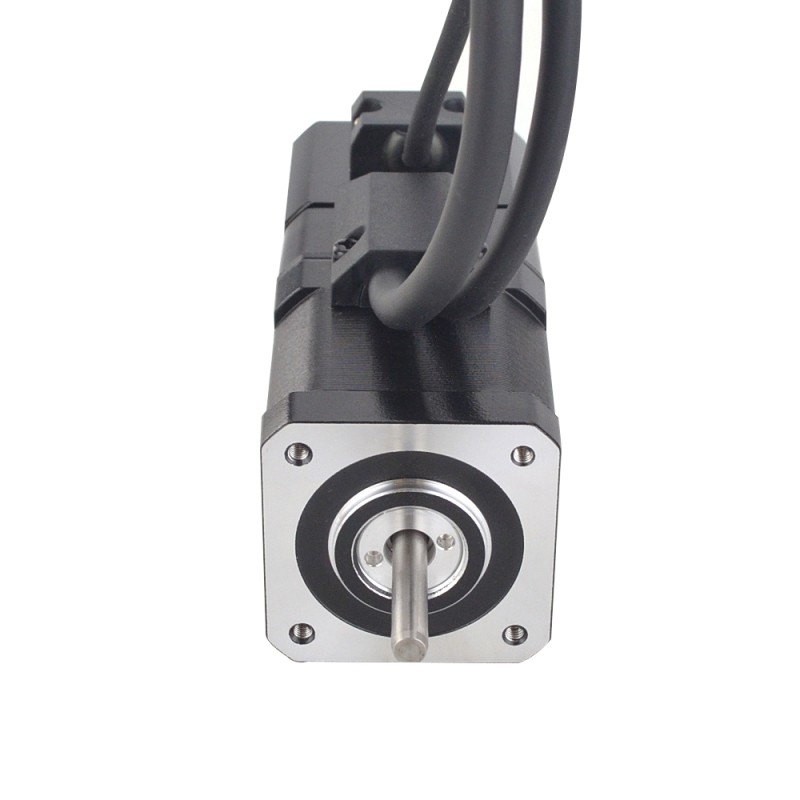

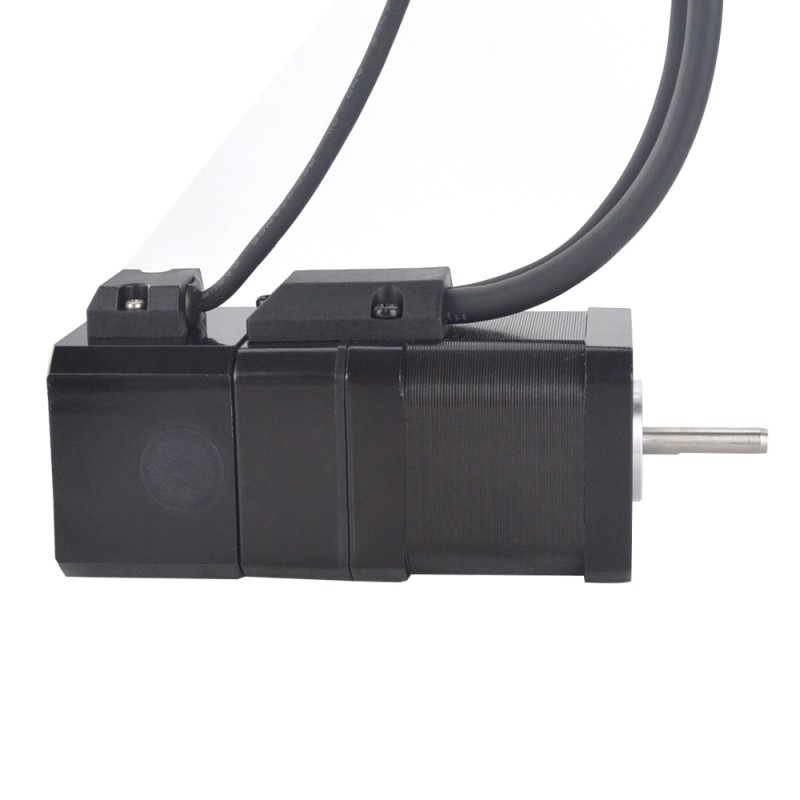

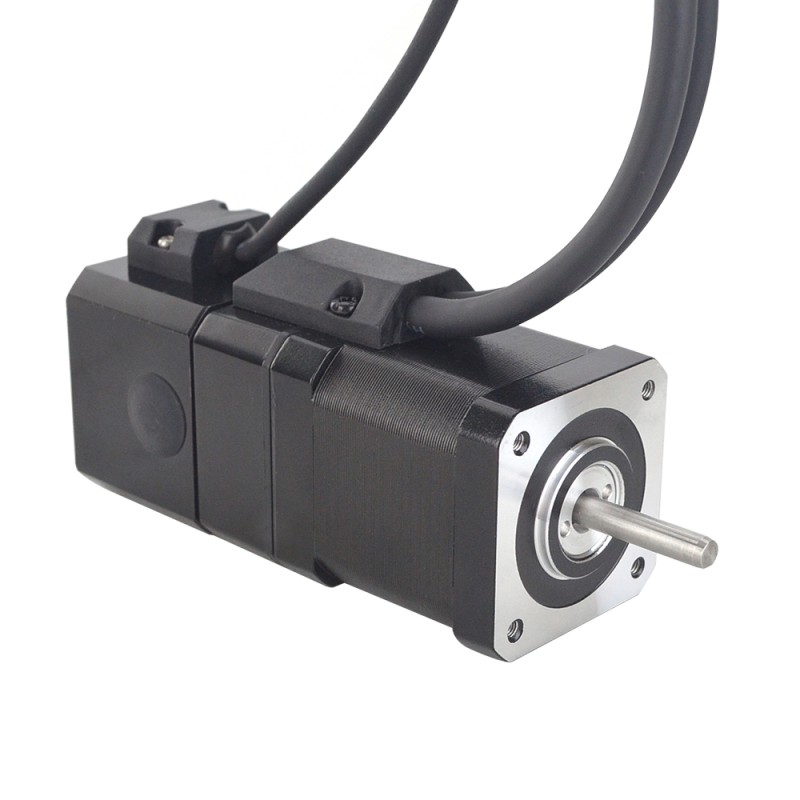

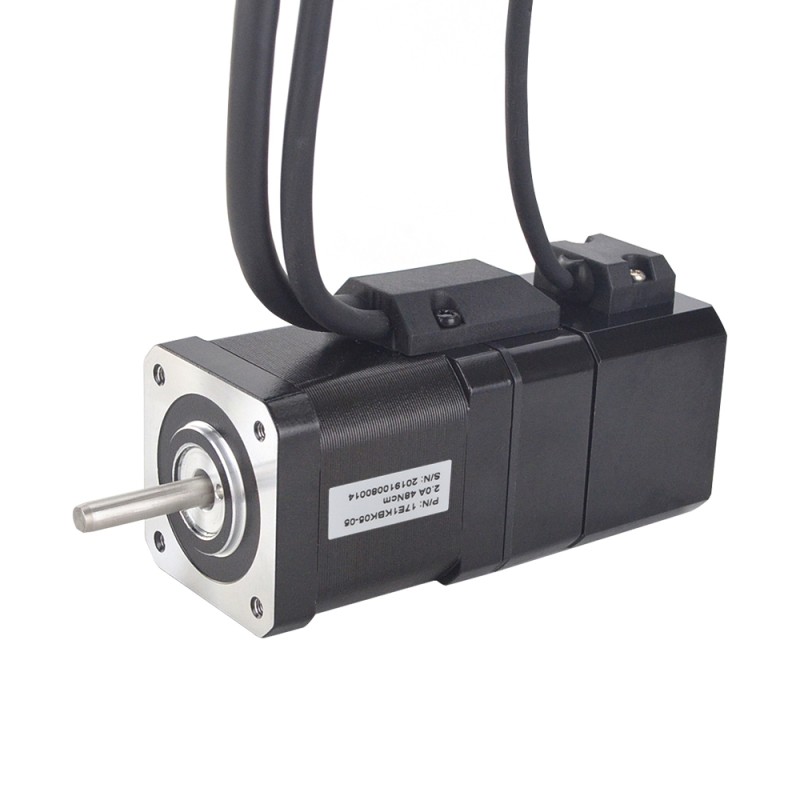

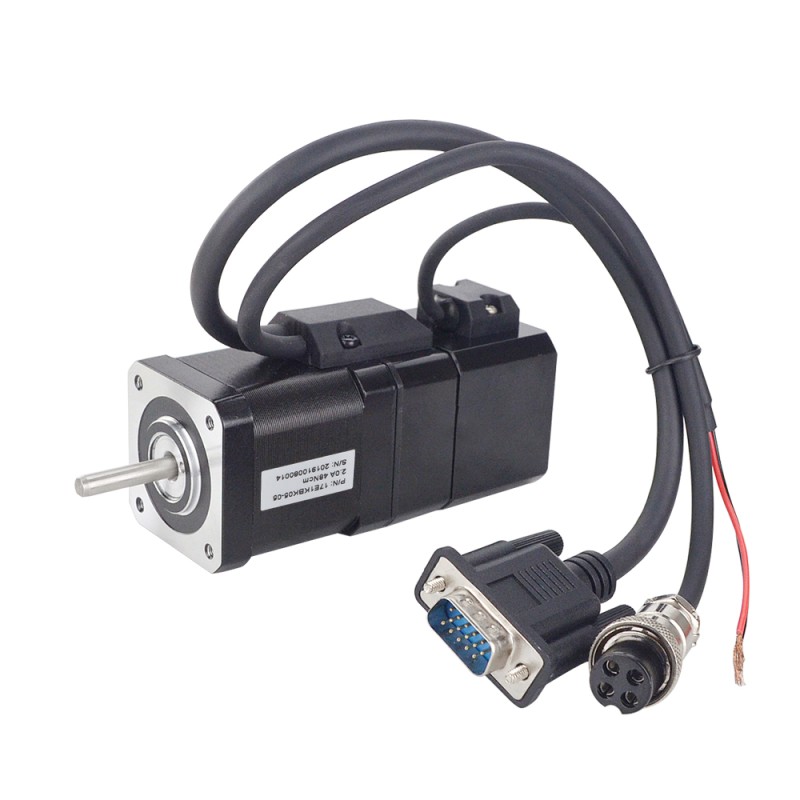

P Series Nema 17 Closed Loop Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake

P Series Nema 17 Closed Loop Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
P Series Nema 17 Closed Loop Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
P Series Nema 17 Closed Loop Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
P Series Nema 17 Closed Loop Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
P Series Nema 17 Closed Loop Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
P Series Nema 17 Closed Loop Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
P Series Nema 17 Closed Loop Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
P Series Nema 17 Closed Loop Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
P Series Nema 17 Closed Loop Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
P Series Nema 17 Closed Loop Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
P Series Nema 17 Closed Loop Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
P Series Nema 17 Closed Loop Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
P Series Nema 17 Closed Loop Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
P Series Nema 17 Closed Loop Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
P Series Nema 17 Closed Loop Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake
0 reviews • Write a review
from
$105.79
10 or more $96.28
100 or more $88.34
  • Model: 17E1KBK05-05
  • Weight: 0.77kg
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Motor Shaft
Length, Keyway, Flattened, Diameter...
Cable
Length, Connector, Terminal...
Body
Body Dimensions, Mounting Holes...
Performance
Current/Torque, Step Angle...
Labeling
No Label / Custom Label, Laser Marking...

Electrical Specification

  • Manufacturer Part Number: 17E1KBK05-05
  • Number of phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 48Ncm(67.99oz.in)
  • Rated Current/phase: 2.0A
  • Phase Resistance: 1.35ohms
  • Inductance: 2.8mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 48mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-Cut Shaft Length: 15mm
  • Lead Length: 270mm
  • Weight: 0.36kg

Encoder Specification

  • Output Circuit Type: Differential type
  • Encoder Type: Incremental
  • Output Signal Channels: 2channels
  • Supply Voltage Min: 5V
  • Supply Voltage Max: 5V
  • Output High Voltage: ＜4V
  • Output Low Voltage: ＜1V

Connection

PIN
1
2
3
4
Motor
A+
A-
B+
B-

PIN
2
3
1
13
11
12
Encoder
VCC
EGND
EA+
EA-
EB+
EB-

Brake Connection
24V 0.5N.m
+
-
Red
Black

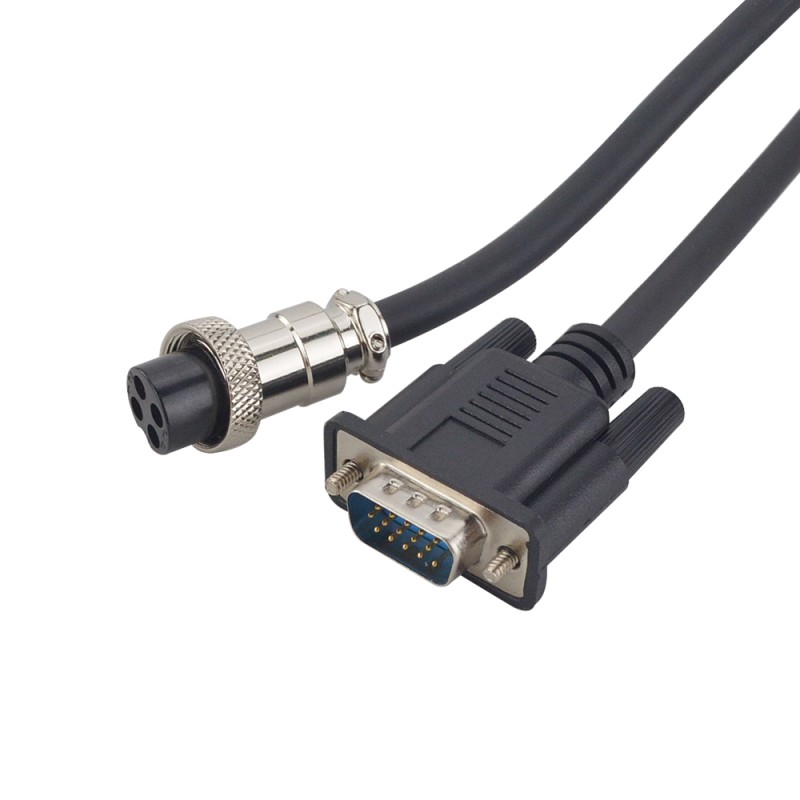

The motor comes with a highly flexible cable that can be bent 8 million times without failure.
Brake Specification
Brake Rated Voltage(V) 24
Brake Torque(Ncm) 50
Brake Type Power Off Brake
Brake Power(W) 3.96
Brake Current(A) 0.16
Response Time(ms) 50
Physical Specification
Output Shaft Type D
Shaft Diameter(mm) 5
Shaft Length(mm) 24
Frame Size(mm) Nema 17 (42 x 42)
Body Length(mm) 48.1
Inventory Method Dedicated Inventory
Electrical Specification
Encoder Resolution 1000PPR
Output Signal Channels 2
Holding Torque(Ncm) 48
Rated Current(A) 2
Phase Resistance(ohms) 1.35
Inductance(mH) 2.8
Output Circuit Type Differential
Encoder Type Optical Incremental
Stepper Motor with Encoder/Brake
Product Type
Product Type Motor w/ Encoder & Brake & Gearbox
