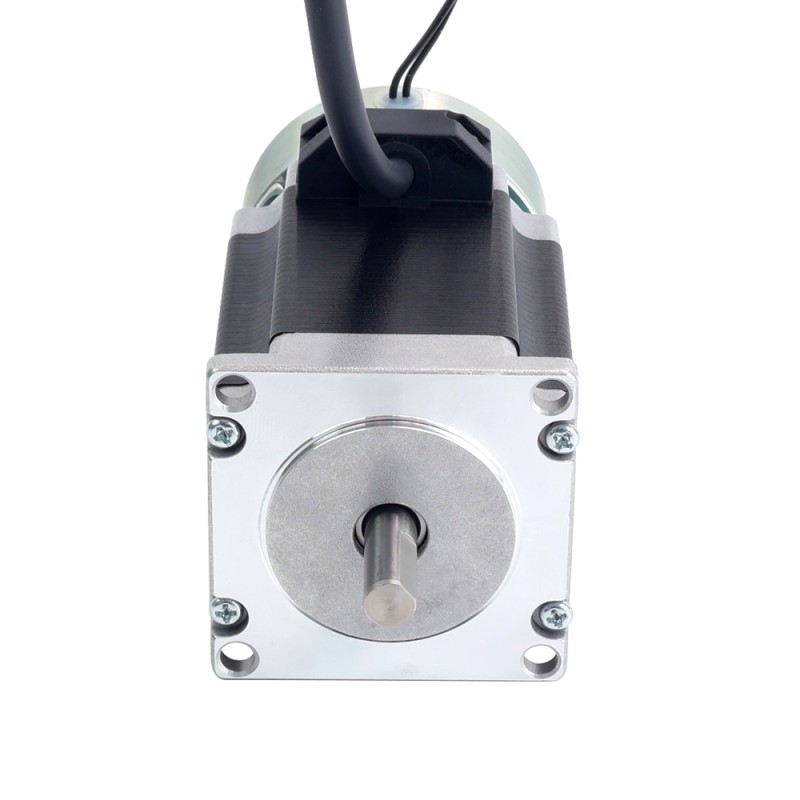

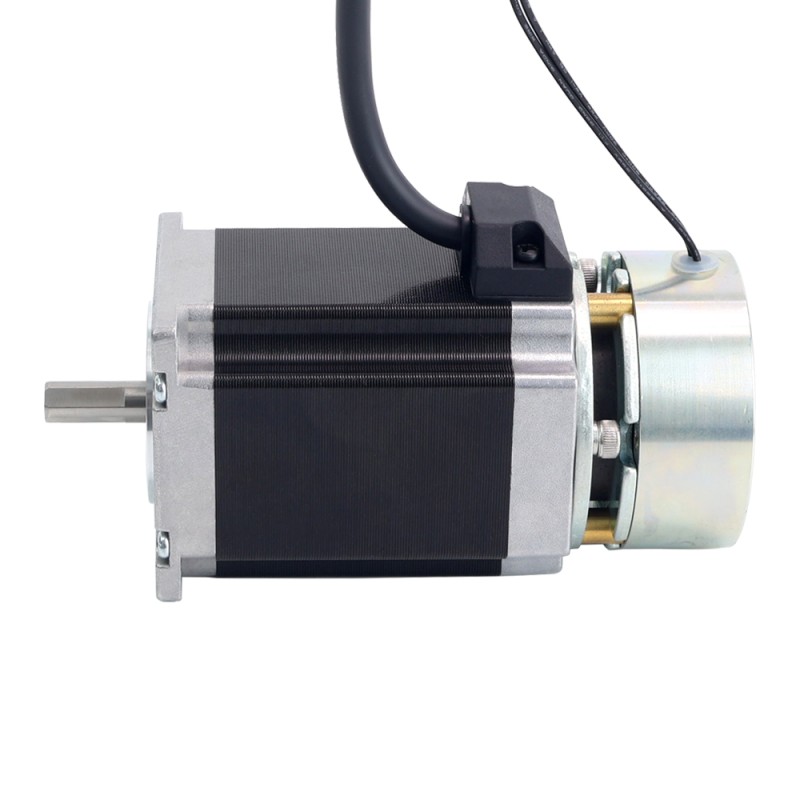

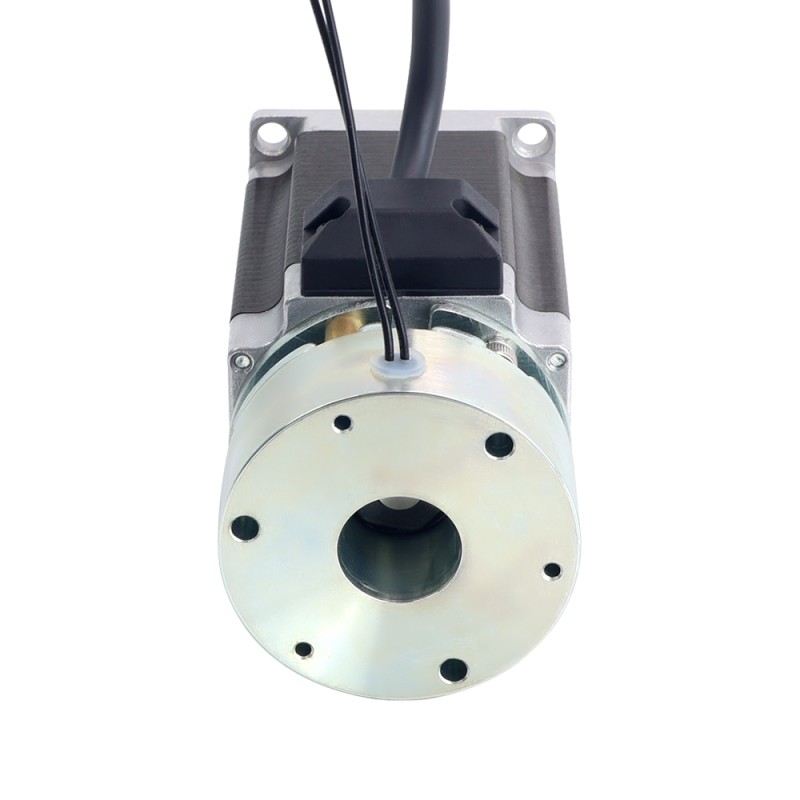

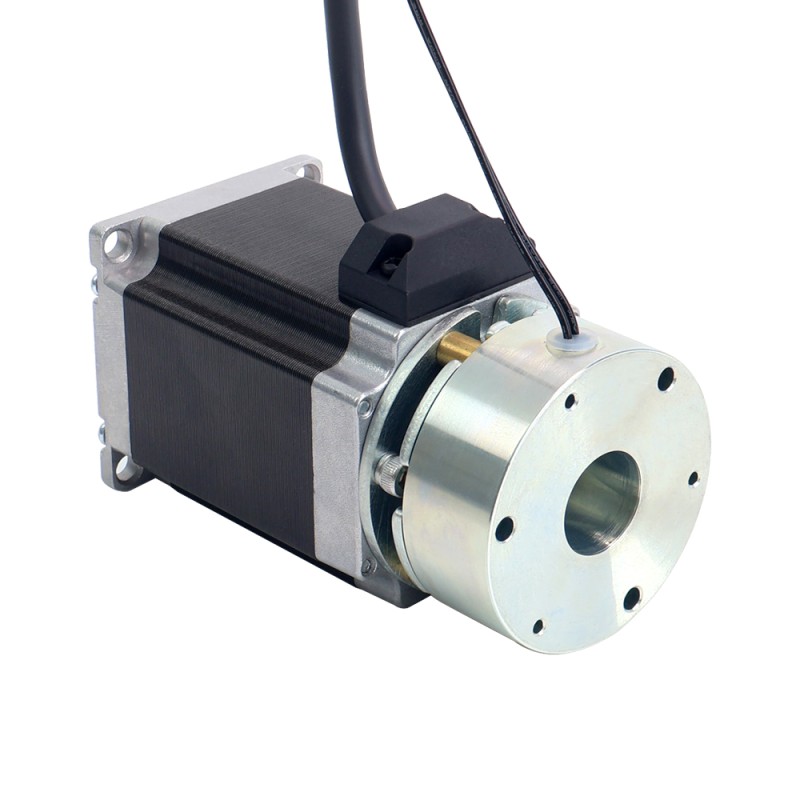

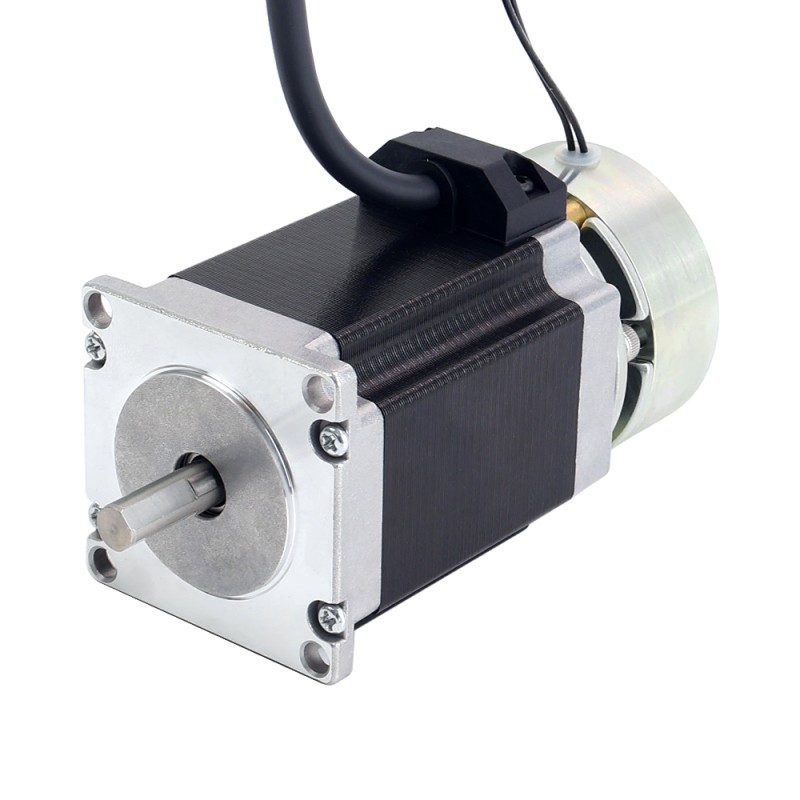

Nema 23 Stepper 1.9Nm(269oz.in) w/ Brake Friction Torque 2.0Nm(283oz.in)

Nema 23 Stepper 1.9Nm(269oz.in) w/ Brake Friction Torque 2.0Nm(283oz.in)
Nema 23 Stepper 1.9Nm(269oz.in) w/ Brake Friction Torque 2.0Nm(283oz.in)
Nema 23 Stepper 1.9Nm(269oz.in) w/ Brake Friction Torque 2.0Nm(283oz.in)
Nema 23 Stepper 1.9Nm(269oz.in) w/ Brake Friction Torque 2.0Nm(283oz.in)
Nema 23 Stepper 1.9Nm(269oz.in) w/ Brake Friction Torque 2.0Nm(283oz.in)
Nema 23 Stepper 1.9Nm(269oz.in) w/ Brake Friction Torque 2.0Nm(283oz.in)
Nema 23 Stepper 1.9Nm(269oz.in) w/ Brake Friction Torque 2.0Nm(283oz.in)
Nema 23 Stepper 1.9Nm(269oz.in) w/ Brake Friction Torque 2.0Nm(283oz.in)
Nema 23 Stepper 1.9Nm(269oz.in) w/ Brake Friction Torque 2.0Nm(283oz.in)
Nema 23 Stepper 1.9Nm(269oz.in) w/ Brake Friction Torque 2.0Nm(283oz.in)
Nema 23 Stepper 1.9Nm(269oz.in) w/ Brake Friction Torque 2.0Nm(283oz.in)
Nema 23 Stepper 1.9Nm(269oz.in) w/ Brake Friction Torque 2.0Nm(283oz.in)
Nema 23 Stepper 1.9Nm(269oz.in) w/ Brake Friction Torque 2.0Nm(283oz.in)
0 reviews • Write a review
from
$56.68
10 or more $52.20
100 or more $48.36
  • Model: 23HS30-2804D-B200
  • Weight: 1.55kg
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Motor Shaft
Length, Keyway, Flattened, Diameter...
Cable
Length, Connector, Terminal...
Body
Body Dimensions, Mounting Holes...
Performance
Current/Torque, Step Angle...
Labeling
No Label / Custom Label, Laser Marking...

Motor Specification

  • Manufacturer Part Number: 23HS30-2804D-B200
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 1.9Nm(269oz.in)
  • Rated Current/phase: 2.8A
  • Voltage: 3.2V
  • Phase Resistance: 1.13ohms
  • Inductance: 5.4mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]
  • Frame Size: 57 x 57mm
  • Body Length: 76mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 1.1kg

Brake Specification

  • Brake Type: Non-excited
  • Static Friction Torque: 2Nm(283.22oz.in)
  • Moment of Interia : 3.8x10-6 kg.cm2
  • Voltage: 24V
  • Power: 11.5W
  • Heat-resistance Class: F
  • Max. Speed : 5000rpm
  • Weight : 0.4kg

Connection

A
C
B
D
Red
Green
Yellow
Blue
The motor comes with a highly flexible cable that can be bent 8 million times without failure.
Brake Specification
Brake Rated Voltage(V) 24
Brake Torque(Ncm) 200
Brake Type Power Off Brake
Brake Torque(oz.in) 283.22
Brake Power(W) 11.5
Physical Specification
Shaft Diameter(mm) 8
Shaft Length(mm) 21
Frame Size(mm) Nema 23 (57 x 57)
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Holding Torque(Ncm) 190
Rated Current(A) 2.8
Holding Torque(oz.in) 269
Phase Resistance(ohms) 1.13
Stepper Motor with Brake
Product Type
Product Type Motor w/ Encoder & Brake & Gearbox
