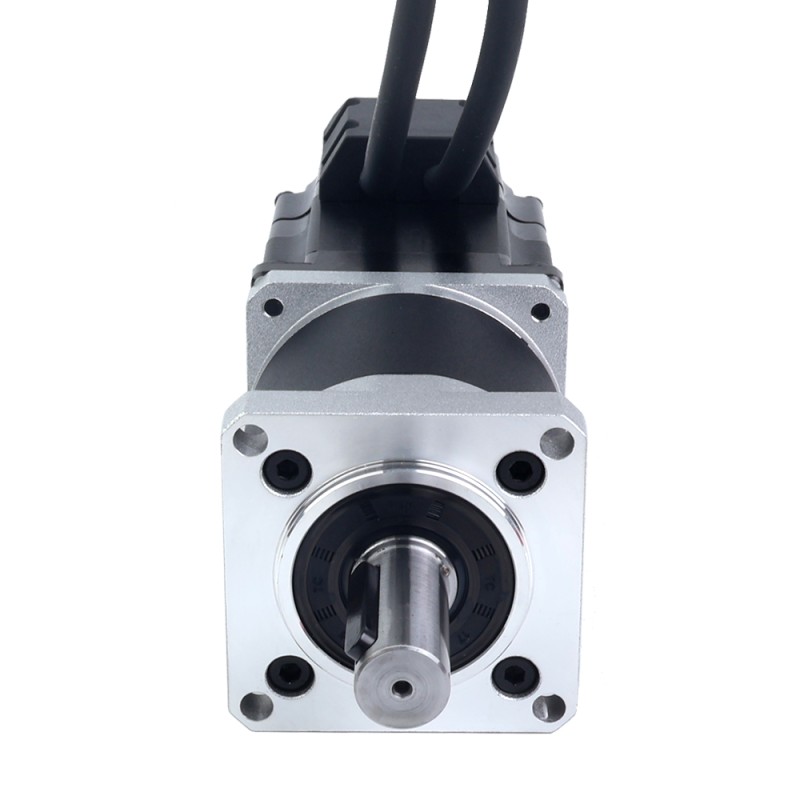

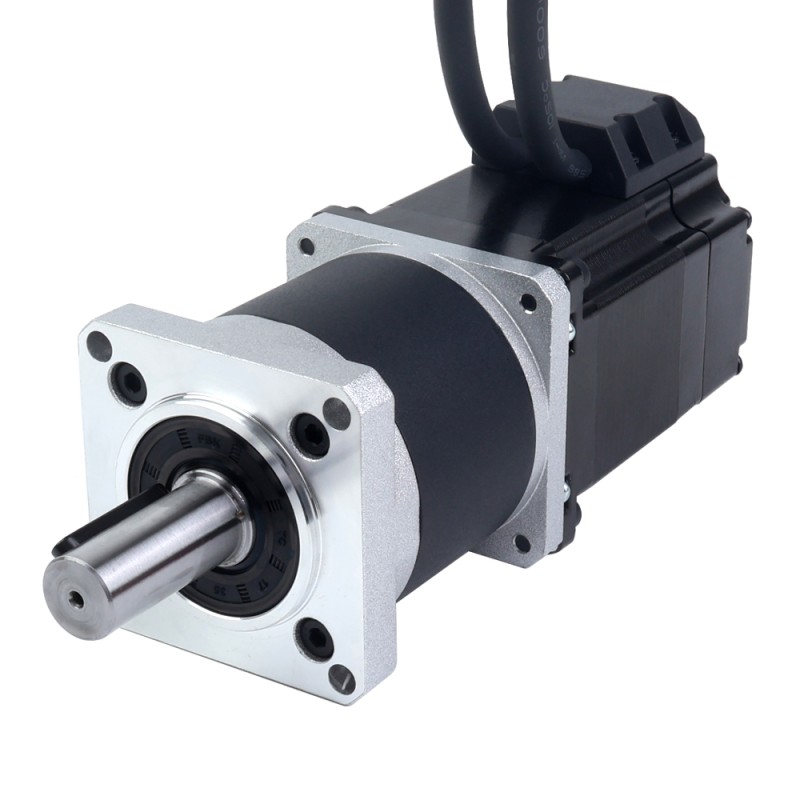

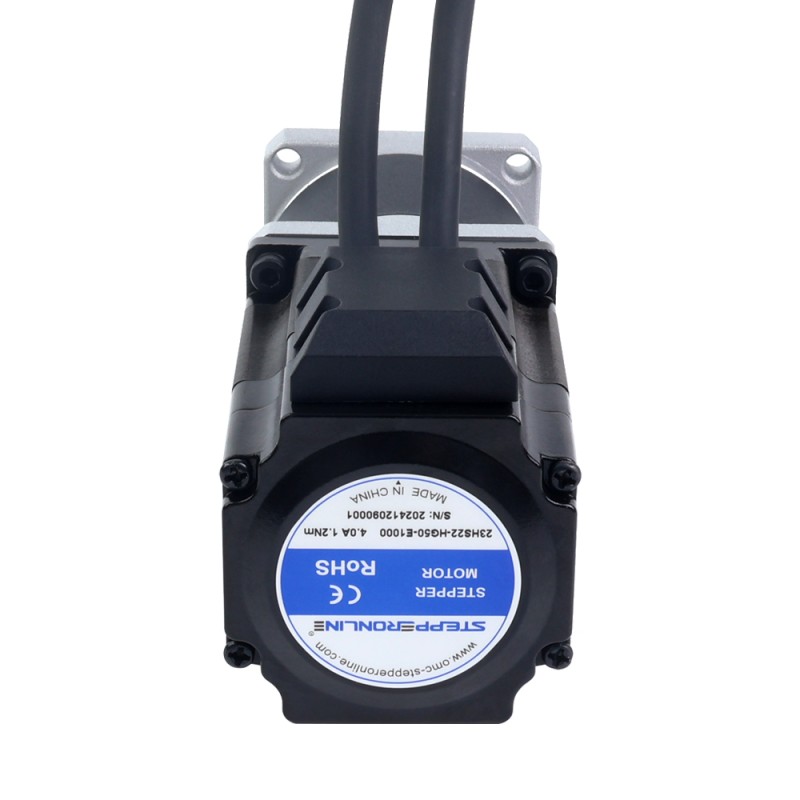

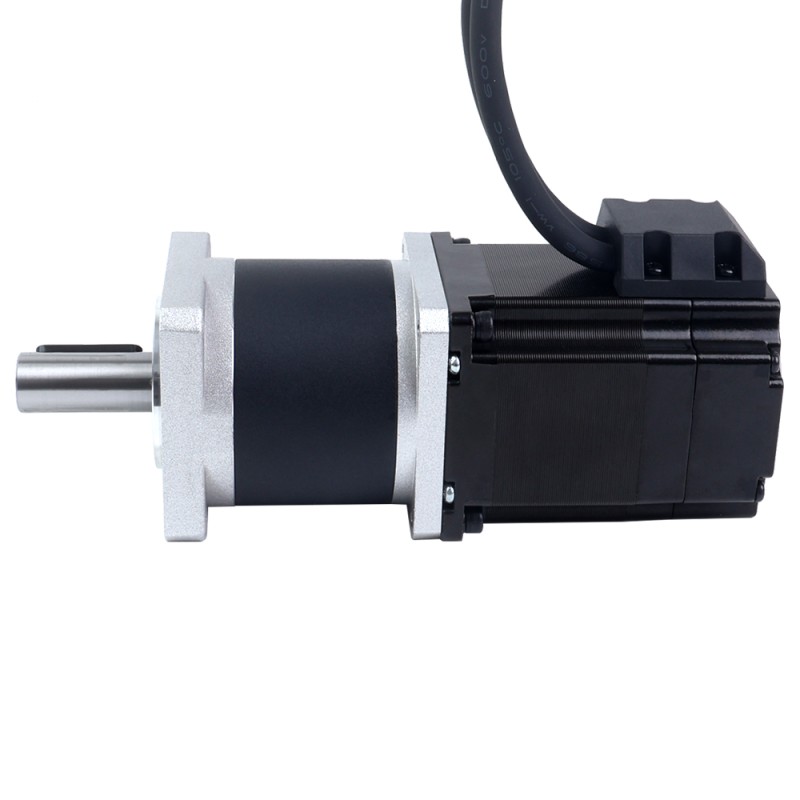

Nema 23 Closed Loop Stepper Motor L=78mm Gear Ratio 50:1 High Precision Planetary Gearbox

Nema 23 Closed Loop Stepper Motor L=78mm Gear Ratio 50:1 High Precision Planetary Gearbox
Nema 23 Closed Loop Stepper Motor L=78mm Gear Ratio 50:1 High Precision Planetary Gearbox
Nema 23 Closed Loop Stepper Motor L=78mm Gear Ratio 50:1 High Precision Planetary Gearbox
Nema 23 Closed Loop Stepper Motor L=78mm Gear Ratio 50:1 High Precision Planetary Gearbox
Nema 23 Closed Loop Stepper Motor L=78mm Gear Ratio 50:1 High Precision Planetary Gearbox
Nema 23 Closed Loop Stepper Motor L=78mm Gear Ratio 50:1 High Precision Planetary Gearbox
Nema 23 Closed Loop Stepper Motor L=78mm Gear Ratio 50:1 High Precision Planetary Gearbox
Nema 23 Closed Loop Stepper Motor L=78mm Gear Ratio 50:1 High Precision Planetary Gearbox
Nema 23 Closed Loop Stepper Motor L=78mm Gear Ratio 50:1 High Precision Planetary Gearbox
Nema 23 Closed Loop Stepper Motor L=78mm Gear Ratio 50:1 High Precision Planetary Gearbox
Nema 23 Closed Loop Stepper Motor L=78mm Gear Ratio 50:1 High Precision Planetary Gearbox
Nema 23 Closed Loop Stepper Motor L=78mm Gear Ratio 50:1 High Precision Planetary Gearbox
Nema 23 Closed Loop Stepper Motor L=78mm Gear Ratio 50:1 High Precision Planetary Gearbox
0 reviews • Write a review
from
$96.39
10 or more $88.74
100 or more $82.23
  • Model: 23HS22-HG50-E1000
  • Weight: 1.80kg
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Motor Shaft
Length, Keyway, Flattened, Diameter...
Cable
Length, Connector, Terminal...
Body
Body Dimensions, Mounting Holes...
Performance
Current/Torque, Step Angle...
Labeling
No Label / Custom Label, Laser Marking...

Electrical Specification

  • Manufacturer Part Number: 23HS22-HG50-E1000
  • Number of phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 1.2Nm(169.97oz.in)
  • Rated Current/phase: 4.0A
  • Phase Resistance: 0.45ohms
  • Inductance: 1.3mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 78mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 34mm
  • Keyway Shaft Length: 25mm
  • Lead Length: 300mm
  • Weight: 1.63kg

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 50:1
  • Efficiency: 75%
  • Backlash at No-load: <=1.6deg
  • Max. Permissible Torque: 20Nm(2832.8oz.in)
  • Moment Permissible Torque: 40Nm(5664oz.in)
  • Max. Radial Load: 250N
  • Noise: <=50dB
  • Ambient Temperature: 0 - 50℃

Encoder Specification

  • Output Circuit Type: Differential type
  • Encoder Type: Optical Incremental
  • Encoder Resolution: 1000
  • Output Signal Channels: 2channels
  • Supply Voltage Min: 4V
  • Supply Voltage Max: 5V
  • Output Current: 100mA
  • Output High Voltage: 5V
  • Output Low Voltage: 4.5V
  • Output Frequency Max: 60kHZ

Connection

PIN
1
2
3
4
Motor
A+
A-
B+
B-

PIN
2
3
1
13
11
12
Encoder
VCC
GND
EA+
EA-
EB+
EB-
The motor comes with a highly flexible cable that can be bent 8 million times without failure.
Physical Specification
Output Shaft Type Keyway
Shaft Diameter(mm) 14
Shaft Length(mm) 34
Frame Size(mm) Nema 23 (57 x 57)
Body Length(mm) 78
Gear Ratio 50
Gearbox Type HG Series Planetary Gearbox
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Encoder Resolution 1000PPR
Output Signal Channels 2
Holding Torque(Ncm) 120
Rated Current(A) 4.0
Phase Resistance(ohms) 0.45
Inductance(mH) 1.3
Output Circuit Type Differential
Encoder Type Optical Incremental
Stepper Motor with Encoder/Gearbox
Product Type
Product Type Motor w/ Encoder & Brake & Gearbox
