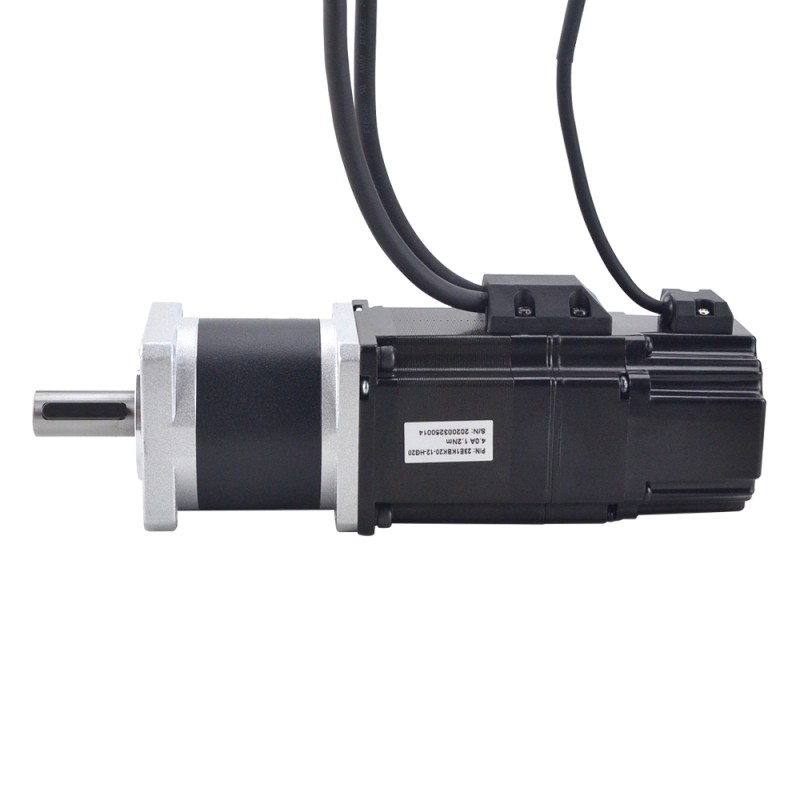

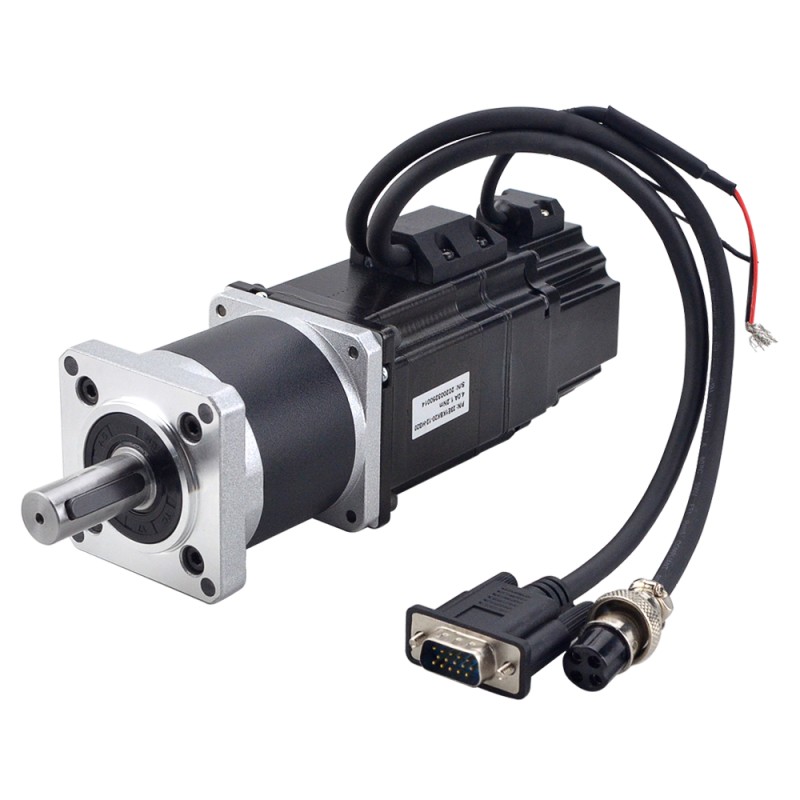

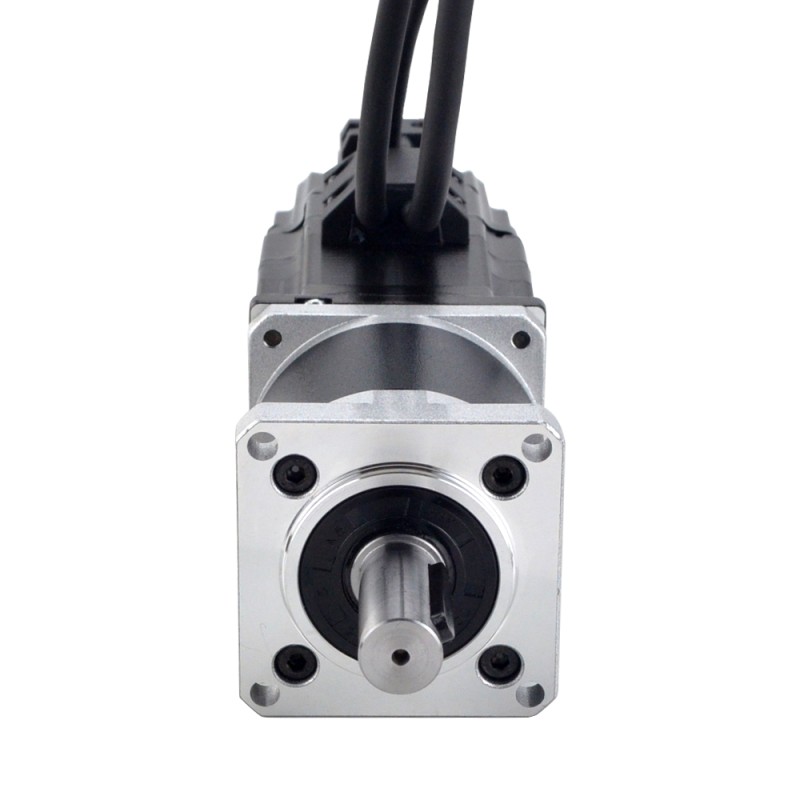

Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake & 20:1 High Precision Gearbox

Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake & 20:1 High Precision Gearbox
Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake & 20:1 High Precision Gearbox
Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake & 20:1 High Precision Gearbox
Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake & 20:1 High Precision Gearbox
Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake & 20:1 High Precision Gearbox
Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake & 20:1 High Precision Gearbox
Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake & 20:1 High Precision Gearbox
Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake & 20:1 High Precision Gearbox
Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake & 20:1 High Precision Gearbox
Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake & 20:1 High Precision Gearbox
Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake & 20:1 High Precision Gearbox
Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake & 20:1 High Precision Gearbox
Nema 23 Closed Loop Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake & 20:1 High Precision Gearbox
0 reviews • Write a review
from
$222.98
10 or more $199.81
100 or more $181.00
  • Model: 23E1KBK20-12-HG20
  • Weight: 2.42kg
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Motor Shaft
Length, Keyway, Flattened, Diameter...
Cable
Length, Connector, Terminal...
Body
Body Dimensions, Mounting Holes...
Performance
Current/Torque, Step Angle...
Labeling
No Label / Custom Label, Laser Marking...

Electrical Specification

  • Manufacturer Part Number: 23E1KBK20-12-HG20
  • Number of phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 1.2Nm(169.97oz.in)
  • Rated Current/phase: 4.0A
  • Phase Resistance: 0.45ohms
  • Inductance: 1.4mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 55.5mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 34mm
  • Keyway Shaft Length: 25mm
  • Lead Length: 270mm
  • Weight: 2.08kg

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 20:1
  • Efficiency: 75%
  • Backlash at No-load: <=1.6deg
  • Max. Permissible Torque: 20Nm(2832.8oz.in)
  • Moment Permissible Torque: 40Nm(5664oz.in)
  • Max. Radial Load: 250N
  • Insulation Class: B 130°C[266°F]
  • Noise: <=50 dB
  • Ambient Temperature: 0 - 50℃

Encoder Specification

  • Output Circuit Type: Differential type
  • Output Signal Channels: 2channels
  • Supply Voltage Min: 5V
  • Supply Voltage Max: 5V
  • Output High Voltage: ＜4V
  • Output Low Voltage: ＜1V

Brake Connections

  • RED--24V+
  • BLK--24V-
  • 2.0Nm

Connection

PIN
1
2
3
4
Motor
A+
A-
B+
B-

PIN
2
3
1
13
11
12
Encoder
VCC
EGND
EA+
EA-
EB+
EB-
The motor comes with a highly flexible cable that can be bent 8 million times without failure.
Brake Specification
Brake Rated Voltage(V) 24
Brake Torque(Ncm) 200
Brake Type Power Off Brake
Brake Power(W) 4
Brake Current(A) 0.16
Response Time(ms) 50
Physical Specification
Output Shaft Type Keyway
Shaft Diameter(mm) 14
Shaft Length(mm) 34
Frame Size(mm) Nema 23 (57 x 57)
Gear Ratio 20
Gearbox Type HG Series Planetary Gearbox
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Encoder Resolution 1000PPR
Output Signal Channels 2
Rated Current(A) 4.0
Phase Resistance(ohms) 0.45
Inductance(mH) 1.4
Output Circuit Type Differential
Encoder Type Optical Incremental
Holding Torque w/o Gearbox(N.m) 1.2
Stepper Motor with Encoder/Brake/Gearbox
Product Type
Product Type Motor w/ Encoder & Brake & Gearbox
