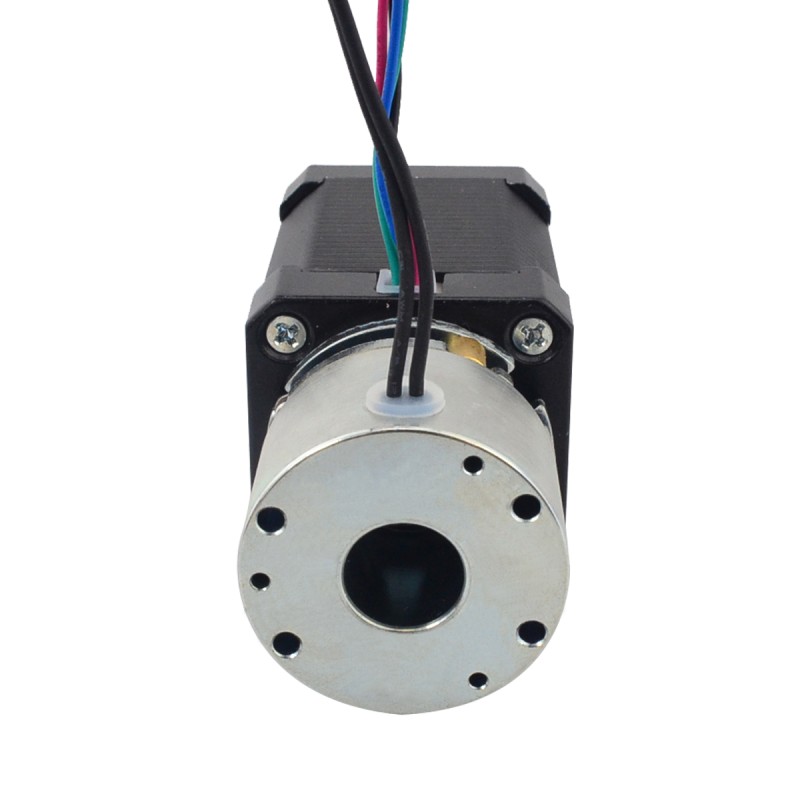

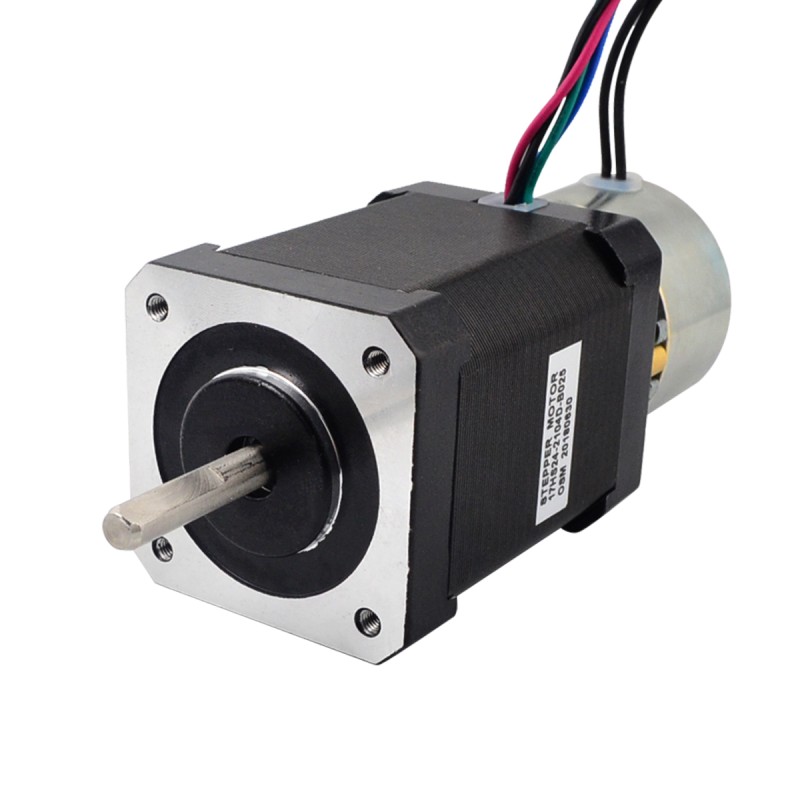

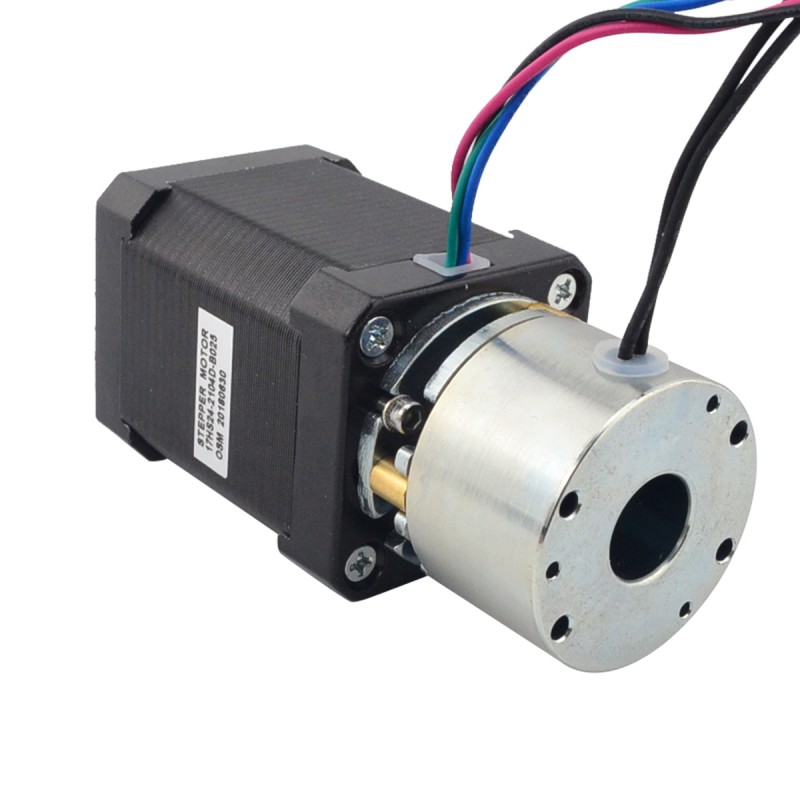

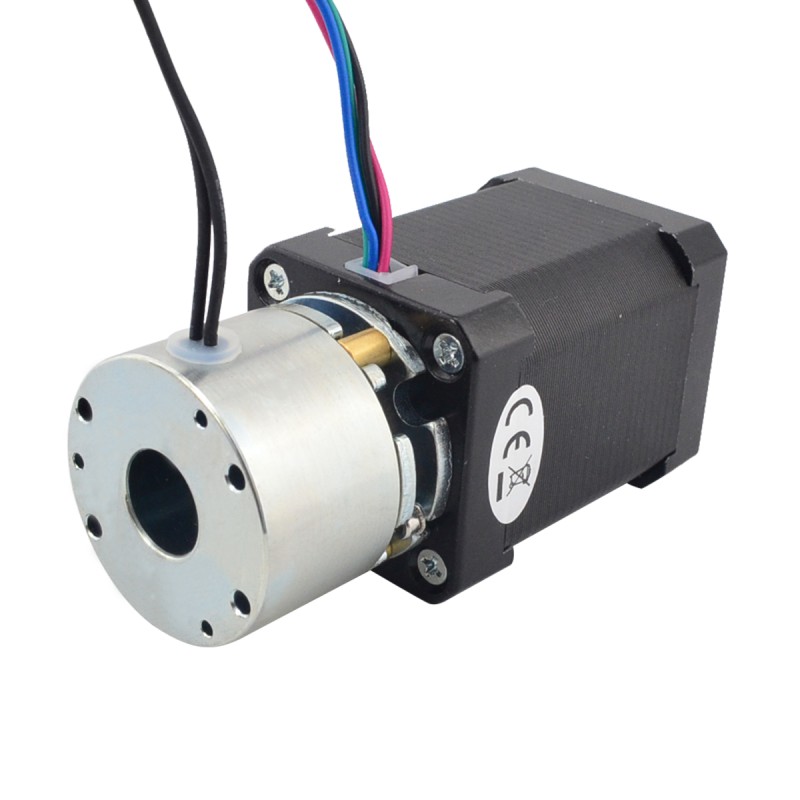

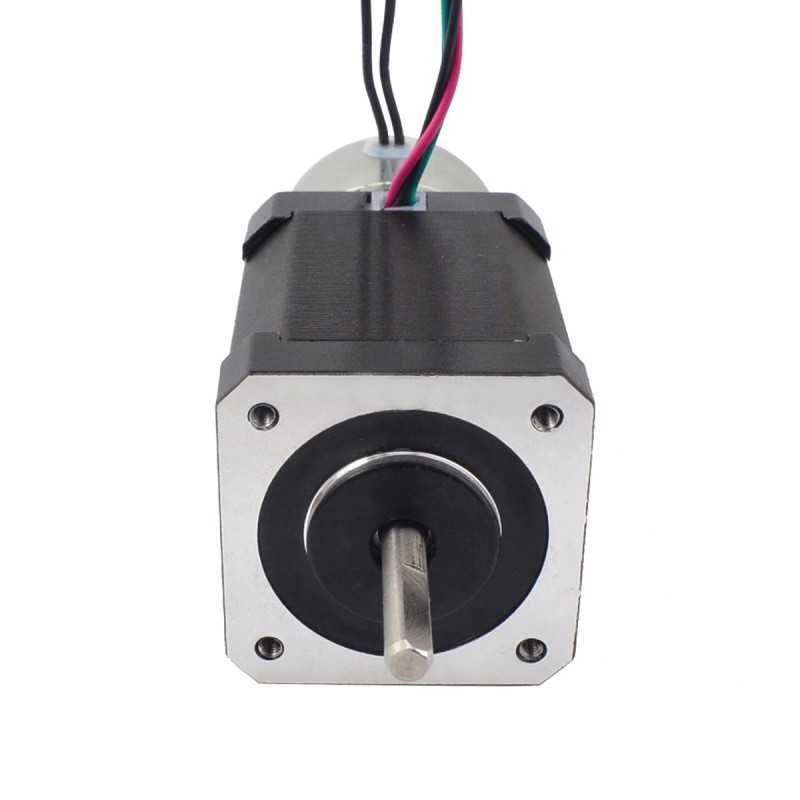

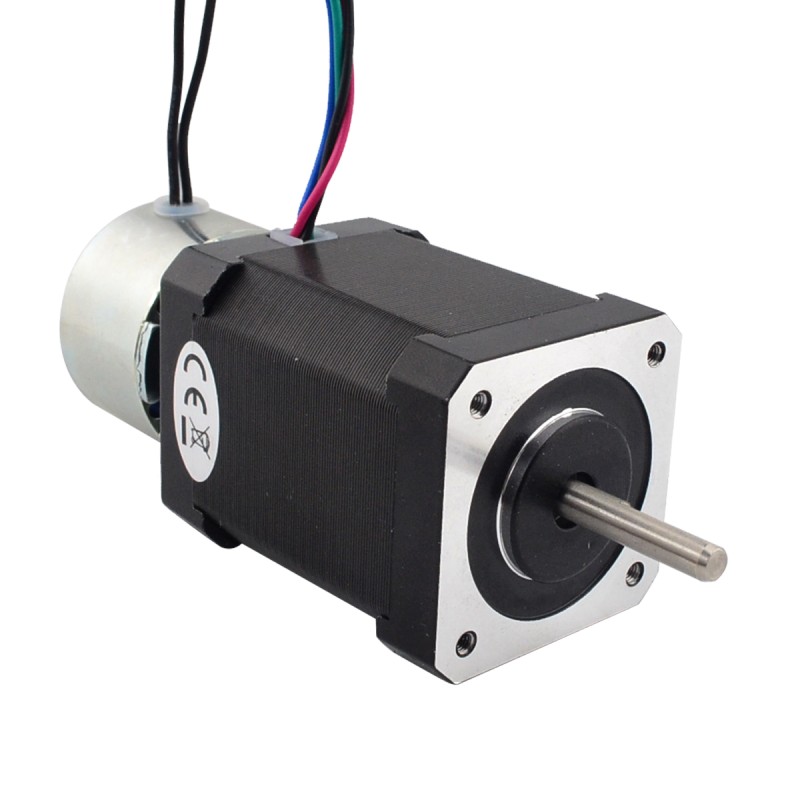

Nema 17 Stepper 0.65Nm(92oz.in) w/ Brake Friction Torque 0.25Nm(35.4oz.in)

Nema 17 Stepper 0.65Nm(92oz.in) w/ Brake Friction Torque 0.25Nm(35.4oz.in)
Nema 17 Stepper 0.65Nm(92oz.in) w/ Brake Friction Torque 0.25Nm(35.4oz.in)
Nema 17 Stepper 0.65Nm(92oz.in) w/ Brake Friction Torque 0.25Nm(35.4oz.in)
Nema 17 Stepper 0.65Nm(92oz.in) w/ Brake Friction Torque 0.25Nm(35.4oz.in)
Nema 17 Stepper 0.65Nm(92oz.in) w/ Brake Friction Torque 0.25Nm(35.4oz.in)
Nema 17 Stepper 0.65Nm(92oz.in) w/ Brake Friction Torque 0.25Nm(35.4oz.in)
Nema 17 Stepper 0.65Nm(92oz.in) w/ Brake Friction Torque 0.25Nm(35.4oz.in)
Nema 17 Stepper 0.65Nm(92oz.in) w/ Brake Friction Torque 0.25Nm(35.4oz.in)
Nema 17 Stepper 0.65Nm(92oz.in) w/ Brake Friction Torque 0.25Nm(35.4oz.in)
Nema 17 Stepper 0.65Nm(92oz.in) w/ Brake Friction Torque 0.25Nm(35.4oz.in)
Nema 17 Stepper 0.65Nm(92oz.in) w/ Brake Friction Torque 0.25Nm(35.4oz.in)
Nema 17 Stepper 0.65Nm(92oz.in) w/ Brake Friction Torque 0.25Nm(35.4oz.in)
Nema 17 Stepper 0.65Nm(92oz.in) w/ Brake Friction Torque 0.25Nm(35.4oz.in)
Nema 17 Stepper 0.65Nm(92oz.in) w/ Brake Friction Torque 0.25Nm(35.4oz.in)
Nema 17 Stepper 0.65Nm(92oz.in) w/ Brake Friction Torque 0.25Nm(35.4oz.in)
Nema 17 Stepper 0.65Nm(92oz.in) w/ Brake Friction Torque 0.25Nm(35.4oz.in)
Nema 17 Stepper 0.65Nm(92oz.in) w/ Brake Friction Torque 0.25Nm(35.4oz.in)
0 reviews • Write a review
from
$63.52
10 or more $58.49
100 or more $54.19
  • Model: 17HS24-2104D-B025
  • Weight: 0.75kg
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Motor Shaft
Length, Keyway, Flattened, Diameter...
Cable
Length, Connector, Terminal...
Body
Body Dimensions, Mounting Holes...
Performance
Current/Torque, Step Angle...
Labeling
No Label / Custom Label, Laser Marking...

Motor Specification

  • Manufacturer Part Number: 17HS24-2104D-B025
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 0.65Nm(92.07oz.in)
  • Rated Current/phase: 2.10A
  • Voltage: 3.36V
  • Phase Resistance: 1.6ohms
  • Inductance: 3.00mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]
  • Frame Size: 42 x 42mm
  • Motor Length: 60mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-Cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm

Brake Specification

  • Brake Type: Non-excited
  • Static Friction Torque: 0.25Nm(35.4oz.in)
  • Moment of Interia: 0.6x10-6kg.cm2
  • Voltage: 24V
  • Power: 5W
  • Heat-resistance Class: F
  • Max.Speed: 5000rpm
  • Weight: 0.2kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Brake Specification
Brake Rated Voltage(V) 24
Brake Torque(Ncm) 25
Brake Type Power Off Brake
Brake Torque(oz.in) 35.4
Brake Power(W) 5
Physical Specification
Shaft Diameter(mm) 5
Shaft Length(mm) 24
Frame Size(mm) Nema 17 (42 x 42)
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Holding Torque(Ncm) 65
Rated Current(A) 2.1
Holding Torque(oz.in) 92.07
Phase Resistance(ohms) 1.6
Stepper Motor with Brake
Product Type
Product Type Motor w/ Encoder & Brake & Gearbox
