Nema 42 CNC Stepper Motor Bipolar 22Nm(3115.46oz.in) 7.0A 110x110x150mm 4 Wires

0 reviews • Write a review

from

$147.71

10 or more $136.01

100 or more $126.03

Model: 42HS59-7004S
Weight: 8.55kg

Available Options

Ships From

China

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Looking to custom design this motor?

Request a Quote or Ask a Question

Your Name

Your Email

Quantity to Quote

Your questions or requirements

Captcha

Enter the code in the box below

Custom Design Options

You can select from the customization options listed below.

Motor Shaft

Length, Keyway, Flattened, Diameter...

Cable & Connector

Length, Connector, Terminal...

Body

Body Dimensions, Mounting Holes...

Performance

Current/Torque, Step Angle...

Optional Accessories

Encoder, Brake

Labeling

No Label / Custom Label, Laser Marking...

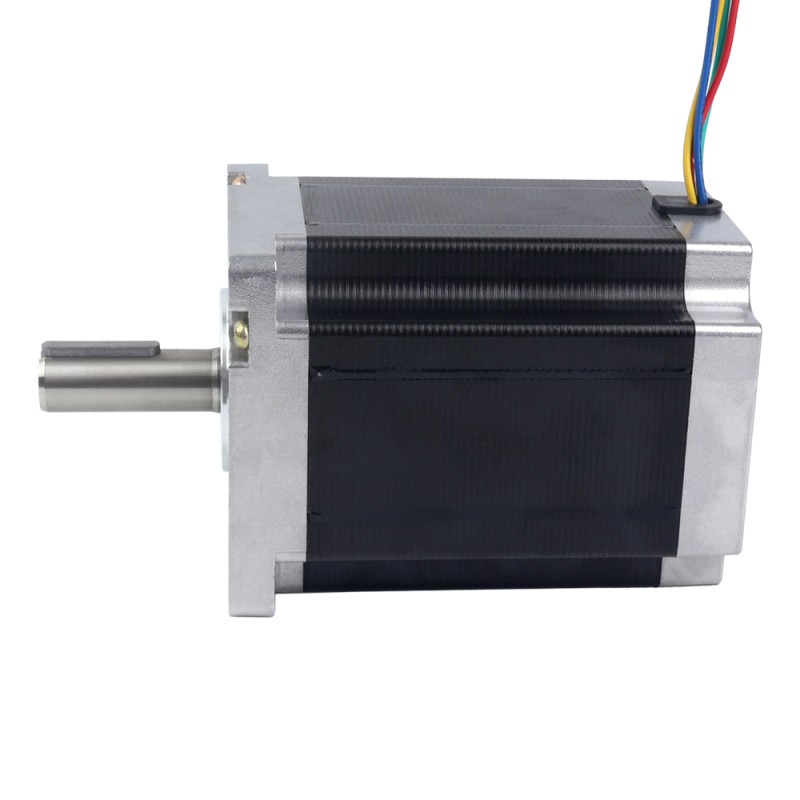

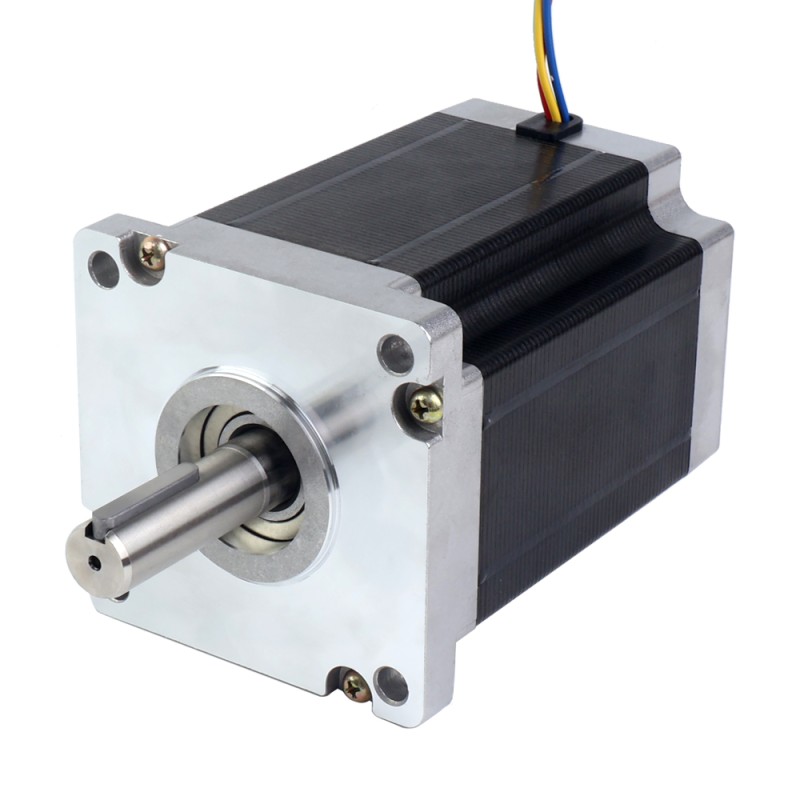

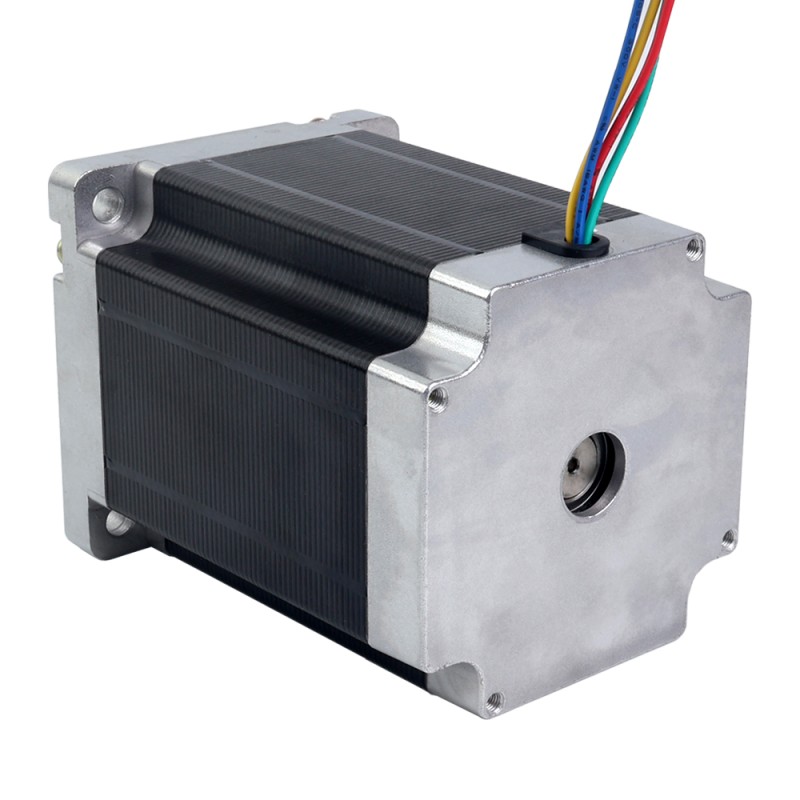

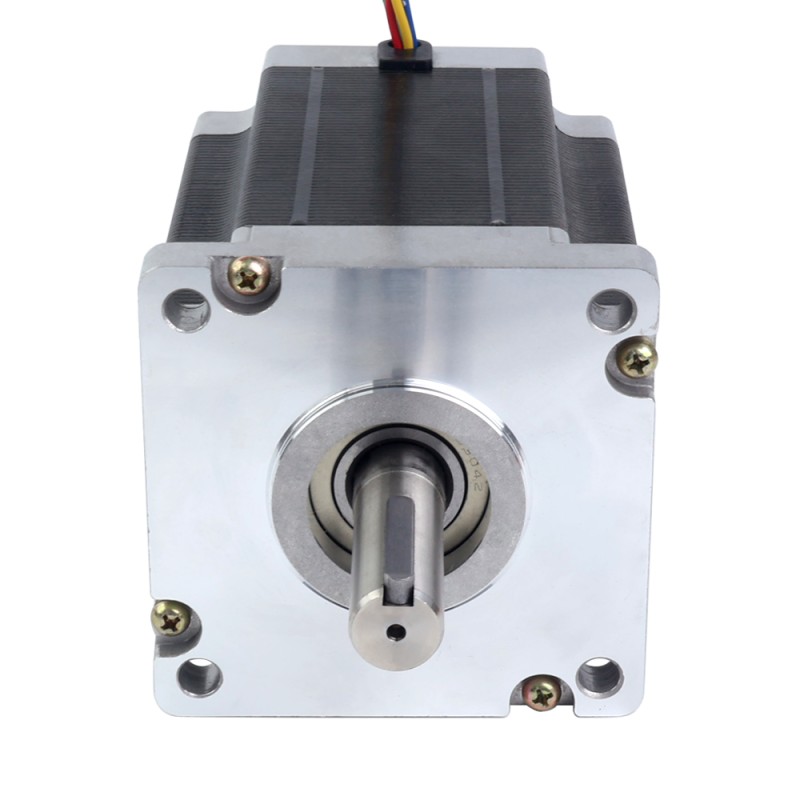

This Nema 42 CNC stepper motor with size 110x110x150mm. It has 4 wires, each phase draws 7.0A, with holding torque 22Nm(3115.46oz.in).

Electrical Specification

Manufacturer Part Number: 42HS59-7004S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 22Nm(3115.46oz.in)
Rated Current/phase: 7.0A
Phase Resistance: 0.75±10%ohms
Inductance: 13.5mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 110 x 110mm
Body Length: 150mm
Shaft Diameter: Φ19mm
Shaft Length: 55.5mm
Keyway Length: 35mm
Number of Leads: 4
Cable Length: 500mm
Weight: 8.05kg

Connection

A+	A-	B+	B-
Red	Green	Yellow	Blue

For all Nema 42 stepper motors, we recommend a dedicated driver: DM2282T.
This driver can be directly connected to 180 - 240VAC power supply, so you don't need an additional switching power supply.

The motor datasheet is available for download

Physical Specification
Output Shaft Type	Keyway
Shaft Diameter(mm)	19
Shaft Length(mm)	55.5
No. of Lead	4
Single Shaft/Dual Shaft	Single Shaft
Frame Size(mm)	Nema 42 (110 x 110)
Body Length(mm)	150
Product Series	S
Cable Length(mm)	500
Inventory Method	Dedicated Inventory
IP Rating	40
Electrical Specification
Holding Torque(Ncm)	2200
Rated Current(A)	7
Holding Torque(oz.in)	3115.46
Bipolar/Unipolar	Bipolar
Step Angle(deg.)	1.8
Phase Resistance(ohms)	0.75
Inductance(mH)	13.5
Has Torque/Thrust Curve?	No
Product Type
Product Type	Hybrid Stepper Motor
