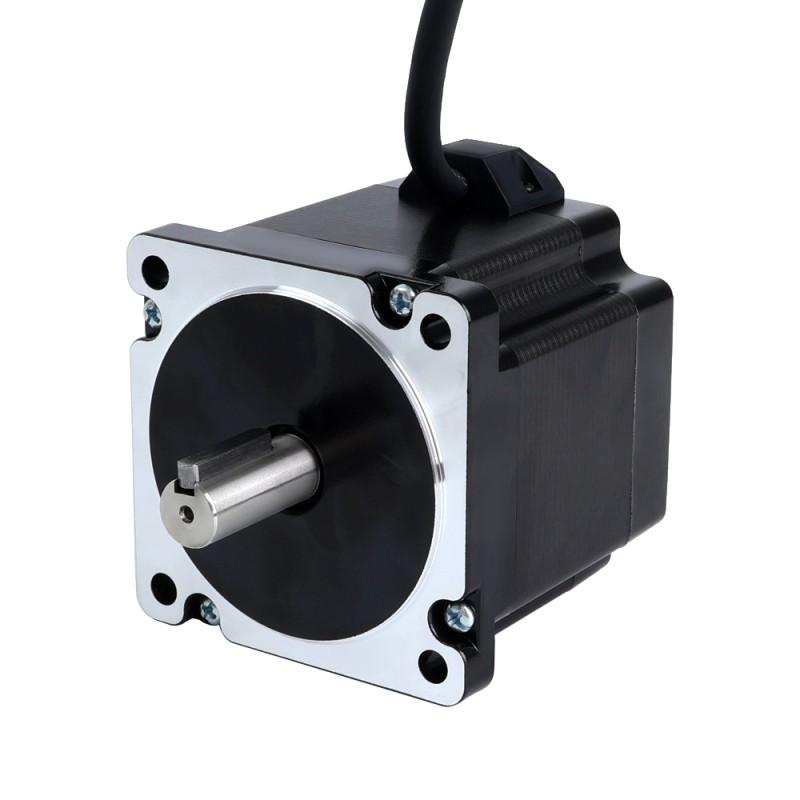

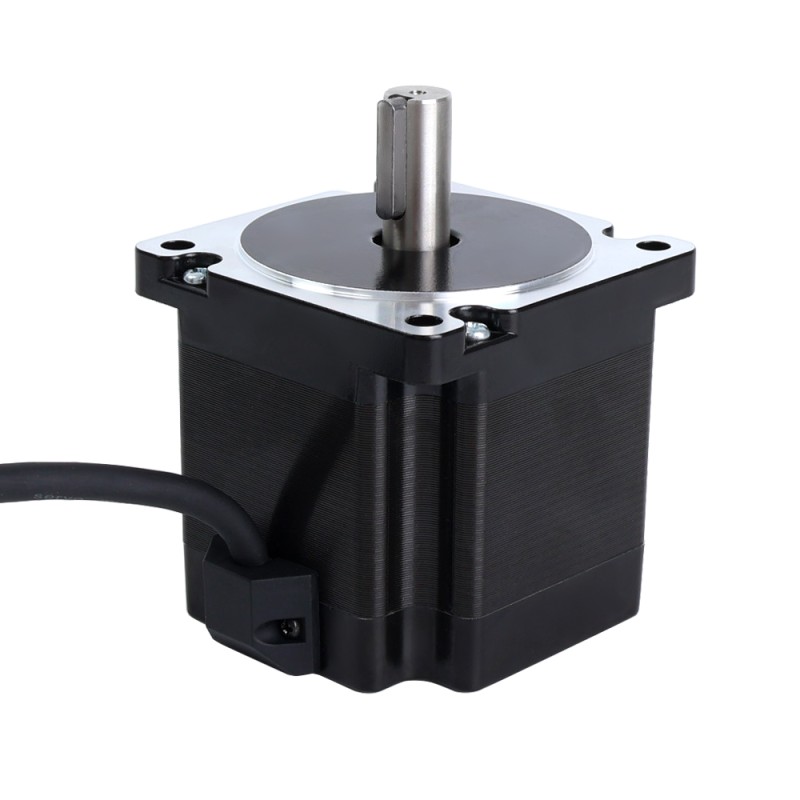

S Series Nema 34 Stepper Motor 4.8Nm(679.74oz.in) 14mm Key-way Shaft 1m Cable

S Series Nema 34 Stepper Motor 4.8Nm(679.74oz.in) 14mm Key-way Shaft 1m Cable
S Series Nema 34 Stepper Motor 4.8Nm(679.74oz.in) 14mm Key-way Shaft 1m Cable
S Series Nema 34 Stepper Motor 4.8Nm(679.74oz.in) 14mm Key-way Shaft 1m Cable
S Series Nema 34 Stepper Motor 4.8Nm(679.74oz.in) 14mm Key-way Shaft 1m Cable
S Series Nema 34 Stepper Motor 4.8Nm(679.74oz.in) 14mm Key-way Shaft 1m Cable
S Series Nema 34 Stepper Motor 4.8Nm(679.74oz.in) 14mm Key-way Shaft 1m Cable
S Series Nema 34 Stepper Motor 4.8Nm(679.74oz.in) 14mm Key-way Shaft 1m Cable
S Series Nema 34 Stepper Motor 4.8Nm(679.74oz.in) 14mm Key-way Shaft 1m Cable
S Series Nema 34 Stepper Motor 4.8Nm(679.74oz.in) 14mm Key-way Shaft 1m Cable
S Series Nema 34 Stepper Motor 4.8Nm(679.74oz.in) 14mm Key-way Shaft 1m Cable
S Series Nema 34 Stepper Motor 4.8Nm(679.74oz.in) 14mm Key-way Shaft 1m Cable
S Series Nema 34 Stepper Motor 4.8Nm(679.74oz.in) 14mm Key-way Shaft 1m Cable
S Series Nema 34 Stepper Motor 4.8Nm(679.74oz.in) 14mm Key-way Shaft 1m Cable
0 reviews • Write a review
from
$48.77
10 or more $44.37
100 or more $40.72
  • Model: 34HS31-6004S1
  • Weight: 2.60kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Motor Shaft
Length, Keyway, Flattened, Diameter...
Cable & Connector
Length, Connector, Terminal...
Body
Body Dimensions, Mounting Holes...
Performance
Current/Torque, Step Angle...
Optional Accessories
Encoder, Brake
Labeling
No Label / Custom Label, Laser Marking...

Electrical Specification

  • Manufacturer Part Number: 34HS31-6004S1
  • Number Of Phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 4.8Nm(679.74oz.in)
  • Rated Current/phase: 6.0A
  • Phase Resistance: 0.48ohms± 10%
  • Inductance: 3.5mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 86 x 86mm
  • Body Length: 80mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 32mm
  • Keyway Shaft Length: 25mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 2.5kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
The motor comes with a highly flexible cable that can be bent 8 million times without failure.
The motor datasheet is available for download
Coupling Specification
Body Length(mm) 80
Physical Specification
Output Shaft Type Keyway
Shaft Diameter(mm) 14
Shaft Length(mm) 32
No. of Lead 4
Lead Length(mm) 1000
Weight(g) 2500
Single Shaft/Dual Shaft Single Shaft
Frame Size(mm) Nema 34 (86 x 86)
Body Length(mm) 80
Product Series S
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Holding Torque(Ncm) 480
Rated Current(A) 6.0
Holding Torque(oz.in) 679.74
Bipolar/Unipolar Bipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 0.48
Inductance(mH) 3.5
Has Torque/Thrust Curve? Yes
Product Type
Product Type Hybrid Stepper Motor
