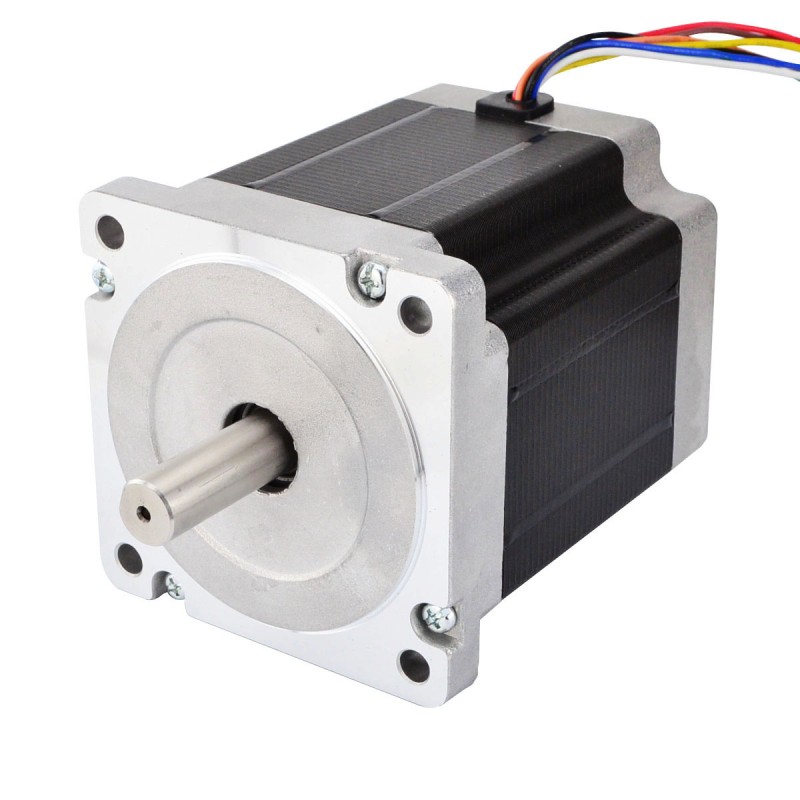

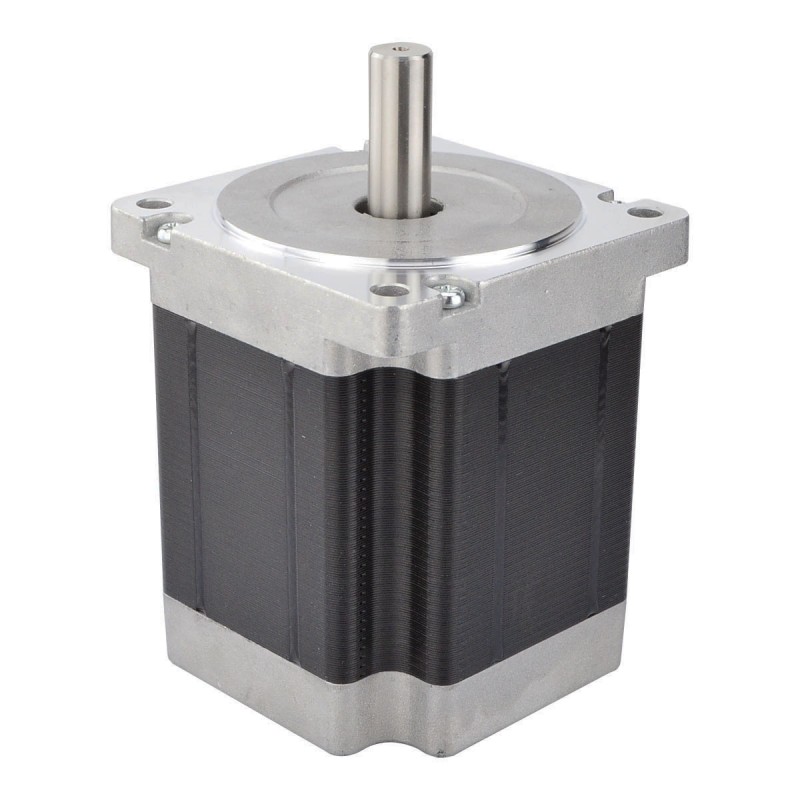

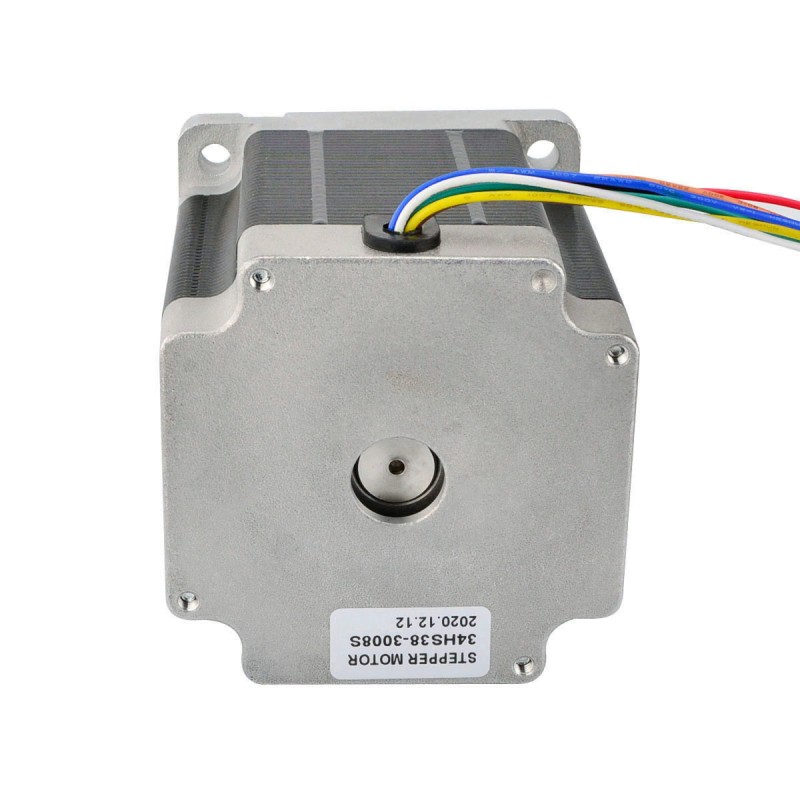

Nema 34 CNC Stepper Motor 7.07Nm(1001oz.in) 86x86x98mm 8 Wires

Nema 34 CNC Stepper Motor 7.07Nm(1001oz.in) 86x86x98mm 8 Wires
Nema 34 CNC Stepper Motor 7.07Nm(1001oz.in) 86x86x98mm 8 Wires
Nema 34 CNC Stepper Motor 7.07Nm(1001oz.in) 86x86x98mm 8 Wires
Nema 34 CNC Stepper Motor 7.07Nm(1001oz.in) 86x86x98mm 8 Wires
Nema 34 CNC Stepper Motor 7.07Nm(1001oz.in) 86x86x98mm 8 Wires
Nema 34 CNC Stepper Motor 7.07Nm(1001oz.in) 86x86x98mm 8 Wires
Nema 34 CNC Stepper Motor 7.07Nm(1001oz.in) 86x86x98mm 8 Wires
Nema 34 CNC Stepper Motor 7.07Nm(1001oz.in) 86x86x98mm 8 Wires
Nema 34 CNC Stepper Motor 7.07Nm(1001oz.in) 86x86x98mm 8 Wires
Nema 34 CNC Stepper Motor 7.07Nm(1001oz.in) 86x86x98mm 8 Wires
Nema 34 CNC Stepper Motor 7.07Nm(1001oz.in) 86x86x98mm 8 Wires
0 reviews • Write a review
from
$59.27
10 or more $55.35
100 or more $51.91
  • Model: 34HS38-3008S
  • Weight: 3.51kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Motor Shaft
Length, Keyway, Flattened, Diameter...
Cable & Connector
Length, Connector, Terminal...
Body
Body Dimensions, Mounting Holes...
Performance
Current/Torque, Step Angle...
Optional Accessories
Encoder, Brake
Labeling
No Label / Custom Label, Laser Marking...

This nema 34 cnc stepper motor with size 86x86x98mm. It has 8 wires, which have three connection options: Unipolar or Bipolar(Serial) or Bipolar(Parallel), you can choose any type as you wish. It's houlding torque reach 5Nm(708oz.in) with unipolar connection and 7.07Nm(1001oz.in) with bipolar connection.


Electrical Specification

  • Manufacturer Part Number: 34HS38-3008S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque(Unipolar): 5Nm(708oz.in)
  • Holding Torque(Bipolar): 7.07Nm(1001oz.in)
  • Rated Current/phase(Unipolar): 3.0A
  • Rated Current/phase(Bipolar Serial): 2.12A
  • Rated Current/phase(Unipolar Parallel): 4.24A
  • Phase Resistance(Unipolar): 1.6ohms
  • Phase Resistance(Bipolar Serial): 3.2ohms
  • Phase Resistance(Bipolar Parallel): 0.8ohms
  • Inductance(Unipolar): 8.0mH±20%(1KHz)
  • Inductance(Bipolar Serial): 32.0mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 86 x 86mm
  • Body Length: 98mm
  • Shaft Diameter: Φ12.7mm
  • Shaft Length: 32mm
  • D-cut Length: 25mm
  • Number of Leads: 8
  • Lead Length: 500mm
  • Weight: 3.13kg

Connection

A+
A-
B+
B-
Blue/White
Black/Orange
Red/Yellow
Green/Brown
Physical Specification
Output Shaft Type D
Shaft Diameter(mm) 12.7
Shaft Length(mm) 32
No. of Lead 8
Lead Length(mm) 500
Weight(g) 3130
Single Shaft/Dual Shaft Single Shaft
Frame Size(mm) Nema 34 (86 x 86)
Body Length(mm) 98
Product Series S
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Holding Torque(Ncm) 707
Rated Current(A) 4.24
Holding Torque(oz.in) 1001
Bipolar/Unipolar Bipolar/Unipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 0.8
Inductance(mH) 8
Has Torque/Thrust Curve? Yes
Product Type
Product Type Hybrid Stepper Motor
