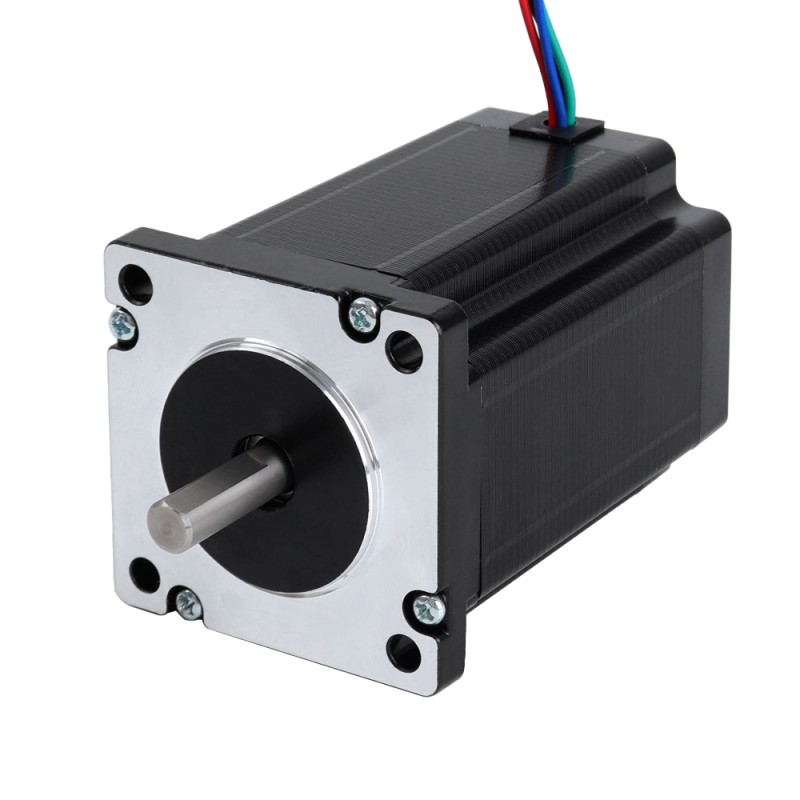

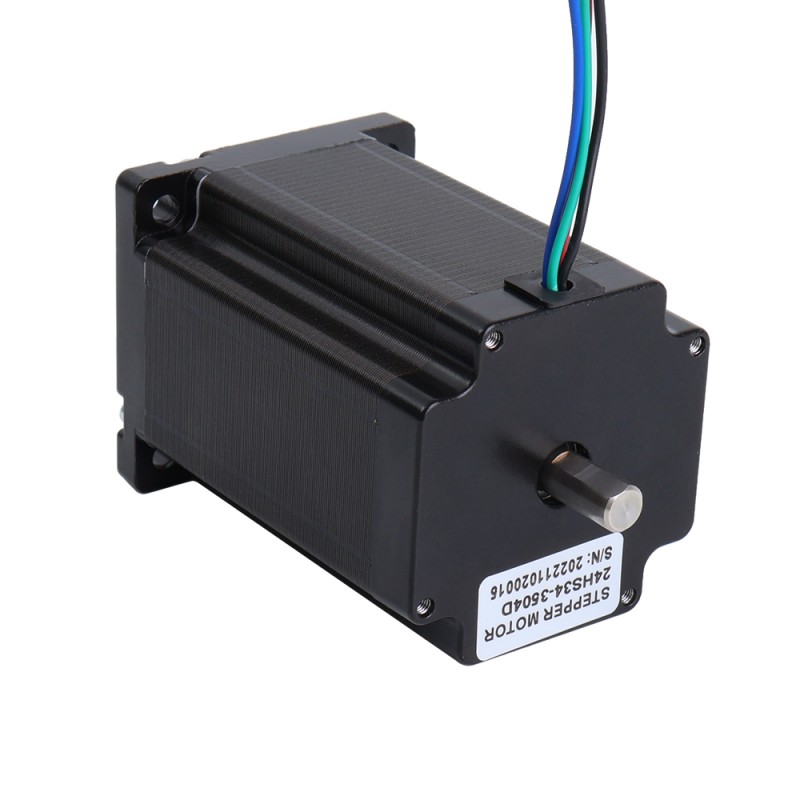

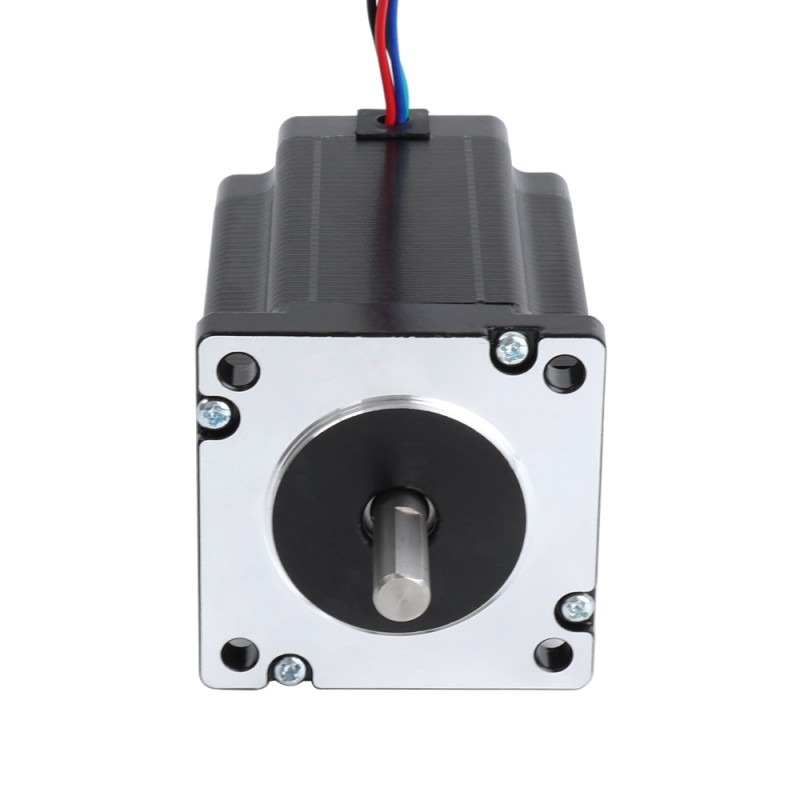

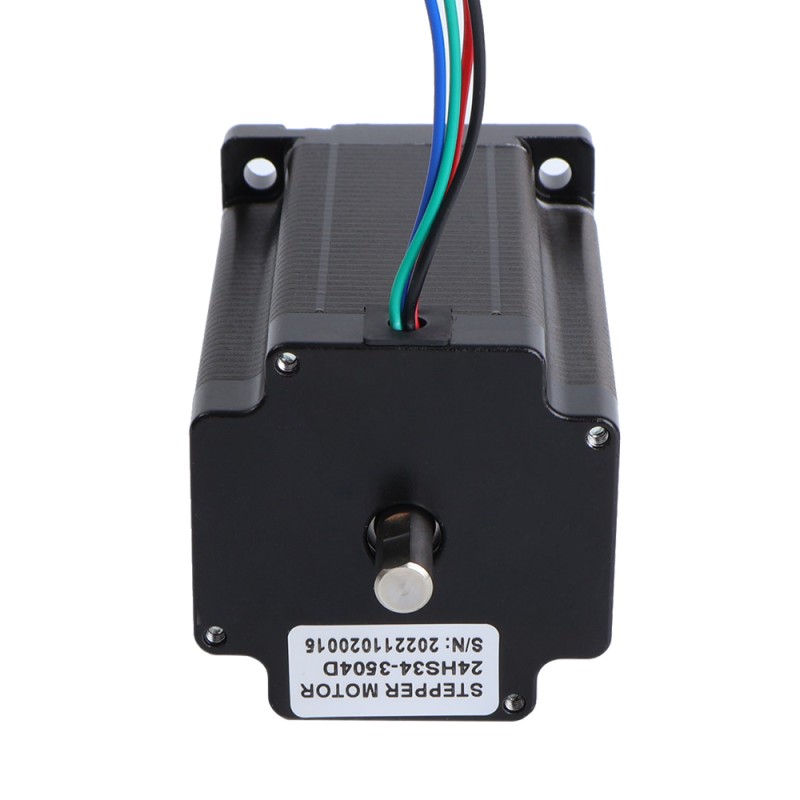

This bipolar Nema 23 stepper motor with step angle 1.8deg and size 60x60x88mm. The installation dimensions are the same as the conventional Nema 23 motor, with greater torque. It has 4 wires, each phase draws 3.5A, with holding torque 3.1Nm(439oz.in). A rear shaft was made for encoder or equals.

Electrical Specification

  • Manufacturer Part Number: 24HS34-3504D
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 3.1Nm(439oz.in)
  • Rated Current/phase: 3.5A
  • Phase Resistance: 1.1ohms
  • Inductance: 5.6mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 60 x 60mm
  • Body Length: 88mm
  • Shaft Diameter: Φ8mm
  • Front Shaft Length: 24mm
  • Rear Shaft Length: 15mm
  • D-cut Length: 20mm
  • Number of Leads: 4
  • Lead Length: 600mm
  • Weight: 1.34kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
The applicable bracket for this motor is ST-M2.
This motor is now available in a pack of 3. It has a better price. For more details, please see 3-24HS34-3504D.
Physical Specification
Output Shaft Type D
Shaft Diameter(mm) 8
Shaft Length(mm) 24
No. of Lead 4
Lead Length(mm) 600
Weight(g) 1340
Single Shaft/Dual Shaft Dual Shaft
Frame Size(mm) Nema 23 (60 x 60)
Body Length(mm) 88
Product Series S
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Holding Torque(Ncm) 310
Rated Current(A) 3.5
Holding Torque(oz.in) 439
Bipolar/Unipolar Bipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 1.1
Inductance(mH) 5.6
Has Torque/Thrust Curve? Yes
Product Type
Product Type Hybrid Stepper Motor
