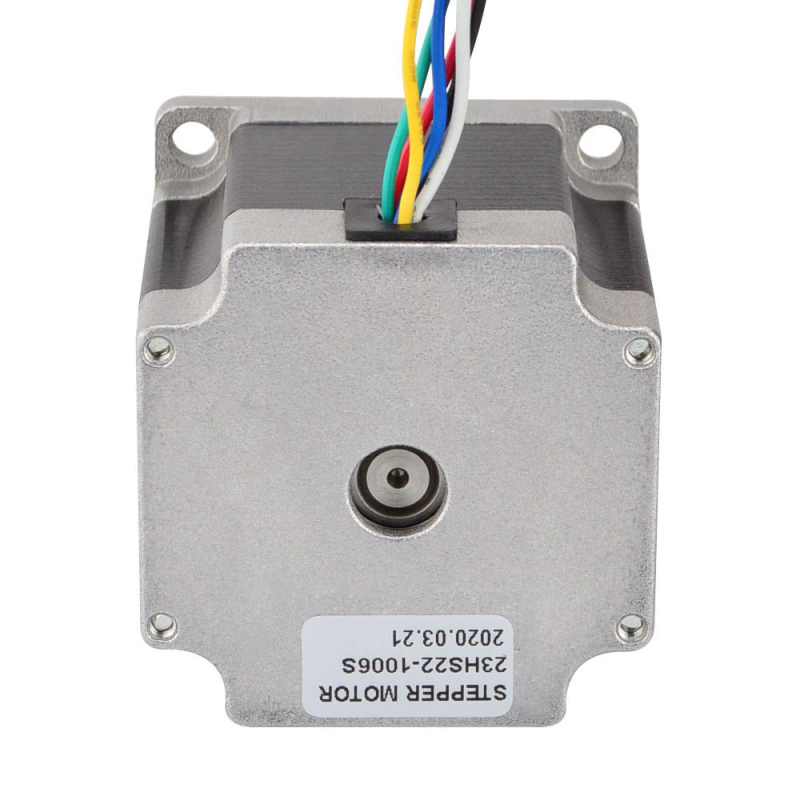

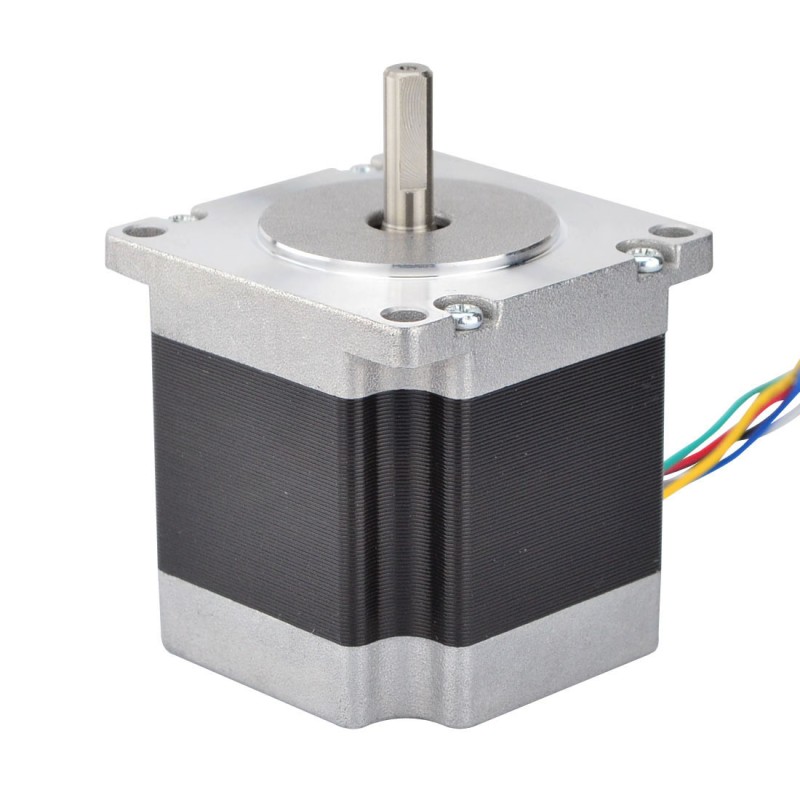

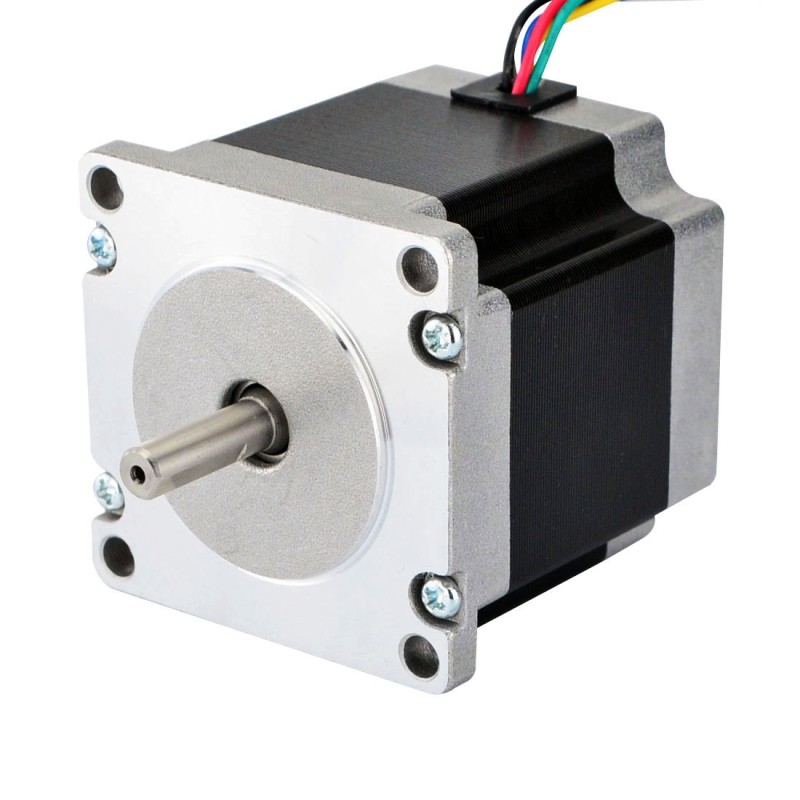

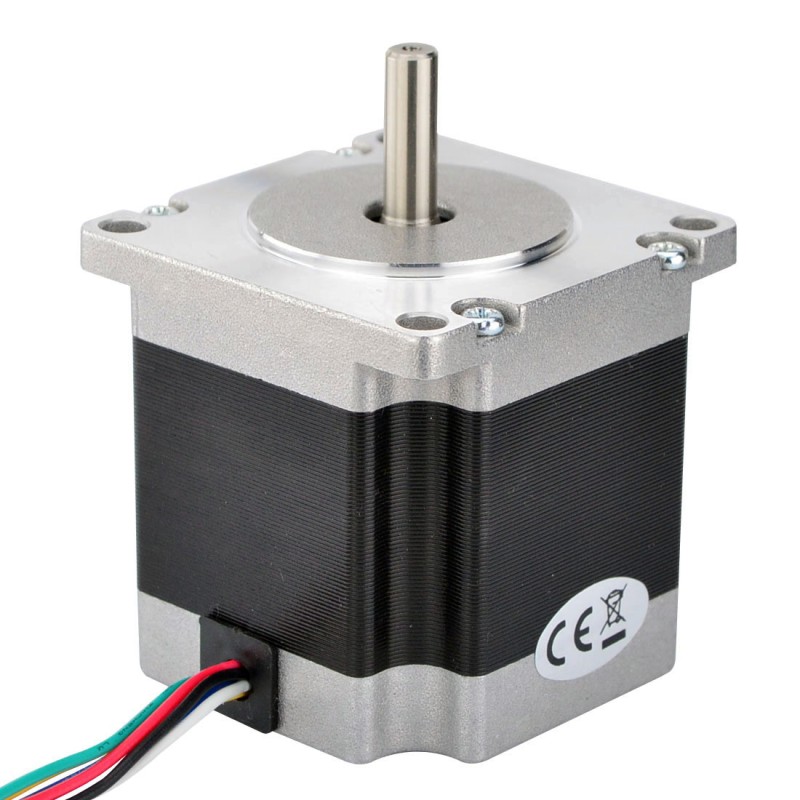

Nema 23 Unipolar 1.8deg 0.9Nm(127.5oz.in) 1A 57x57x56mm 6 Wires

Nema 23 Unipolar 1.8deg 0.9Nm(127.5oz.in) 1A 57x57x56mm 6 Wires
Nema 23 Unipolar 1.8deg 0.9Nm(127.5oz.in) 1A 57x57x56mm 6 Wires
Nema 23 Unipolar 1.8deg 0.9Nm(127.5oz.in) 1A 57x57x56mm 6 Wires
Nema 23 Unipolar 1.8deg 0.9Nm(127.5oz.in) 1A 57x57x56mm 6 Wires
Nema 23 Unipolar 1.8deg 0.9Nm(127.5oz.in) 1A 57x57x56mm 6 Wires
Nema 23 Unipolar 1.8deg 0.9Nm(127.5oz.in) 1A 57x57x56mm 6 Wires
Nema 23 Unipolar 1.8deg 0.9Nm(127.5oz.in) 1A 57x57x56mm 6 Wires
Nema 23 Unipolar 1.8deg 0.9Nm(127.5oz.in) 1A 57x57x56mm 6 Wires
Nema 23 Unipolar 1.8deg 0.9Nm(127.5oz.in) 1A 57x57x56mm 6 Wires
Nema 23 Unipolar 1.8deg 0.9Nm(127.5oz.in) 1A 57x57x56mm 6 Wires
Nema 23 Unipolar 1.8deg 0.9Nm(127.5oz.in) 1A 57x57x56mm 6 Wires
0 reviews • Write a review
from
$20.35
10 or more $18.53
100 or more $17.00
  • Model: 23HS22-1006S
  • Weight: 0.79kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Motor Shaft
Length, Keyway, Flattened, Diameter...
Cable & Connector
Length, Connector, Terminal...
Body
Body Dimensions, Mounting Holes...
Performance
Current/Torque, Step Angle...
Optional Accessories
Encoder, Brake
Labeling
No Label / Custom Label, Laser Marking...

This unipolar Nema 23 stepper motor with step angle 1.8deg and size 57x57x56mm. It has 6 wires, each phase draws 1.0A, with holding torque 0.9Nm(127.5oz.in).


Electrical Specification

  • Manufacturer Part Number: 23HS22-1006S
  • Motor Type: Unipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 0.9Nm(127.5oz.in)
  • Rated Current/phase: 1.0A
  • Phase Resistance: 7.4ohms
  • Inductance: 10mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 56mm
  • Shaft Diameter: Φ6.35mm(1/4in)
  • Shaft Length: 21mm
  • D-cut Length: 15mm
  • Number of Leads: 6
  • Lead Length: 500mm
  • Weight: 0.7Kg

Connection

Bipolar

A+
A-
B+
B-
Black
Green
Red
Blue

Unipolar

A+
O+
A-
B+
O-
B-
Black
Yellow
Green
Red
White
Blue
Physical Specification
Output Shaft Type D
Shaft Diameter(mm) 6.35
Shaft Length(mm) 21
No. of Lead 6
Lead Length(mm) 500
Weight(g) 700
Single Shaft/Dual Shaft Single Shaft
Frame Size(mm) Nema 23 (57 x 57)
Body Length(mm) 56
Product Series S
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Holding Torque(Ncm) 90
Rated Current(A) 1
Holding Torque(oz.in) 127.5
Bipolar/Unipolar Unipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 7.4
Inductance(mH) 10
Has Torque/Thrust Curve? Yes
Product Type
Product Type Hybrid Stepper Motor
