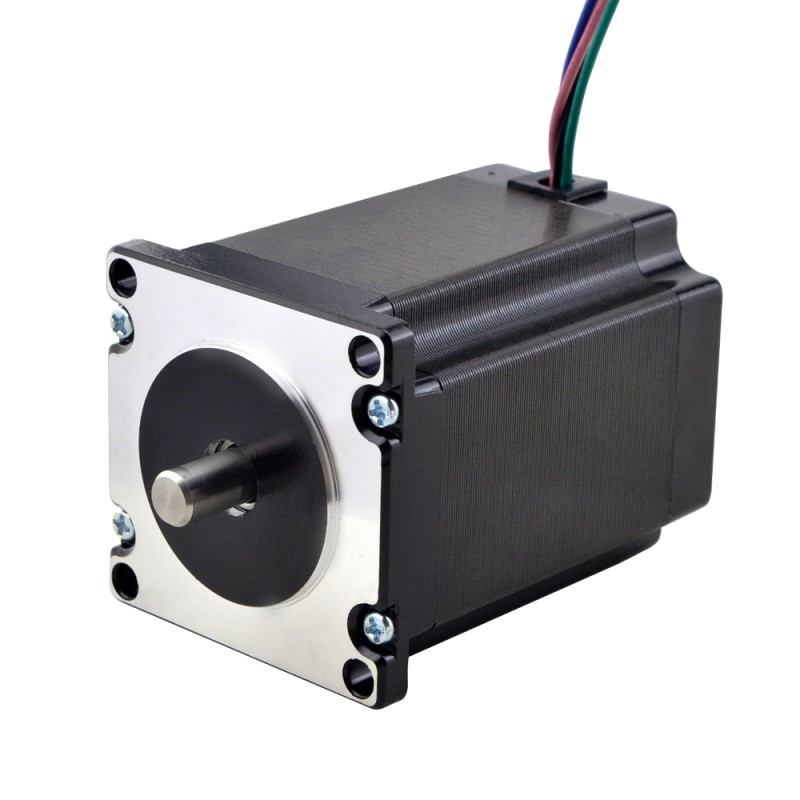

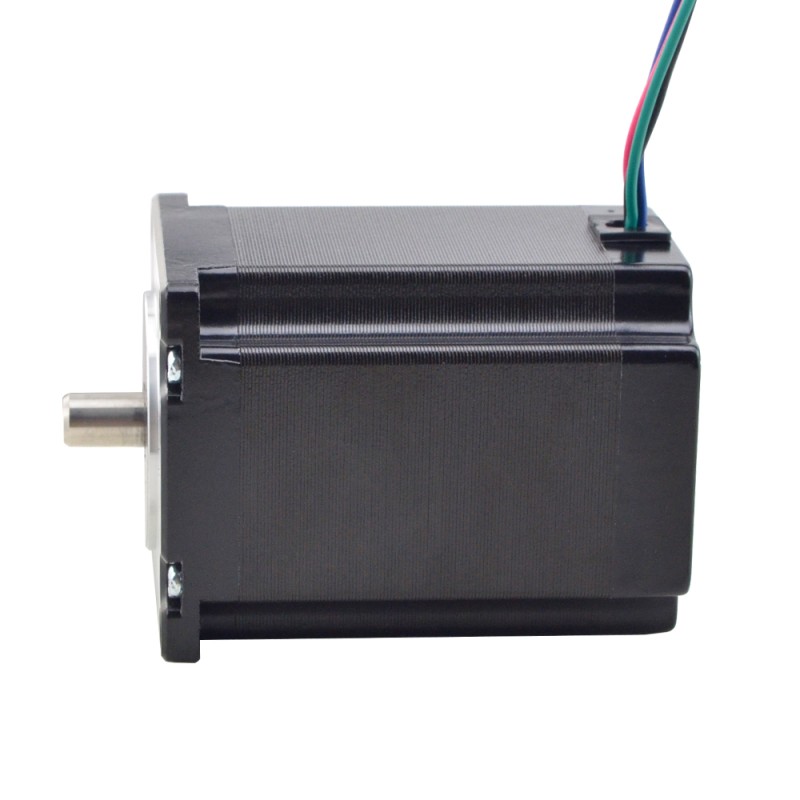

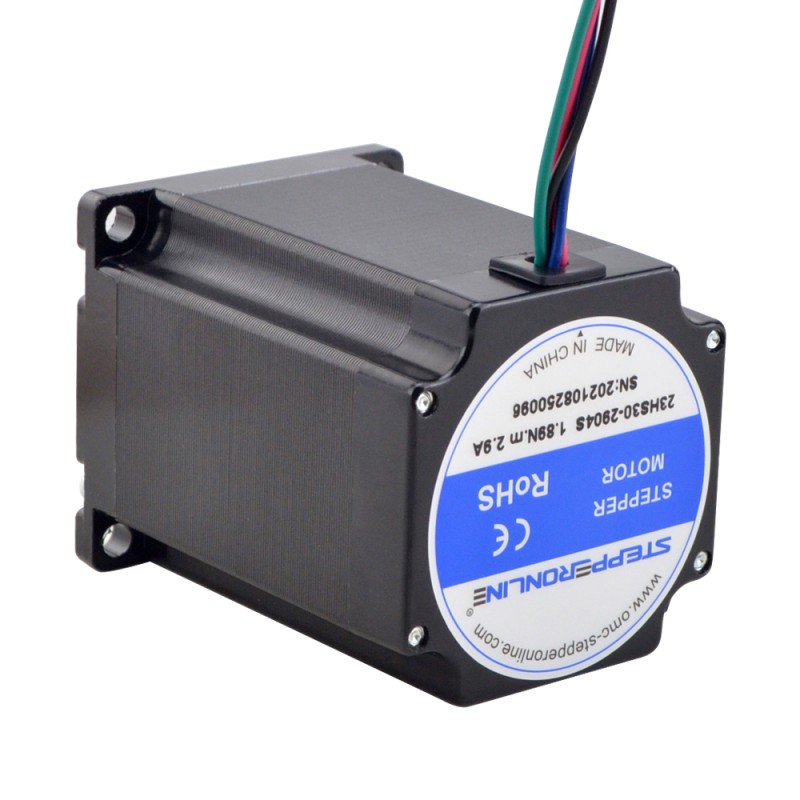

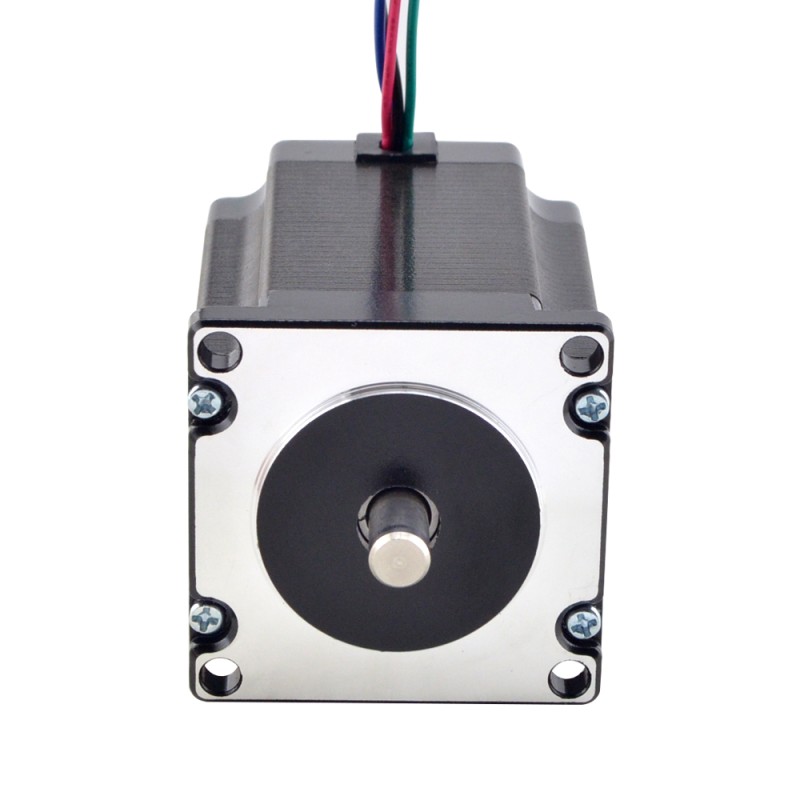

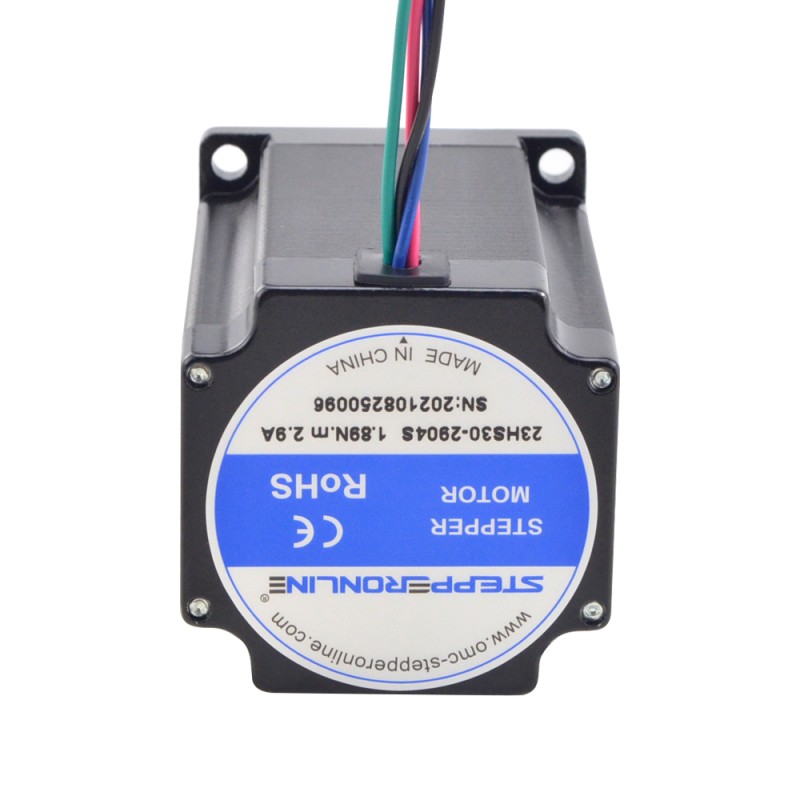

This short shaft Nema 23 stepper motor with 13.5mm length shaft, motor size 57x57x76.5mm. It has 4 wires, each phase draws 2.9A, with holding torque 1.9Nm(269.06oz.in).


Electrical Specification

  • Manufacturer Part Number: 23HS30-2904S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 1.9Nm(269.06oz.in)
  • Rated Current/phase: 2.9A
  • Phase Resistance: 1.13ohms
  • Inductance: 4.8mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 76.5mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 13.5mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 1.05kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Physical Specification
Output Shaft Type D
Shaft Diameter(mm) 8
Shaft Length(mm) 13.5
No. of Lead 4
Lead Length(mm) 500
Weight(g) 1200
Single Shaft/Dual Shaft Single Shaft
Frame Size(mm) Nema 23 (57 x 57)
Body Length(mm) 76
Product Series S
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Holding Torque(Ncm) 190
Rated Current(A) 2.9
Holding Torque(oz.in) 269.06
Bipolar/Unipolar Bipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 1.13
Inductance(mH) 4.8
Has Torque/Thrust Curve? Yes
Product Type
Product Type Hybrid Stepper Motor
