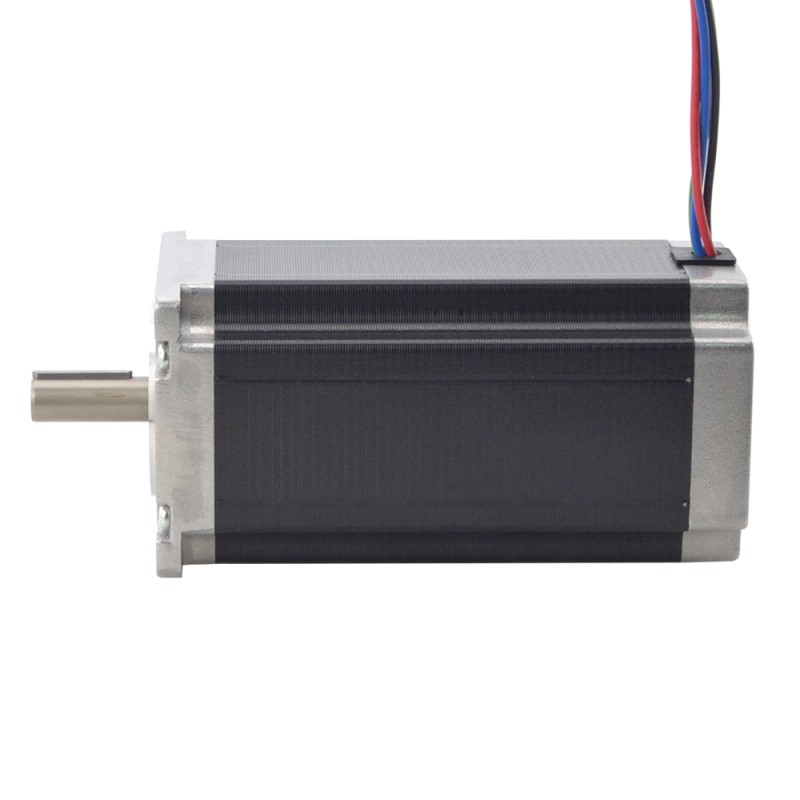

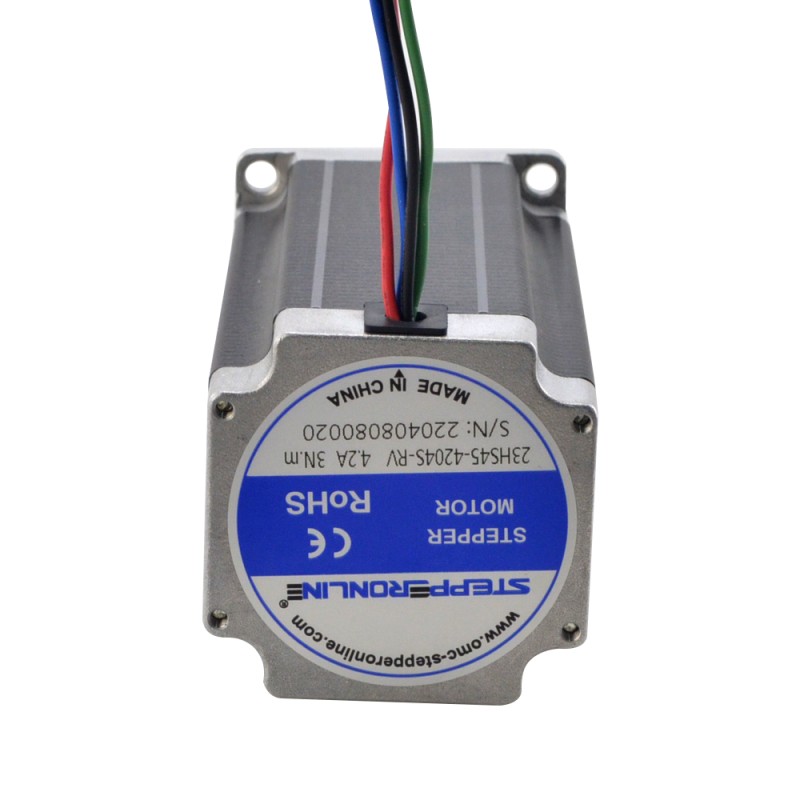

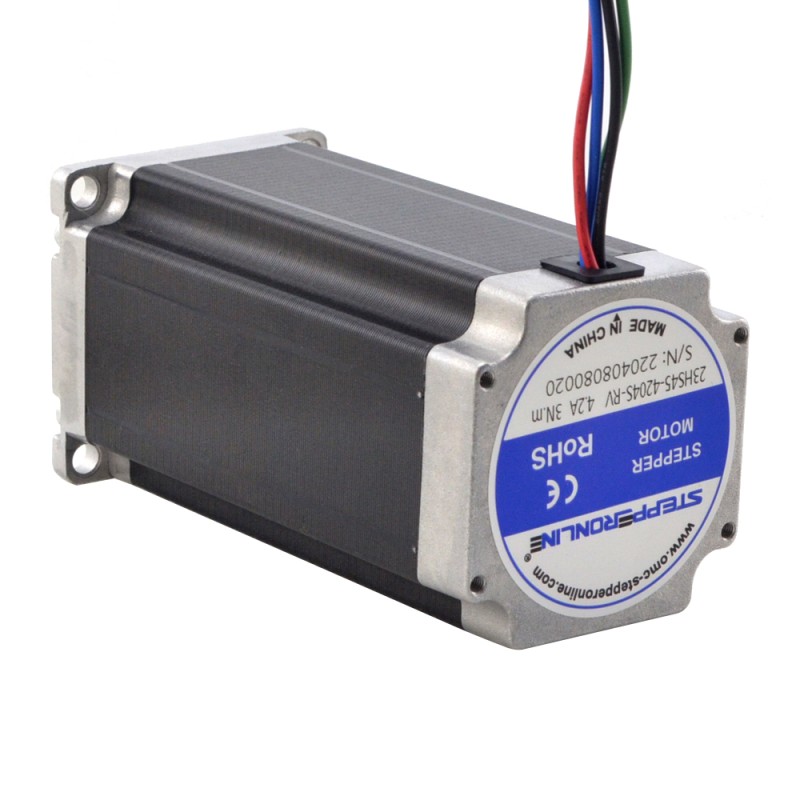

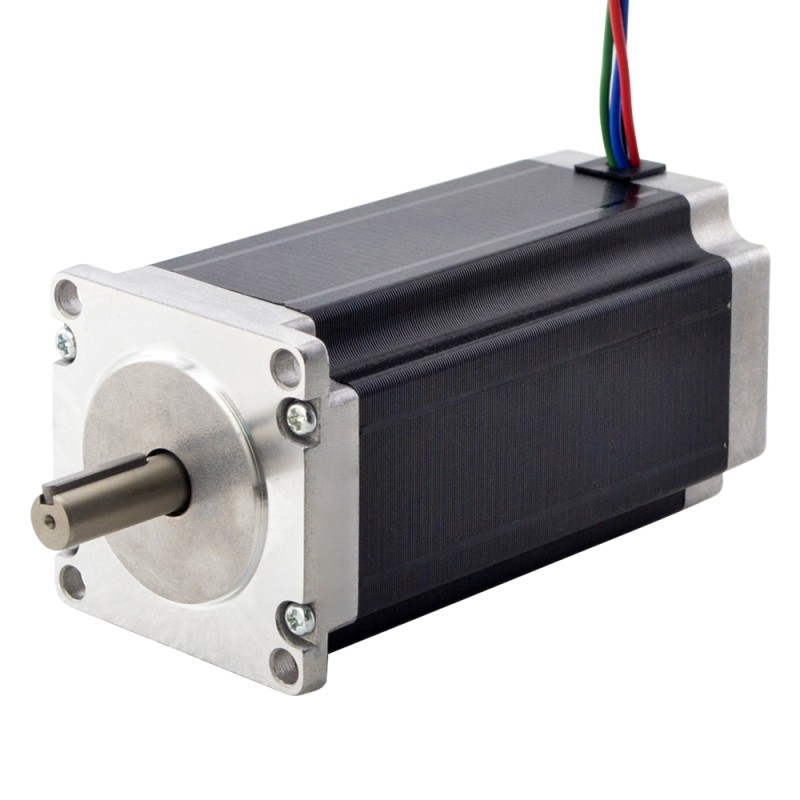

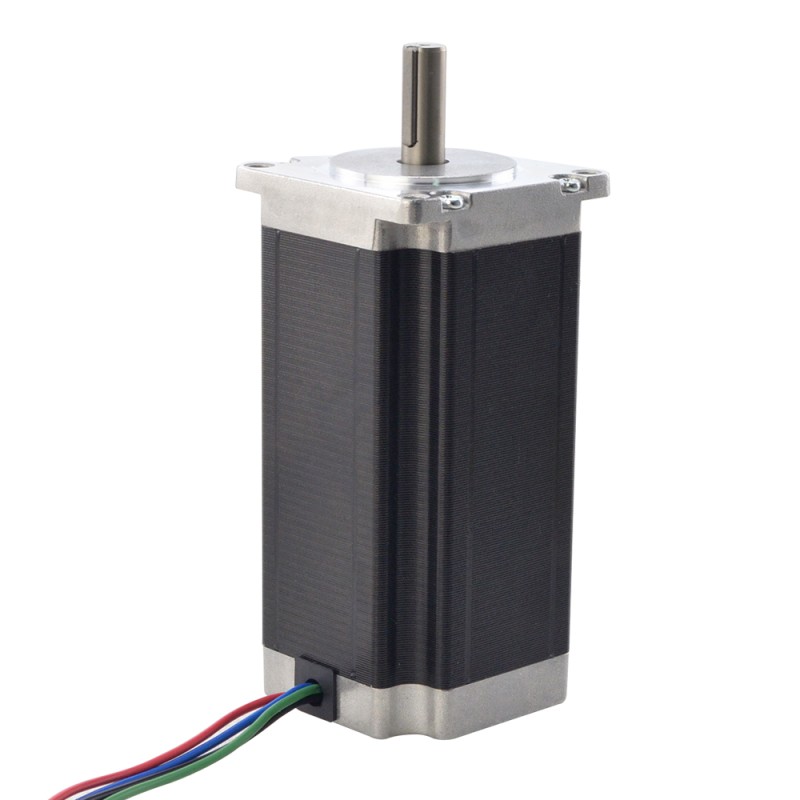

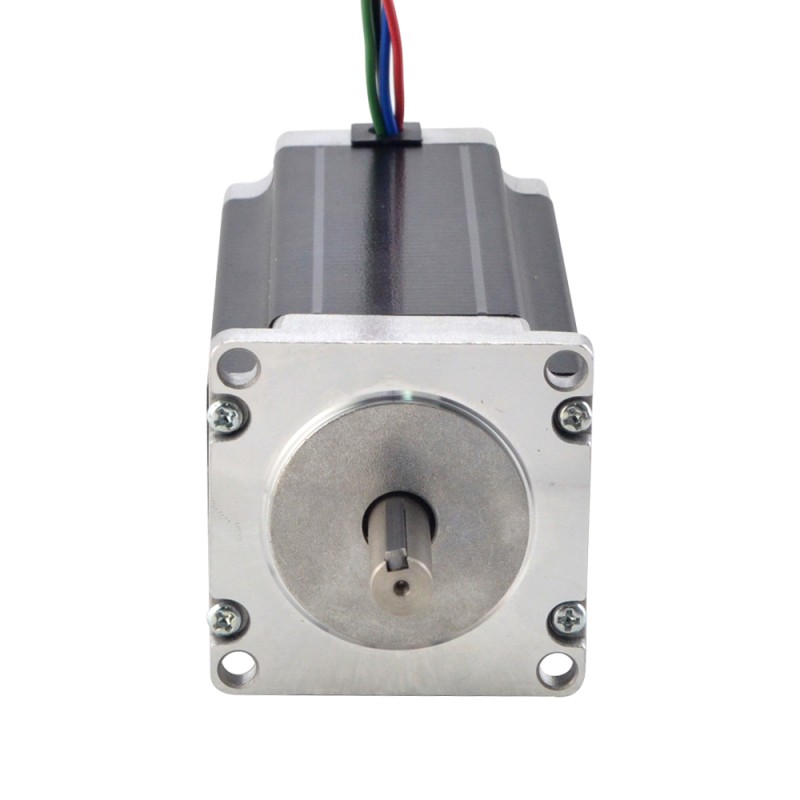

Nema 23 Stepper Motor 3Nm(425oz.in) with 9mm Shaft for NmRV30 Worm Gear Speed Reducer

Nema 23 Stepper Motor 3Nm(425oz.in) with 9mm Shaft for NmRV30 Worm Gear Speed Reducer
Nema 23 Stepper Motor 3Nm(425oz.in) with 9mm Shaft for NmRV30 Worm Gear Speed Reducer
Nema 23 Stepper Motor 3Nm(425oz.in) with 9mm Shaft for NmRV30 Worm Gear Speed Reducer
Nema 23 Stepper Motor 3Nm(425oz.in) with 9mm Shaft for NmRV30 Worm Gear Speed Reducer
Nema 23 Stepper Motor 3Nm(425oz.in) with 9mm Shaft for NmRV30 Worm Gear Speed Reducer
Nema 23 Stepper Motor 3Nm(425oz.in) with 9mm Shaft for NmRV30 Worm Gear Speed Reducer
Nema 23 Stepper Motor 3Nm(425oz.in) with 9mm Shaft for NmRV30 Worm Gear Speed Reducer
Nema 23 Stepper Motor 3Nm(425oz.in) with 9mm Shaft for NmRV30 Worm Gear Speed Reducer
Nema 23 Stepper Motor 3Nm(425oz.in) with 9mm Shaft for NmRV30 Worm Gear Speed Reducer
Nema 23 Stepper Motor 3Nm(425oz.in) with 9mm Shaft for NmRV30 Worm Gear Speed Reducer
Nema 23 Stepper Motor 3Nm(425oz.in) with 9mm Shaft for NmRV30 Worm Gear Speed Reducer
Nema 23 Stepper Motor 3Nm(425oz.in) with 9mm Shaft for NmRV30 Worm Gear Speed Reducer
Nema 23 Stepper Motor 3Nm(425oz.in) with 9mm Shaft for NmRV30 Worm Gear Speed Reducer
0 reviews • Write a review
from
$46.58
10 or more $41.98
100 or more $38.20
  • Model: 23HS45-4204S-RV
  • Weight: 1.90kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Motor Shaft
Length, Keyway, Flattened, Diameter...
Cable & Connector
Length, Connector, Terminal...
Body
Body Dimensions, Mounting Holes...
Performance
Current/Torque, Step Angle...
Optional Accessories
Encoder, Brake
Labeling
No Label / Custom Label, Laser Marking...

This motor has a torque of 3.0Nm(425oz.in) and its shaft is a 9mm keyway shaft, it can fit with NMRV30 Worm Gearbox directly.


Electrical Specification

  • Manufacturer Part Number: 23HS45-4204S-RV
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 3.0Nm(425oz.in)
  • Rated Current/phase: 4.2A
  • Phase Resistance: 0.88ohms
  • Inductance: 3.4mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 113mm
  • Shaft Diameter: Φ9mm
  • Shaft Length: 25mm
  • Key-way Length: 20mm
  • Number of Leads: 4
  • Lead Length: 400mm
  • Weight: 1.8kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Physical Specification
Output Shaft Type Keyway
Shaft Diameter(mm) 9
Shaft Length(mm) 25
No. of Lead 4
Lead Length(mm) 400
Single Shaft/Dual Shaft Single Shaft
Frame Size(mm) Nema 23 (57 x 57)
Body Length(mm) 113
Product Series S
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Holding Torque(Ncm) 300
Rated Current(A) 4.2
Holding Torque(oz.in) 425
Bipolar/Unipolar Bipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 0.88
Inductance(mH) 3.4
Has Torque/Thrust Curve? Yes
Product Type
Product Type Hybrid Stepper Motor
