Nema 23 Bipolar 3Nm(425oz.in) 3.5A 57x57x113mm 4 Wires CNC Stepper Motor

Nema 23 Bipolar 3Nm(425oz.in) 3.5A 57x57x113mm 4 Wires CNC Stepper Motor
Nema 23 Bipolar 3Nm(425oz.in) 3.5A 57x57x113mm 4 Wires CNC Stepper Motor
Nema 23 Bipolar 3Nm(425oz.in) 3.5A 57x57x113mm 4 Wires CNC Stepper Motor
Nema 23 Bipolar 3Nm(425oz.in) 3.5A 57x57x113mm 4 Wires CNC Stepper Motor
Nema 23 Bipolar 3Nm(425oz.in) 3.5A 57x57x113mm 4 Wires CNC Stepper Motor
Nema 23 Bipolar 3Nm(425oz.in) 3.5A 57x57x113mm 4 Wires CNC Stepper Motor
Nema 23 Bipolar 3Nm(425oz.in) 3.5A 57x57x113mm 4 Wires CNC Stepper Motor
Nema 23 Bipolar 3Nm(425oz.in) 3.5A 57x57x113mm 4 Wires CNC Stepper Motor
Nema 23 Bipolar 3Nm(425oz.in) 3.5A 57x57x113mm 4 Wires CNC Stepper Motor
Nema 23 Bipolar 3Nm(425oz.in) 3.5A 57x57x113mm 4 Wires CNC Stepper Motor
Nema 23 Bipolar 3Nm(425oz.in) 3.5A 57x57x113mm 4 Wires CNC Stepper Motor
0 reviews • Write a review
from
$40.28
10 or more $36.66
100 or more $33.64
  • Model: 23HS45-3504S
  • Weight: 1.65kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Motor Shaft
Length, Keyway, Flattened, Diameter...
Cable & Connector
Length, Connector, Terminal...
Body
Body Dimensions, Mounting Holes...
Performance
Current/Torque, Step Angle...
Optional Accessories
Encoder, Brake
Labeling
No Label / Custom Label, Laser Marking...

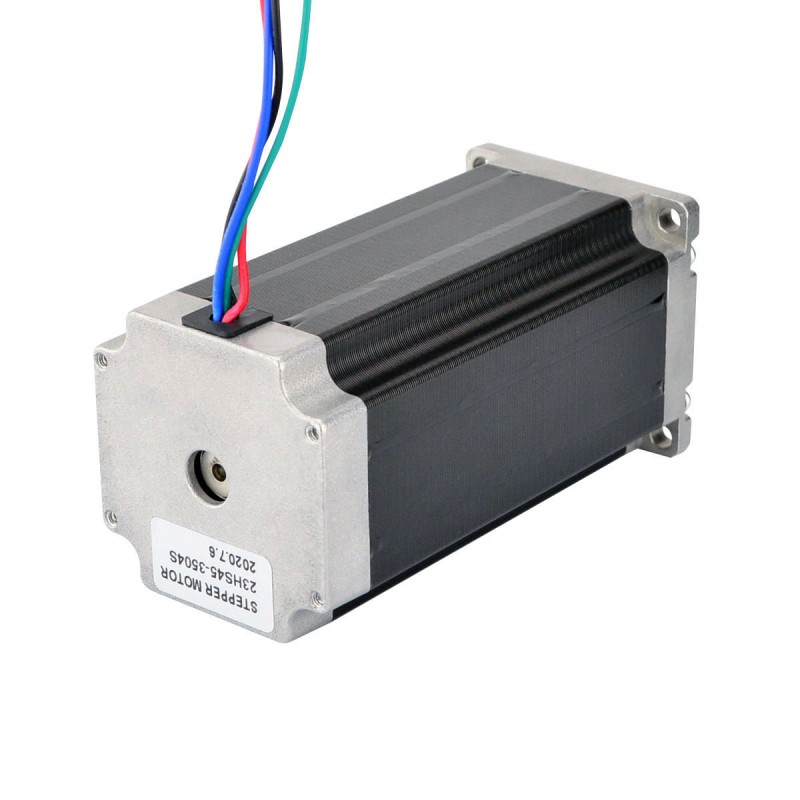

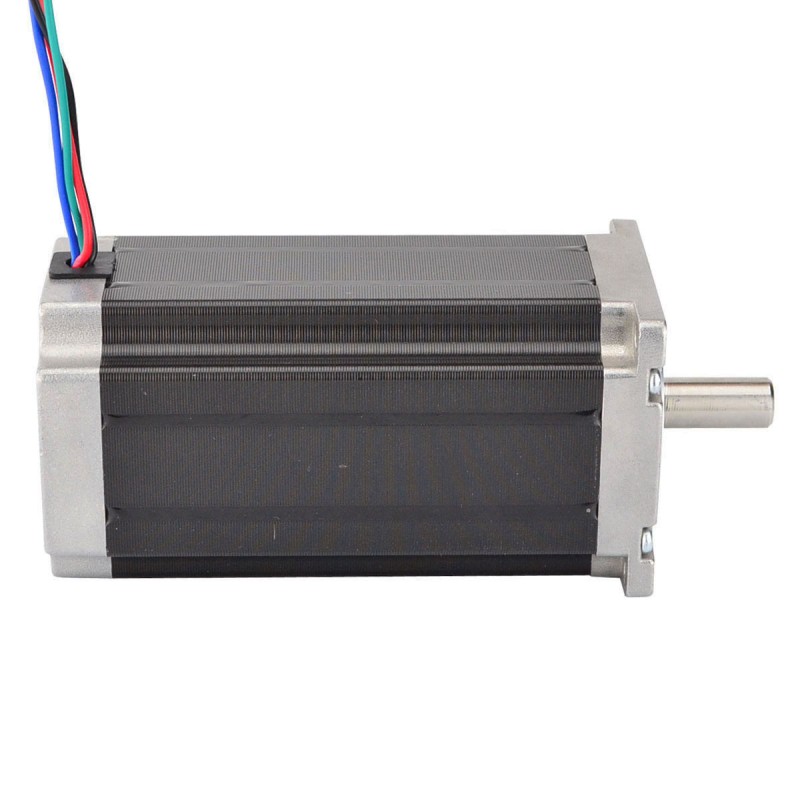

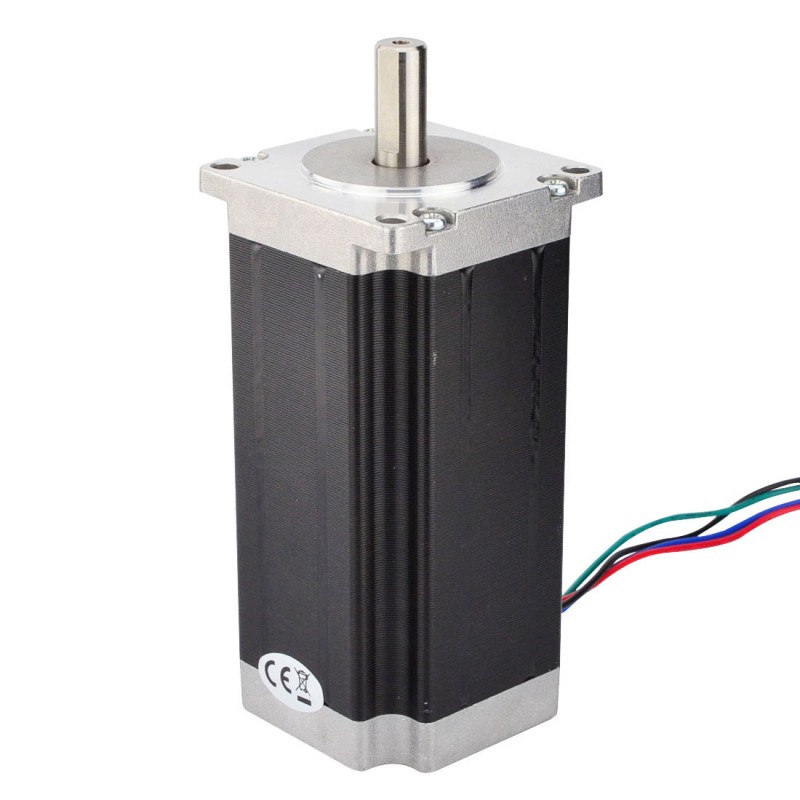

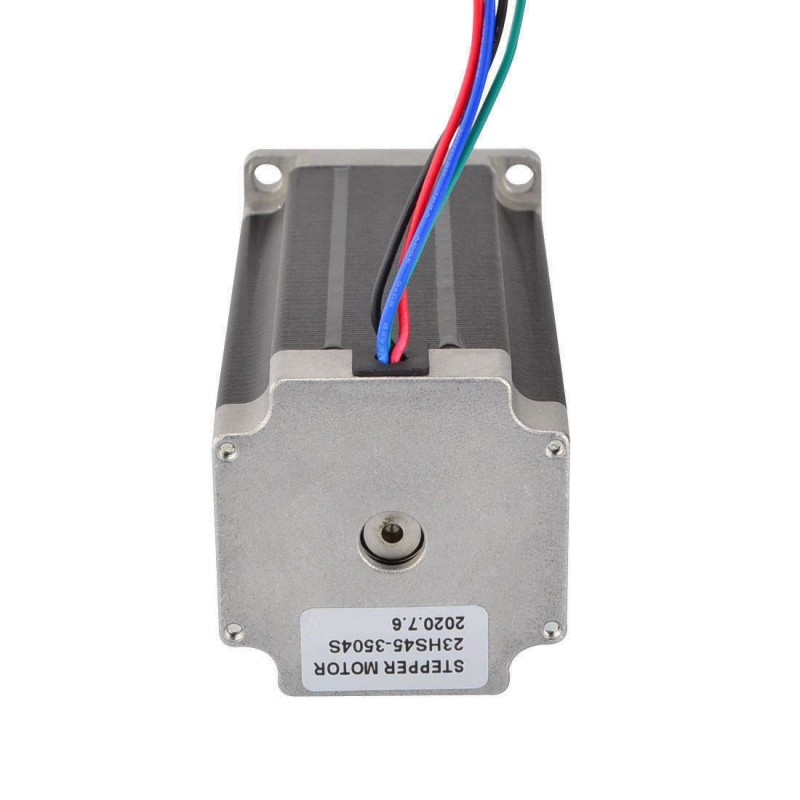

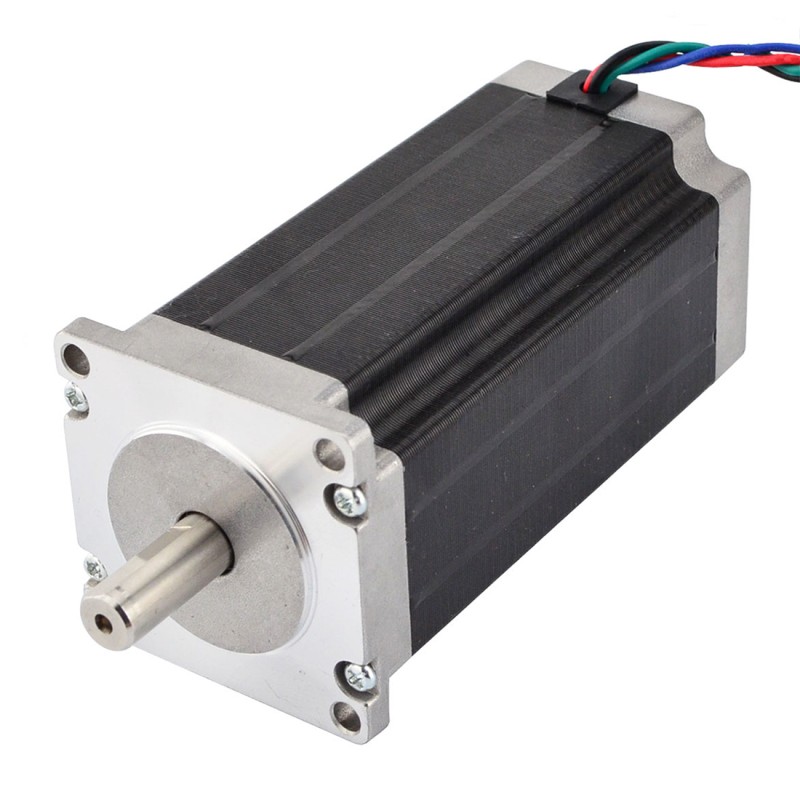

This bipolar Nema 23 stepper motor with step angle 1.8deg and size 57x57x113mm. It has 4 wires, each phase draws 3.5A, with holding torque 3.0Nm(425oz.in).


Electrical Specification

  • Manufacturer Part Number: 23HS45-3504S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 3.0Nm(425oz.in)
  • Rated Current/phase: 3.5A
  • Phase Resistance: 1.1ohms
  • Inductance: 4.0mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 113mm
  • Shaft Diameter: Φ10mm
  • Shaft Length: 24mm
  • D-cut Length: 20mm
  • Number of Leads: 4
  • Lead Length: 400mm
  • Weight: 1.6kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Physical Specification
Output Shaft Type D
Shaft Diameter(mm) 10
Shaft Length(mm) 24
No. of Lead 4
Lead Length(mm) 400
Weight(g) 1600
Single Shaft/Dual Shaft Single Shaft
Frame Size(mm) Nema 23 (57 x 57)
Body Length(mm) 113
Product Series S
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Holding Torque(Ncm) 300
Rated Current(A) 3.5
Holding Torque(oz.in) 425
Bipolar/Unipolar Bipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 1.1
Inductance(mH) 4
Has Torque/Thrust Curve? Yes
Product Type
Product Type Hybrid Stepper Motor
