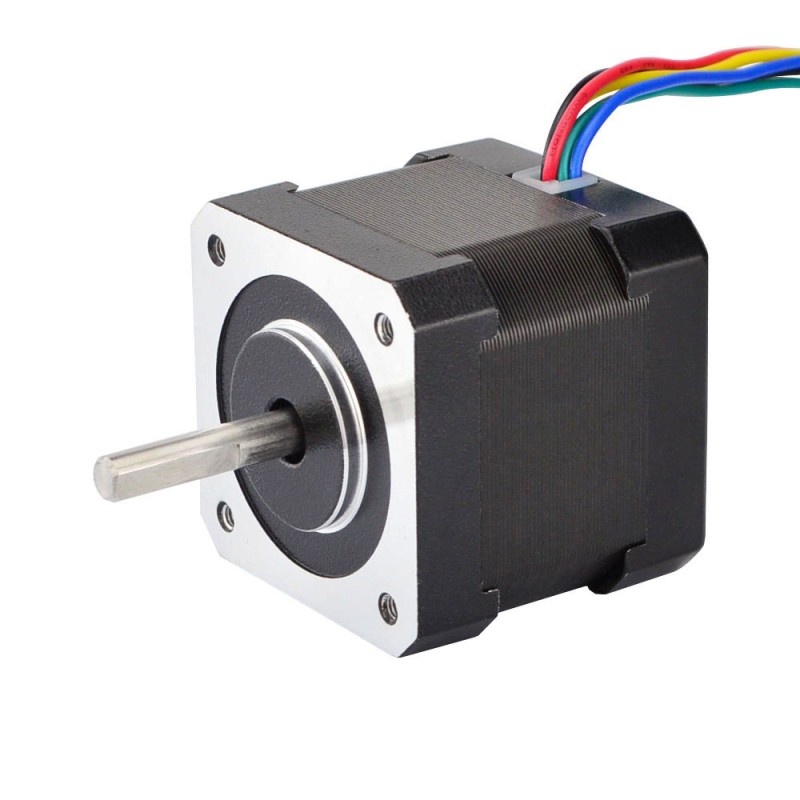

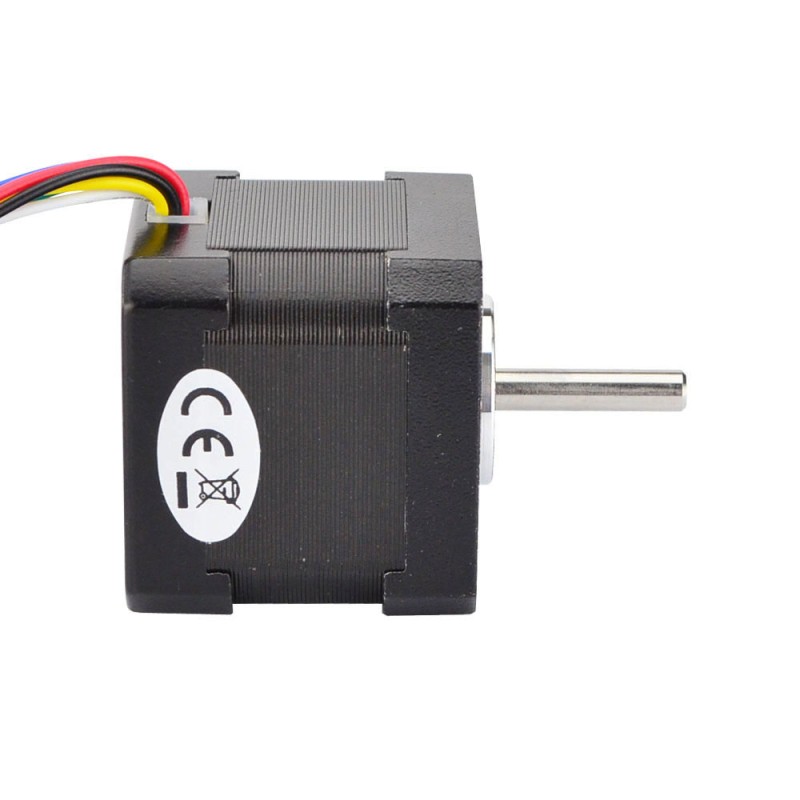

Nema 17 Unipolar 1.8deg 26Ncm(36.82oz.in) 1.2A 42x42x39mm 6 Wires

0 reviews • Write a review

from

$11.87

10 or more $10.81

100 or more $9.92

Model: 17HS15-1206S
Weight: 0.37kg

Available Options

Ships From

China

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Looking to custom design this motor?

Request a Quote or Ask a Question

Your Name

Your Email

Quantity to Quote

Your questions or requirements

Captcha

Enter the code in the box below

Custom Design Options

You can select from the customization options listed below.

Motor Shaft

Length, Keyway, Flattened, Diameter...

Cable & Connector

Length, Connector, Terminal...

Body

Body Dimensions, Mounting Holes...

Performance

Current/Torque, Step Angle...

Optional Accessories

Encoder, Brake

Labeling

No Label / Custom Label, Laser Marking...

This nema 17 stepper motor with step angle 1.8deg and size 42x42x39mm. It has 6 wires, each phase draws 1.2A at 4V, with holding torque 26Ncm(36.82oz.in).

Electrical Specification

Manufacturer Part Number: 17HS15-1206S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 26Ncm(36.82oz.in)
Rated Current/phase: 1.2A
Phase Resistance: 3.3ohms
Inductance: 3.2mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 39mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
Number of Leads: 6
Lead Length: 500mm
Weight: 280g

Connection

A+	O+	A-	B+	O-	B-
Black	Yellow	Green	Red	White	Blue

Physical Specification
Output Shaft Type	D
Shaft Diameter(mm)	5
Shaft Length(mm)	24
No. of Lead	4
Lead Length(mm)	500
Weight(g)	280
Single Shaft/Dual Shaft	Single Shaft
Frame Size(mm)	Nema 17 (42 x 42)
Body Length(mm)	39
Product Series	S
Inventory Method	Dedicated Inventory
IP Rating	40
Electrical Specification
Holding Torque(Ncm)	26
Rated Current(A)	1.2
Holding Torque(oz.in)	36.82
Bipolar/Unipolar	Bipolar
Step Angle(deg.)	1.8
Phase Resistance(ohms)	3.3
Inductance(mH)	3.2
Has Torque/Thrust Curve?	Yes
Product Type
Product Type	Hybrid Stepper Motor
