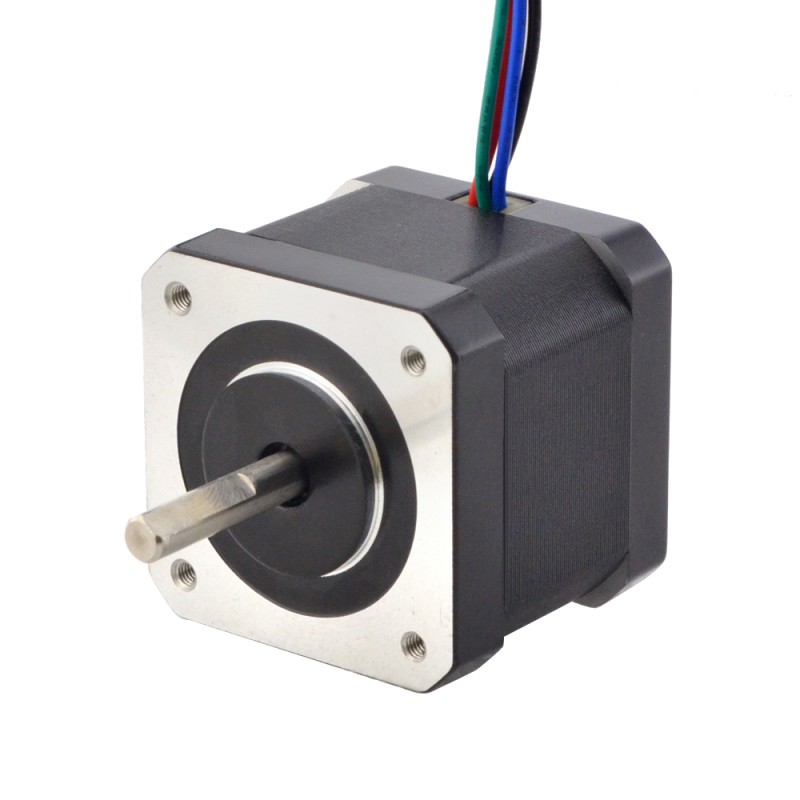

Nema 17 Bipolar 0.9deg 32Ncm(45.3oz.in) 1.68A 42x42x39mm 4 Wires

0 reviews • Write a review

from

$13.99

10 or more $12.73

100 or more $11.69

Model: 17HM15-1684S
Weight: 0.35kg

Available Options

Ships From

China

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Looking to custom design this motor?

Request a Quote or Ask a Question

Your Name

Your Email

Quantity to Quote

Your questions or requirements

Captcha

Enter the code in the box below

Custom Design Options

You can select from the customization options listed below.

Motor Shaft

Length, Keyway, Flattened, Diameter...

Cable & Connector

Length, Connector, Terminal...

Body

Body Dimensions, Mounting Holes...

Performance

Current/Torque, Step Angle...

Optional Accessories

Encoder, Brake

Labeling

No Label / Custom Label, Laser Marking...

Electrical Specification

Manufacturer Part Number: 17HM15-1684S
Motor Type: Bipolar Stepper
Step Angle: 0.9deg
Holding Torque: 32Ncm(45.3oz.in)
Rated Current/phase: 1.68A
Phase Resistance: 1.7ohms
Inductance: 4.6mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specifications

Frame Size: 42.3 x 42.3mm
Body Length: 39mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-cut Shaft Length: 15mm
Number of Leads: 4
Lead Length: 500mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Physical Specification
Output Shaft Type	D
Shaft Diameter(mm)	5
Shaft Length(mm)	24
No. of Lead	4
Lead Length(mm)	500
Weight(g)	310
Single Shaft/Dual Shaft	Single Shaft
Frame Size(mm)	Nema 17 (42 x 42)
Body Length(mm)	39
Product Series	S
Inventory Method	Dedicated Inventory
Electrical Specification
Holding Torque(Ncm)	32
Rated Current(A)	1.68
Holding Torque(oz.in)	45.3
Bipolar/Unipolar	Bipolar
Step Angle(deg.)	0.9
Phase Resistance(ohms)	1.7
Inductance(mH)	4.6
Has Torque/Thrust Curve?	No
Product Type
Product Type	Hybrid Stepper Motor
