Nema 16 Bipolar 0.9deg 11Ncm(15.58oz.in) 1.2A 39x39x22mm 4 Wires

0 reviews • Write a review

from

$11.87

10 or more $10.81

100 or more $9.92

Model: 16HM09-1204S
Weight: 0.20kg

Available Options

Ships From

China

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Looking to custom design this motor?

Request a Quote or Ask a Question

Your Name

Your Email

Quantity to Quote

Your questions or requirements

Captcha

Enter the code in the box below

Custom Design Options

You can select from the customization options listed below.

Motor Shaft

Length, Keyway, Flattened, Diameter...

Cable & Connector

Length, Connector, Terminal...

Body

Body Dimensions, Mounting Holes...

Performance

Current/Torque, Step Angle...

Optional Accessories

Encoder, Brake

Labeling

No Label / Custom Label, Laser Marking...

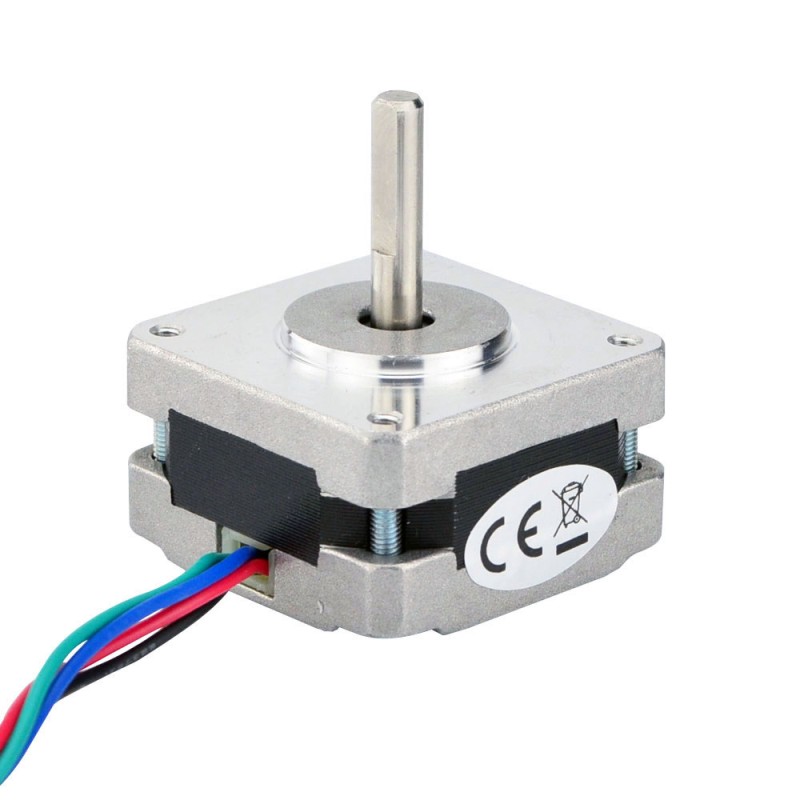

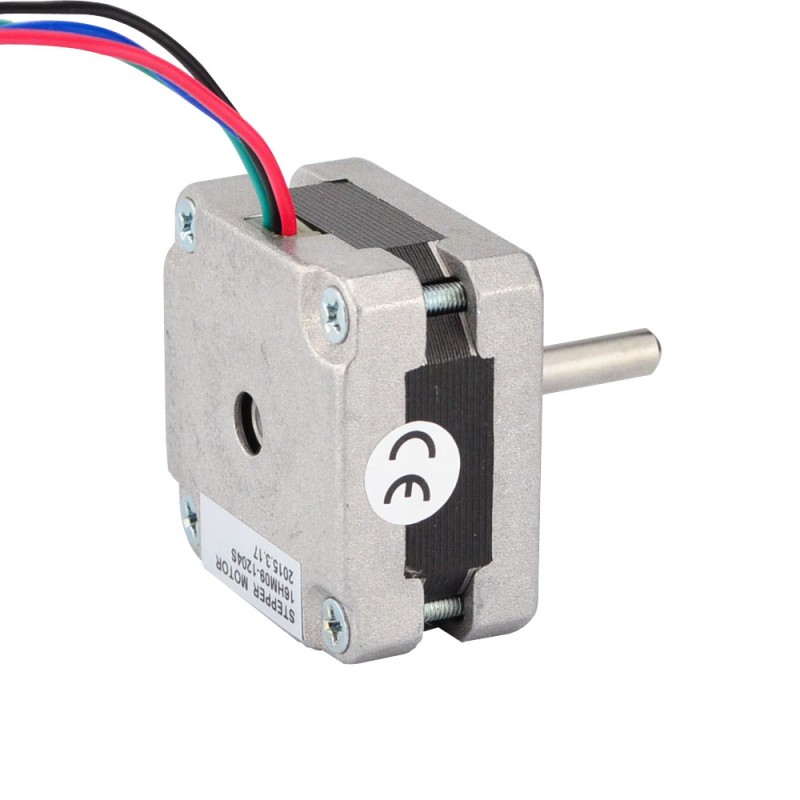

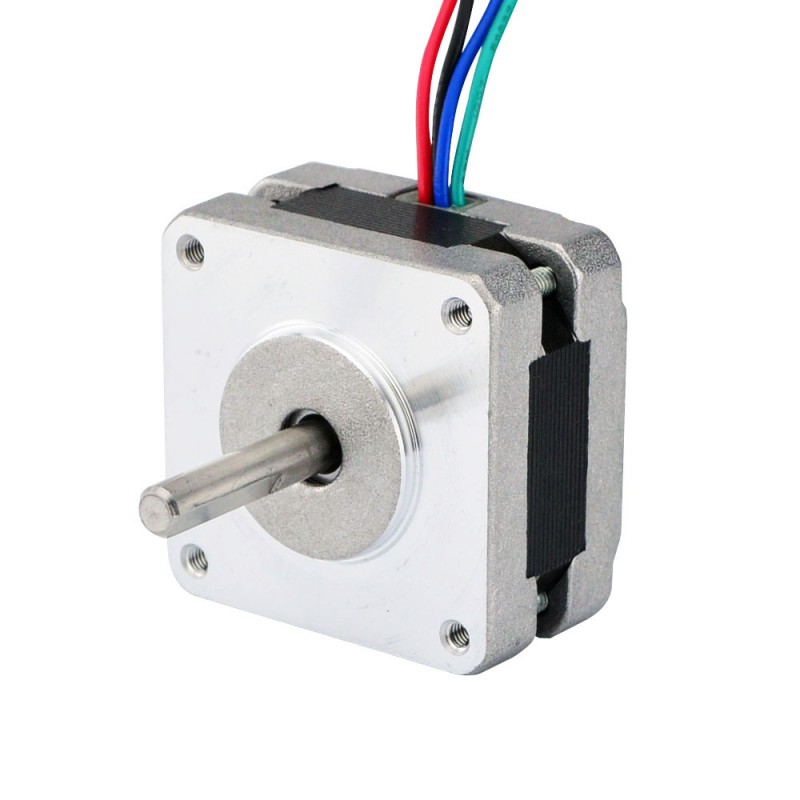

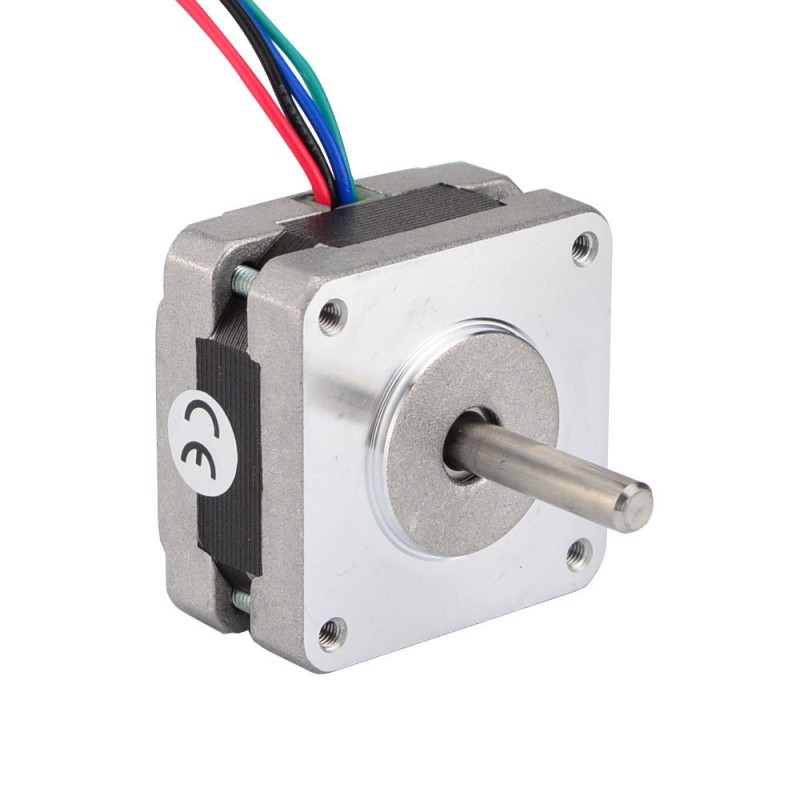

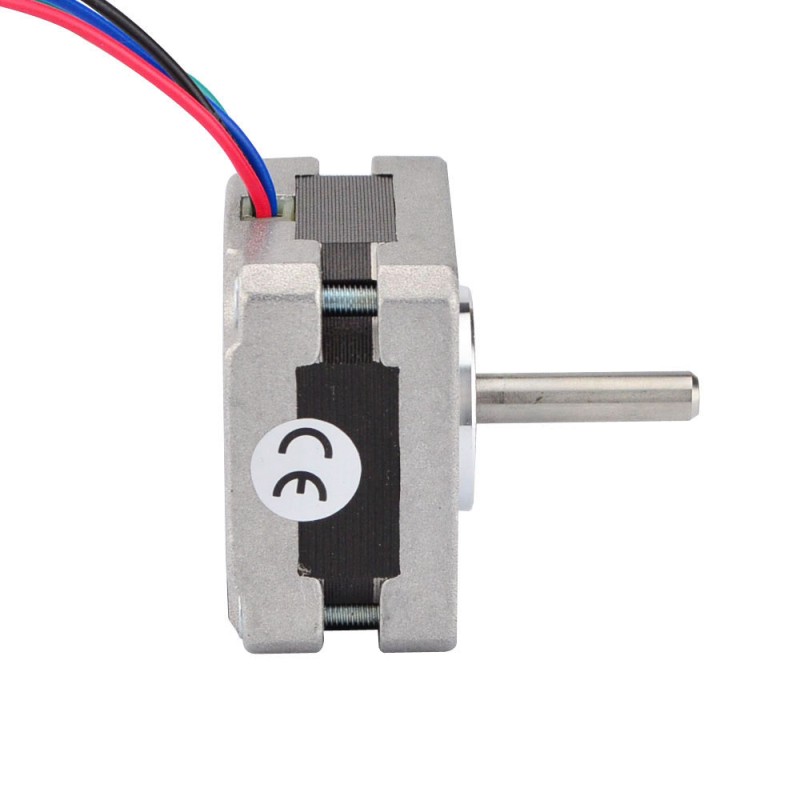

This bipolar Nema 16 stepper motor with step angle 0.9deg and size 39x39x22mm. It has 4 wires, each phase draws 1.2 A, with holding torque 11Ncm(15.58oz.in).

Electrical Specification

Manufacturer Part Number: 16HM09-1204S
Motor Type: Bipolar Stepper
Step Angle: 0.9deg
Holding Torque: 11Ncm(15.58oz.in)
Rated Current/phase: 1.2A
Phase Resistance: 3ohms
Inductance: 2.7mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 39 x 39mm
Body Length: 22mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 300mm
Weight: 100g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Physical Specification
Output Shaft Type	D
Shaft Diameter(mm)	5
Shaft Length(mm)	24
No. of Lead	4
Lead Length(mm)	300
Weight(g)	100
Single Shaft/Dual Shaft	Single Shaft
Frame Size(mm)	Nema 16 (39 x 39)
Body Length(mm)	22
Product Series	S
Inventory Method	Dedicated Inventory
Electrical Specification
Holding Torque(Ncm)	11
Rated Current(A)	1.2
Holding Torque(oz.in)	15.58
Bipolar/Unipolar	Bipolar
Step Angle(deg.)	0.9
Phase Resistance(ohms)	3
Inductance(mH)	2.7
Has Torque/Thrust Curve?	Yes
Product Type
Product Type	Hybrid Stepper Motor
