Nema 14 Unipolar 1.8deg 10Ncm(14.16oz.in) 0.4A 35x35x34mm 6 Wires

0 reviews • Write a review

from

$11.03

10 or more $10.04

100 or more $9.21

Model: 14HS13-0406S
Weight: 0.23kg

Available Options

Ships From

China

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Looking to custom design this motor?

Request a Quote or Ask a Question

Your Name

Your Email

Quantity to Quote

Your questions or requirements

Captcha

Enter the code in the box below

Custom Design Options

You can select from the customization options listed below.

Motor Shaft

Length, Keyway, Flattened, Diameter...

Cable & Connector

Length, Connector, Terminal...

Body

Body Dimensions, Mounting Holes...

Performance

Current/Torque, Step Angle...

Optional Accessories

Encoder, Brake

Labeling

No Label / Custom Label, Laser Marking...

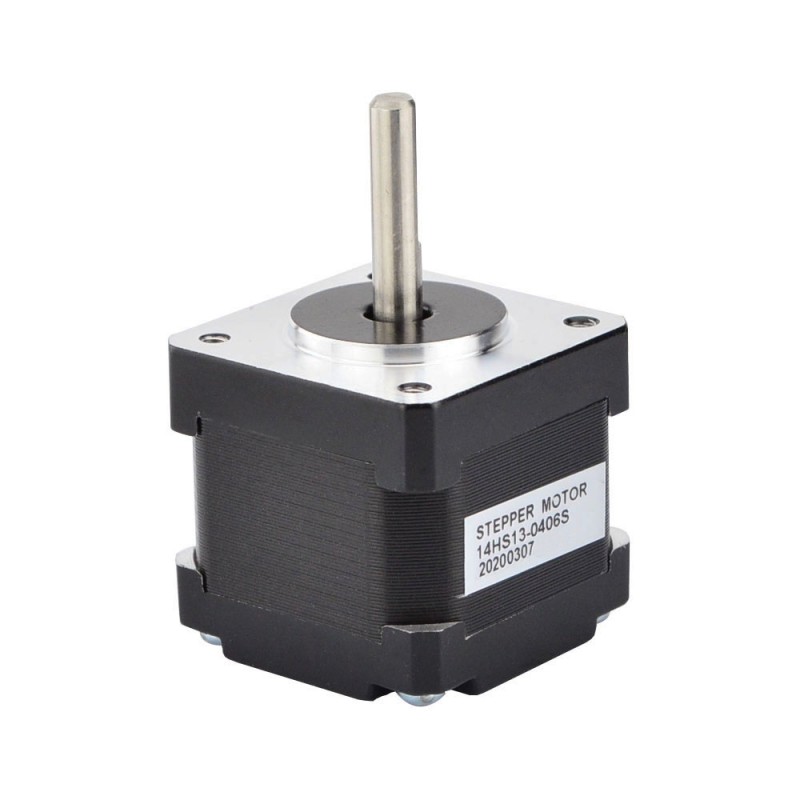

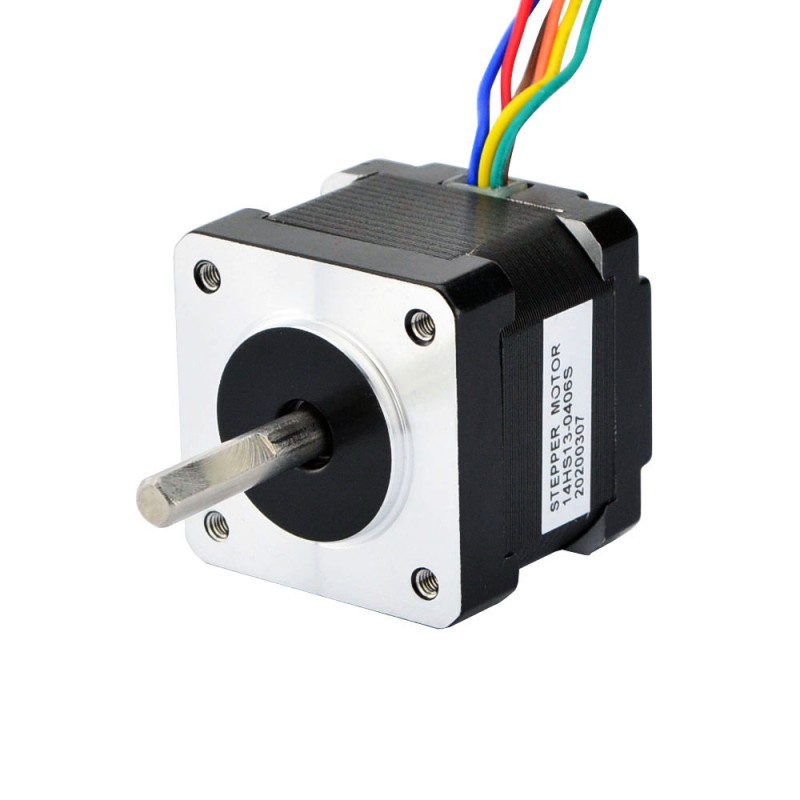

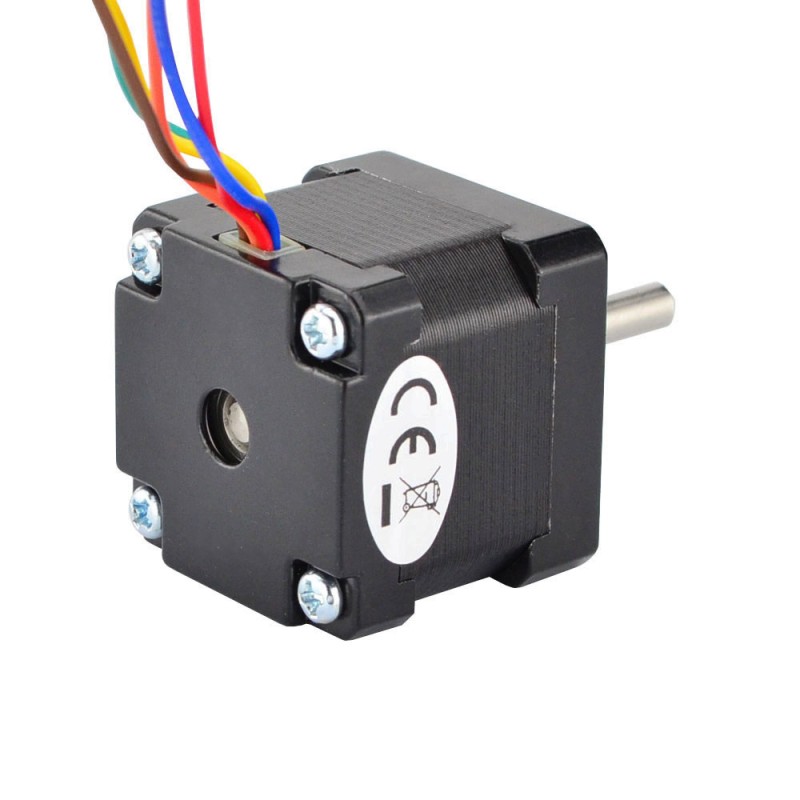

This unipolar Nema 14 stepper motor with step angle 1.8deg and size 35x35x34mm. It has 6 wires, each phase draws 0.4A at 10V, with holding torque 10Ncm(14.2oz.in).

Electrical Specification

Manufacturer Part Number: 14HS13-0406S
Motor Type: Unipolar Stepper
Step Angle: 1.8deg
Holding Torque: 0.1Nm(14.2oz.in)
Rated Current/phase: 0.4A
Phase Resistance: 25ohms
Inductance: 17mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 35 x 35mm
Body Length: 34mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-Cut Length: 15mm
Number of Leads: 6
Lead Length: 300mm
Weight: 170g

Connection

Bipolar

A+	A-	B+	B-
Red	Yellow	Blue	Green

Unipolar

A+	O+	A-	B+	O-	B-
Red	Brown	Yellow	Blue	Orange	Green

Physical Specification
Output Shaft Type	D
Shaft Diameter(mm)	5
Shaft Length(mm)	24
No. of Lead	6
Lead Length(mm)	300
Weight(g)	170
Single Shaft/Dual Shaft	Single Shaft
Frame Size(mm)	Nema 14 (35 x 35)
Body Length(mm)	34
Product Series	S
Inventory Method	Dedicated Inventory
IP Rating	40
Electrical Specification
Holding Torque(Ncm)	10
Rated Current(A)	0.4
Holding Torque(oz.in)	14.2
Bipolar/Unipolar	Unipolar
Step Angle(deg.)	1.8
Phase Resistance(ohms)	25
Inductance(mH)	17
Has Torque/Thrust Curve?	Yes
Product Type
Product Type	Hybrid Stepper Motor
