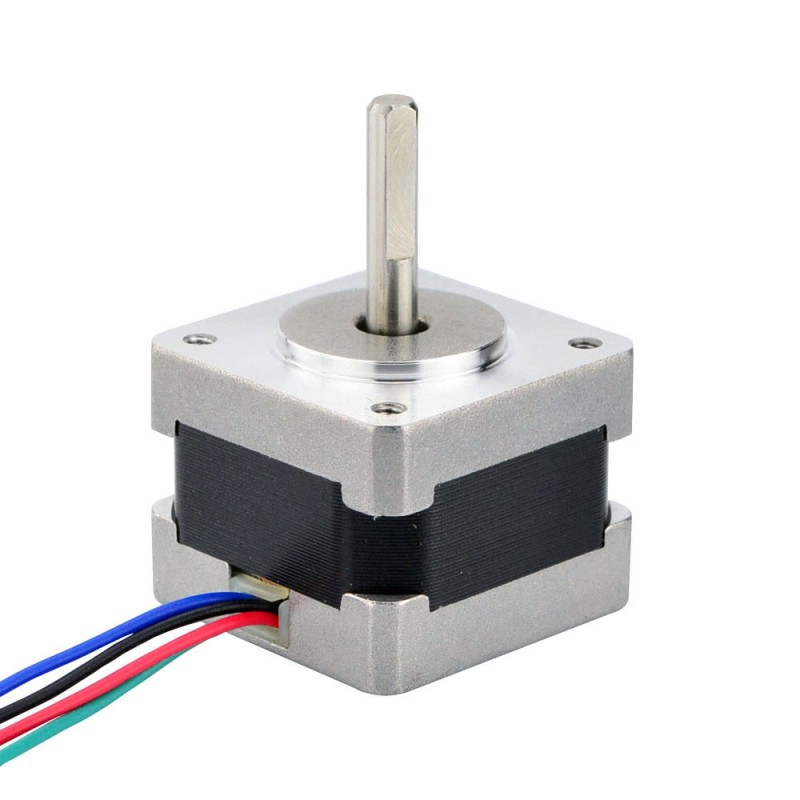

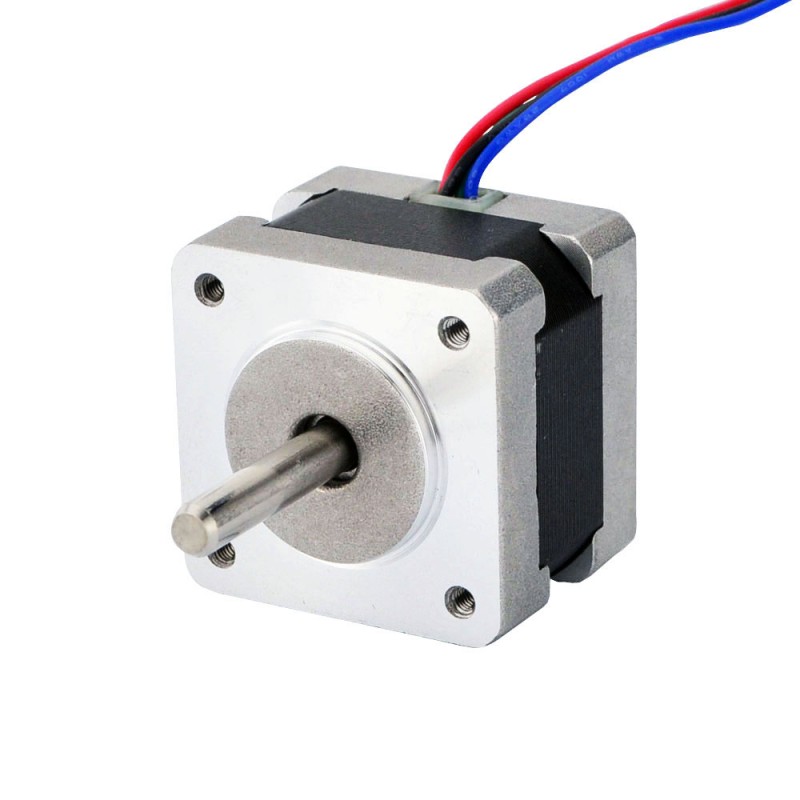

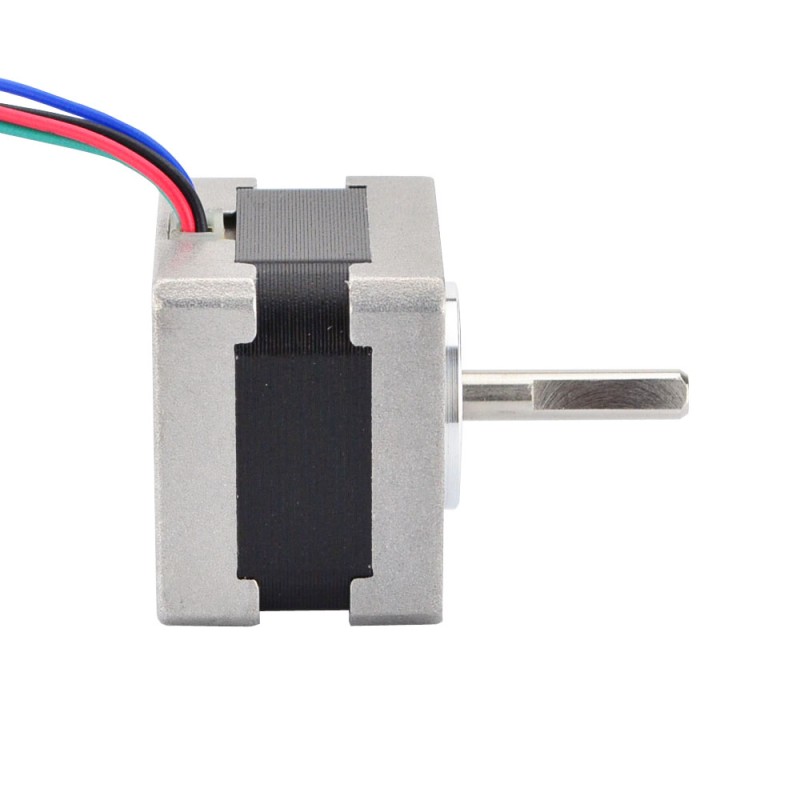

Nema 14 Bipolar 0.9deg 11Ncm(15.58oz.in) 0.4A 35x35x28.2mm 4 Wires

0 reviews • Write a review

from

$14.59

10 or more $13.15

100 or more $11.96

Model: 14HM11-0404S
Weight: 0.20kg

Available Options

Ships From

China

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Looking to custom design this motor?

Request a Quote or Ask a Question

Your Name

Your Email

Quantity to Quote

Your questions or requirements

Captcha

Enter the code in the box below

Custom Design Options

You can select from the customization options listed below.

Motor Shaft

Length, Keyway, Flattened, Diameter...

Cable & Connector

Length, Connector, Terminal...

Body

Body Dimensions, Mounting Holes...

Performance

Current/Torque, Step Angle...

Optional Accessories

Encoder, Brake

Labeling

No Label / Custom Label, Laser Marking...

This bipolar Nema 14 stepper motor with step angle 0.9deg and size 35x35x28.2mm. It has 4 wires, each phase draws 0.4A, with holding torque 11Ncm(15.58oz.in).

Electrical Specification

Manufacturer Part Number: 14HM11-0404S
Motor Type: Bipolar Stepper
Step Angle: 0.9deg
Holding Torque: 11Ncm(15.58oz.in)
Rated Current/phase: 0.4A
Phase Resistance: 25ohms
Inductance: 24mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 35 x 35mm
Body Length: 28.2mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-cut Length: 15mm
Number of Leads: 4
Cable Length: 300mm
Weight: 120g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Physical Specification
Output Shaft Type	D
Shaft Diameter(mm)	5
Shaft Length(mm)	24
No. of Lead	4
Weight(g)	120
Single Shaft/Dual Shaft	Single Shaft
Frame Size(mm)	Nema 14 (35 x 35)
Body Length(mm)	28.2
Product Series	S
Cable Length(mm)	300
Inventory Method	Dedicated Inventory
Electrical Specification
Holding Torque(Ncm)	11
Rated Current(A)	0.4
Holding Torque(oz.in)	15.58
Bipolar/Unipolar	Bipolar
Step Angle(deg.)	0.9
Phase Resistance(ohms)	25
Inductance(mH)	24
Has Torque/Thrust Curve?	Yes
Product Type
Product Type	Hybrid Stepper Motor
