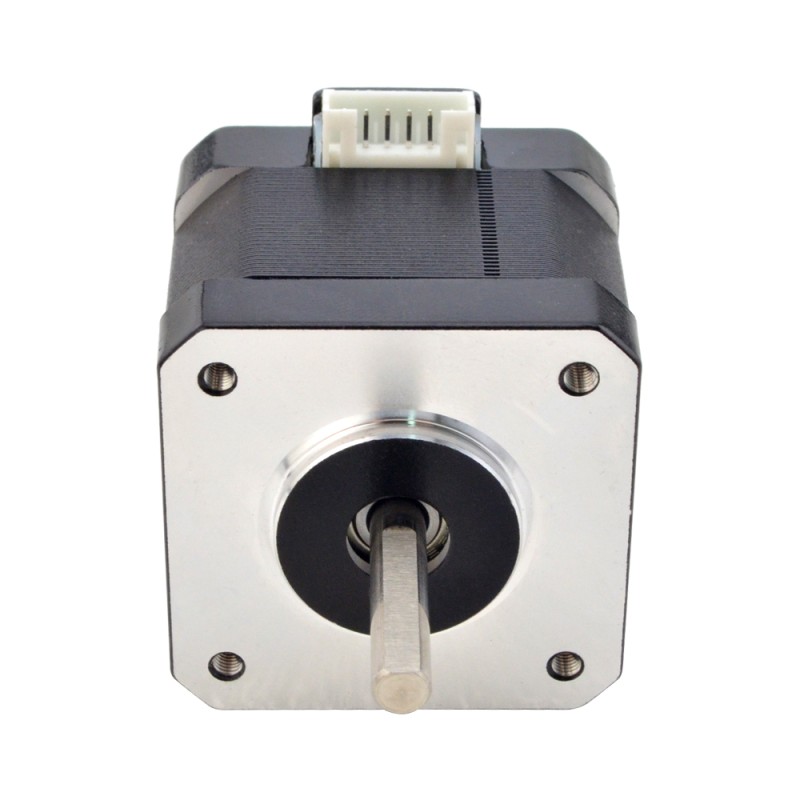

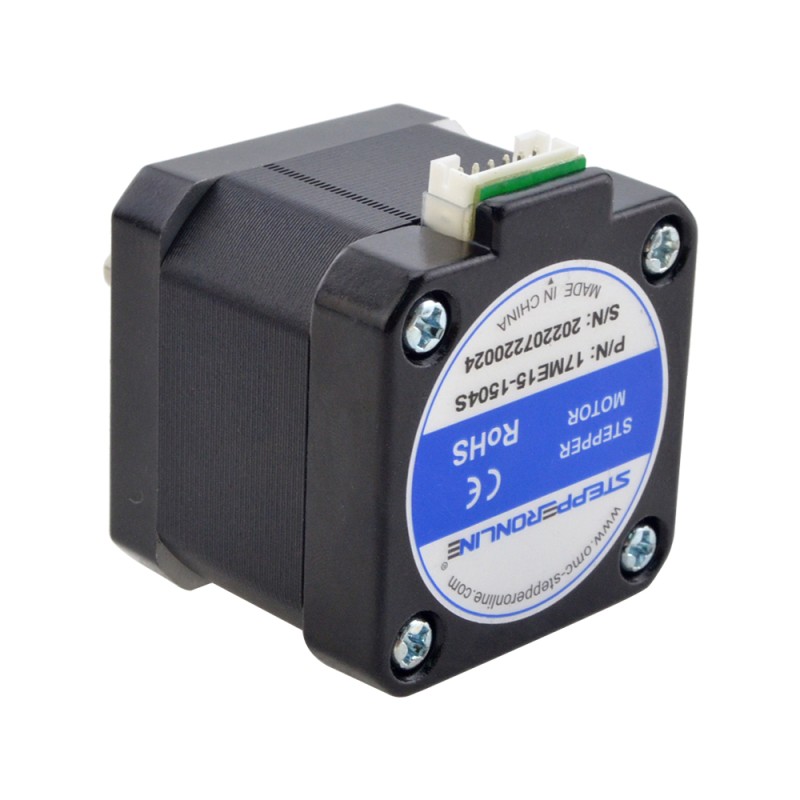

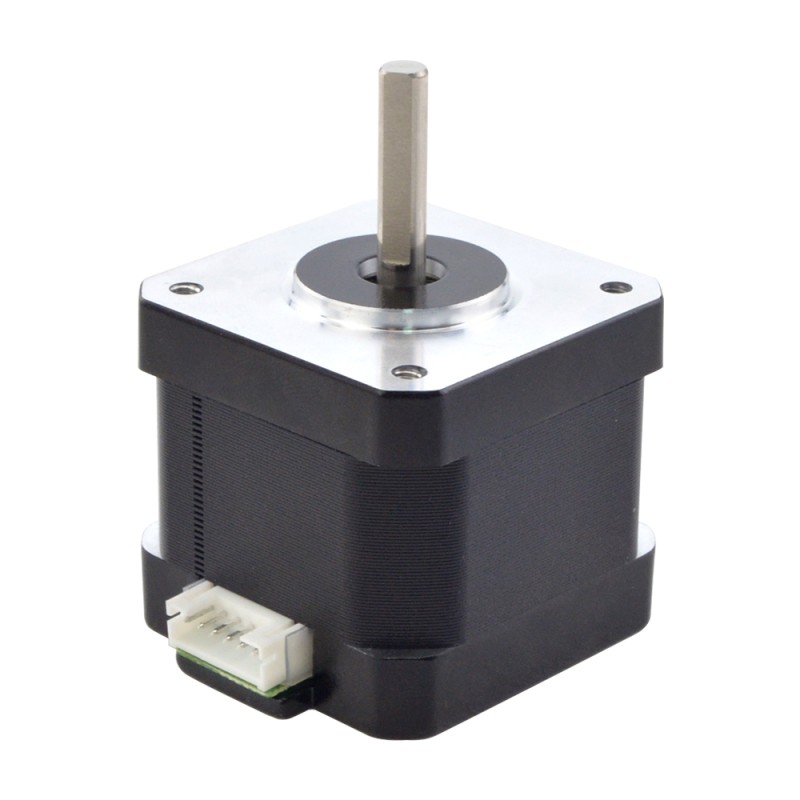

E Series Nema 17 Bipolar 0.9deg 30Ncm(42.48oz.in) 1.5A 42x42x38mm 4 Wires

0 reviews • Write a review

from

$7.66

10 or more $7.06

100 or more $6.54

Model: 17ME15-1504S
Weight: 0.32kg

Available Options

Ships From

China

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Looking to custom design this motor?

Request a Quote or Ask a Question

Your Name

Your Email

Quantity to Quote

Your questions or requirements

Captcha

Enter the code in the box below

Custom Design Options

You can select from the customization options listed below.

Motor Shaft

Length, Keyway, Flattened, Diameter...

Cable & Connector

Length, Connector, Terminal...

Body

Body Dimensions, Mounting Holes...

Performance

Current/Torque, Step Angle...

Optional Accessories

Encoder, Brake

Labeling

No Label / Custom Label, Laser Marking...

Electrical Specification

Manufacturer Part Number: 17ME15-1504S
Motor Type: Bipolar Stepper
Step Angle: 0.9deg
Holding Torque: 30Ncm(42.48oz.in)
Rated Current/phase: 1.50A
Phase Resistance: 2.0ohms
Inductance: 5.2mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 38mm
Shaft Diameter: Φ5mm
Shaft Length: 23.5mm
D-cut Length: 20mm
Number of Leads: 4
Lead Length: 1000mm

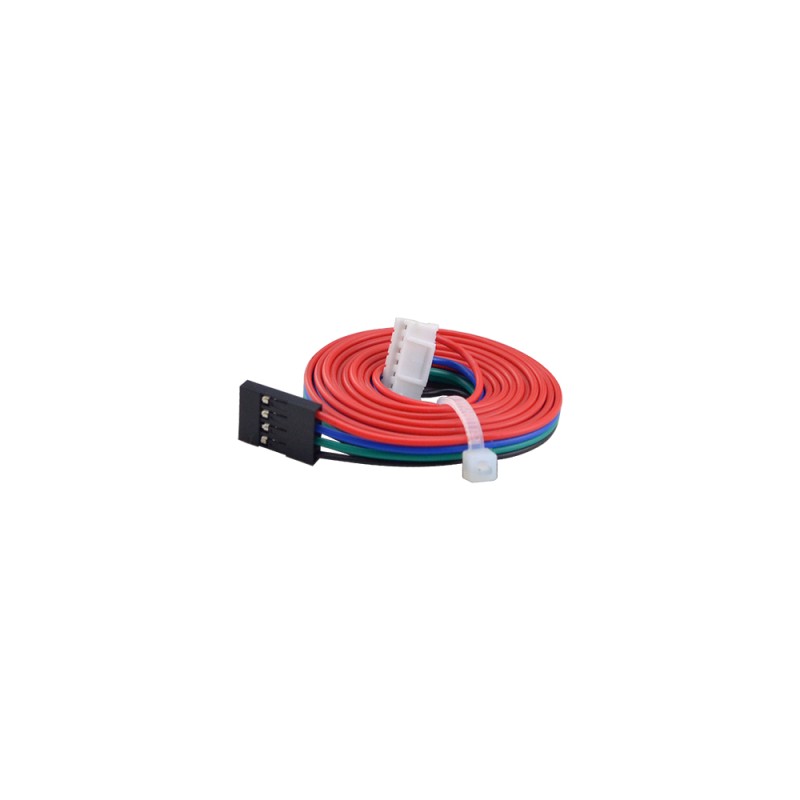

Connection

A+	A-	B+	B-
Black	Blue	Green	Red

Physical Specification
Output Shaft Type	D
Shaft Diameter(mm)	5
Shaft Length(mm)	23.5
No. of Lead	4
Lead Length(mm)	1000
Single Shaft/Dual Shaft	Single Shaft
Frame Size(mm)	Nema 17 (42 x 42)
Body Length(mm)	38
Product Series	S
Inventory Method	Dedicated Inventory
IP Rating	40
Electrical Specification
Holding Torque(Ncm)	30
Rated Current(A)	1.5
Holding Torque(oz.in)	42.48
Bipolar/Unipolar	Bipolar
Step Angle(deg.)	0.9
Phase Resistance(ohms)	2.0
Inductance(mH)	5.2
Has Torque/Thrust Curve?	No
Product Type
Product Type	Hybrid Stepper Motor
