Dual Shaft Nema 23 Bipolar 1.85Nm(261.98oz.in) 2.8A 57x57x76mm 4 Wires

Dual Shaft Nema 23 Bipolar 1.85Nm(261.98oz.in) 2.8A 57x57x76mm 4 Wires
Dual Shaft Nema 23 Bipolar 1.85Nm(261.98oz.in) 2.8A 57x57x76mm 4 Wires
Dual Shaft Nema 23 Bipolar 1.85Nm(261.98oz.in) 2.8A 57x57x76mm 4 Wires
Dual Shaft Nema 23 Bipolar 1.85Nm(261.98oz.in) 2.8A 57x57x76mm 4 Wires
Dual Shaft Nema 23 Bipolar 1.85Nm(261.98oz.in) 2.8A 57x57x76mm 4 Wires
Dual Shaft Nema 23 Bipolar 1.85Nm(261.98oz.in) 2.8A 57x57x76mm 4 Wires
Dual Shaft Nema 23 Bipolar 1.85Nm(261.98oz.in) 2.8A 57x57x76mm 4 Wires
Dual Shaft Nema 23 Bipolar 1.85Nm(261.98oz.in) 2.8A 57x57x76mm 4 Wires
Dual Shaft Nema 23 Bipolar 1.85Nm(261.98oz.in) 2.8A 57x57x76mm 4 Wires
Dual Shaft Nema 23 Bipolar 1.85Nm(261.98oz.in) 2.8A 57x57x76mm 4 Wires
Dual Shaft Nema 23 Bipolar 1.85Nm(261.98oz.in) 2.8A 57x57x76mm 4 Wires
0 reviews • Write a review
from
$31.61
10 or more $28.76
100 or more $26.39
  • Model: 23HS30-2804D
  • Weight: 1.20kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Motor Shaft
Length, Keyway, Flattened, Diameter...
Cable & Connector
Length, Connector, Terminal...
Body
Body Dimensions, Mounting Holes...
Performance
Current/Torque, Step Angle...
Optional Accessories
Encoder, Brake
Labeling
No Label / Custom Label, Laser Marking...

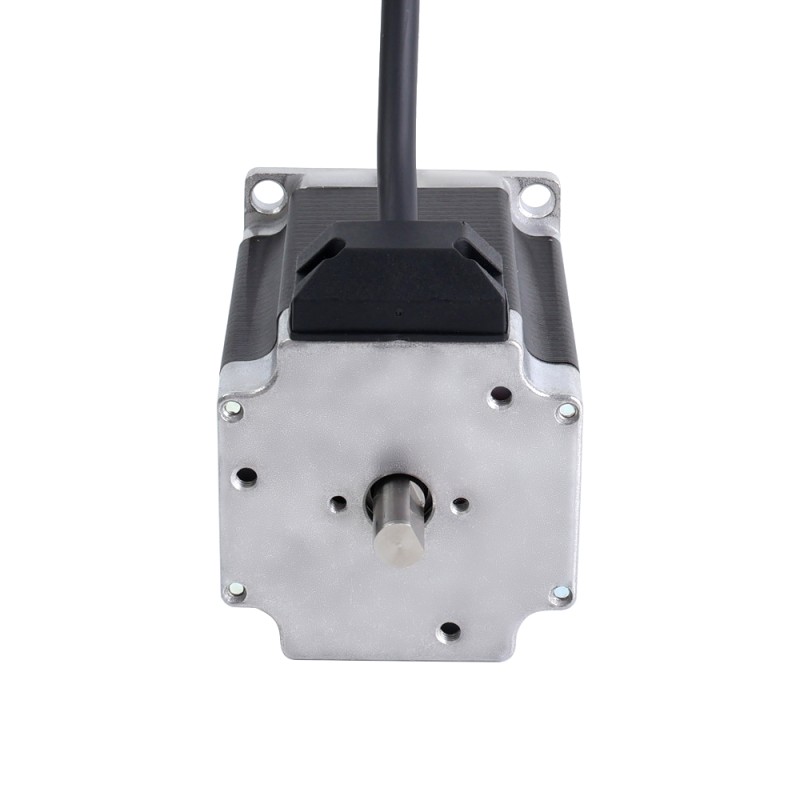

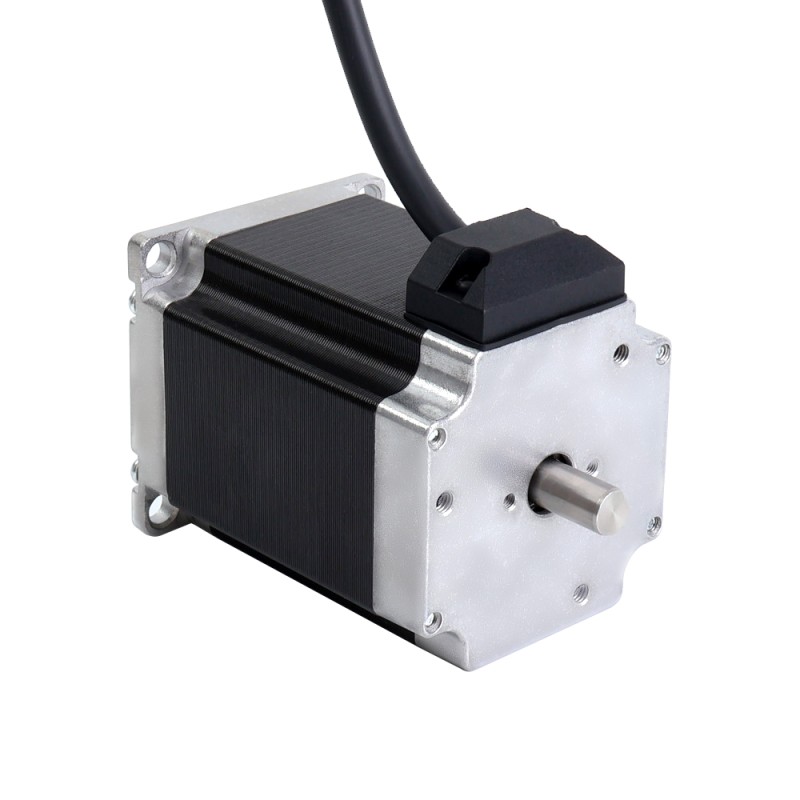

This is a dual-shaft motor with a 13.5mm long rear shaft, and the shaft diameter is 8mm. Threaded holes are available on the rear end cap which can be used for brakes, encoder and hand wheels.

Electrical Specification

  • Manufacturer Part Number: 23HS30-2804D
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 1.85Nm(261.98oz.in)
  • Rated Current/phase: 2.8A
  • Phase Resistance: 1.13ohms
  • Inductance: 4.80mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 76mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21mm
  • D-Cut Length: 15mm
  • Rear Shaft Length: 13.5mm
  • Rear Shaft Diameter: Φ8mm
  • Number of Leads: 4
  • Lead Length: 500mm

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Physical Specification
Output Shaft Type D
Shaft Diameter(mm) 8
Shaft Length(mm) 21
No. of Lead 4
Lead Length(mm) 500
Weight(g) 1074
Single Shaft/Dual Shaft Dual Shaft
Frame Size(mm) Nema 23 (57 x 57)
Body Length(mm) 76
Product Series S
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Holding Torque(Ncm) 185
Rated Current(A) 2.8
Holding Torque(oz.in) 261.98
Bipolar/Unipolar Bipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 1.13
Inductance(mH) 4.8
Has Torque/Thrust Curve? Yes
Product Type
Product Type Hybrid Stepper Motor
