Dual Shaft Nema 17 Bipolar 45Ncm(63.74oz.in) 2A 42x42x40mm 4 Wires

0 reviews • Write a review

from

$11.87

10 or more $10.81

100 or more $9.92

Model: 17HS16-2004D
Weight: 0.32kg

Available Options

Ships From

China

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Looking to custom design this motor?

Request a Quote or Ask a Question

Your Name

Your Email

Quantity to Quote

Your questions or requirements

Captcha

Enter the code in the box below

Custom Design Options

You can select from the customization options listed below.

Motor Shaft

Length, Keyway, Flattened, Diameter...

Cable & Connector

Length, Connector, Terminal...

Body

Body Dimensions, Mounting Holes...

Performance

Current/Torque, Step Angle...

Optional Accessories

Encoder, Brake

Labeling

No Label / Custom Label, Laser Marking...

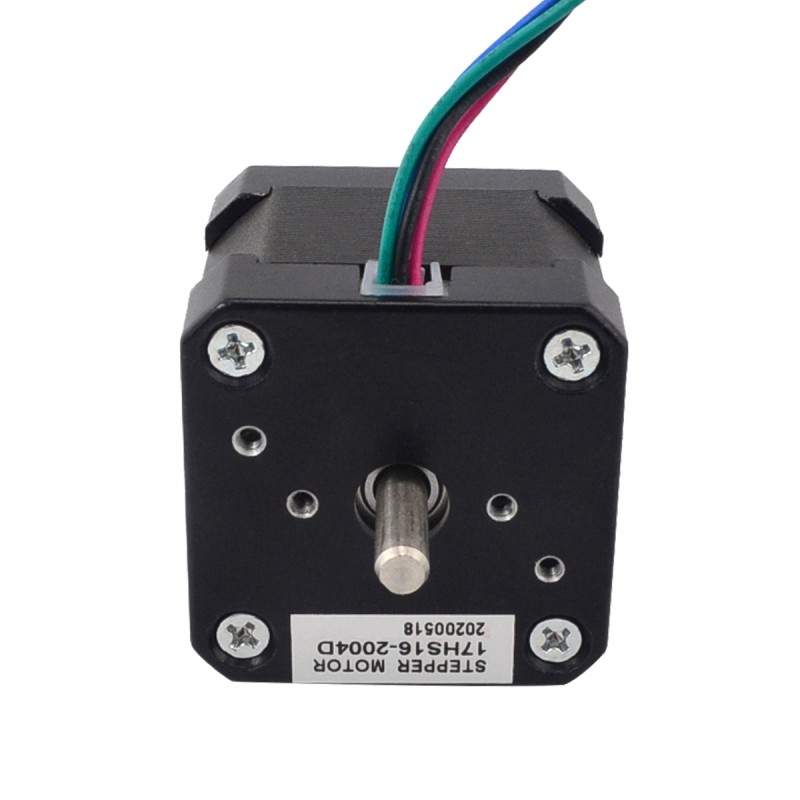

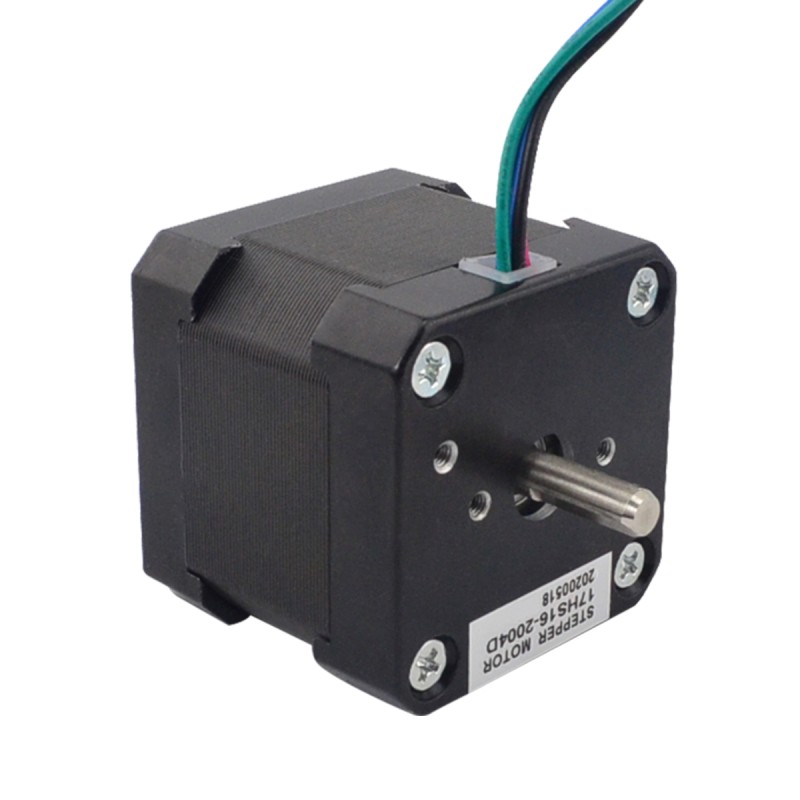

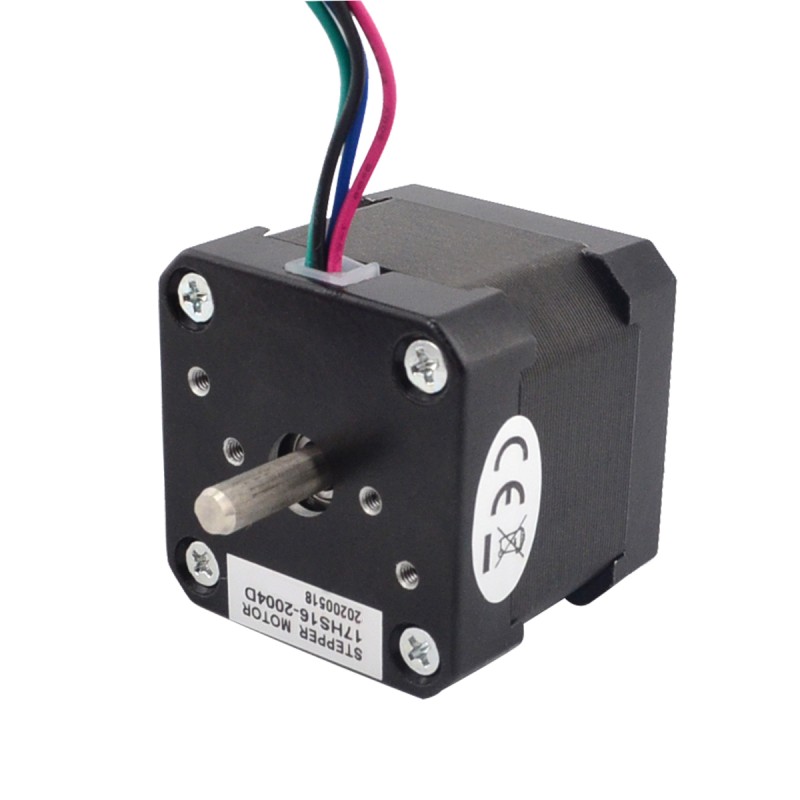

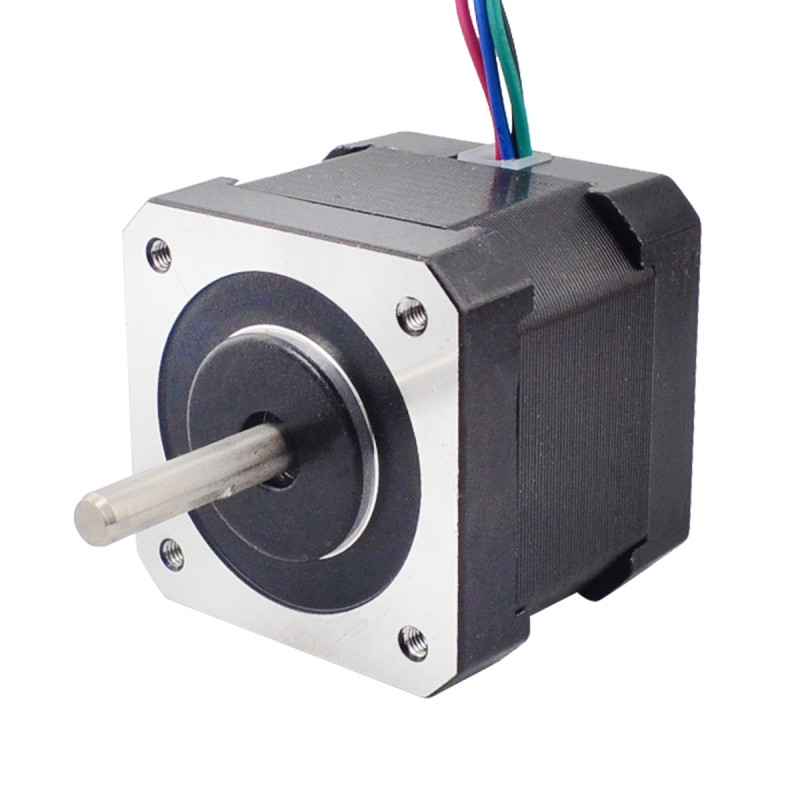

This model is dual shaft Nema 17 Bipolar stepper motor,it with step angle 1.8deg and size 42x42x40mm. It has 4 wires, each phase draws 2.00A at 2.2V, with holding torque 45Ncm(63.74oz.in).

Electrical Specification

Manufacturer Part Number: 17HS16-2004D
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 45Ncm(63.74oz.in)
Rated Current/phase: 2A
Phase Resistance: 1.10ohms
Inductance: 2.60mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 40mm
Shaft Diameter: Φ5mm
Front Shaft Length: 24mm
Front Shaft D-Cut Length: 15mm
Rear Shaft Length:13mm
Number of Leads: 4
Lead Length: 500mm
Weight: 300g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Physical Specification
Output Shaft Type	D
Shaft Diameter(mm)	5
Shaft Length(mm)	24
No. of Lead	4
Lead Length(mm)	500
Weight(g)	300
Single Shaft/Dual Shaft	Dual Shaft
Frame Size(mm)	Nema 17 (42 x 42)
Body Length(mm)	40
Product Series	S
Inventory Method	Dedicated Inventory
IP Rating	40
Electrical Specification
Holding Torque(Ncm)	45
Rated Current(A)	2.0
Holding Torque(oz.in)	63.74
Bipolar/Unipolar	Bipolar
Step Angle(deg.)	1.8
Phase Resistance(ohms)	1.1
Inductance(mH)	2.6
Has Torque/Thrust Curve?	Yes
Product Type
Product Type	Hybrid Stepper Motor
