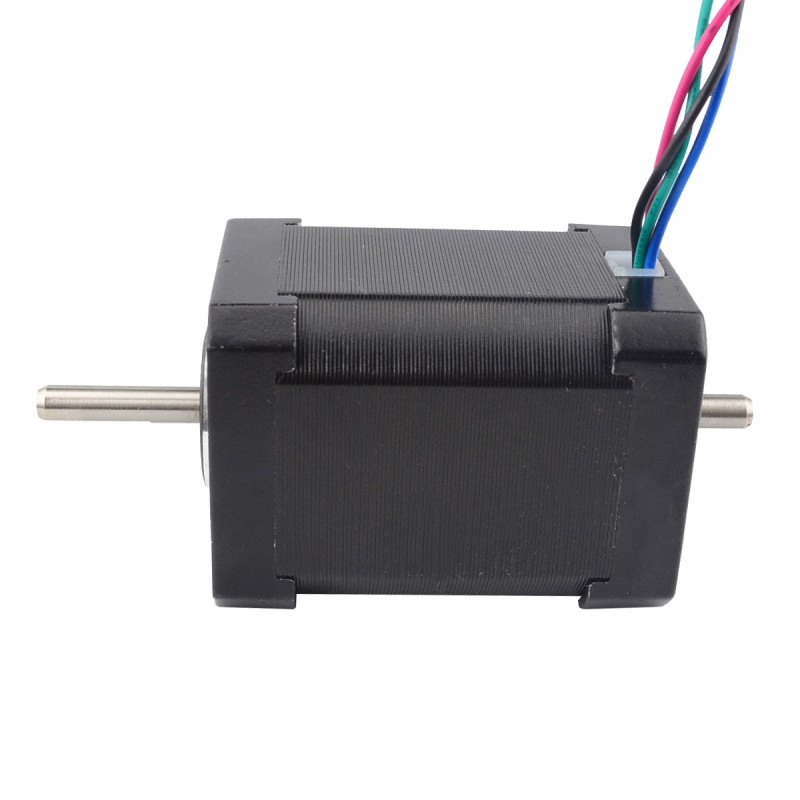

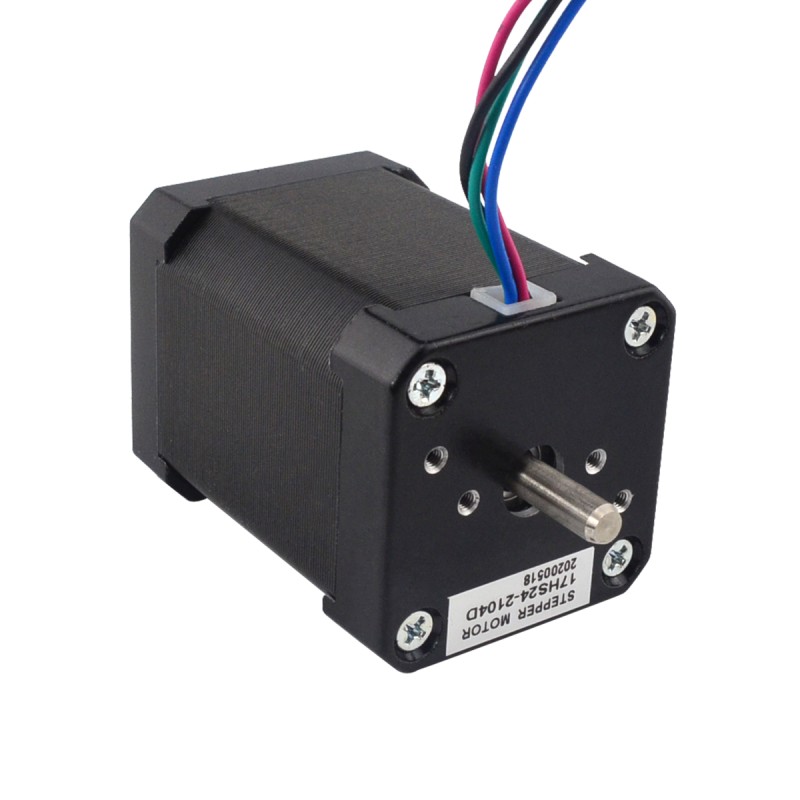

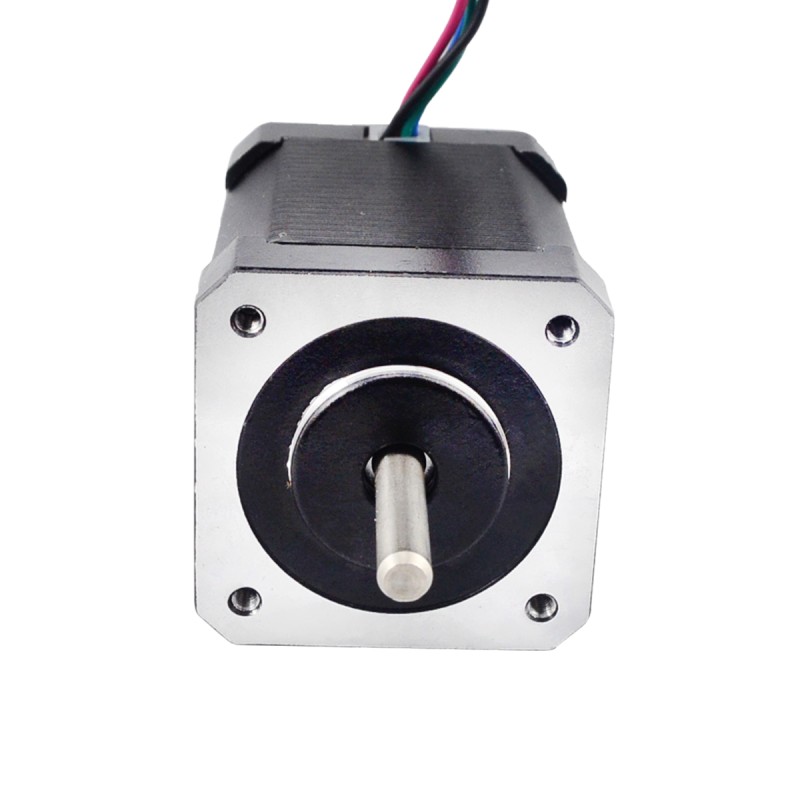

Dual Shaft Nema 17 Bipolar 1.8deg 65Ncm(92oz.in) 2.1A 42x42x60mm 4 Wires

Dual Shaft Nema 17 Bipolar 1.8deg 65Ncm(92oz.in) 2.1A 42x42x60mm 4 Wires
Dual Shaft Nema 17 Bipolar 1.8deg 65Ncm(92oz.in) 2.1A 42x42x60mm 4 Wires
Dual Shaft Nema 17 Bipolar 1.8deg 65Ncm(92oz.in) 2.1A 42x42x60mm 4 Wires
Dual Shaft Nema 17 Bipolar 1.8deg 65Ncm(92oz.in) 2.1A 42x42x60mm 4 Wires
Dual Shaft Nema 17 Bipolar 1.8deg 65Ncm(92oz.in) 2.1A 42x42x60mm 4 Wires
Dual Shaft Nema 17 Bipolar 1.8deg 65Ncm(92oz.in) 2.1A 42x42x60mm 4 Wires
Dual Shaft Nema 17 Bipolar 1.8deg 65Ncm(92oz.in) 2.1A 42x42x60mm 4 Wires
Dual Shaft Nema 17 Bipolar 1.8deg 65Ncm(92oz.in) 2.1A 42x42x60mm 4 Wires
Dual Shaft Nema 17 Bipolar 1.8deg 65Ncm(92oz.in) 2.1A 42x42x60mm 4 Wires
Dual Shaft Nema 17 Bipolar 1.8deg 65Ncm(92oz.in) 2.1A 42x42x60mm 4 Wires
Dual Shaft Nema 17 Bipolar 1.8deg 65Ncm(92oz.in) 2.1A 42x42x60mm 4 Wires
Dual Shaft Nema 17 Bipolar 1.8deg 65Ncm(92oz.in) 2.1A 42x42x60mm 4 Wires
Dual Shaft Nema 17 Bipolar 1.8deg 65Ncm(92oz.in) 2.1A 42x42x60mm 4 Wires
0 reviews • Write a review
from
$16.97
10 or more $15.44
100 or more $14.16
  • Model: 17HS24-2104D
  • Weight: 0.58kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Motor Shaft
Length, Keyway, Flattened, Diameter...
Cable & Connector
Length, Connector, Terminal...
Body
Body Dimensions, Mounting Holes...
Performance
Current/Torque, Step Angle...
Optional Accessories
Encoder, Brake
Labeling
No Label / Custom Label, Laser Marking...

This model is dual shaft Nema 17 Bipolar stepper motor,it with step angle 1.8deg and size 42x42x60mm. It has 4 wires, each phase draws 2.10A at 3.36V, with holding torque 65Ncm(92oz.in).


Electrical Specification

  • Manufacturer Part Number: 17HS24-2104D
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 65Ncm(92oz.in)
  • Rated Current/phase: 2.10A
  • Phase Resistance: 1.60ohms
  • Inductance: 3.00mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 60mm
  • Shaft Diameter: Φ5mm
  • Front Shaft Length: 24mm
  • Rear Shaft Length:13mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 500g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Physical Specification
Output Shaft Type D
Shaft Diameter(mm) 5
Shaft Length(mm) 24
No. of Lead 4
Lead Length(mm) 500
Weight(g) 500
Single Shaft/Dual Shaft Dual Shaft
Frame Size(mm) Nema 17 (42 x 42)
Body Length(mm) 60
Product Series S
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Holding Torque(Ncm) 65
Rated Current(A) 2.10
Holding Torque(oz.in) 92
Bipolar/Unipolar Bipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 1.60
Inductance(mH) 3.0
Has Torque/Thrust Curve? Yes
Product Type
Product Type Hybrid Stepper Motor
