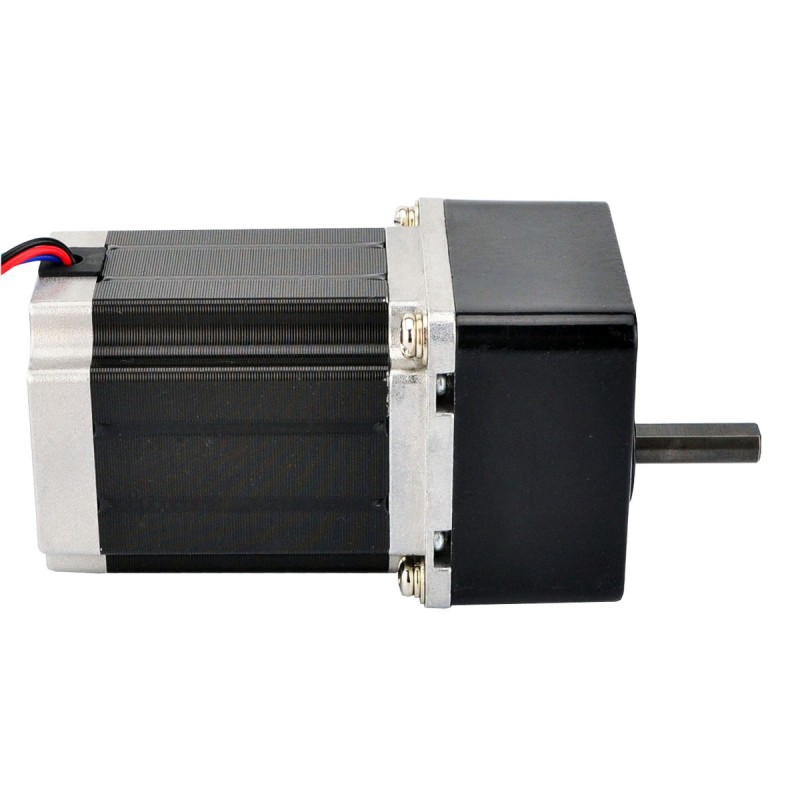

Nema 23 Stepper Motor Bipolar L=78mm w/ Gear Ratio 5:1 Spur Gearbox

Nema 23 Stepper Motor Bipolar L=78mm w/ Gear Ratio 5:1 Spur Gearbox
Nema 23 Stepper Motor Bipolar L=78mm w/ Gear Ratio 5:1 Spur Gearbox
Nema 23 Stepper Motor Bipolar L=78mm w/ Gear Ratio 5:1 Spur Gearbox
Nema 23 Stepper Motor Bipolar L=78mm w/ Gear Ratio 5:1 Spur Gearbox
Nema 23 Stepper Motor Bipolar L=78mm w/ Gear Ratio 5:1 Spur Gearbox
Nema 23 Stepper Motor Bipolar L=78mm w/ Gear Ratio 5:1 Spur Gearbox
Nema 23 Stepper Motor Bipolar L=78mm w/ Gear Ratio 5:1 Spur Gearbox
Nema 23 Stepper Motor Bipolar L=78mm w/ Gear Ratio 5:1 Spur Gearbox
Nema 23 Stepper Motor Bipolar L=78mm w/ Gear Ratio 5:1 Spur Gearbox
Nema 23 Stepper Motor Bipolar L=78mm w/ Gear Ratio 5:1 Spur Gearbox
Nema 23 Stepper Motor Bipolar L=78mm w/ Gear Ratio 5:1 Spur Gearbox
0 reviews • Write a review
from
$72.92
10 or more $66.37
100 or more $60.90
  • Model: 23HS30-2804S-SG5
  • Weight: 1.39kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Motor Shaft
Length, Keyway, Flattened, Diameter...
Cable & Connector
Length, Connector, Terminal...
Body
Body Dimensions, Mounting Holes...
Performance
Current/Torque, Step Angle...
Optional Accessories
Encoder, Brake
Labeling
No Label / Custom Label, Laser Marking...

This Nema 23 stepper motor with 78mm body and 2.8A rated current, integrated a 60mm square spur gearbox of 5:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.


Electrical Specification

  • Manufacturer Part Number: 23HS30-2804S-SG5
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.36deg
  • Holding Torque without Gearbox: 1.89Nm(267.65oz.in)
  • Rated Current/phase: 2.8A
  • Phase Resistance: 1.13ohms
  • Voltage: 3.2V
  • Inductance: 5.4mH ± 20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Gearbox Specifications

  • Gearbox Type: Spur
  • Gear Ratio: 5:1
  • Efficiency: 80%
  • Backlash at No-load: <=3deg
  • Max.Permissible Torque: 5Nm

Physical Specifications

  • Frame Size: 60 x 60mm
  • Motor Length: 78mm
  • Gearbox Length: 32mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 28mm
  • D-cut Length: 25mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 1.29kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Physical Specification
Output Shaft Type D
Shaft Diameter(mm) 8
Shaft Length(mm) 28
No. of Lead 4
Lead Length(mm) 500
Weight(g) 1500
Single Shaft/Dual Shaft Single Shaft
Frame Size(mm) Nema 23 (57 x 57)
Body Length(mm) 110
Gear Ratio 5
Gearbox Type Spur Gearbox
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Bipolar/Unipolar Bipolar
Phase Resistance(ohms) 1.13
Current(A) 2.8
Inductance(mH) 5.4
Holding Torque w/o Gearbox(N.m) 1.89
Has Torque/Thrust Curve? Yes
Product Type
Product Type Geared Stepper Motor
