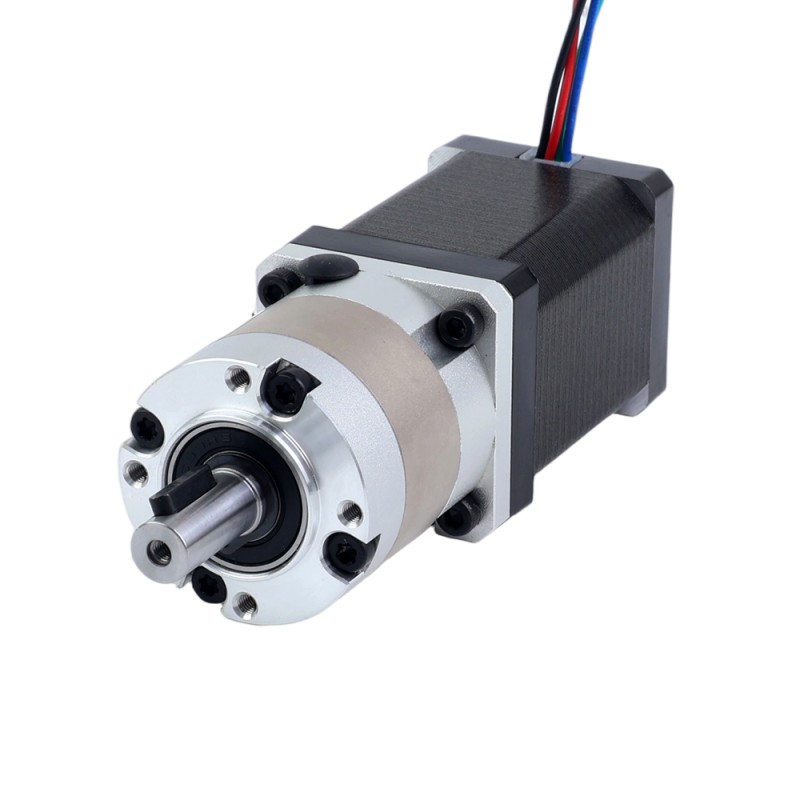

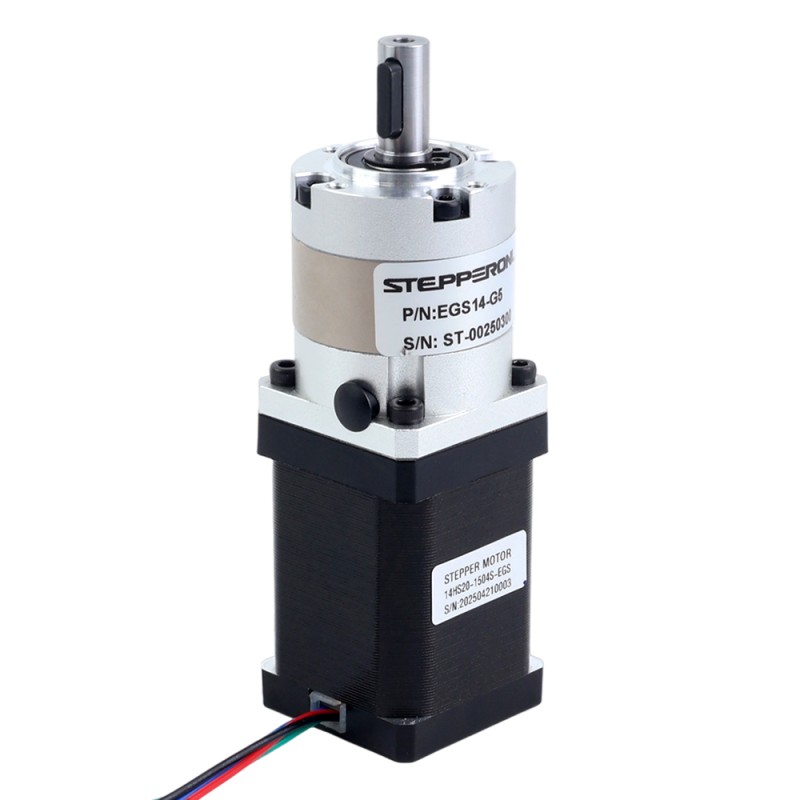

Nema 14 Stepper Motor Bipolar L=52mm w/ Gear Ratio 5:1 EG Series Planetary Gearbox

This Nema 14 stepper motor comes with a holding torque of 0.40Nm(56.64oz.in) and is equipped with a high-precision EG series gearbox with a gear ratio of 5:1. Compared to the motors with PG series gearboxes, precision and accuracy of this motor with EG series gearbox has been significantly improved, with a maximum backlash of up to 15arcmin.
With its superior precision and reliability, motors with EG series delivers outstanding performance, making it the ideal choice for applications where accuracy, durability and value are critical.

Electrical Specification

• Part Number: 14HS20-1504S-EGS5
• Motor Type: Bipolar Stepper
• Holding Torque without Gearbox: 0.40Nm(56.64oz.in)
• Rated Current/phase: 1.50A
• Phase Resistance: 2.80ohms±10%
• Inductance: 4.80mH±20%(1KHz)
• Insulation Class: B 130°C[266°F]

Gearbox Specification

• Gearbox Type: Spur Planetary
• Gear Material: Alloy Steel
• Gear Ratio: 5:1
• Efficiency: 96%
• Backlash at No-load: <=15arcmin
• Maximum Permissible Torque: 6.50Nm(920.48oz.in)
• Moment Permissible Torque: 13.00Nm(1840.95oz.in)

Physical Specification

• Frame Size: 35 x 35mm
• Motor Length: 52mm
• Gearbox Length: 40mm
• Output Shaft Type: Keyway
• Output Shaft Diameter: Φ8mm
• Output Shaft Length: 20mm
