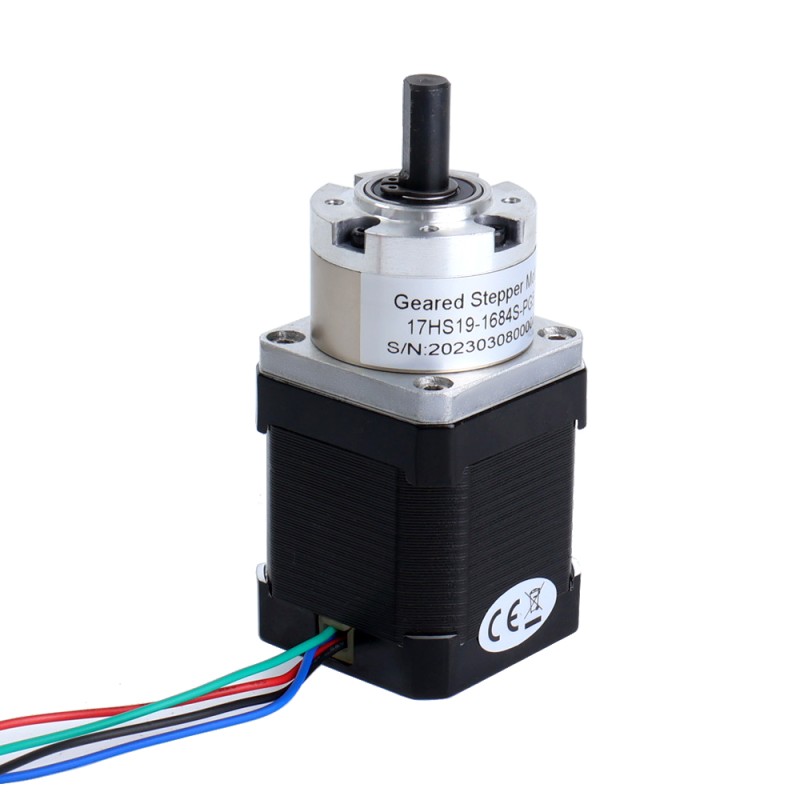

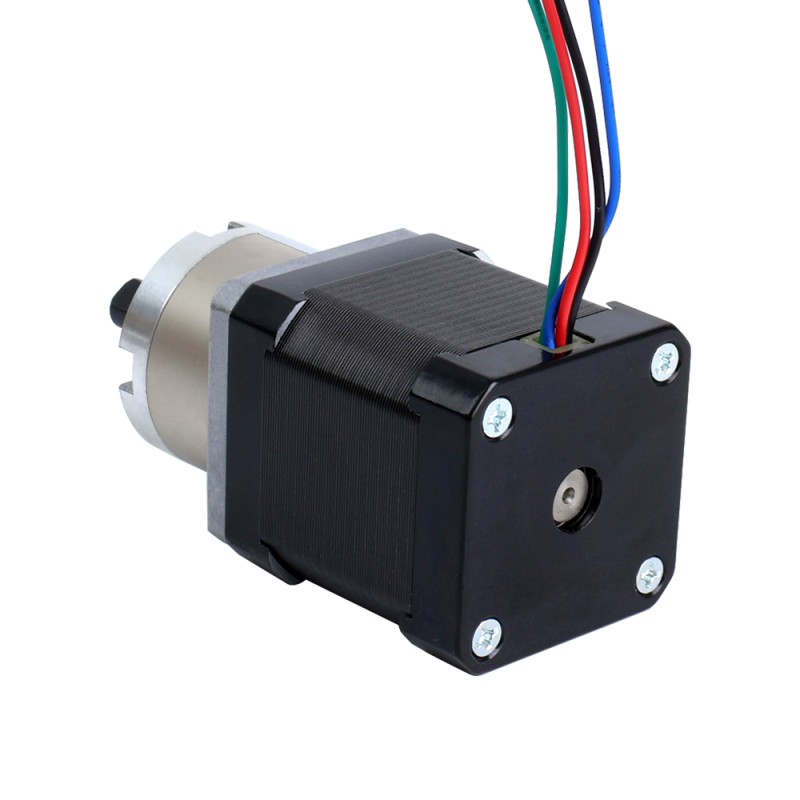

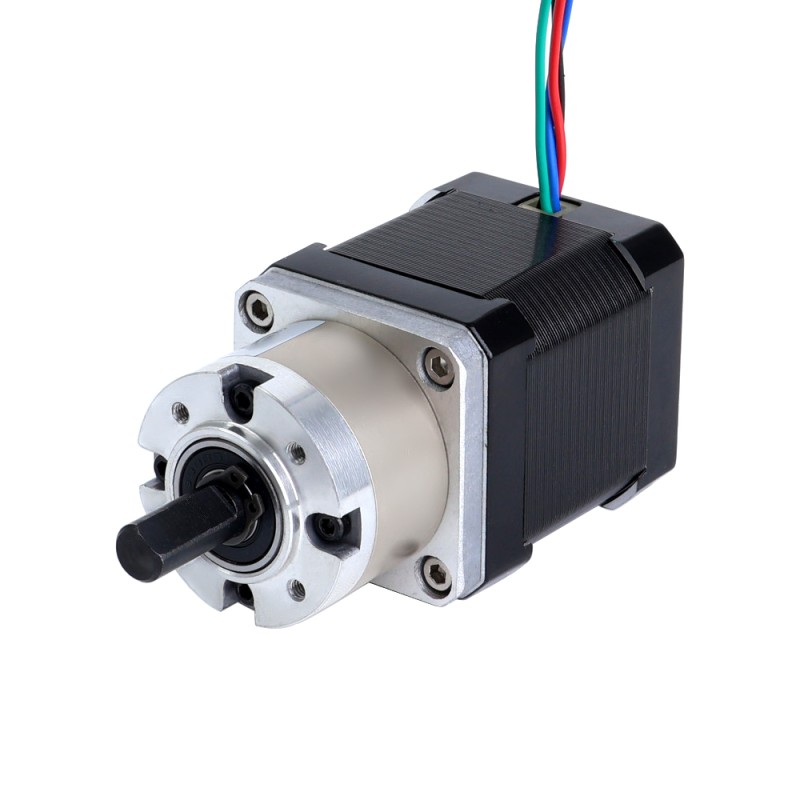

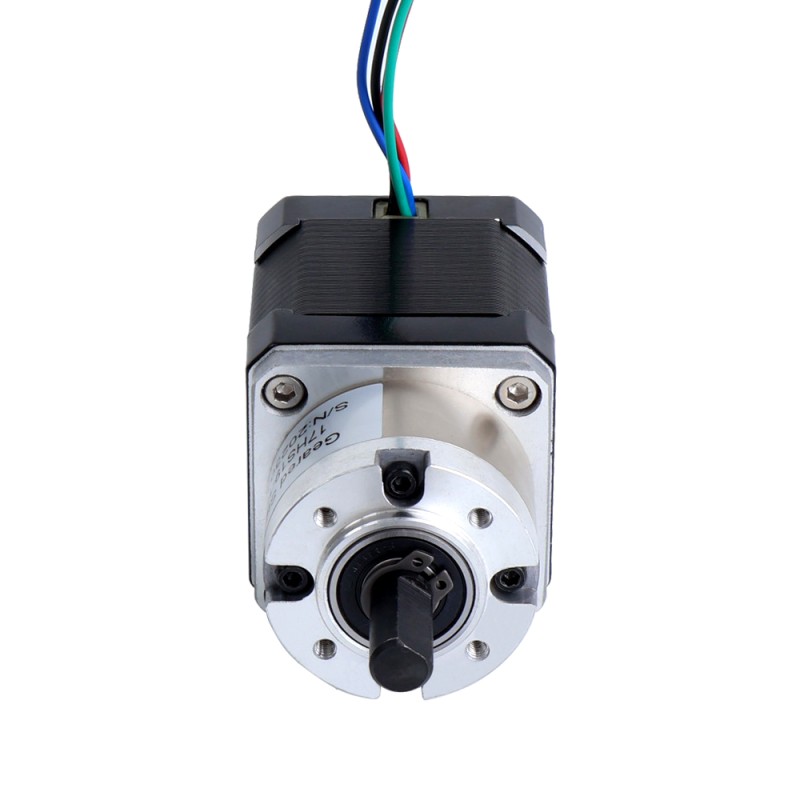

This Nema 17 stepper motor with 48mm body, 500mm cable and 1.68A rated current, integrated a planetary gearbox of 5.18:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.


Electrical Specification

  • Manufacturer Part Number: 17HS19-1684S-PG5
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.35deg
  • Holding Torque without Gearbox: 52Ncm(73.6oz.in)
  • Rated Current/phase: 1.68A
  • Phase Resistance: 1.8ohms
  • Inductance: 3.2mH ± 20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 5.18:1
  • Efficiency: 90%
  • Backlash at No-load: <=3deg
  • Max.Permissible Torque: 3Nm(424.83oz.in)
  • Moment Permissible Torque: 5Nm(708.06oz.in)
  • Shaft Maximum Axial Load: 50N
  • Shaft Maximum Radial Load: 100N

Physical Specifications

  • Frame Size: 42 x 42mm
  • Motor Length: 48mm
  • Gearbox Length: 27.3mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 20mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 520g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

Physical Specification
Output Shaft Type D
Shaft Diameter(mm) 8
Shaft Length(mm) 20
No. of Lead 4
Lead Length(mm) 500
Weight(g) 520
Single Shaft/Dual Shaft Single Shaft
Frame Size(mm) Nema 17 (42 x 42)
Body Length(mm) 75.3
Gear Ratio 5.18
Gearbox Type Economy Planetary
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Bipolar/Unipolar Bipolar
Phase Resistance(ohms) 1.8
Current(A) 1.68
Inductance(mH) 3.2
Holding Torque w/o Gearbox(N.m) 0.52
Has Torque/Thrust Curve? Yes
Product Type
Product Type Geared Stepper Motor
