Nema 11 Stepper Motor Bipolar L=45mm w/ Gear Ratio 5:1 Planetary Gearbox

Nema 11 Stepper Motor Bipolar L=45mm w/ Gear Ratio 5:1 Planetary Gearbox
Nema 11 Stepper Motor Bipolar L=45mm w/ Gear Ratio 5:1 Planetary Gearbox
Nema 11 Stepper Motor Bipolar L=45mm w/ Gear Ratio 5:1 Planetary Gearbox
Nema 11 Stepper Motor Bipolar L=45mm w/ Gear Ratio 5:1 Planetary Gearbox
Nema 11 Stepper Motor Bipolar L=45mm w/ Gear Ratio 5:1 Planetary Gearbox
Nema 11 Stepper Motor Bipolar L=45mm w/ Gear Ratio 5:1 Planetary Gearbox
Nema 11 Stepper Motor Bipolar L=45mm w/ Gear Ratio 5:1 Planetary Gearbox
Nema 11 Stepper Motor Bipolar L=45mm w/ Gear Ratio 5:1 Planetary Gearbox
Nema 11 Stepper Motor Bipolar L=45mm w/ Gear Ratio 5:1 Planetary Gearbox
Nema 11 Stepper Motor Bipolar L=45mm w/ Gear Ratio 5:1 Planetary Gearbox
Nema 11 Stepper Motor Bipolar L=45mm w/ Gear Ratio 5:1 Planetary Gearbox
0 reviews • Write a review
from
$45.71
10 or more $41.42
100 or more $37.86
  • Model: 11HS18-0674S-PG5
  • Weight: 0.23kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Motor Shaft
Length, Keyway, Flattened, Diameter...
Cable & Connector
Length, Connector, Terminal...
Body
Body Dimensions, Mounting Holes...
Performance
Current/Torque, Step Angle...
Optional Accessories
Encoder, Brake
Labeling
No Label / Custom Label, Laser Marking...

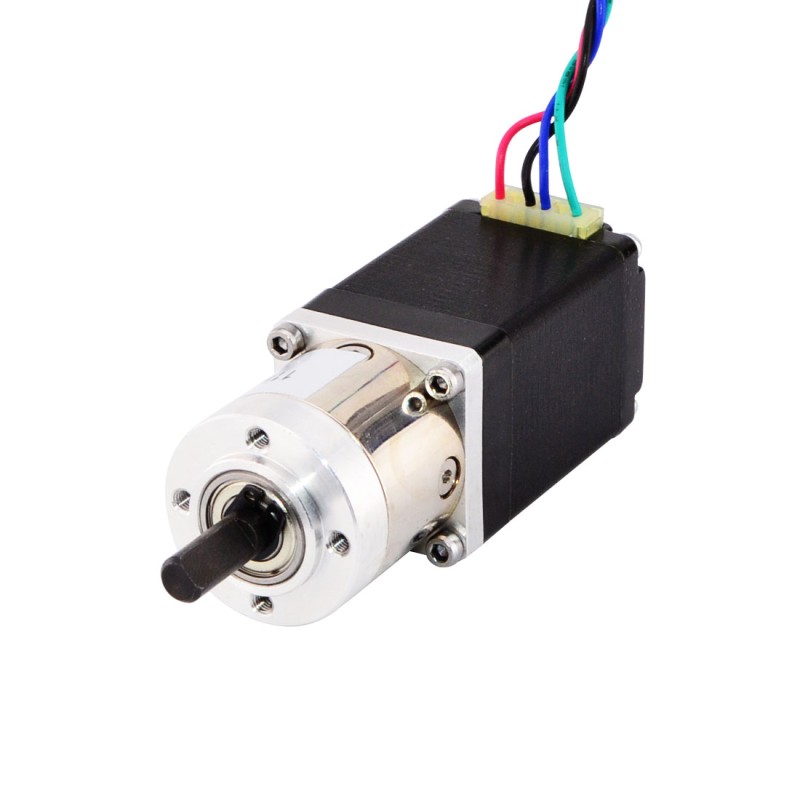

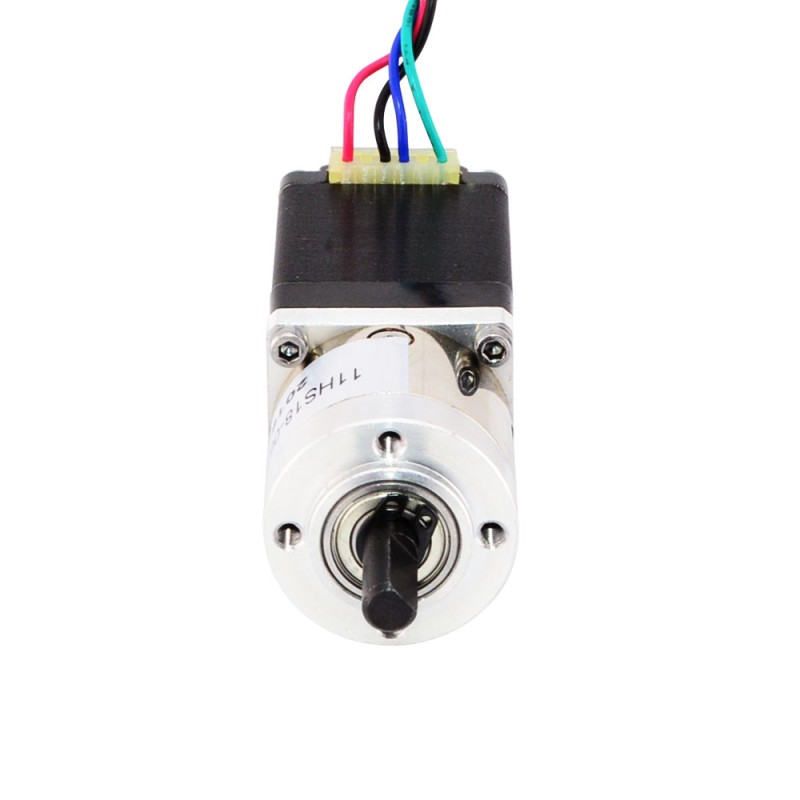

This Nema 11 stepper motor with 45mm body and 0.67A rated current, integrated a planetary gearbox of 5.18:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.


Electrical Specification

  • Manufacturer Part Number: 11HS18-0674S-PG5
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.35deg
  • Holding Torque without Gearbox: 10Ncm(14.16oz.in)
  • Rated Current/phase: 0.67A
  • Phase Resistance: 6.8ohms
  • Inductance: 4.8mH ± 20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 5.18:1
  • Efficiency: 90%
  • Backlash at No-load: <=3deg
  • Max.Permissible Torque: 3Nm(425oz.in)
  • Moment Permissible Torque: 5Nm(708oz.in)
  • Shaft Maximum Axial Load: 5N
  • Shaft Maximum Radial Load: 25N

Physical Specifications

  • Frame Size: 28 x 28mm
  • Motor Length: 44.5mm
  • Gearbox Length: 29.2mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 18mm
  • D-cut Length: 12mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 184g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Physical Specification
Output Shaft Type D
Shaft Diameter(mm) 6
Shaft Length(mm) 18
No. of Lead 4
Lead Length(mm) 500
Weight(g) 400
Single Shaft/Dual Shaft Single Shaft
Frame Size(mm) Nema 11 (28 x 28)
Body Length(mm) 71.7
Gear Ratio 5.18
Gearbox Type Economy Planetary
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Bipolar/Unipolar Bipolar
Phase Resistance(ohms) 6.8
Current(A) 0.67
Inductance(mH) 4.8
Holding Torque w/o Gearbox(N.m) 0.1
Has Torque/Thrust Curve? No
Product Type
Product Type Geared Stepper Motor
