Short Shaft Nema 11 Closed Loop Stepper Motor 0.14Nm(19.83oz.in) Encoder 1000PPR(4000CPR)

Short Shaft Nema 11 Closed Loop Stepper Motor 0.14Nm(19.83oz.in) Encoder 1000PPR(4000CPR)

0 reviews • Write a review

from

$68.68

10 or more $62.78

100 or more $57.80

Model: 11HS20-1004D-E1000-EGS
Weight: 0.29kg

Available Options

Ships From

China

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Looking to custom design this motor?

Request a Quote or Ask a Question

Your Name

Your Email

Quantity to Quote

Your questions or requirements

Captcha

Enter the code in the box below

Custom Design Options

You can select from the customization options listed below.

Motor Shaft

Length, Keyway, Flattened, Diameter...

Cable

Length, Connector, Terminal...

Body

Body Dimensions, Mounting Holes...

Performance

Current/Torque, Step Angle...

Optional Accessories

Encoder, Brake

Labeling

No Label / Custom Label, Laser Marking...

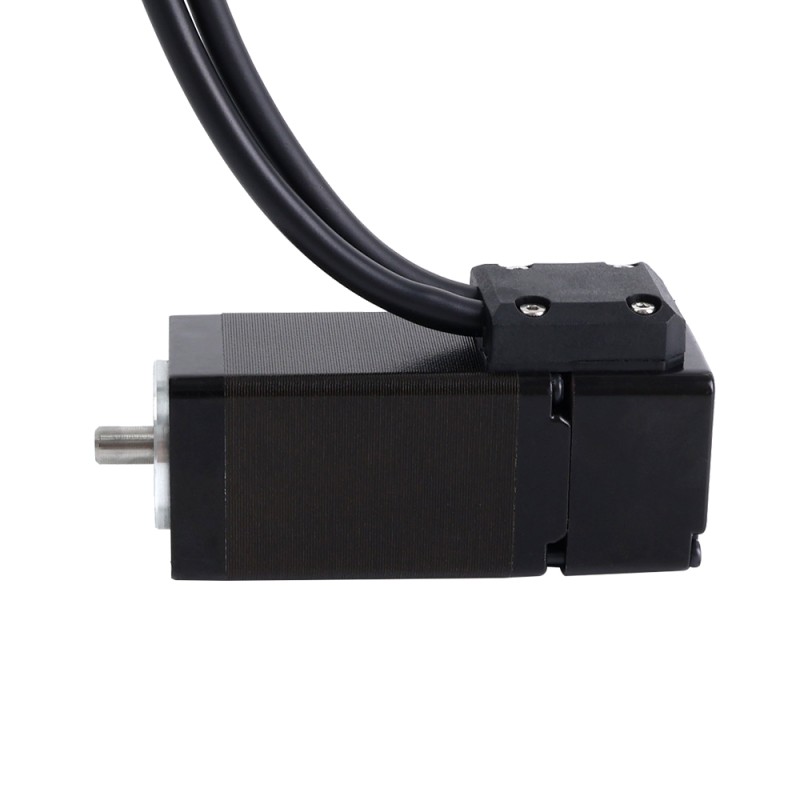

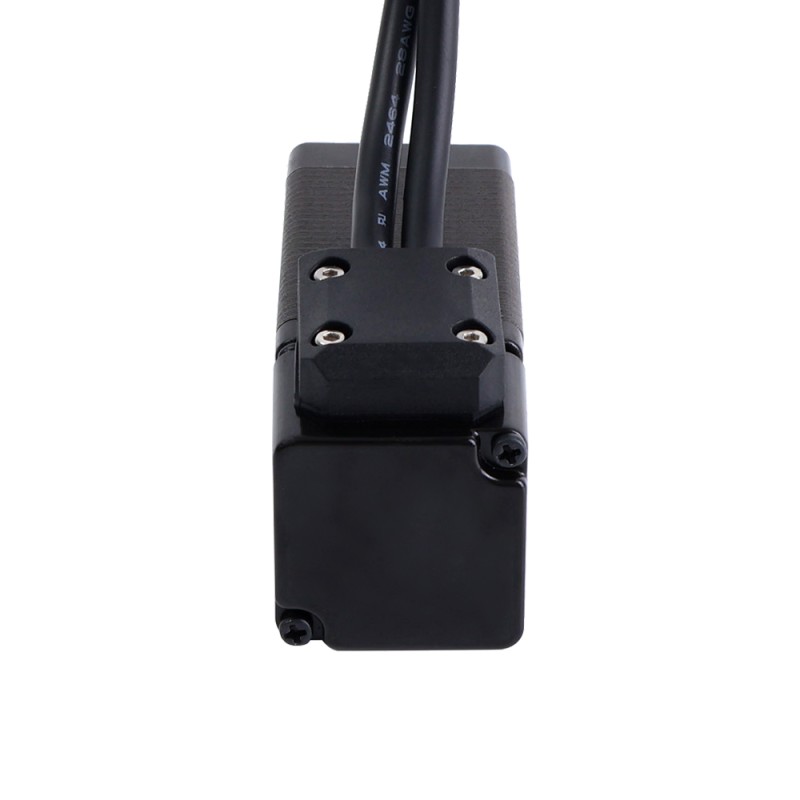

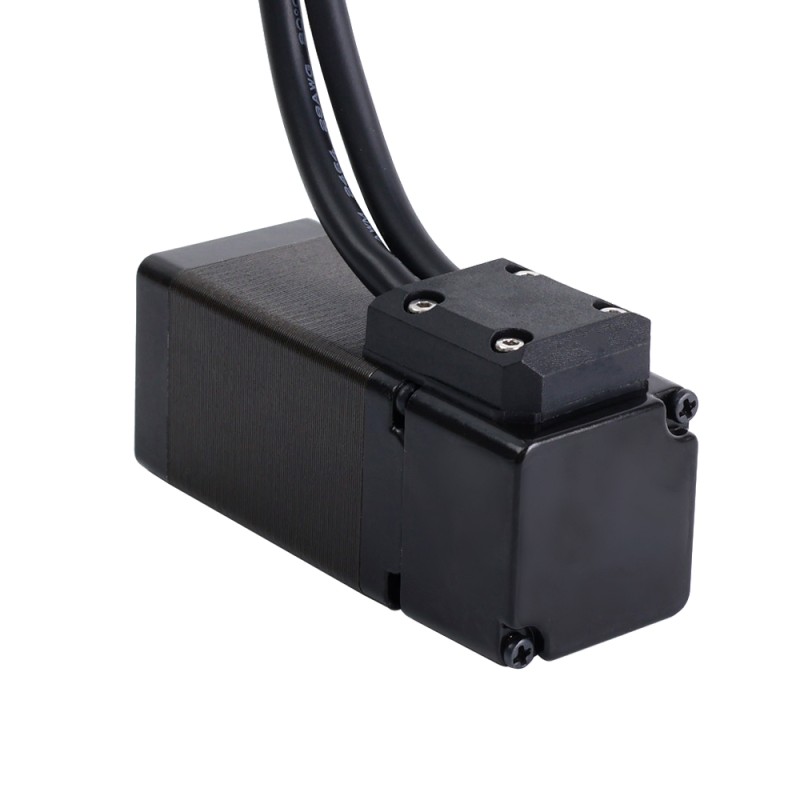

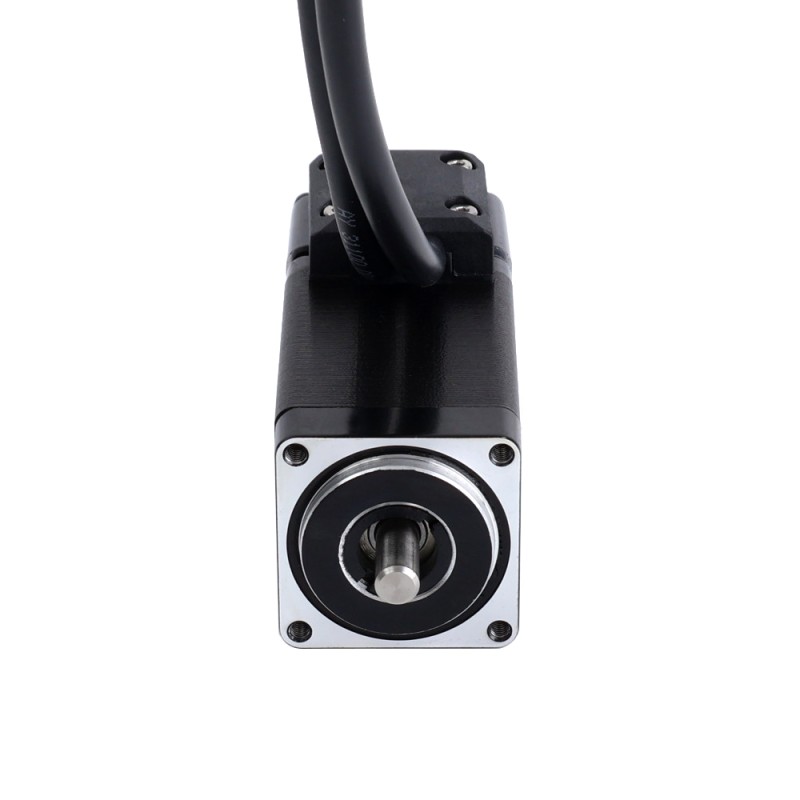

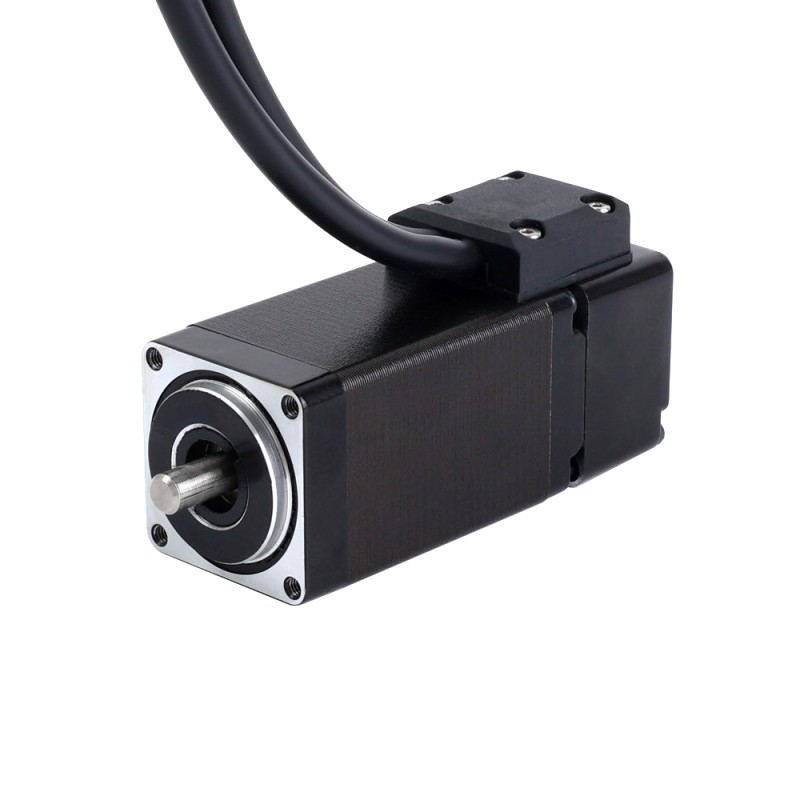

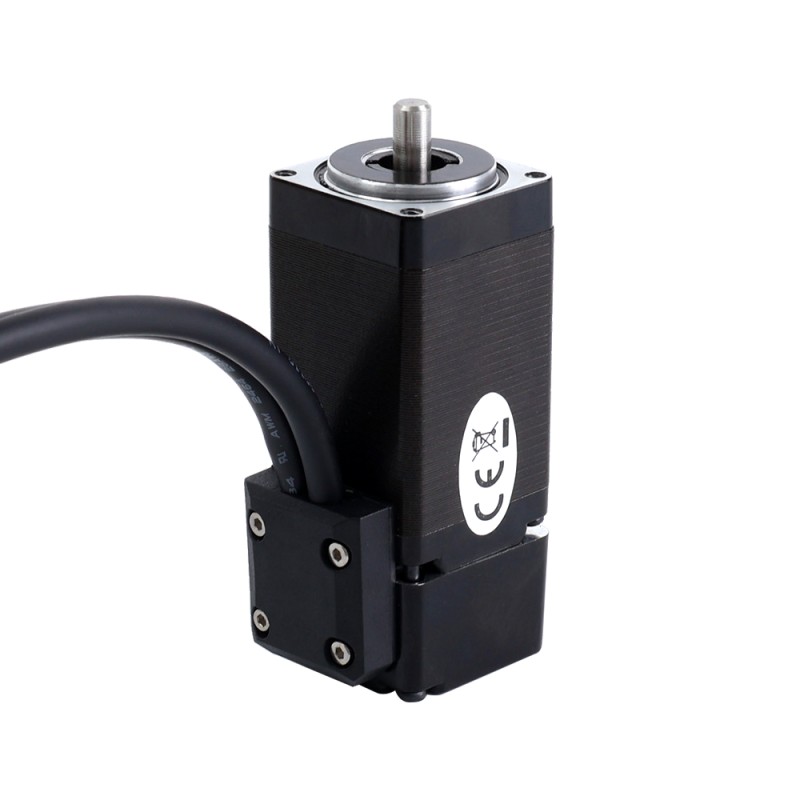

This is a Nema 11 closed-loop stepper motor with a 1000ppr(4000cpr) incremental optical encoder rated at 1.0A, a 10mm shaft length, and a holding torque of 0.14Nm(19.83oz.in). Compared with open-loop stepper motors, it has higher precision, higher torque, less motor heat, lower power consumption, and better response to external factors.

Electrical Specification

Manufacturer Part Number: 11HS20-1004D-E1000-EGS
Number of Phase: 2
Step Angle: 1.8deg
Holding Torque: 0.14Nm(19.83oz.in)
Rated Current/Phase: 1.0A
Phase Resistance: 3.5ohms ± 10%
Inductance: 3.2mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 28 x 28mm
Body Length: 69mm
Shaft Diameter: Φ5mm
Shaft Length: 10mm
Lead Length: 300mm
Weight: 0.228kg

Encoder Specification

Output Circuit Type: Differential Type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 3 Channels
Supply Voltage Min: 4.5V
Supply Voltage Max: 5.5V
High Level Output Voltage: 2.4V - Vcc
Low Level Output Voltage: ≤ 0.4V

Connection

Pin	1	2	3	4
Motor	A+	A-	B+	B-
Color	Black	Green	Red	Blue

Encoder	EA+	VCC	GND	EB+	EB-	EA-	EZ+	EZ-
Color	White	Red	Black	Orange	Gray	Yellow	Green	Blue

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Physical Specification
Shaft Diameter(mm)	5
Shaft Length(mm)	10
Weight(g)	228
Frame Size(mm)	Nema 11 (28 x 28)
Body Length(mm)	69
Inventory Method	Dedicated Inventory
IP Rating	40
Electrical Specification
Encoder Resolution	1000PPR
Output Signal Channels	3
Holding Torque(Ncm)	14
Rated Current(A)	1.0
Holding Torque(oz.in)	19.83
Phase Resistance(ohms)	3.5
Inductance(mH)	3.2
Output Circuit Type	Differential
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	No
Product Type
Product Type	Closed Loop Stepper Motor
