Short Shaft Nema 11 Closed Loop Stepper Motor 0.06Nm(8.5oz.in) Encoder 1000PPR(4000CPR)

Short Shaft Nema 11 Closed Loop Stepper Motor 0.06Nm(8.5oz.in) Encoder 1000PPR(4000CPR)
Short Shaft Nema 11 Closed Loop Stepper Motor 0.06Nm(8.5oz.in) Encoder 1000PPR(4000CPR)
Short Shaft Nema 11 Closed Loop Stepper Motor 0.06Nm(8.5oz.in) Encoder 1000PPR(4000CPR)
Short Shaft Nema 11 Closed Loop Stepper Motor 0.06Nm(8.5oz.in) Encoder 1000PPR(4000CPR)
Short Shaft Nema 11 Closed Loop Stepper Motor 0.06Nm(8.5oz.in) Encoder 1000PPR(4000CPR)
Short Shaft Nema 11 Closed Loop Stepper Motor 0.06Nm(8.5oz.in) Encoder 1000PPR(4000CPR)
Short Shaft Nema 11 Closed Loop Stepper Motor 0.06Nm(8.5oz.in) Encoder 1000PPR(4000CPR)
Short Shaft Nema 11 Closed Loop Stepper Motor 0.06Nm(8.5oz.in) Encoder 1000PPR(4000CPR)
Short Shaft Nema 11 Closed Loop Stepper Motor 0.06Nm(8.5oz.in) Encoder 1000PPR(4000CPR)
Short Shaft Nema 11 Closed Loop Stepper Motor 0.06Nm(8.5oz.in) Encoder 1000PPR(4000CPR)
Short Shaft Nema 11 Closed Loop Stepper Motor 0.06Nm(8.5oz.in) Encoder 1000PPR(4000CPR)
Short Shaft Nema 11 Closed Loop Stepper Motor 0.06Nm(8.5oz.in) Encoder 1000PPR(4000CPR)
Short Shaft Nema 11 Closed Loop Stepper Motor 0.06Nm(8.5oz.in) Encoder 1000PPR(4000CPR)
0 reviews • Write a review
from
$64.65
10 or more $59.09
100 or more $54.41
  • Model: 11HS12-1004D-E1000-EGS
  • Weight: 0.18kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Motor Shaft
Length, Keyway, Flattened, Diameter...
Cable
Length, Connector, Terminal...
Body
Body Dimensions, Mounting Holes...
Performance
Current/Torque, Step Angle...
Optional Accessories
Encoder, Brake
Labeling
No Label / Custom Label, Laser Marking...

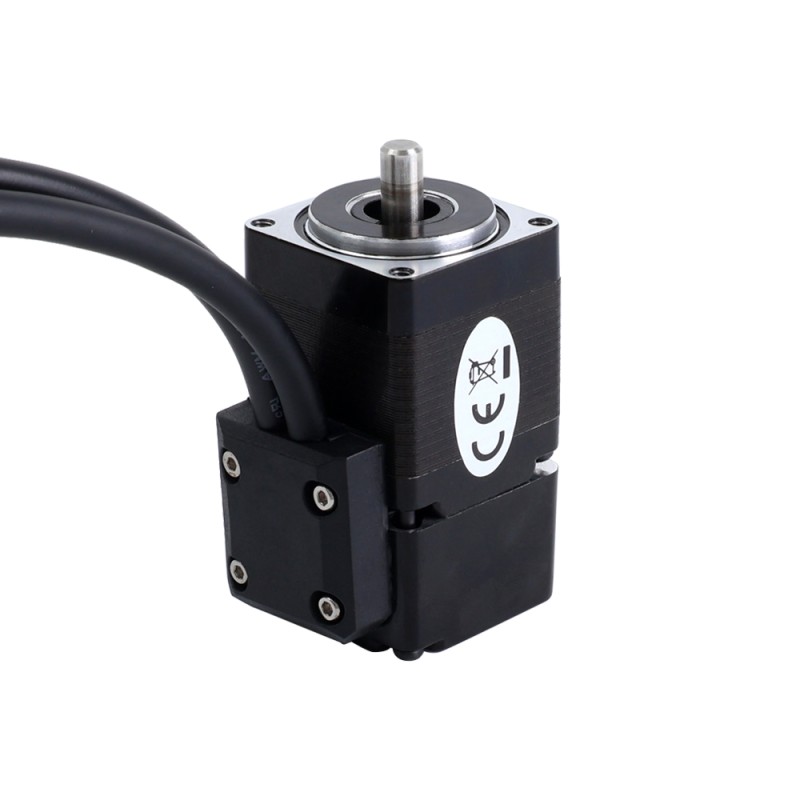

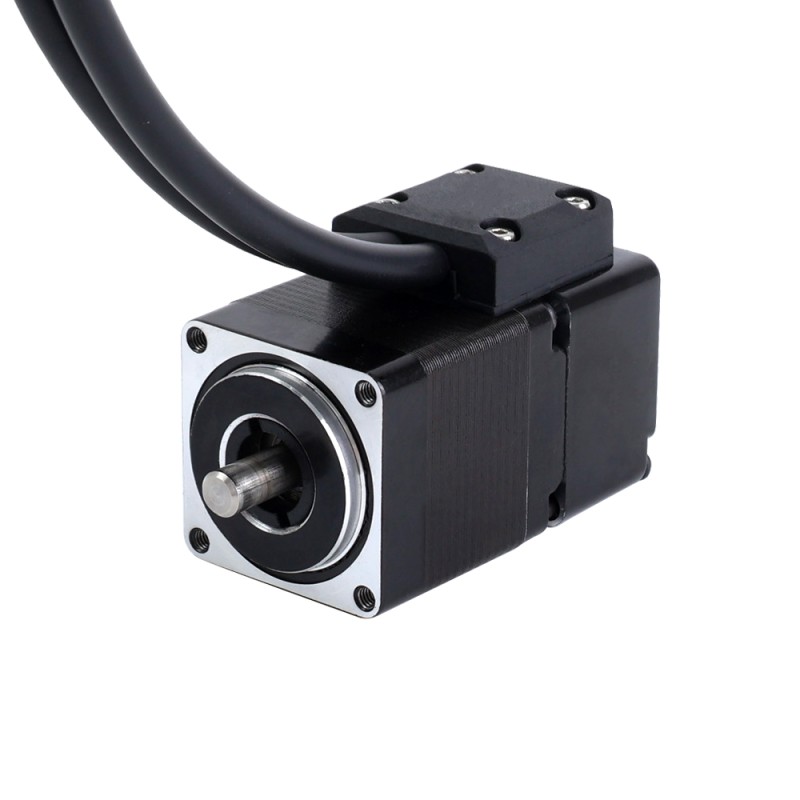

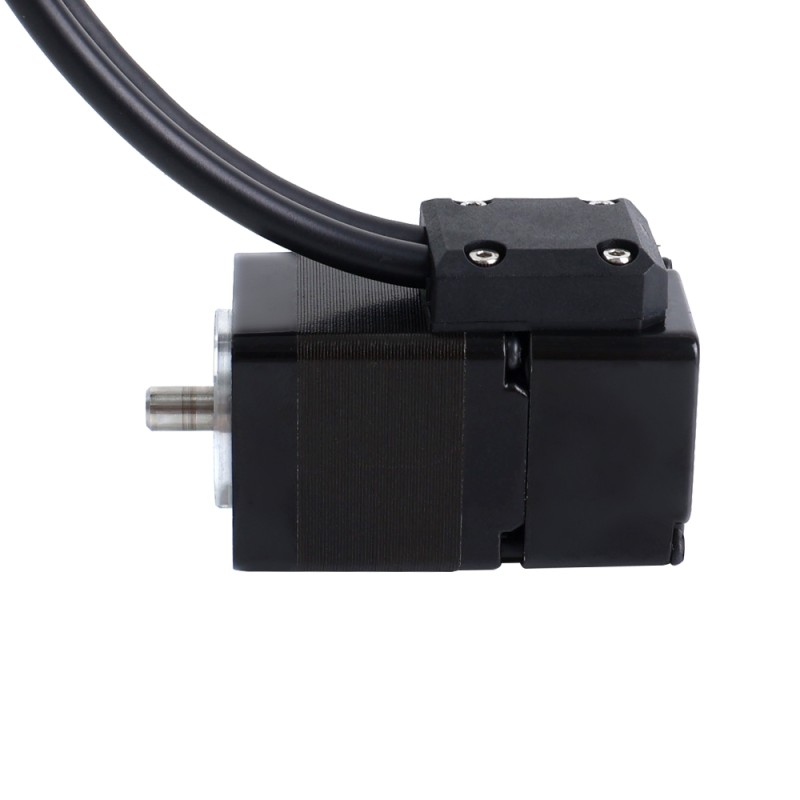

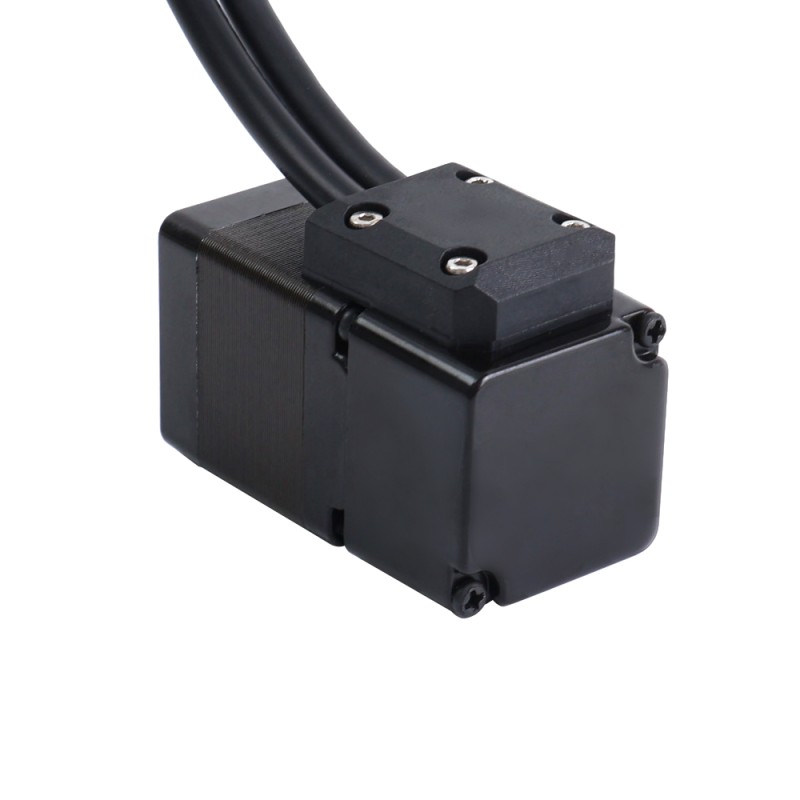

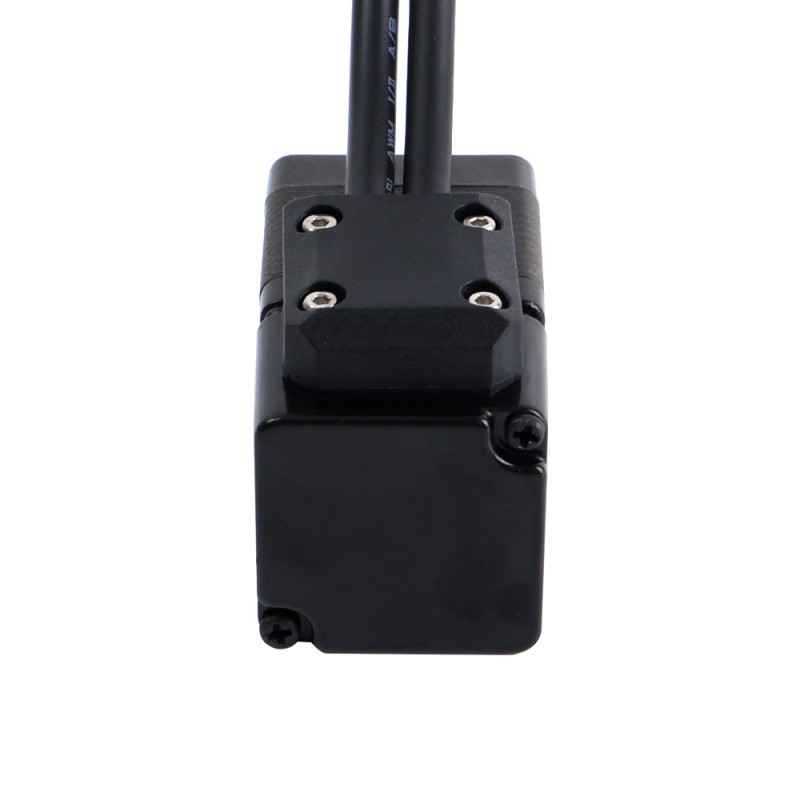

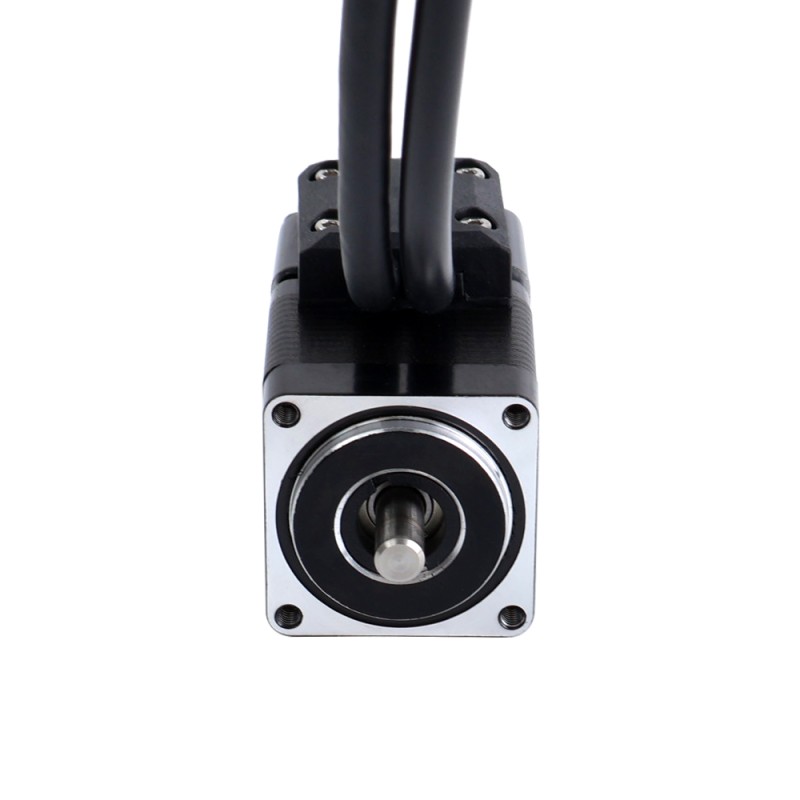

This is a Nema 11 closed-loop stepper motor with a 1000ppr(4000cpr) incremental optical encoder rated at 1.0A, a 10mm shaft length, and a holding torque of 0.06Nm(8.5oz.in). Compared with open-loop stepper motors, it has higher precision, higher torque, less motor heat, lower power consumption, and better response to external factors.

Electrical Specification

  • Manufacturer Part Number: 11HS12-1004D-E1000-EGS
  • Number of Phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 0.06Nm(8.5oz.in)
  • Rated Current/Phase: 1.0A
  • Phase Resistance: 2.0ohms ± 10%
  • Inductance: 1.5mH ± 20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 28 x 28mm
  • Body Length: 50mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 10mm
  • Lead Length: 300mm
  • Weight: 0.14kg

Encoder Specification

  • Output Circuit Type: Differential Type
  • Encoder Type: Optical Incremental
  • Encoder Resolution: 1000PPR(4000CPR)
  • Output Signal Channels: 3 Channels
  • Supply Voltage Min: 4.5V
  • Supply Voltage Max: 5.5V
  • High Level Output Voltage: 2.4V - Vcc
  • Low Level Output Voltage: ≤ 0.4V

Connection

Pin
1
2
3
4
Motor
A+
A-
B+
B-
Color
Black
Green
Red
Blue

Encoder
EA+
VCC
GND
EB+
EB-
EA-
EZ+
EZ-
Color
White
Red
Black
Orange
Gray
Yellow
Green
Blue
The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Physical Specification
Shaft Diameter(mm) 5
Shaft Length(mm) 10
Weight(g) 140
Frame Size(mm) Nema 11 (28 x 28)
Body Length(mm) 50
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Encoder Resolution 1000PPR
Output Signal Channels 3
Holding Torque(Ncm) 6
Rated Current(A) 1.0
Holding Torque(oz.in) 8.5
Phase Resistance(ohms) 2
Inductance(mH) 1.5
Output Circuit Type Differential
Encoder Type Optical Incremental
Has Torque/Thrust Curve? No
Product Type
Product Type Closed Loop Stepper Motor
