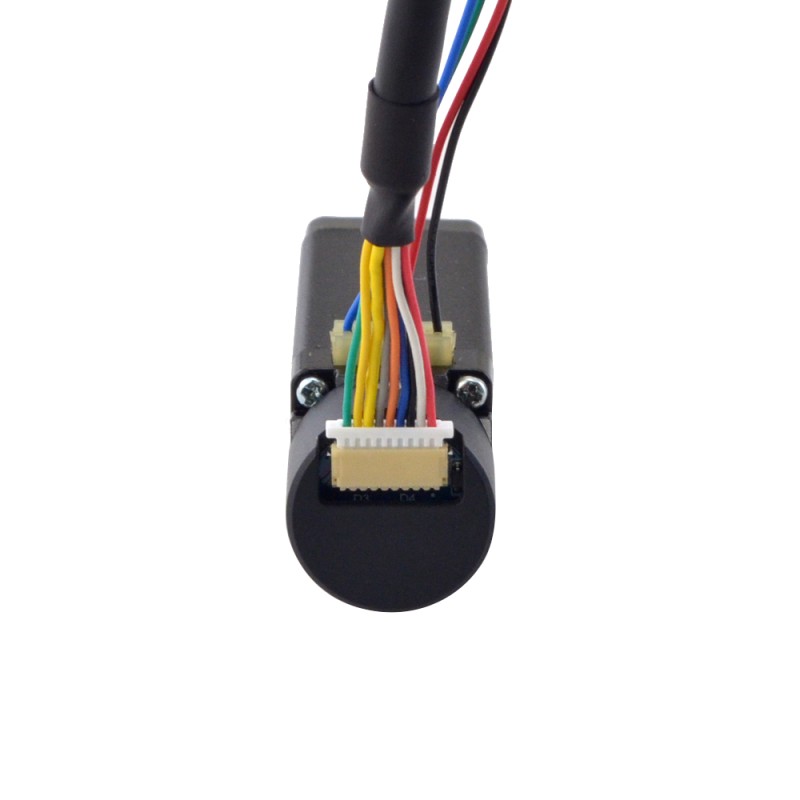

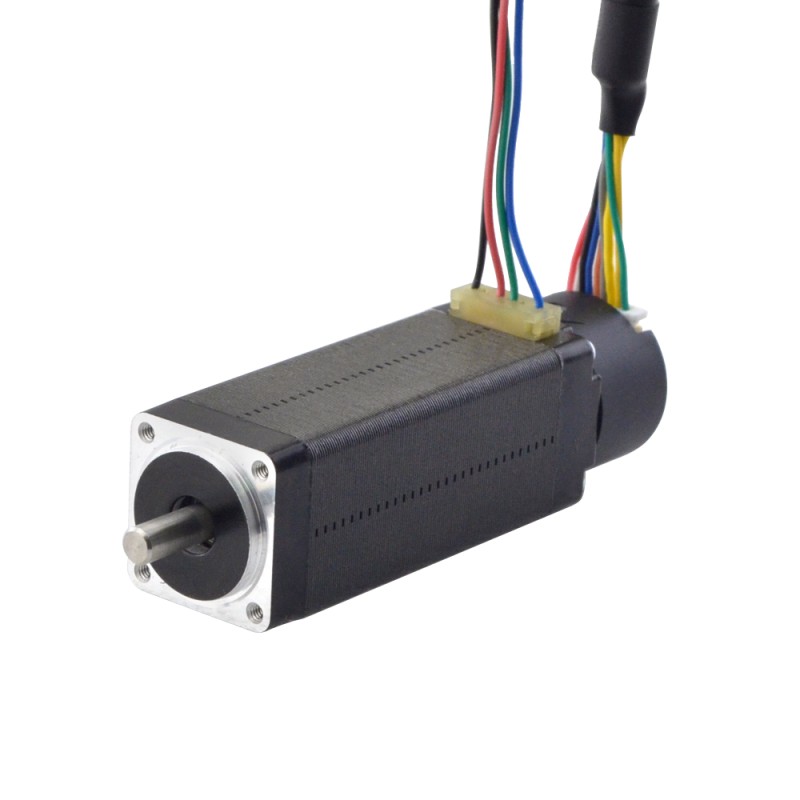

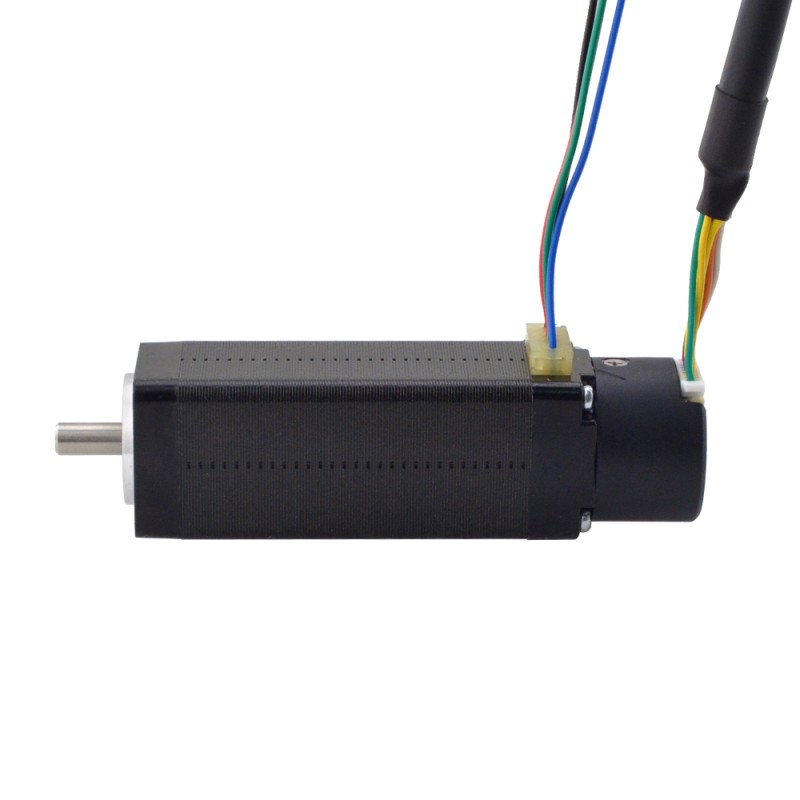

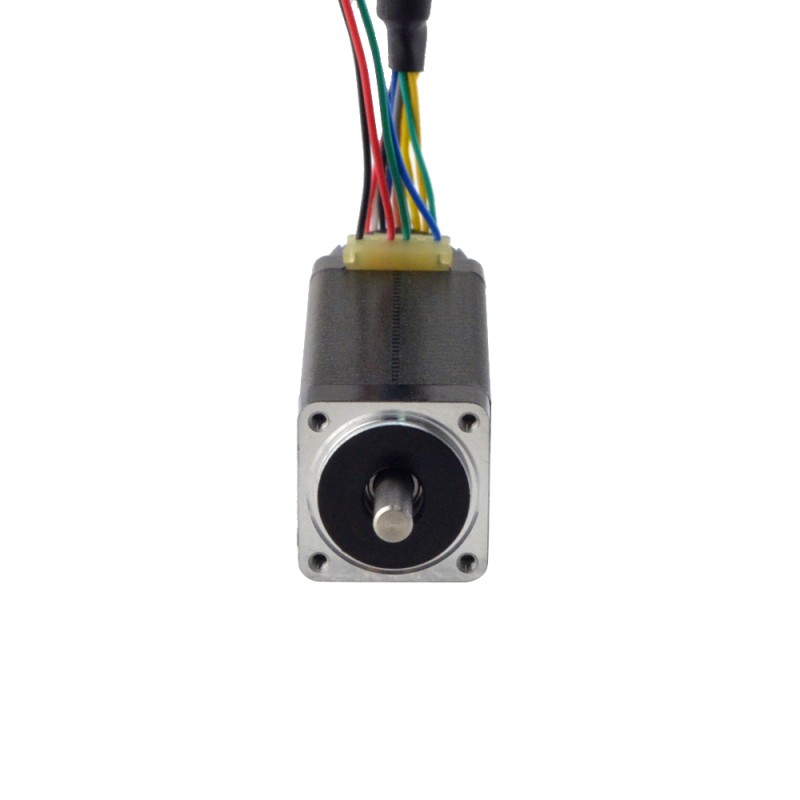

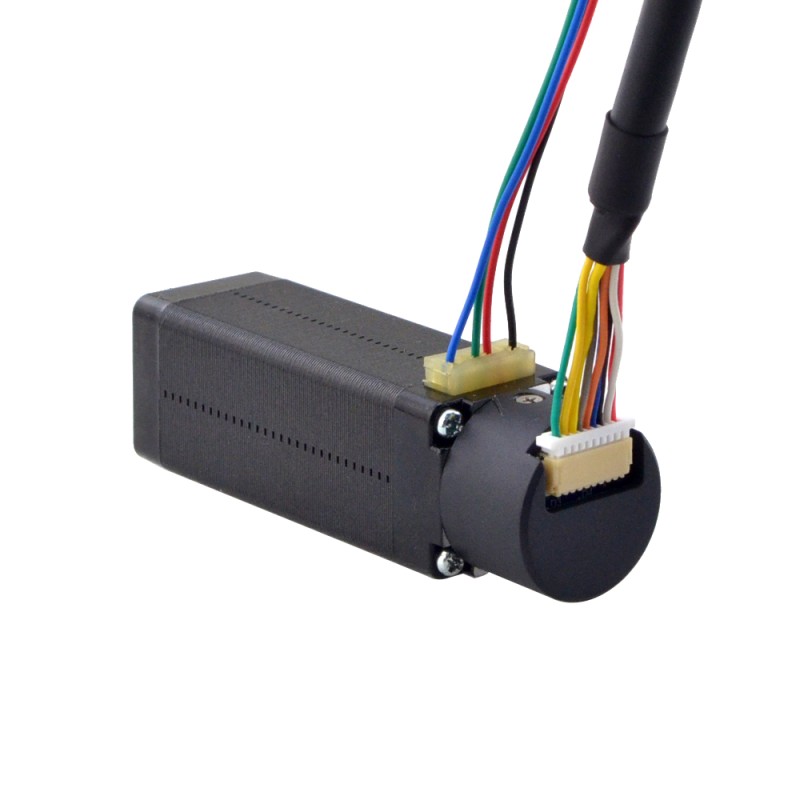

Nema 8 Closed Loop Stepper Motor 0.054Nm(7.65oz.in) Encoder 1000PPR(4000CPR)

Nema 8 Closed Loop Stepper Motor 0.054Nm(7.65oz.in) Encoder 1000PPR(4000CPR)
Nema 8 Closed Loop Stepper Motor 0.054Nm(7.65oz.in) Encoder 1000PPR(4000CPR)
Nema 8 Closed Loop Stepper Motor 0.054Nm(7.65oz.in) Encoder 1000PPR(4000CPR)
Nema 8 Closed Loop Stepper Motor 0.054Nm(7.65oz.in) Encoder 1000PPR(4000CPR)
Nema 8 Closed Loop Stepper Motor 0.054Nm(7.65oz.in) Encoder 1000PPR(4000CPR)
Nema 8 Closed Loop Stepper Motor 0.054Nm(7.65oz.in) Encoder 1000PPR(4000CPR)
Nema 8 Closed Loop Stepper Motor 0.054Nm(7.65oz.in) Encoder 1000PPR(4000CPR)
Nema 8 Closed Loop Stepper Motor 0.054Nm(7.65oz.in) Encoder 1000PPR(4000CPR)
Nema 8 Closed Loop Stepper Motor 0.054Nm(7.65oz.in) Encoder 1000PPR(4000CPR)
Nema 8 Closed Loop Stepper Motor 0.054Nm(7.65oz.in) Encoder 1000PPR(4000CPR)
Nema 8 Closed Loop Stepper Motor 0.054Nm(7.65oz.in) Encoder 1000PPR(4000CPR)
0 reviews • Write a review
from
$78.78
10 or more $72.01
100 or more $66.30
  • Model: 8HS22-0804D-E1000
  • Weight: 0.18kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Motor Shaft
Length, Keyway, Flattened, Diameter...
Cable
Length, Connector, Terminal...
Body
Body Dimensions, Mounting Holes...
Performance
Current/Torque, Step Angle...
Optional Accessories
Encoder, Brake
Labeling
No Label / Custom Label, Laser Marking...

Electrical Specification

  • Manufacturer Part Number: 8HS22-0804D-E1000
  • Number of phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 0.054Nm(7.65oz.in)
  • Rated Current/phase: 0.8A
  • Phase Resistance: 8.5ohms± 10%
  • Inductance: 4.4mH ± 20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 20 x 20mm
  • Body Length: 68mm
  • Shaft Diameter: Φ4mm
  • Shaft Length: 10mm
  • Lead Length: 300mm
  • Weight:123g

Encoder Specification

  • Output Circuit Type: Differential type
  • Encoder Type: Optical Incremental
  • Encoder Resolution: 1000PPR(4000CPR)
  • Output Signal Channels: 3 channels
  • Supply Voltage Min: 4.5V
  • Supply Voltage Max: 5.5V
  • Output Current: 100mA MAX
  • Output High Voltage: ≥Vcc-0.4V
  • Output Low Voltage: ≤0.4V
  • Output Frequency Max: 1.85HZ

Connection

PIN
1
2
3
4
Motor
A+
A-
B+
B-

PIN
1
2
3
4
5
6
7
8
9
Encoder
EA+
VCC
GND
NC
NC
EB+
EB-
EA-
NC
Physical Specification
Shaft Diameter(mm) 4
Shaft Length(mm) 10
Frame Size(mm) Nema 08 (20 x 20)
Body Length(mm) 68
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Encoder Resolution 1000PPR
Output Signal Channels 3
Holding Torque(Ncm) 5.4
Rated Current(A) 0.8
Holding Torque(oz.in) 7.65
Phase Resistance(ohms) 8.5
Inductance(mH) 4.4
Output Circuit Type Differential
Encoder Type Optical Incremental
Has Torque/Thrust Curve? Yes
Product Type
Product Type Closed Loop Stepper Motor
