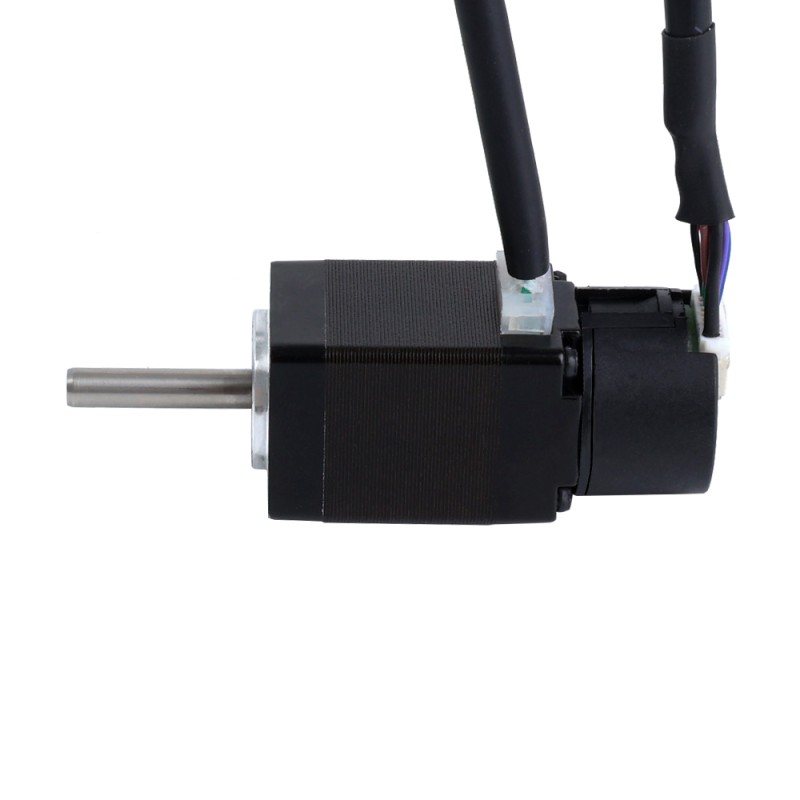

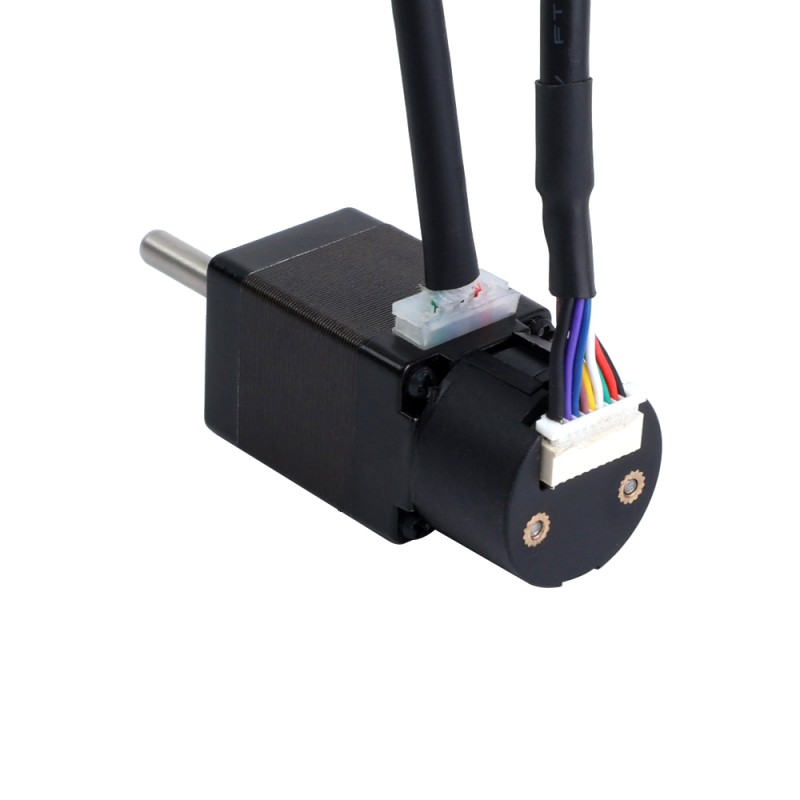

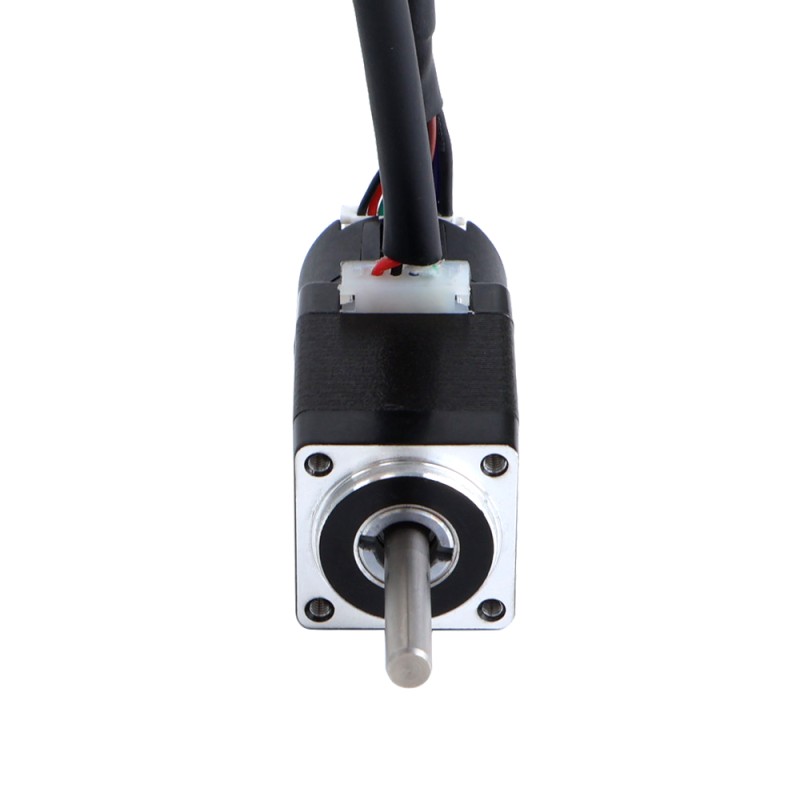

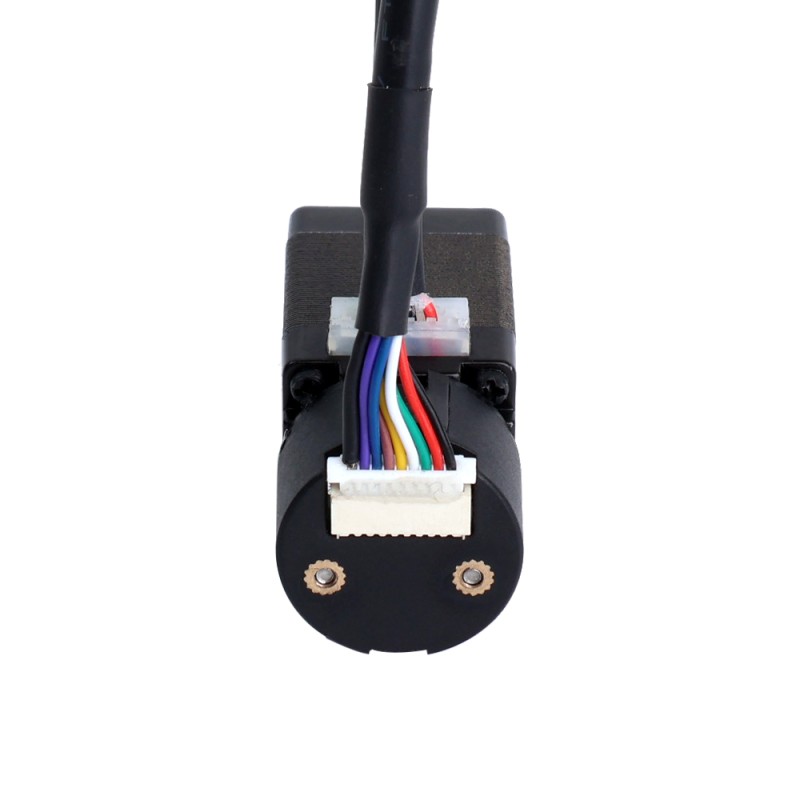

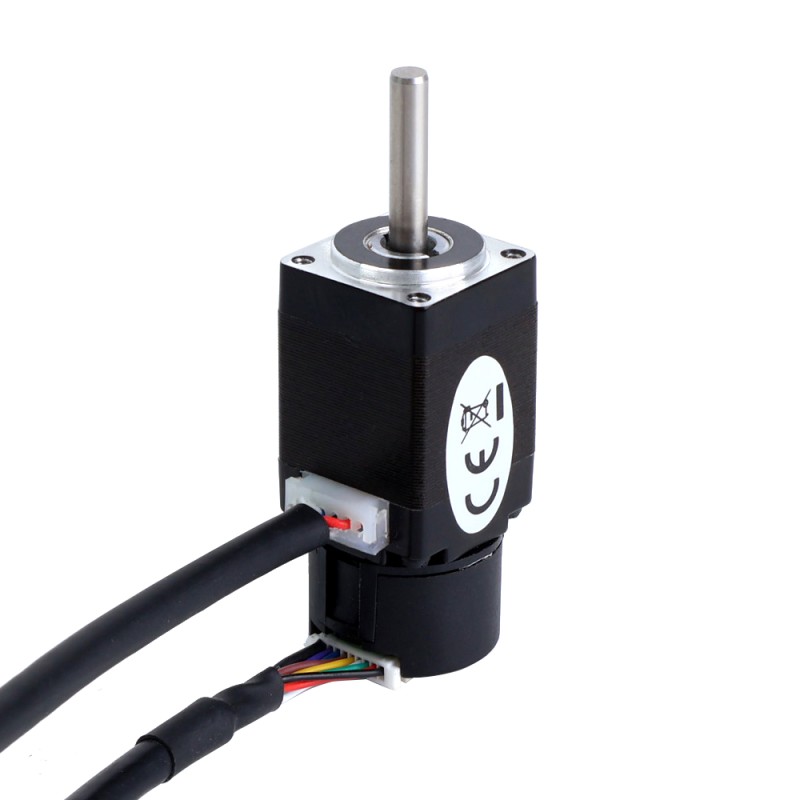

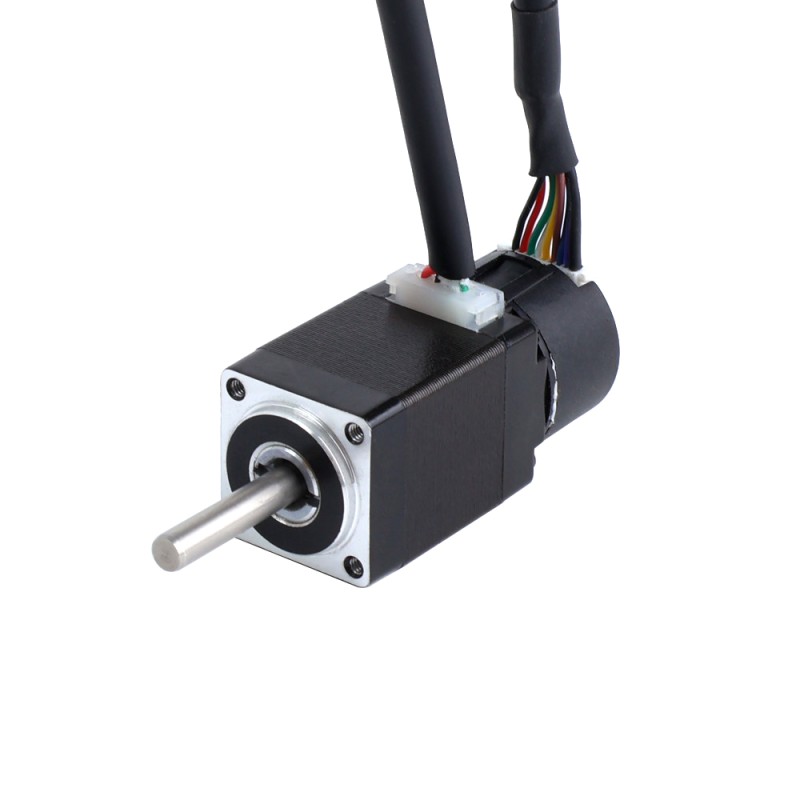

Nema 8 Closed Loop Stepper Motor 0.015Nm(2.12oz.in) Encoder 1000PPR(4000CPR)

This is a Nema 8 closed loop stepper motor, equipped with an 1000ppr(4000cpr) incremental optical encoder, has a rated current of 0.6A and a holding torque of 0.015Nm(2.12oz.in). It offers improved accuracy, higher torque, reduced motor heating, lower power consumption, and better response to external factors compared to open loop stepper motors.

Electrical Specification

• Manufacturer Part Number: 8HS12-0604D-E1000
• Number of phase: 2
• Step Angle: 1.8deg
• Holding Torque: 0.015Nm(2.12oz.in)
• Rated Current/Phase: 0.6A
• Phase Resistance: 6.2ohms ± 10%
• Inductance: 1.6mH ± 20%(1KHz)
• Insulation Class: B 130°C[266°F]

Physical Specification

• Frame Size: 20 x 20mm
• Body Length: 44mm
• Shaft Diameter: Φ4mm
• Shaft Length: 20mm
• Lead Length: 500mm
• Weight: 0.08kg

Encoder Specification

• Output Circuit Type: Differential Type
• Encoder Type: Optical Incremental
• Encoder Resolution: 1000PPR(4000CPR)
• Output Signal Channels: 3 Channels
• Supply Voltage Min: 4.5V
• Supply Voltage Max: 5.5V
• High Level Output Voltage: 2.4V - Vcc
• Low Level Output Voltage: ≤ 0.4V
